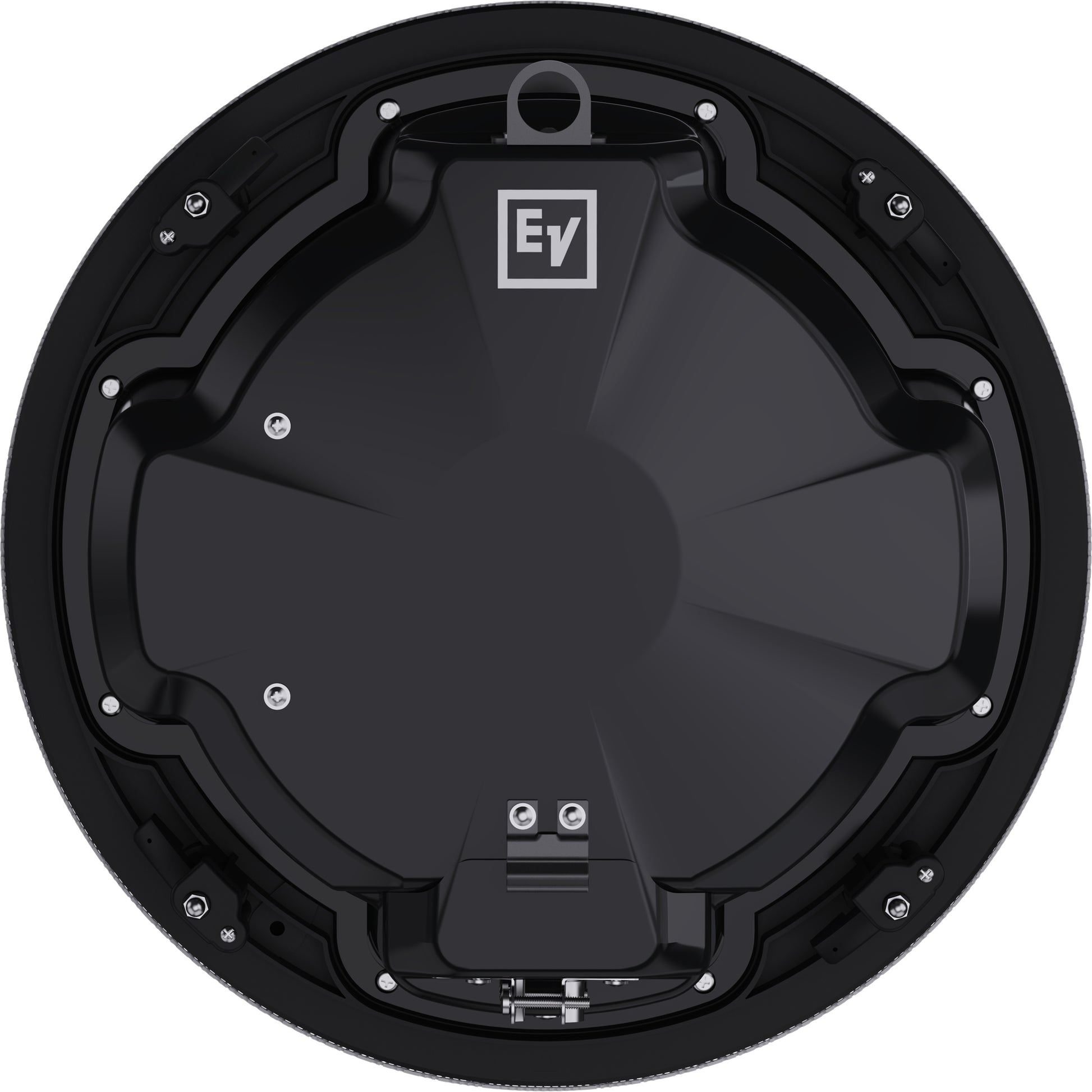

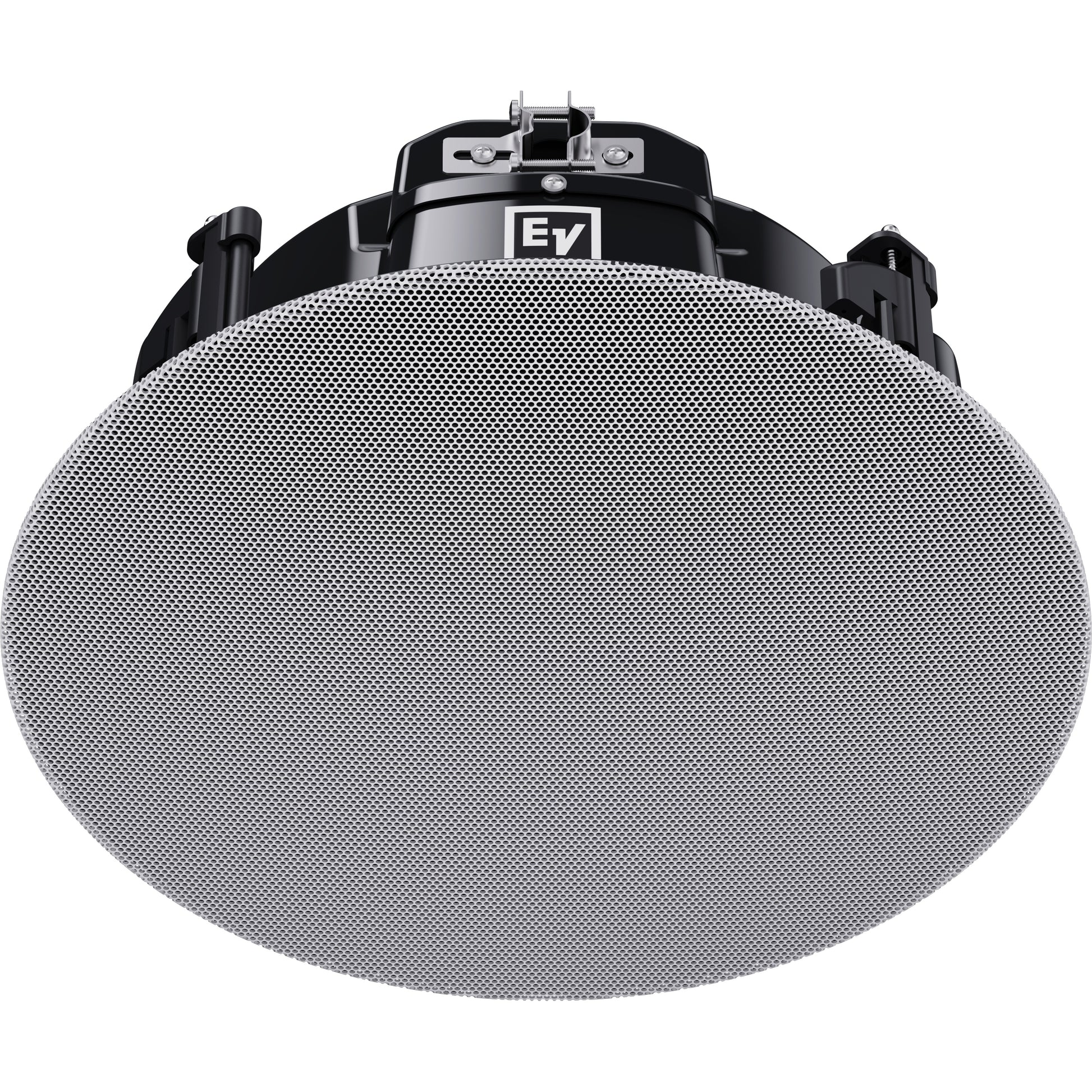

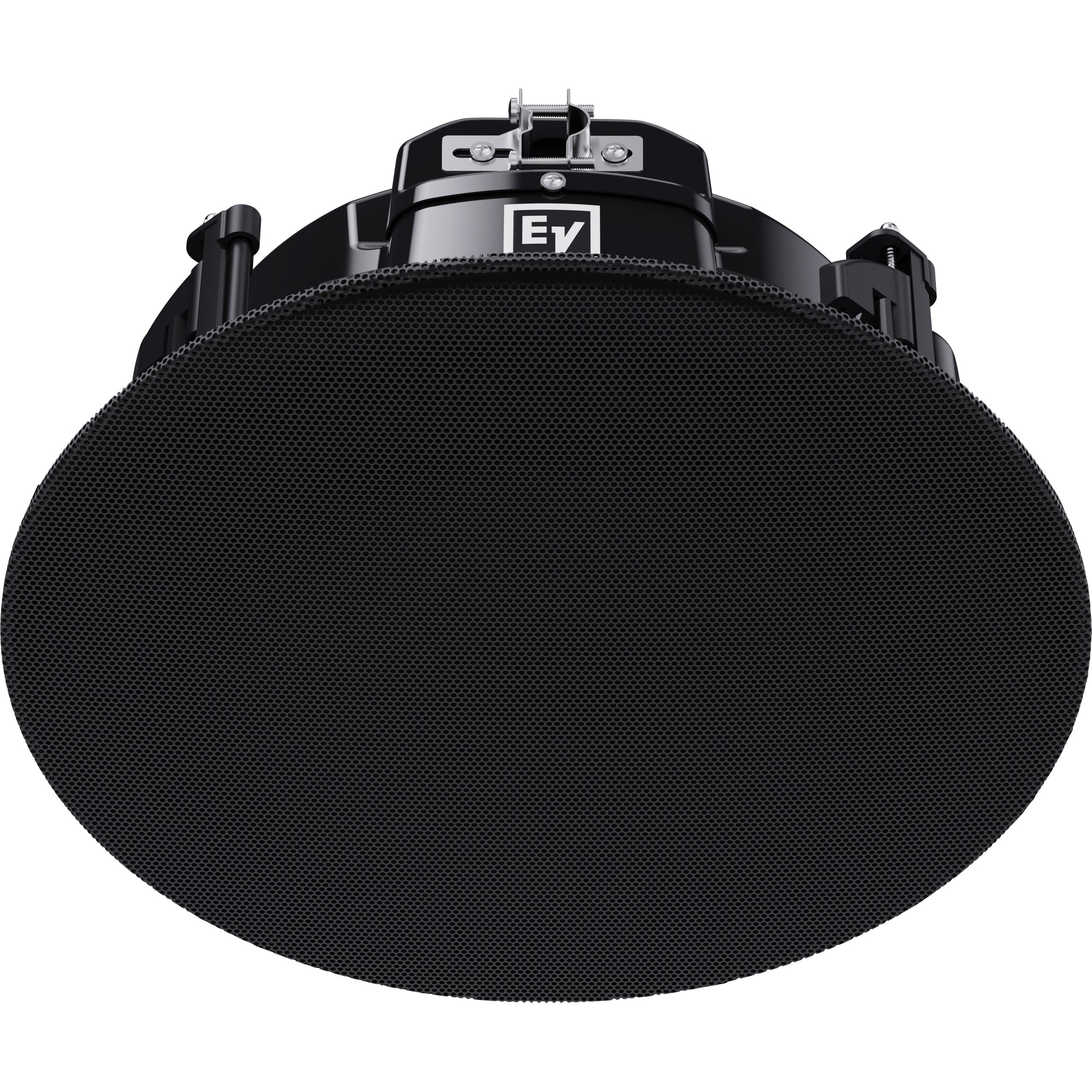

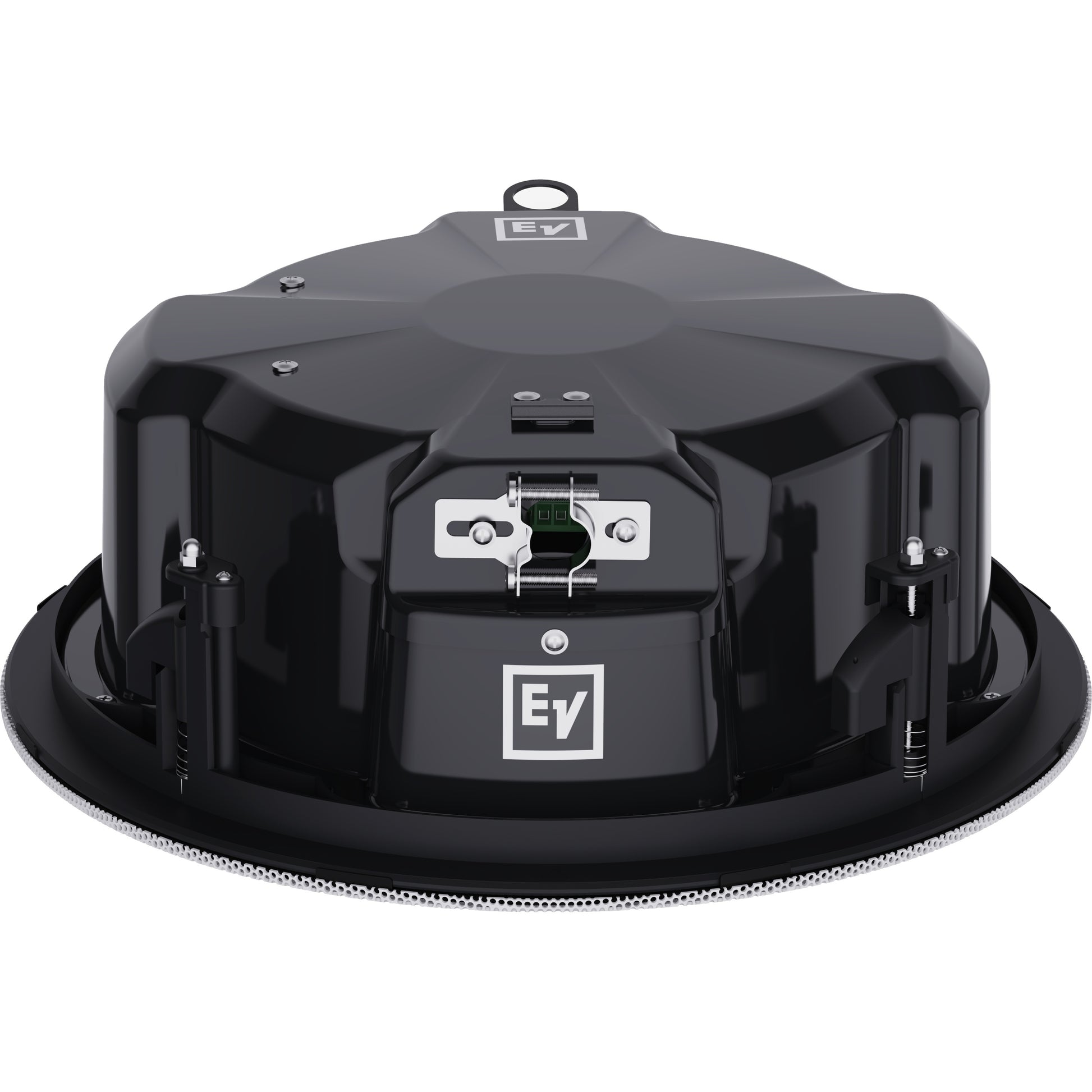

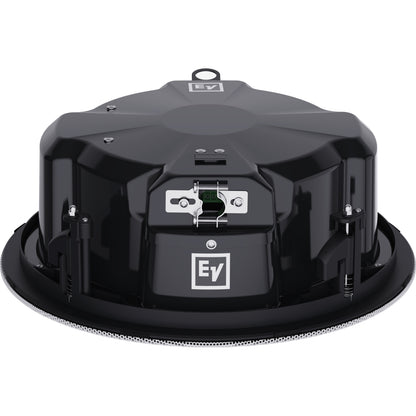

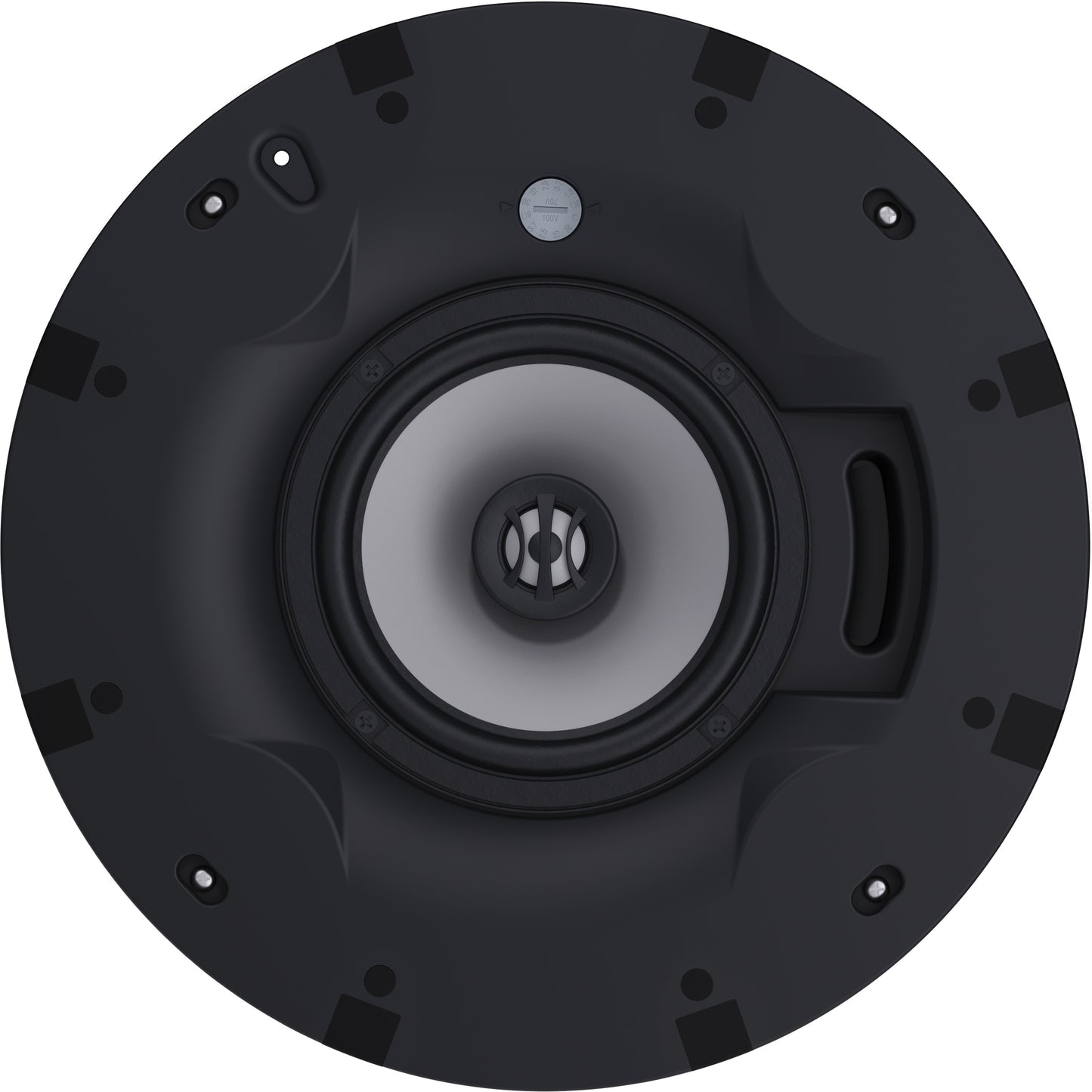

Electro-Voice EVID C6.2 6.5" Two-Way Coaxial Ceiling Speaker | Low-Profile

Electro-Voice EVID C6.2 6.5" Two-Way Coaxial Ceiling Speaker | Low-Profile

SoundPro Item: 151578 | Part Number: EVID-C6.2LP-G2

$279.00
$332.00 $279.00
Your Price Sold out
MSRP: $332.00 | MAP: $279.00

Usually ships in 5-7 business days

  • SwiftLock Quick-Mount Mechanism Eliminates Fasteners And Reduces Install Time

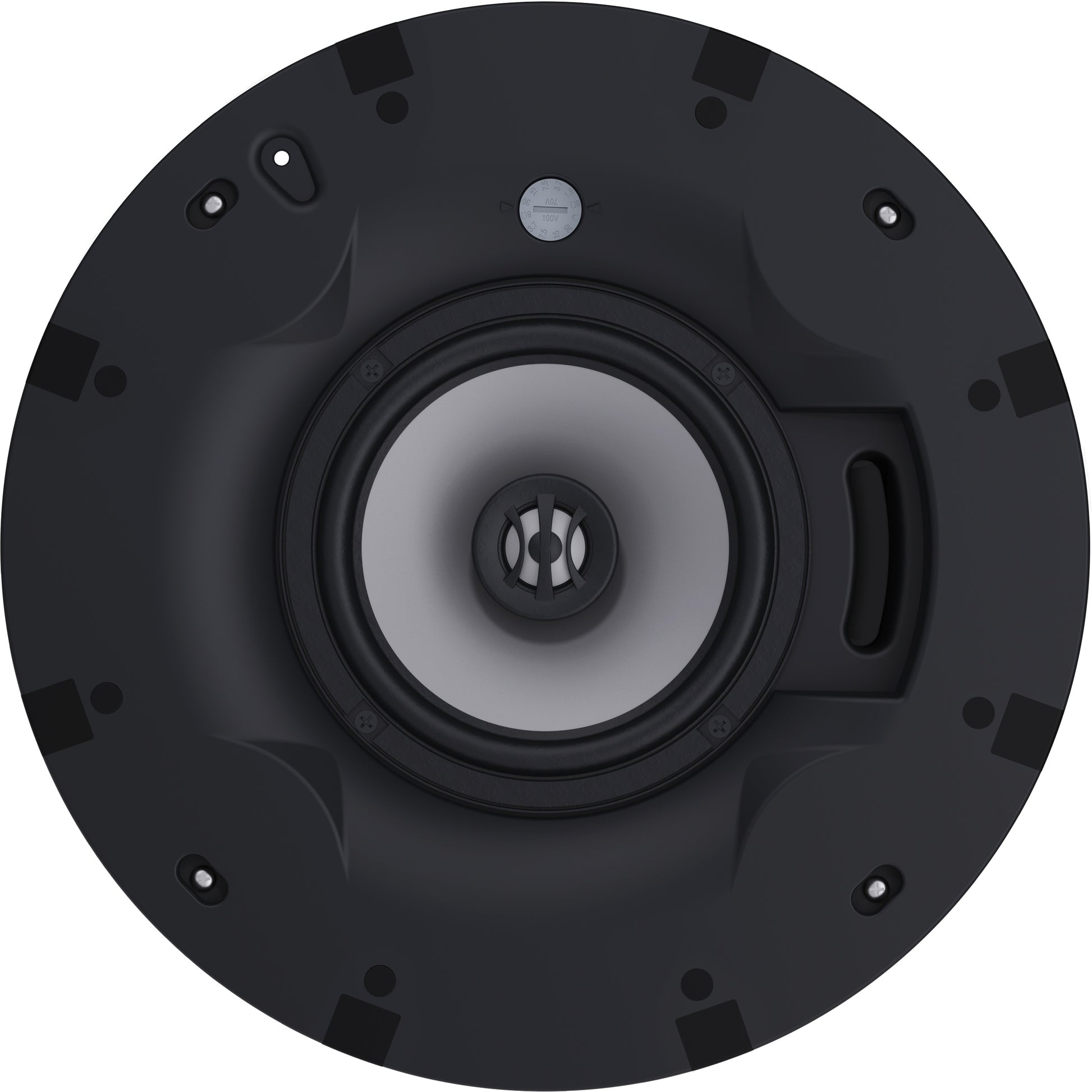

  • Front-Accessible Transformer Switch Enables Field Adjustment Without Ceiling Removal
  • Coaxial Driver Geometry Delivers Uniform Coverage Through 110-Degree Conical Pattern
  • UL 2043 Plenum Rating Permits Installation In Air-Handling Spaces
  • Euroblock Pass-Through Terminals Allow Daisy-Chaining Without Junction Boxes
  • IP34 Ingress Protection Resists Moisture In High-Humidity Commercial Environments
  • Tile Bridge And Mounting Ring Distribute Load Safely Across Drop Ceiling Grids
Log in or register for YOUR best price

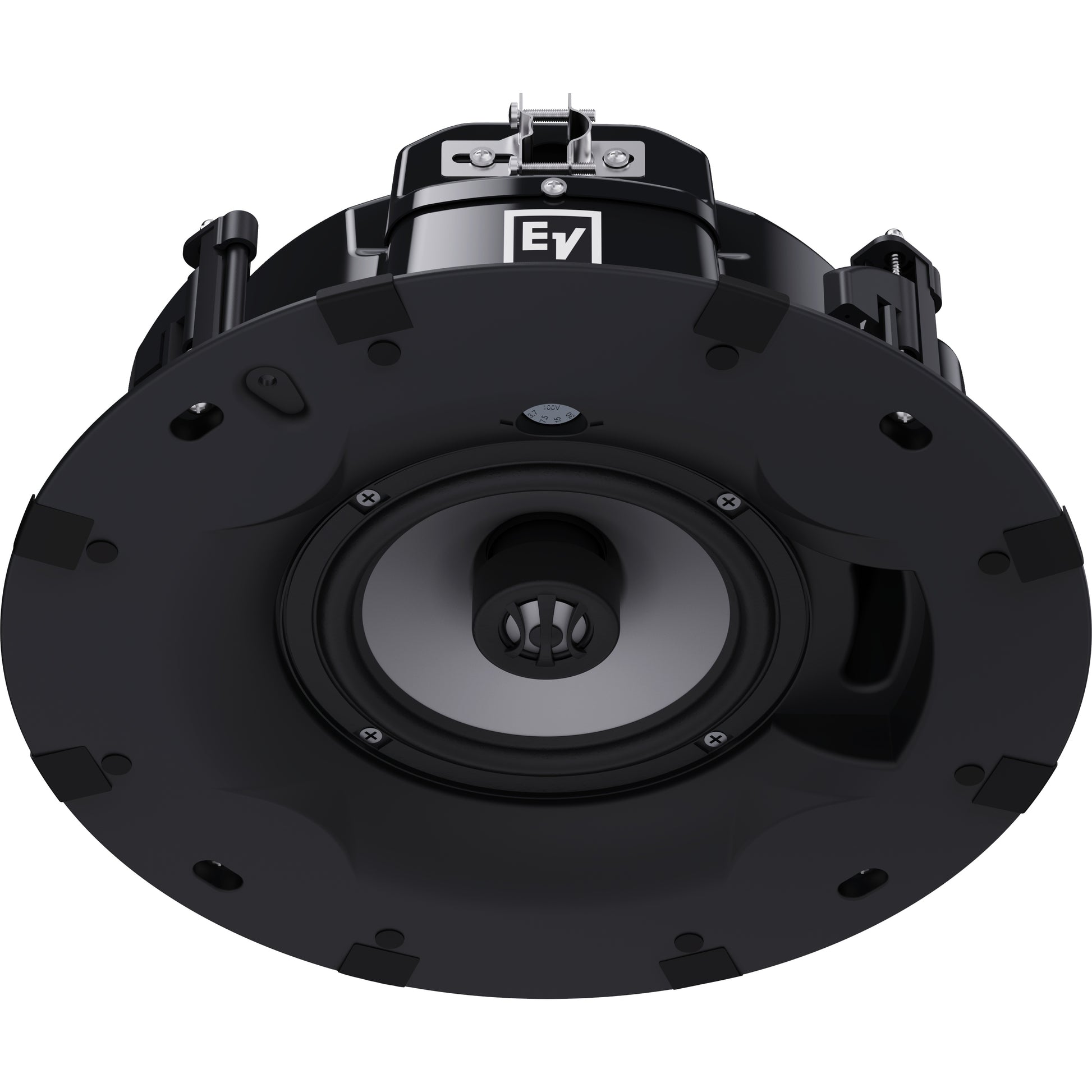

The EVID C6.2 Low-Profile serves commercial integrators who need professional-grade sound in applications where plenum depth is constrained to 5 inches or less. The point-source coaxial driver array maintains consistent off-axis response across a 110-degree coverage pattern, ensuring intelligibility throughout meeting rooms, retail spaces, and hospitality environments without hot spots or dead zones.

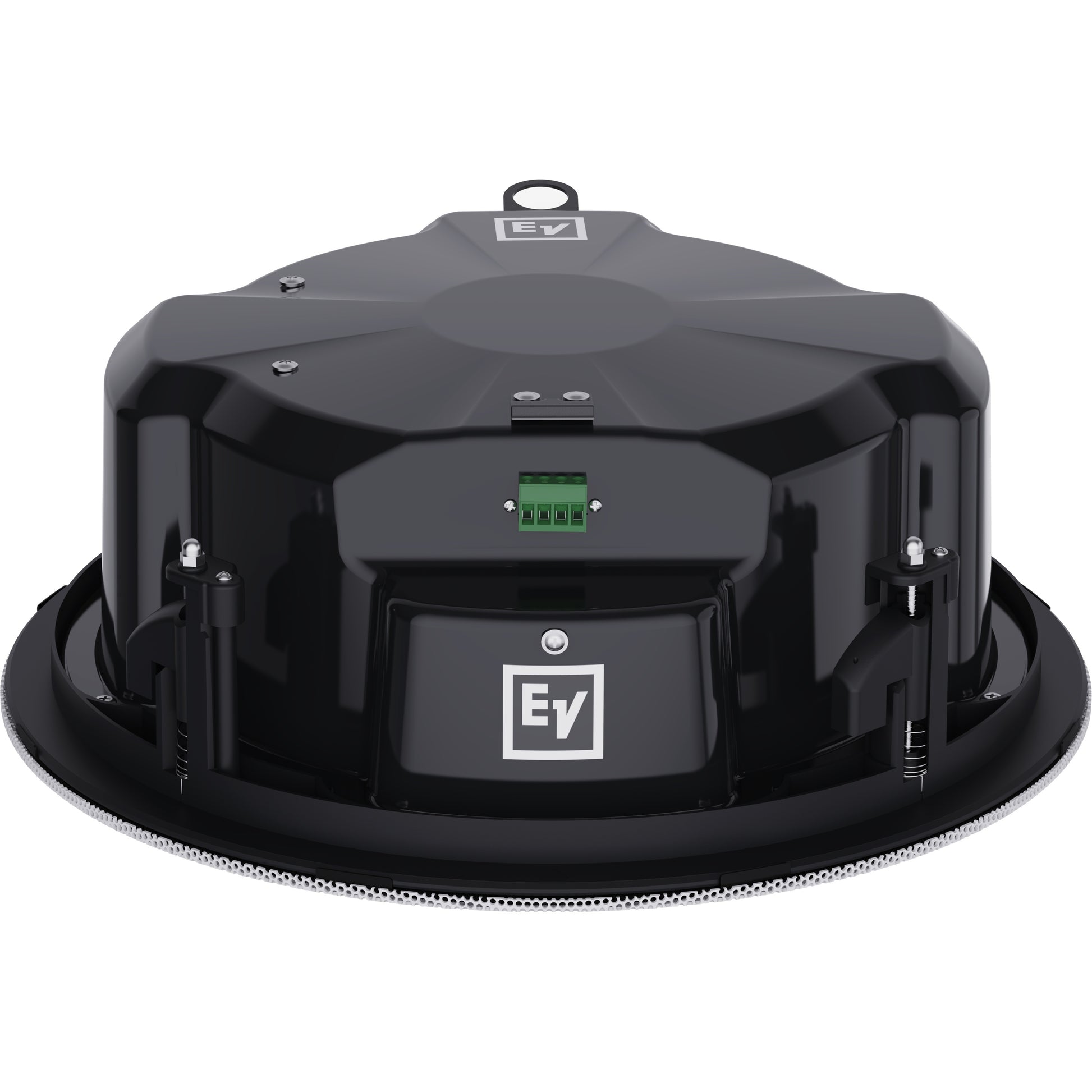

The front-baffle transformer switch provides installer flexibility at the point of deployment, allowing field selection of 1.9W through 30W taps on 70V or 100V distributed lines without removing the speaker from the ceiling. The four-pin Euroblock terminal includes pass-through connections to daisy-chain multiple units using 12 AWG wire, reducing labor and材料 costs on large-format installations. UL 1480A and UL 2043 air-handling space certification permits placement in HVAC plenums, while the IP34 ingress rating protects against moisture in high-humidity commercial zones.

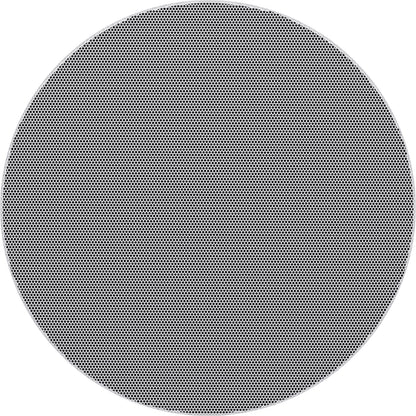

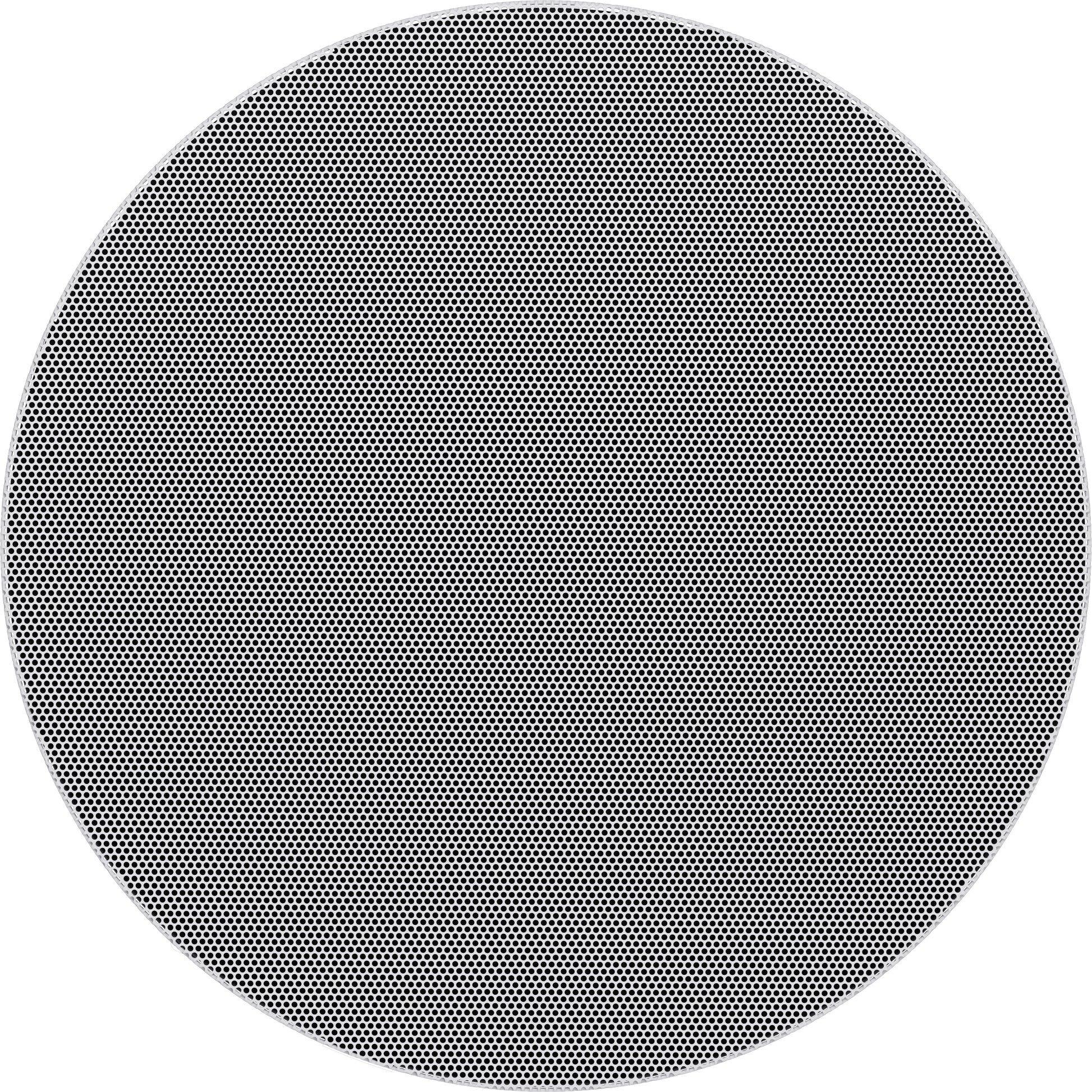

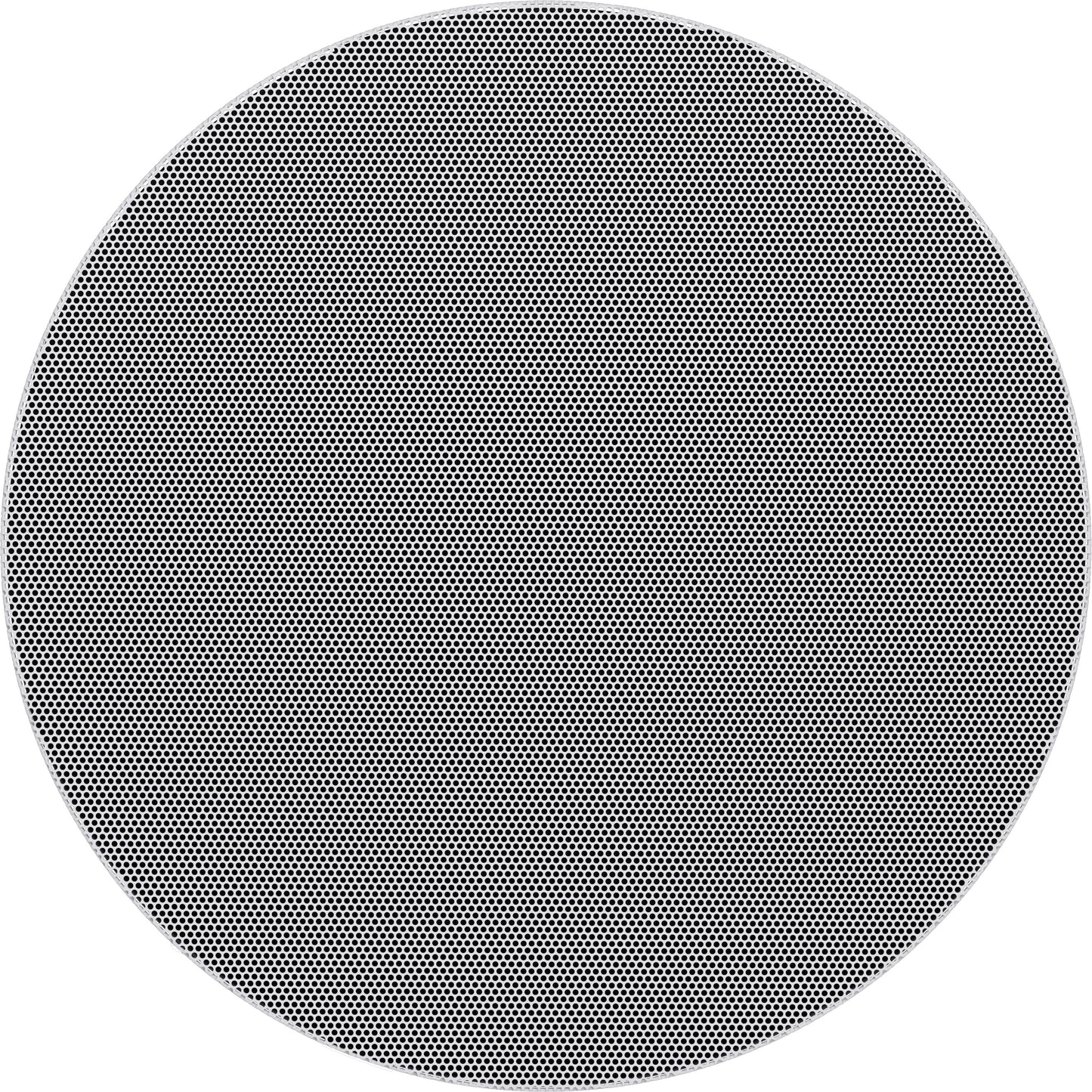

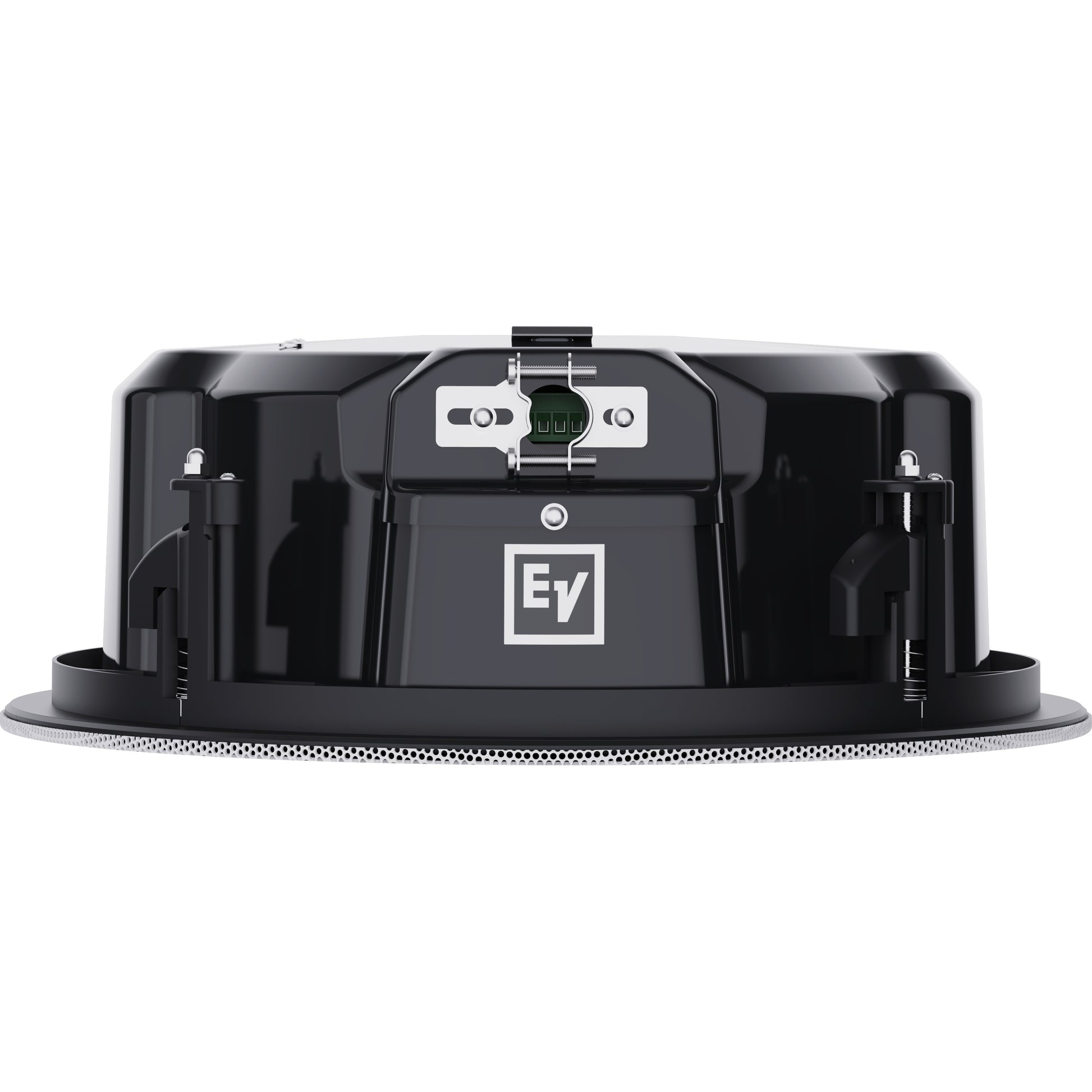

The SwiftLock mounting system compresses installation time by eliminating traditional C-ring or dog-ear brackets. The included tile bridge distributes load across fiber-based drop ceiling tiles, meeting safety requirements for suspended installations. The bezel-less grille design presents a low-visibility aesthetic appropriate for architectural specs that prioritize discretion over loudspeaker presence.

Downloads

View full details

Specifications

Audio
Frequency Range (-10 dB)
60 Hz – 20,000 Hz
Sensitivity (1 W @ 1 m)
90 dB SPL
Maximum SPL (Continuous)
109 dB
Maximum SPL (Peak)
115 dB
Coverage Angle (Conical)
110°
Recommended High Pass
60 Hz
LF Transducer Size
6 in
HF Transducer Size
1 in
Power
Power Handling (Continuous)
80 W
Power Handling (Peak)
320 W
Long Term Power Handling (Continuous)
70 W
Long Term Power Handling (Peak)
280 W
Nominal Impedance (Low Z)
8 Ω
Transformer Taps (70 V Line)
30 W; 15 W; 7.5 W; 3.75 W; 1.88 W
Transformer Taps (100 V Line)
30 W; 15 W; 7.5 W; 3.75 W
Connectivity
Connector Type

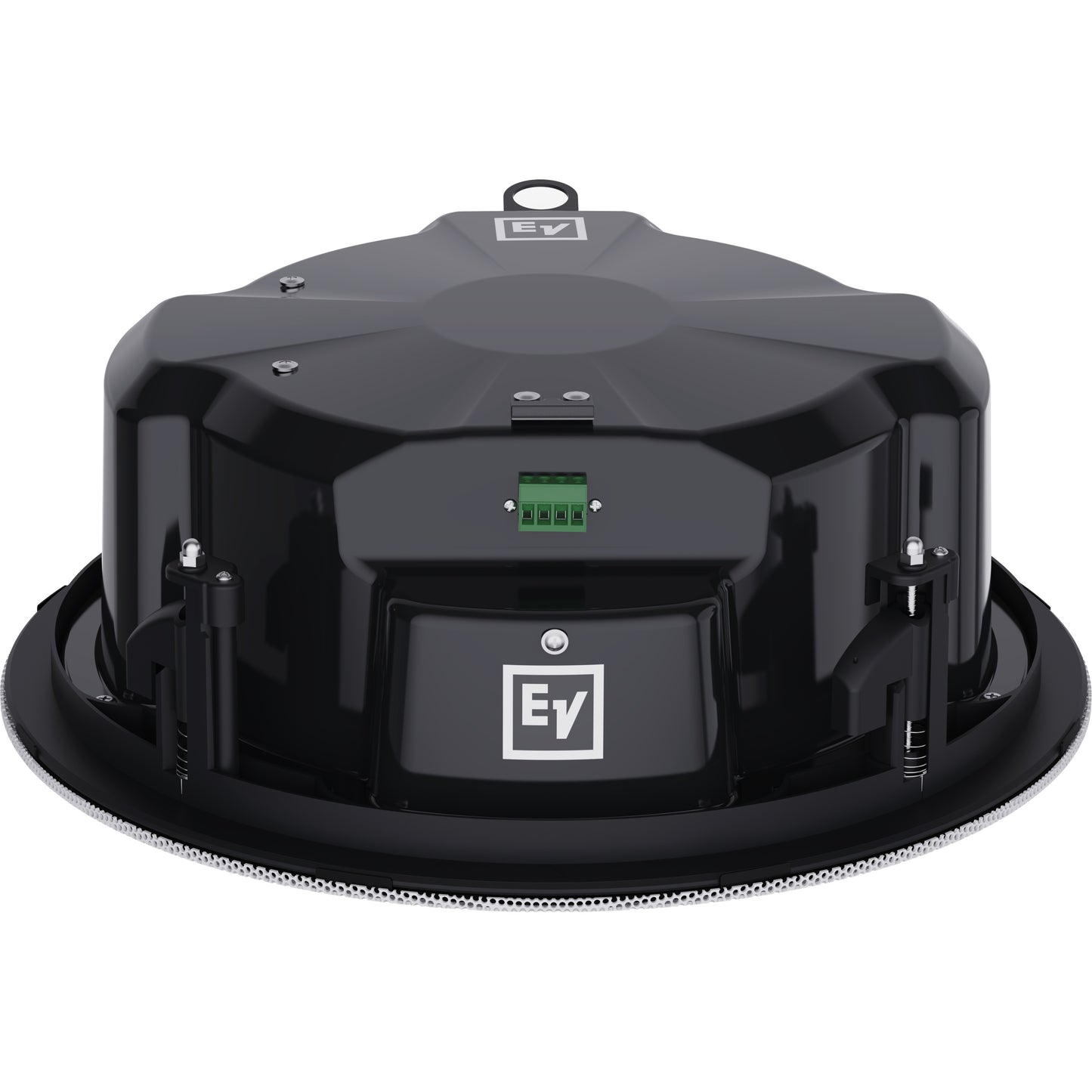

4-pin Euroblock Input + Pass Through
Wire Size (Maximum)
12 AWG
Wire Diameter (Maximum)
3.3 mm²
Construction
Enclosure Material
Steel
Grille Material
Powder Coated Steel
Color
White; Customized Colors
Color (RAL)
RAL 9003 Signal White
Dimensions
Overall Dimensions (Ø x D)
13.9 in x 5.3 in (353 mm x 133.1 mm)
Mounting Cutout
12.7 in (322 mm)
Mounting Depth
4.8 in (122 mm)
Ceiling Thickness Range
0.5 in - 1.5 in (12.5 mm - 38 mm)
Weight
Product Weight
9.9 lb (4.5 kg)
Shipping Weight
22 lb (10 kg)
Environmental
IP Rating
IP34
Weatherization
Indoor
Operating Temperature
32 °F – 122 °F (0 °C – 50 °C)
Certifications
Safety Agency Ratings
UL 1480A, UL 2043, CSA 22.2 205, IEC 62638
