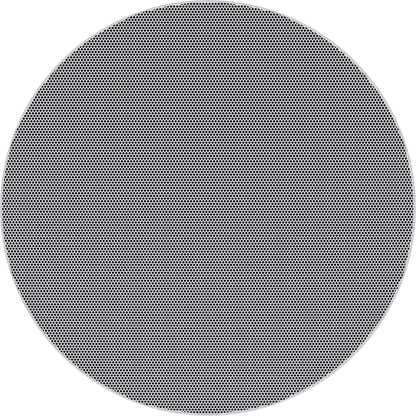

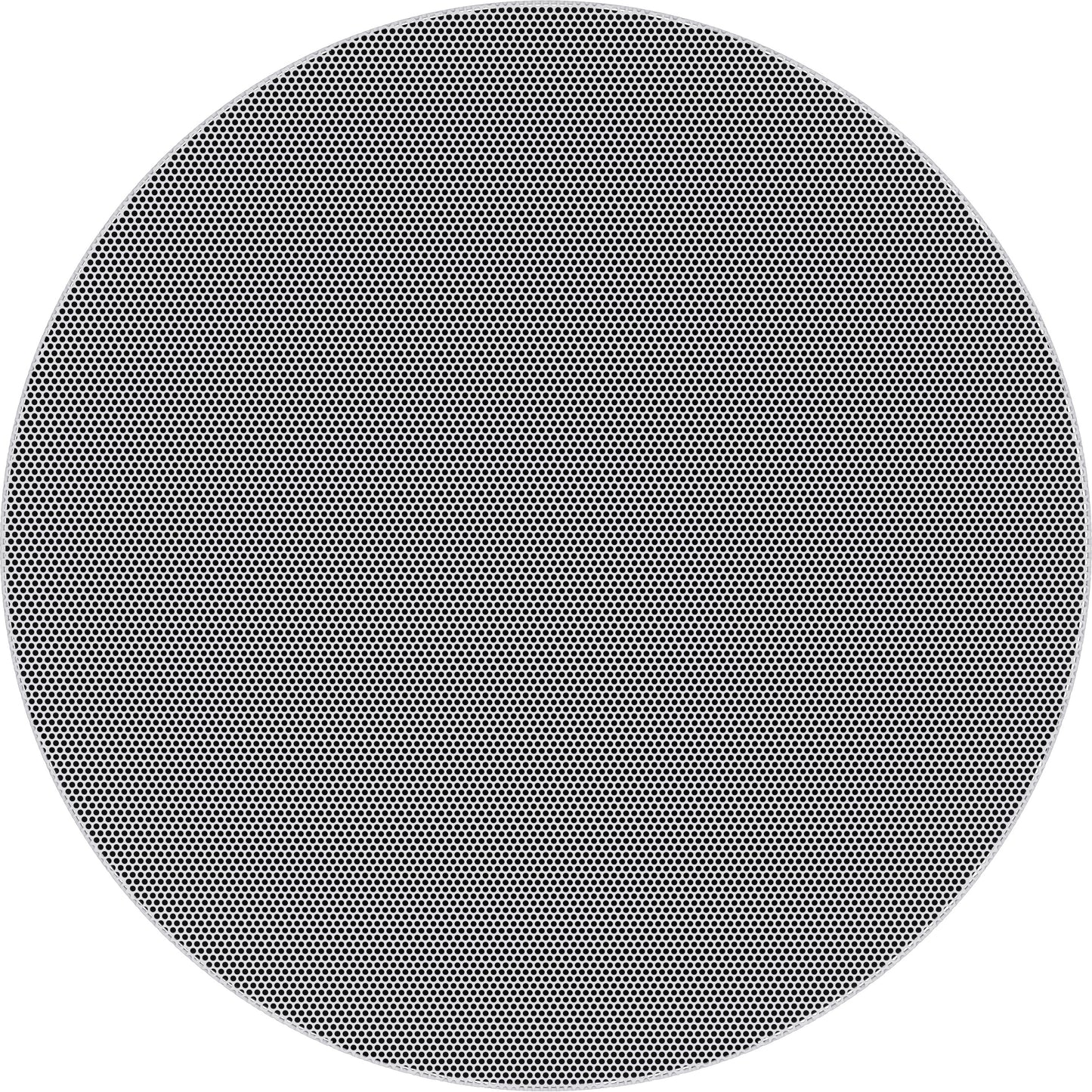

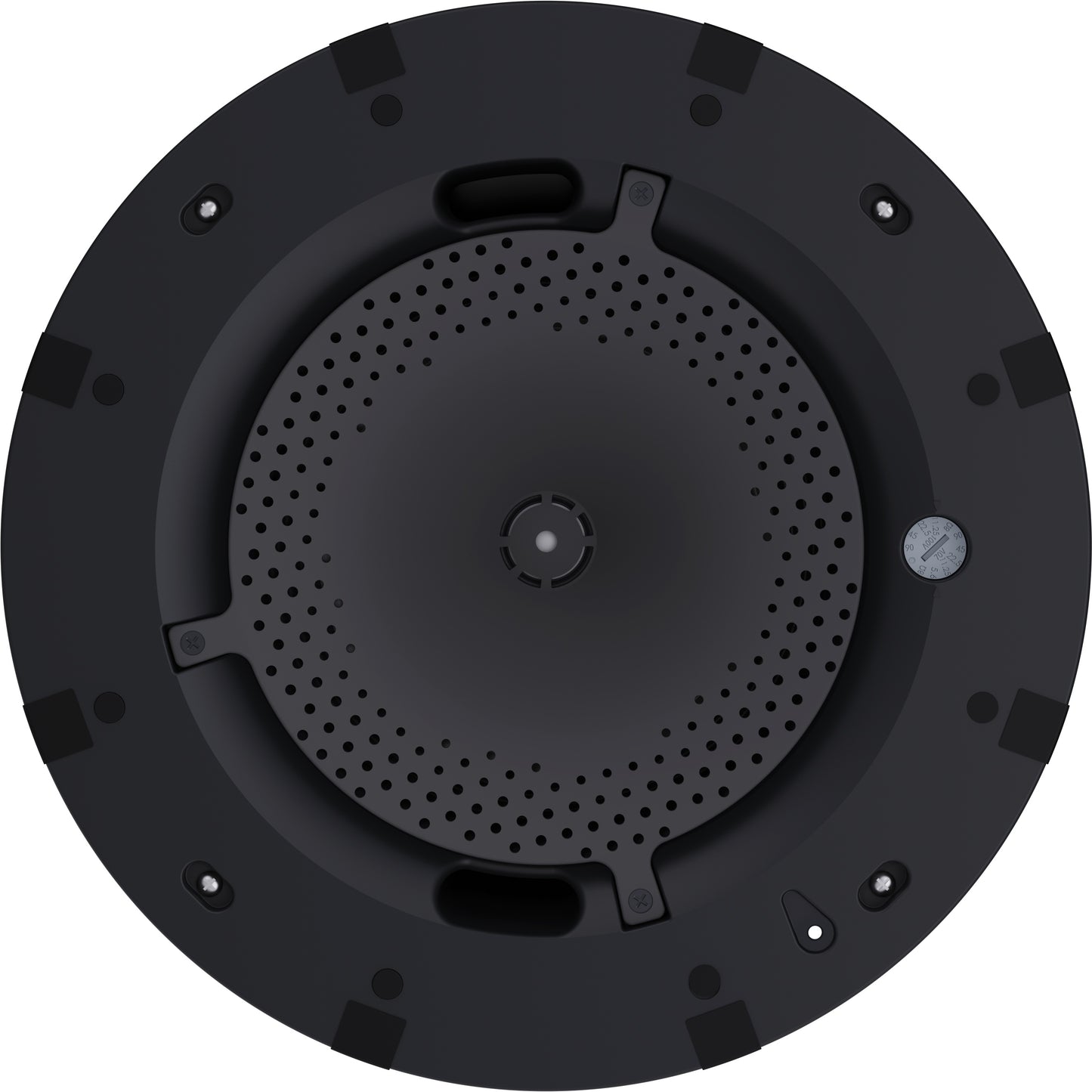

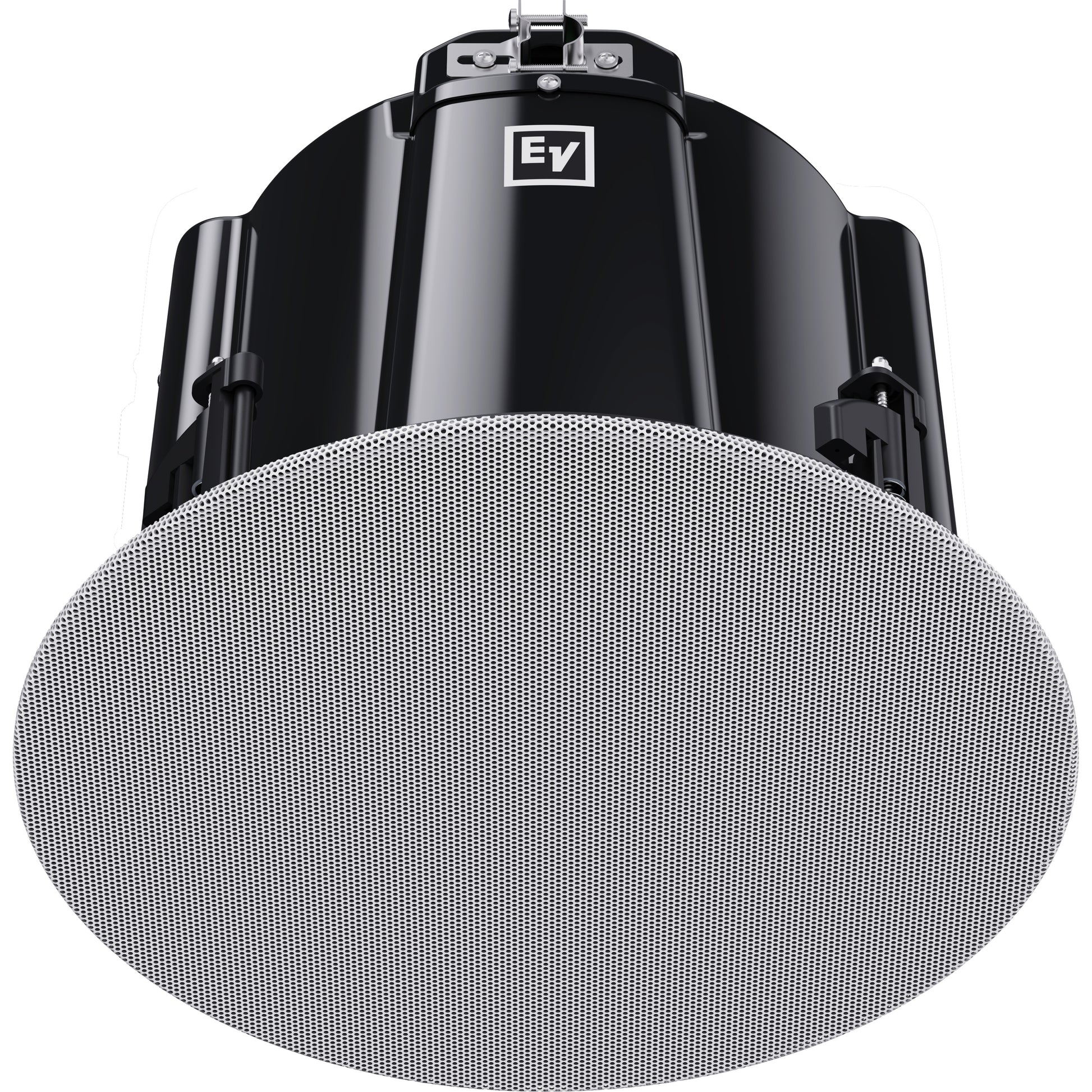

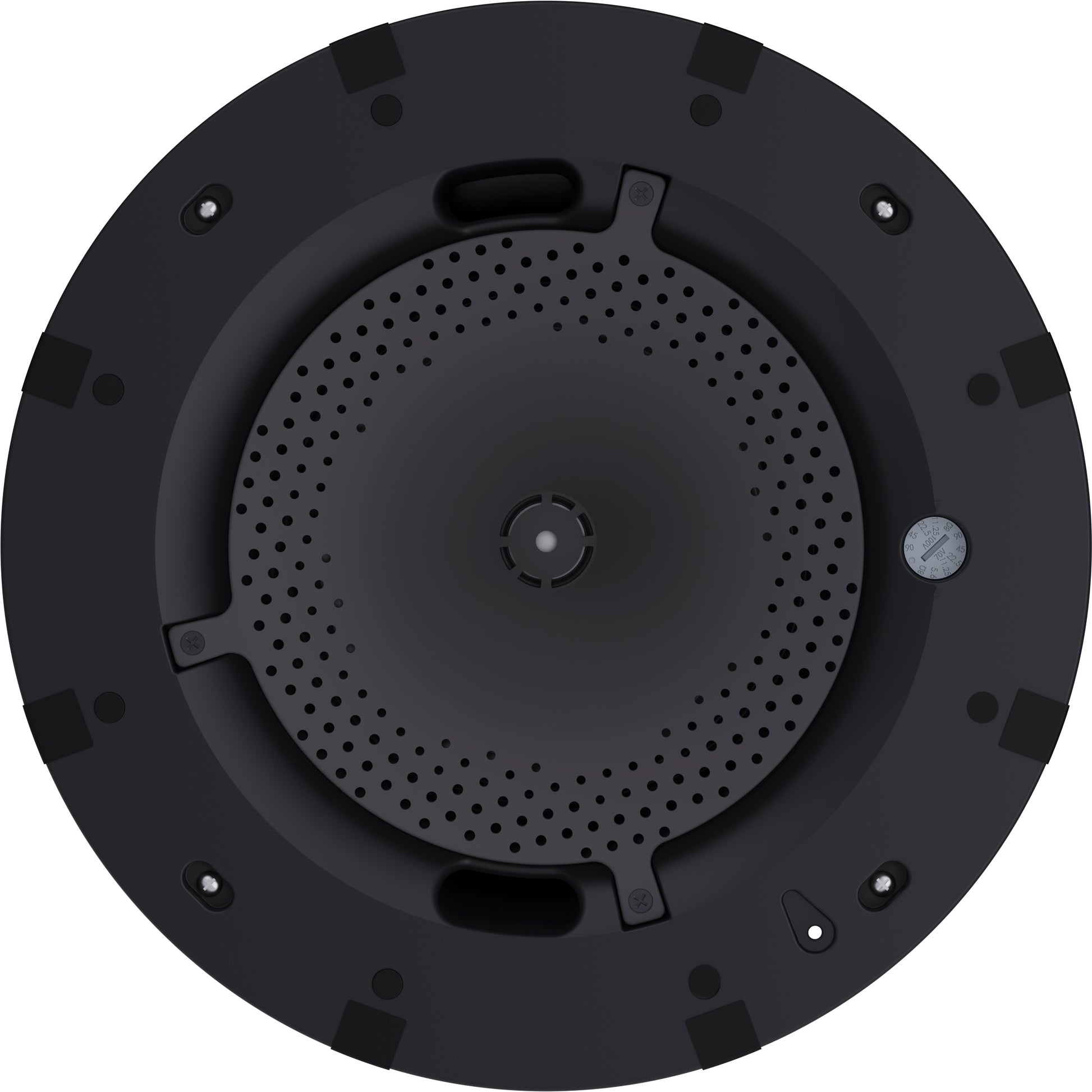

Electro-Voice EVID C8.2 8" Two-Way Coaxial Ceiling Speaker | High-Ceiling

Electro-Voice EVID C8.2 8" Two-Way Coaxial Ceiling Speaker | High-Ceiling

SoundPro Item: 151581 | Part Number: EVID-C8.2HC-G2

$369.00
$440.00 $369.00
Your Price Sold out
MSRP: $440.00 | MAP: $369.00

Usually ships in 5-7 business days

  • Point-Source Coaxial Driver Alignment Delivers Uniform 90° Coverage Without Off-Axis Dropoff
  • Front-Accessible Transformer Tap Selector Enables Field Adjustment Without Grille Removal
  • 4-Pin Euroblock With Pass-Through Terminals Simplifies Daisy-Chain Wiring For Multiple Speakers
  • UL 2043 Plenum Rating Permits Installation In Air-Handling Spaces Per Code Requirements
  • Included Tile Bridge And Mounting Ring Provide Safe Suspension In Drop Ceiling Systems
Log in or register for YOUR best price

Designed for integrators managing distributed audio systems in corporate, retail, and hospitality environments, this 8-inch two-way ceiling speaker combines point-source coaxial architecture with multi-tap transformer flexibility. The front-accessible wattage selector switches between 70V/100V taps from 3.75W to 60W or direct 8-ohm bypass without removing the grille, enabling quick zone balancing during commissioning.

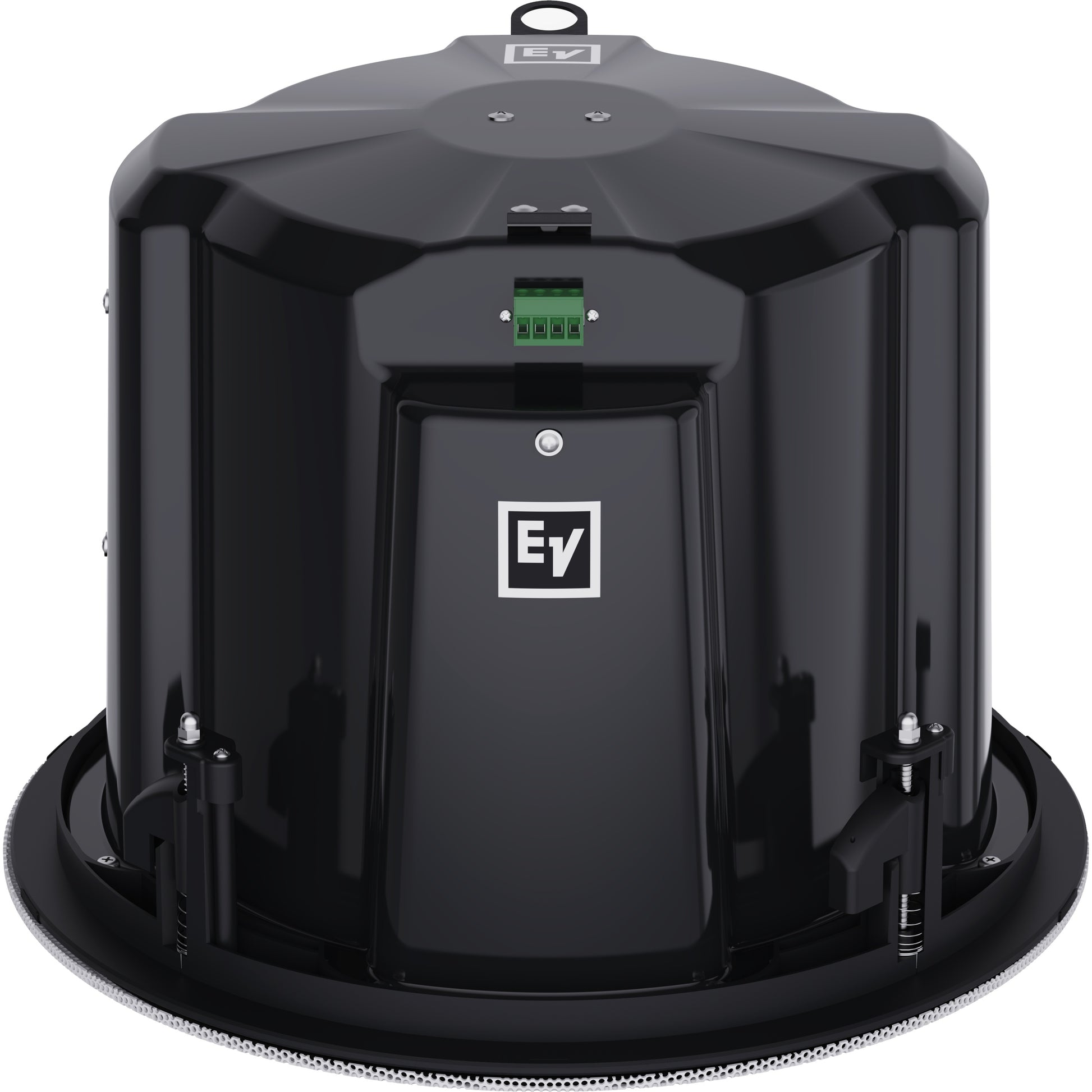

The EZ-Install mounting system pairs with included tile bridge and mounting ring to secure the speaker in drop ceilings with mineral fiber or similar tiles, while the low-profile 9.6-inch depth fits shallow plenum spaces. A 4-pin Euroblock terminal block accepts up to 12AWG wire and provides pass-through connections for daisy-chaining additional speakers. UL 1480A, UL 2043, and CSA 22.2 205 certifications qualify the speaker for air-handling plenum installation.

Constructed from UL 94V-0 rated ABS baffle and heavy-gauge coated steel rear enclosure, the speaker delivers 90 dB sensitivity with 90W continuous power handling and 360W peak capacity. IP34 ingress protection and 32°F to 122°F operating range suit indoor commercial installations requiring consistent speech and music reproduction.

Downloads

View full details

Specifications

Audio
Frequency Range (-10 dB)
60 Hz – 20,000 Hz
Maximum SPL (Continuous)
118 dB
Maximum SPL (Peak)
124 dB
Sensitivity (1 W, 1 m)
95 dB SPL 1 W, 1 m
Coverage Angle Conical
75°
Power Handling (Continuous)
180 W
Power Handling (Peak)
720 W
Long Term Power Handling (Continuous)
150 W
Long Term Power Handling (Peak)
600 W
Nominal Impedance (Low Z)
8 Ω
Recommended High Pass
50 Hz
Transformer Taps 70 V Line
90 W; 45 W; 22.5 W; 11.25 W; 5.6 W
Transformer Taps 100 V Line
90 W; 45 W; 22.5 W; 11.25 W
LF Transducer Size
8 in
HF Transducer Size
1 in
Construction
Material
Steel
Grille Material
Powder Coated Steel
Color
White; Customized colors
Color (RAL)
RAL 9003 Signal White
Connectivity
Connector Type
4-pin Euroblock Input + Pass Through
Wire Size
12AWG (maximum)
Wire Diameter
3.3 mm 2 (maximum)
Dimensions
Mounting Cutout
12.7 in
Dimensions (Ø x D)
13.9 in x 9.9 in
Mounting Depth
9.5 in
Ceiling Thickness
0.5 in - 1.5 in
Weight
Weight
13.2 lb
Shipping Weight
30 lb
Certifications
IP Rating
IP34
Safety Agency Ratings
UL 1480A, safe for use in airhandling spaces per UL 2043, CSA 22.2 205 certified, IEC 62638
Environmental
Weatherization
Indoor
Operating Temperature
32 °F – 122 °F
