Electro-Voice EVID-EC8.2 8" Two-Way Coaxial Ceiling Speaker
Electro-Voice EVID-EC8.2 8" Two-Way Coaxial Ceiling Speaker
SoundPro Item: 151586 | Part Number: EVID-EC8.2
Usually ships in 5-7 business days

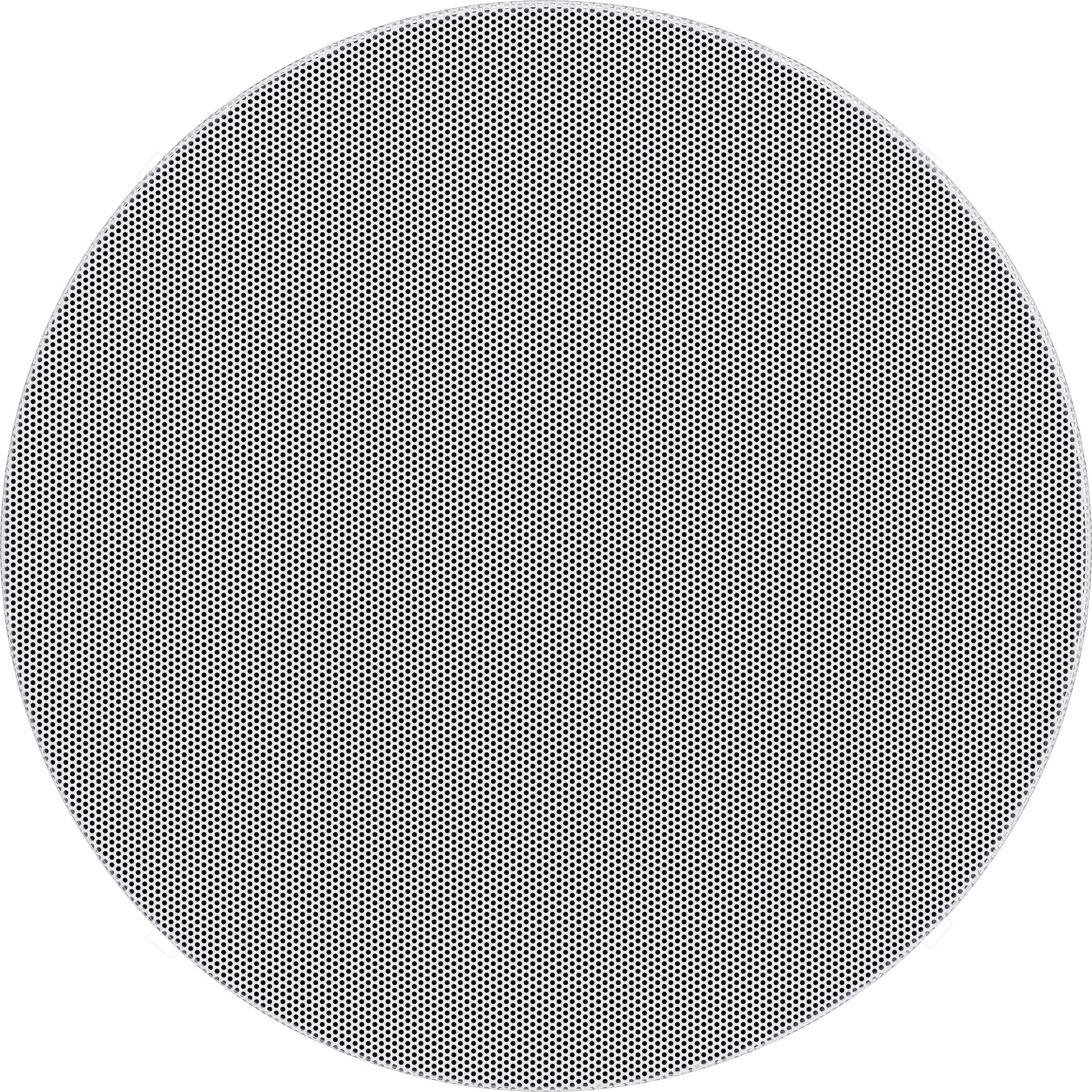

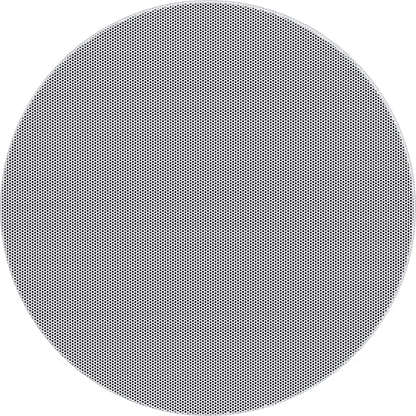

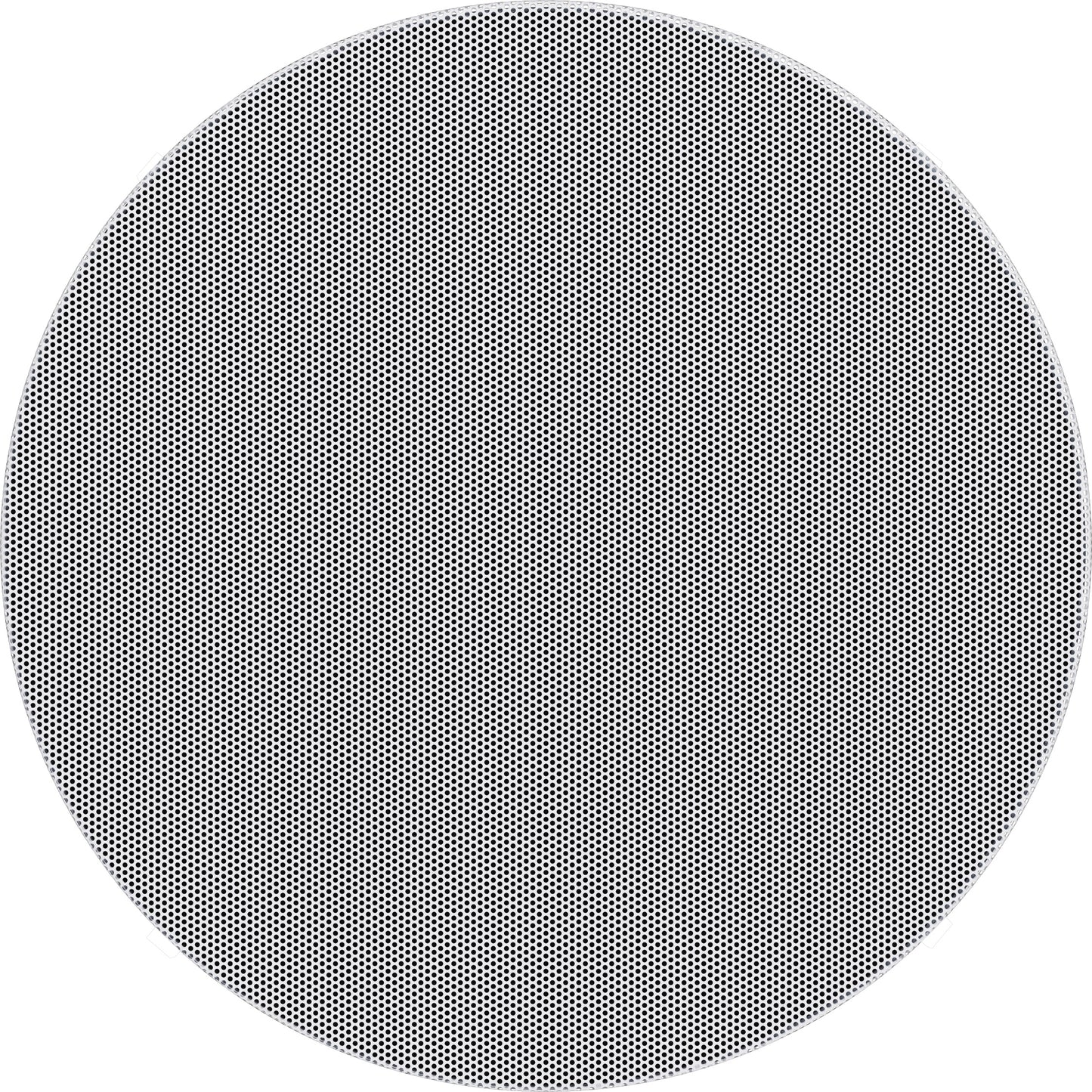

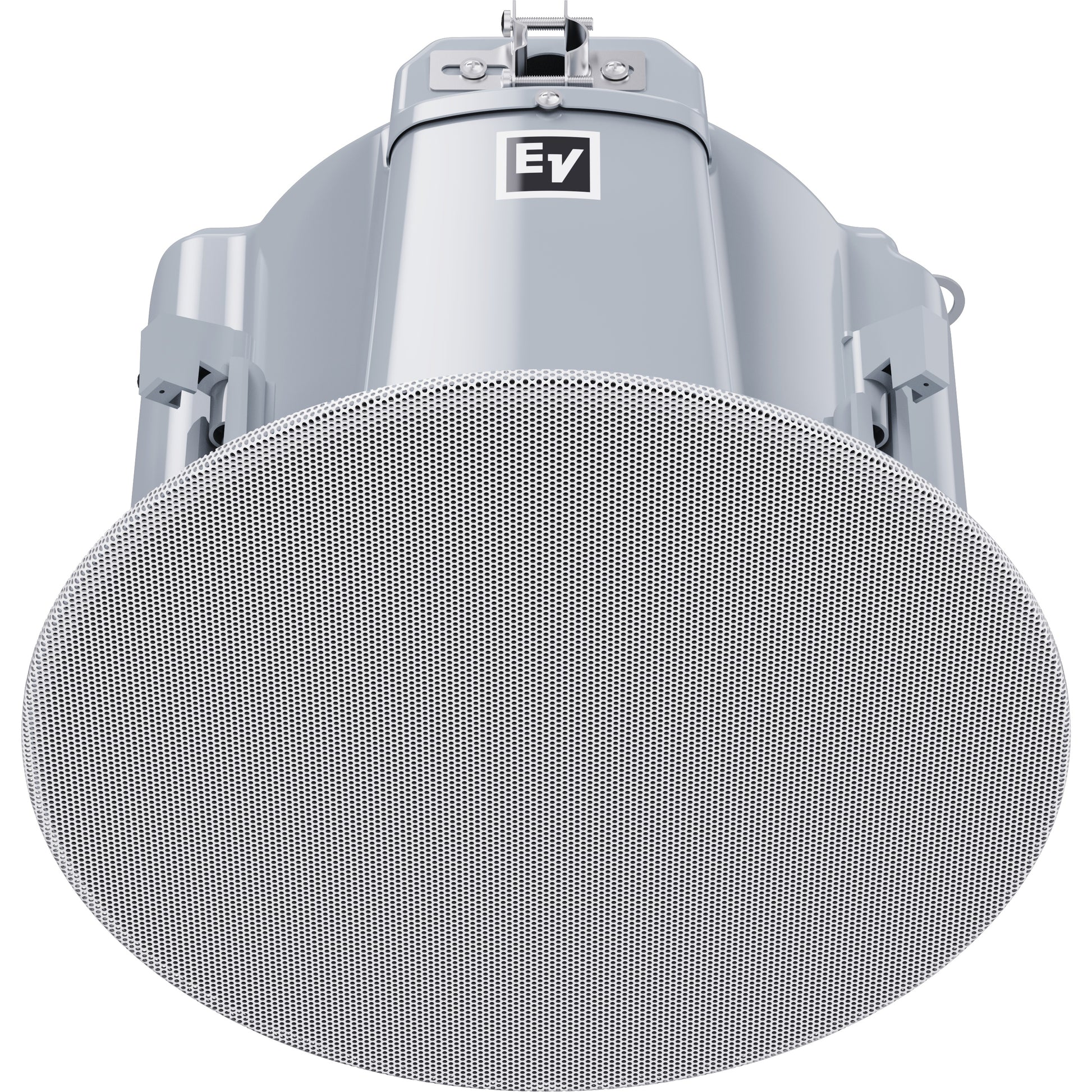

- Bezel-Less Design With Tool-Free Grille Attachment Simplifies Installation And Maintenance Access

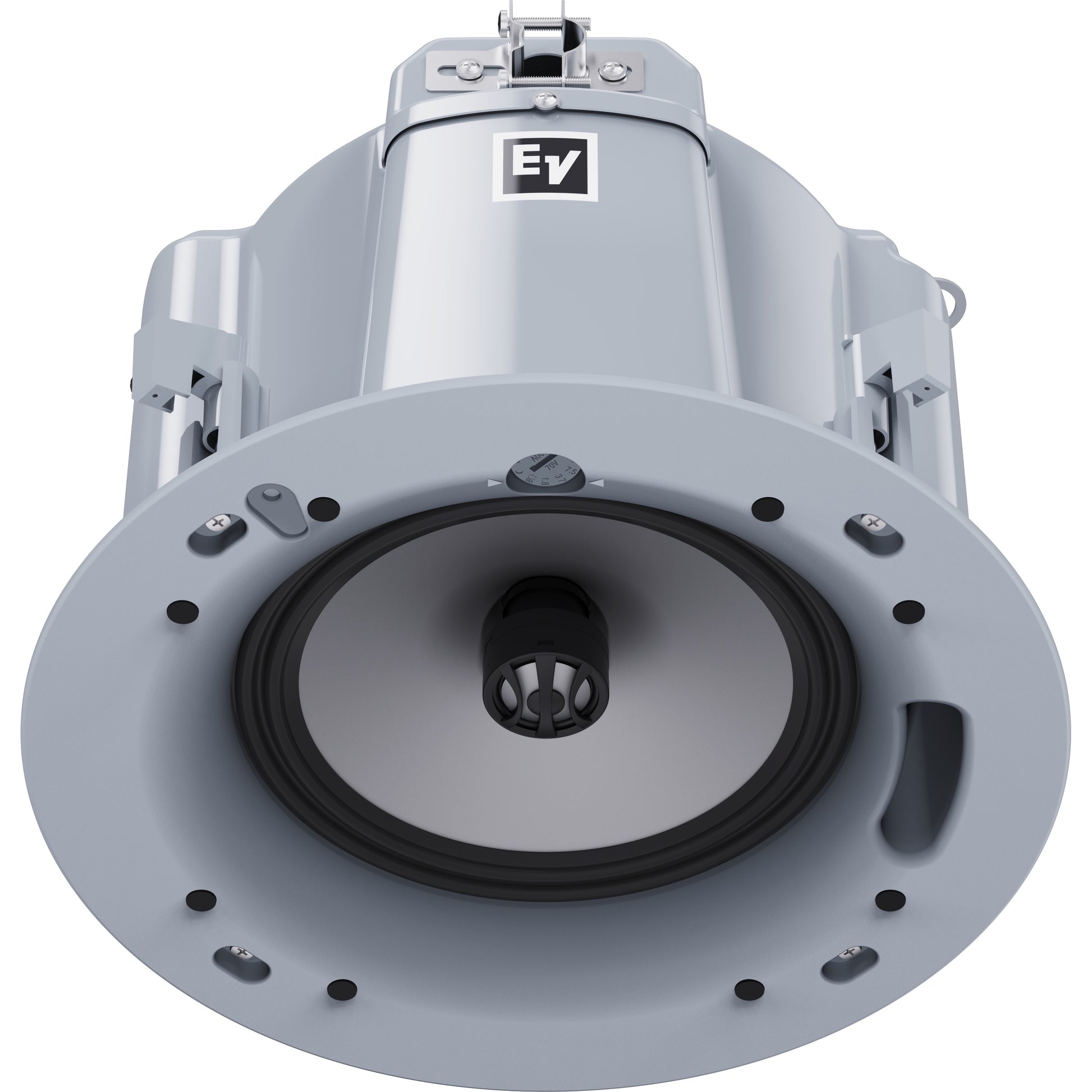

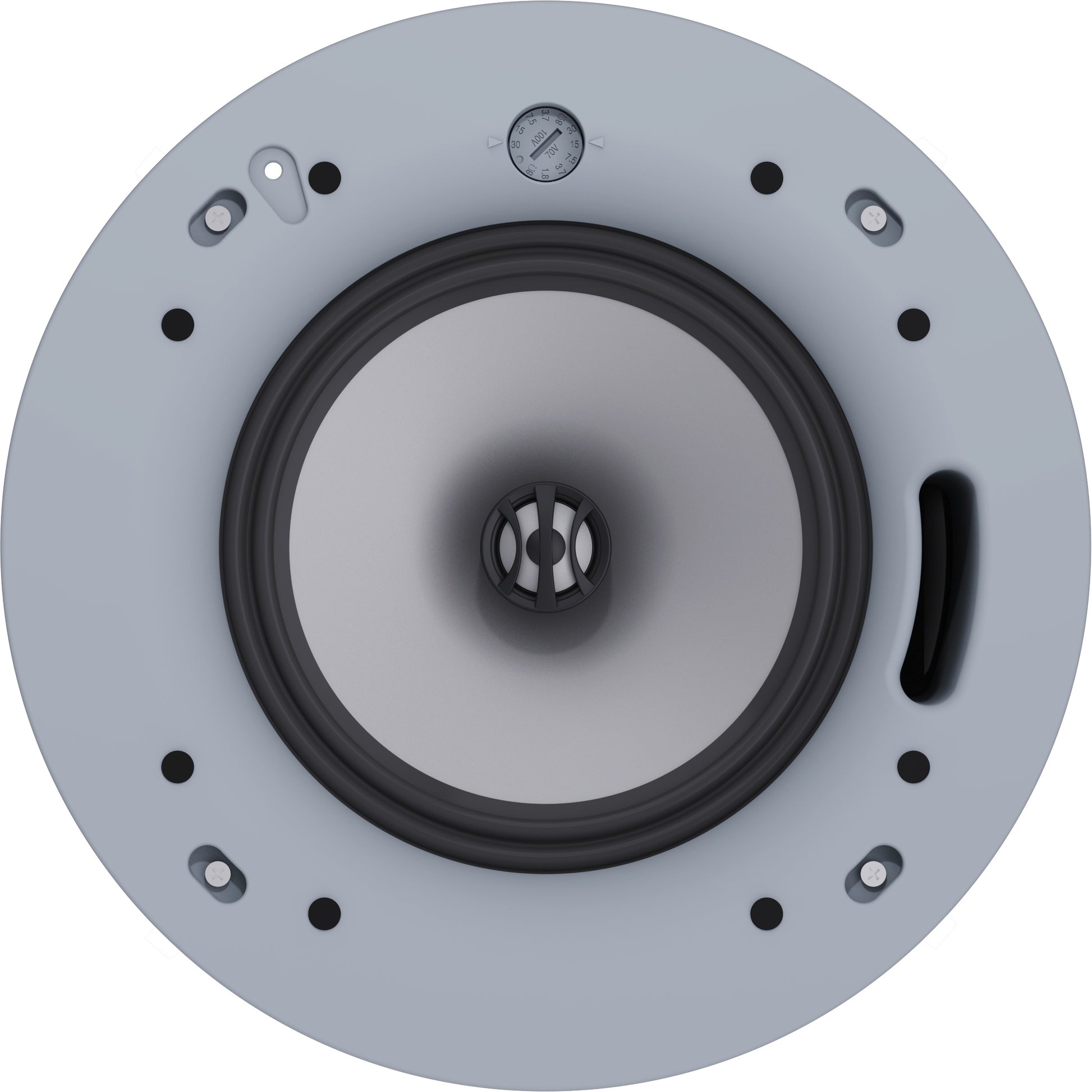

- Front Baffle Tap Selector Enables In-Ceiling Wattage Changes Without Removing Speaker From Mounting Plane
- IP34 Ingress Protection Guards Internal Components Against Dust And Incidental Moisture In Indoor Environments
- Coaxial Driver Configuration Maintains Consistent Polar Response Across The Entire Coverage Angle
- Pass-Through Terminal Block Reduces Home-Run Wiring And Simplifies Daisy-Chain Topology In Distributed Systems
Designed for permanent installation in commercial spaces, houses of worship, hospitality venues, and educational facilities where reliable distributed audio and low-profile aesthetics are essential. The coaxial driver arrangement provides consistent on-axis response across a 90-degree coverage pattern, ideal for uniform ceiling-grid coverage in rectangular rooms and hallways.
UL 2043 plenum rating and UL 1480A certification enable code-compliant installation in air-handling spaces and above suspended ceilings without additional enclosures. The included tile bridge and C-ring mount the system directly to T-bar grids using mineral fiber or similar drop-ceiling tiles, eliminating the need for back boxes or external support structures in standard commercial ceiling construction.

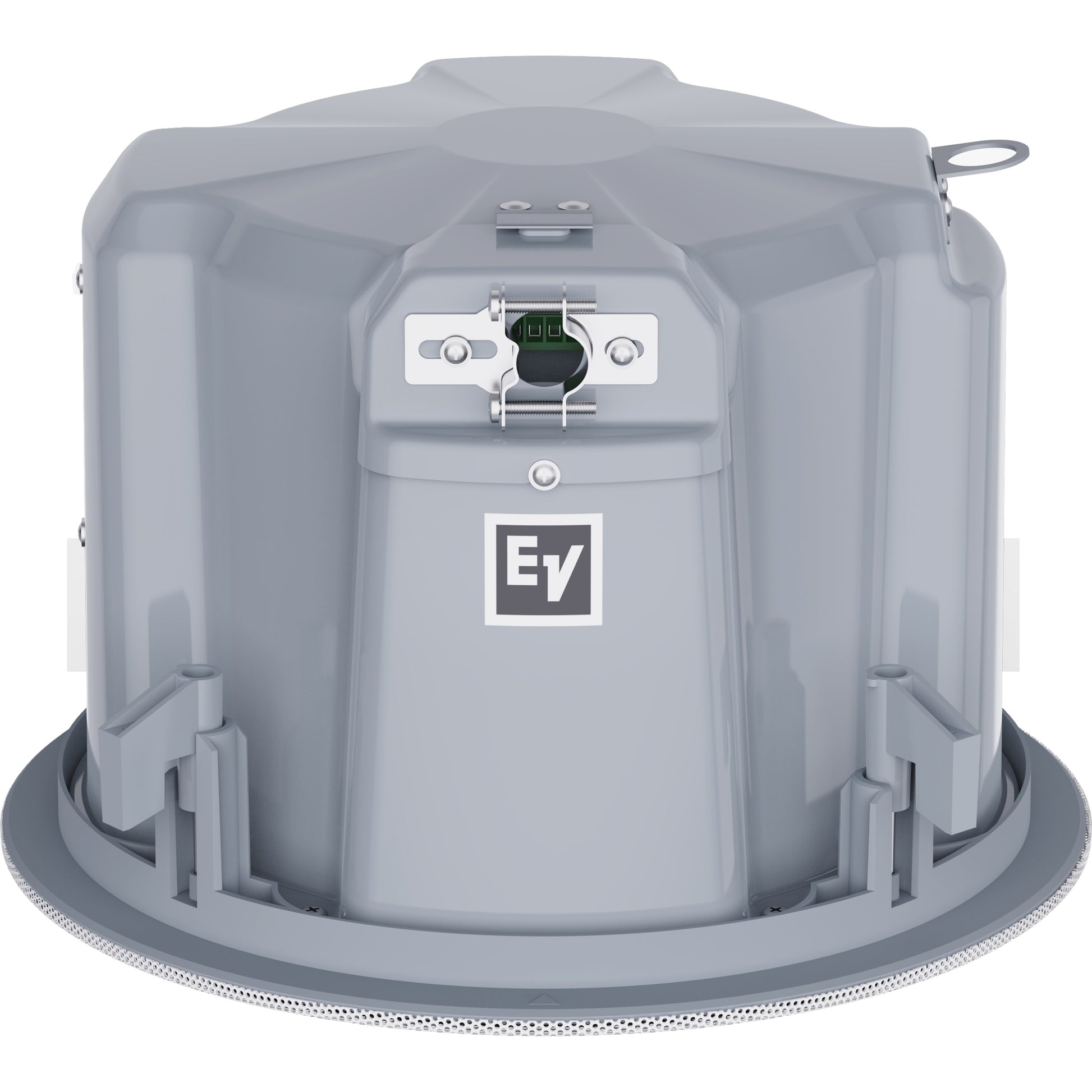

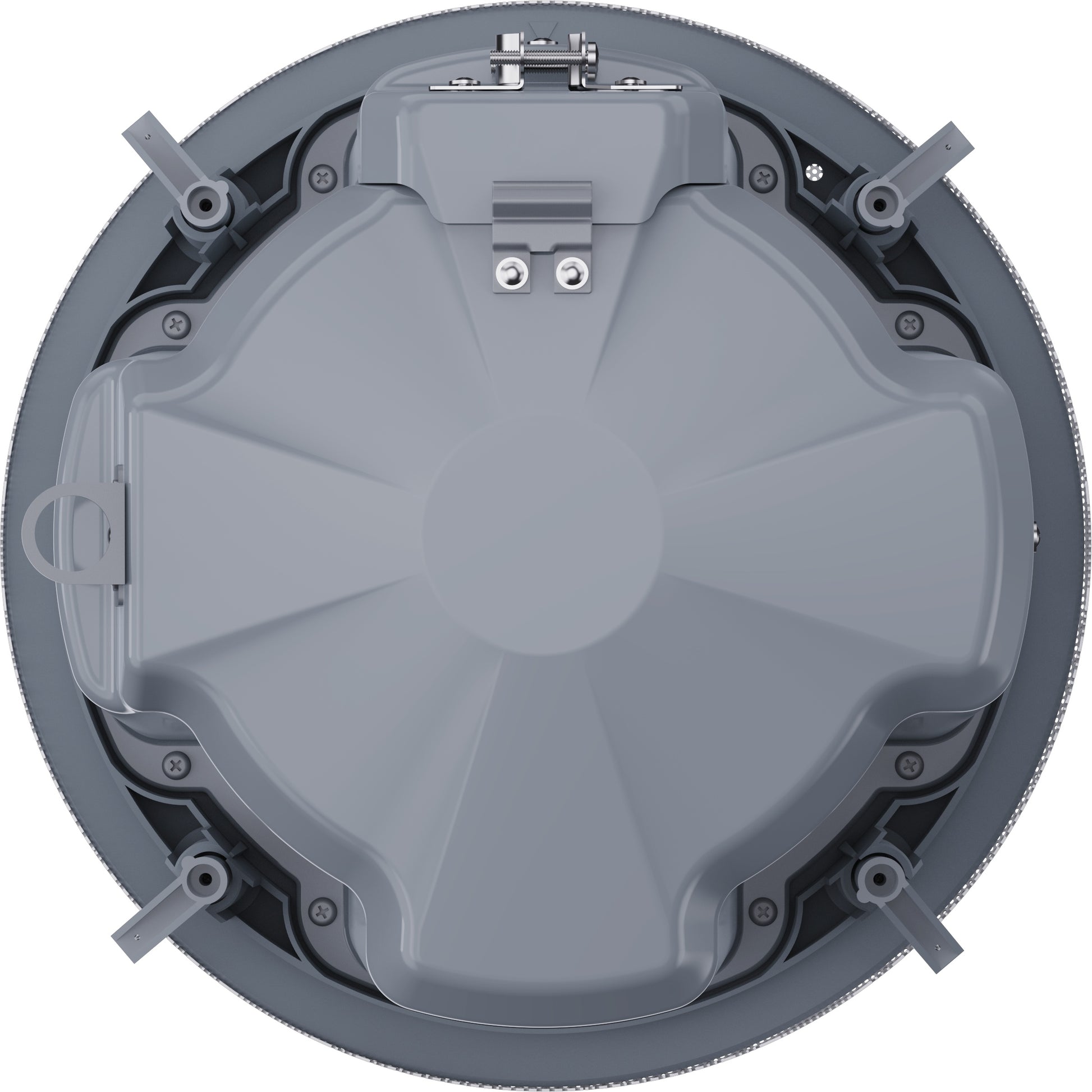

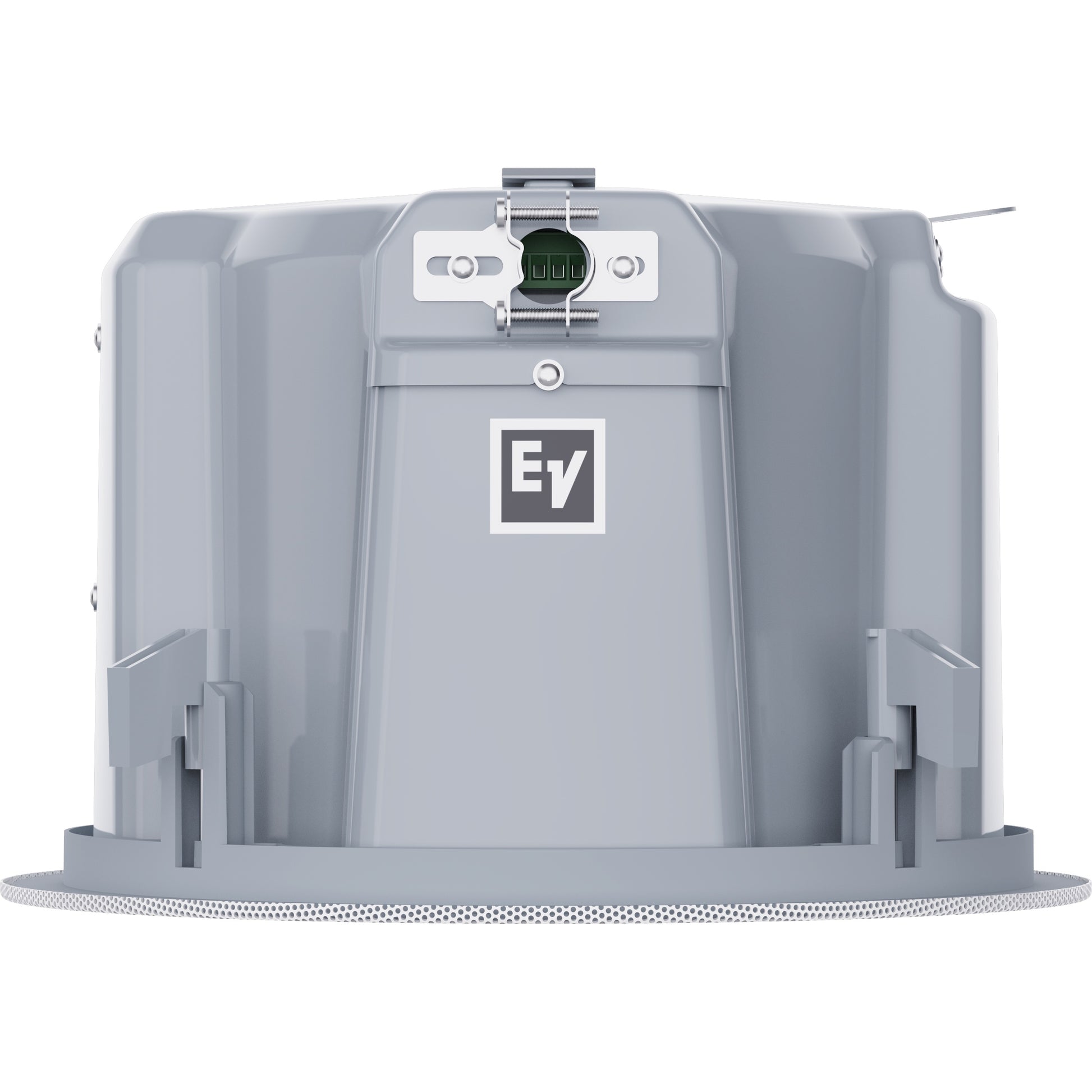

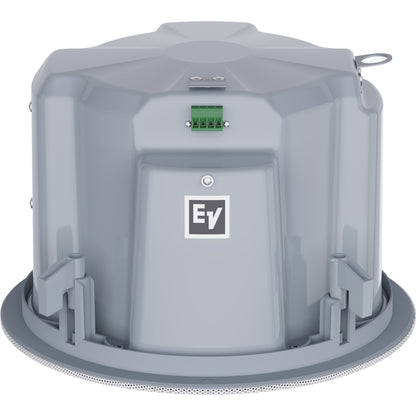

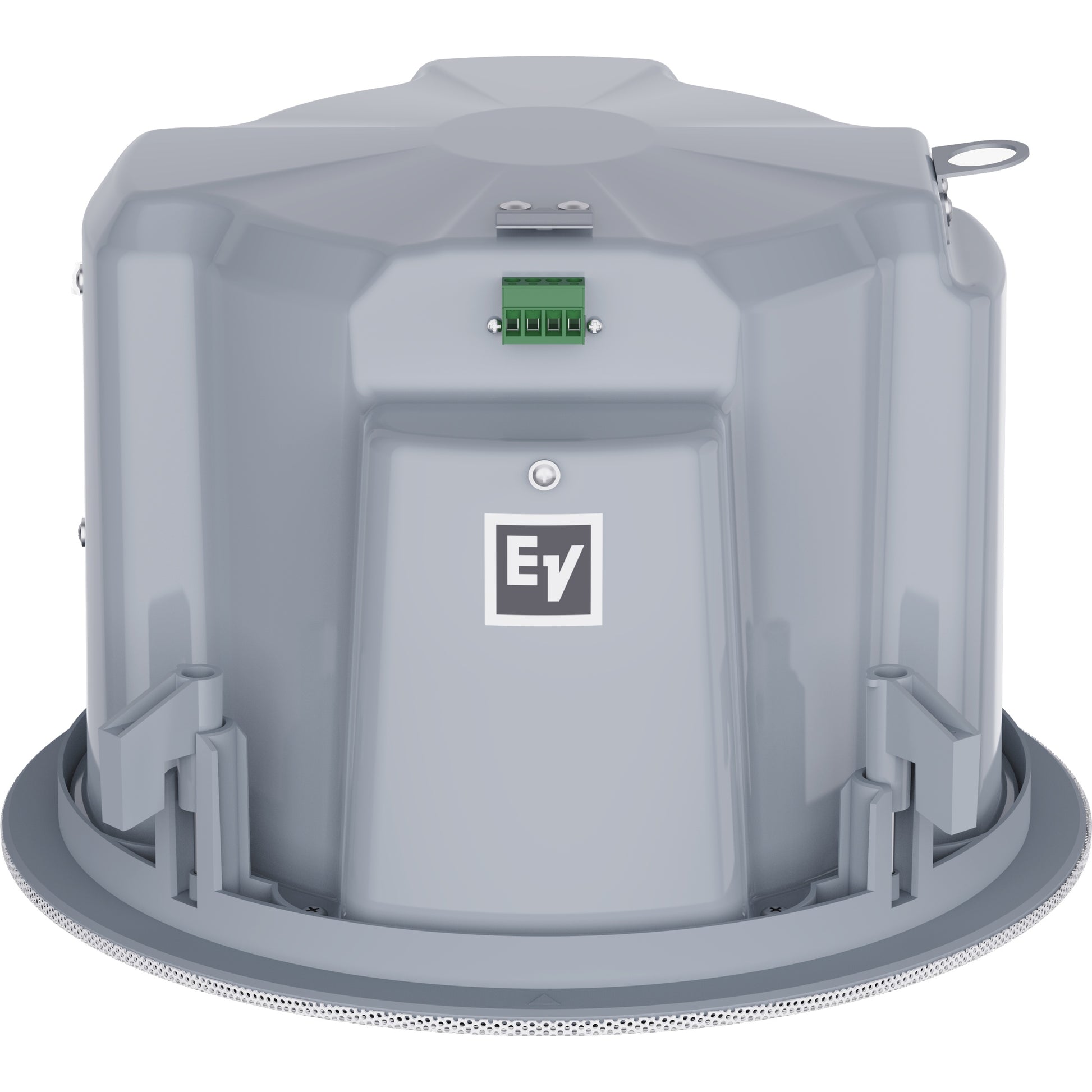

The four-pin Euroblock terminal strip accepts 12-gauge wire and provides pass-through connections for daisy-chaining additional speakers in a distributed system without the need for separate junction boxes or wire splicing. The heavy-gauge steel rear enclosure and UL 94V-0 rated ABS baffle ensure long-term durability in conditioned indoor environments operating between 32°F and 122°F.
Downloads
Downloads
Specifications
