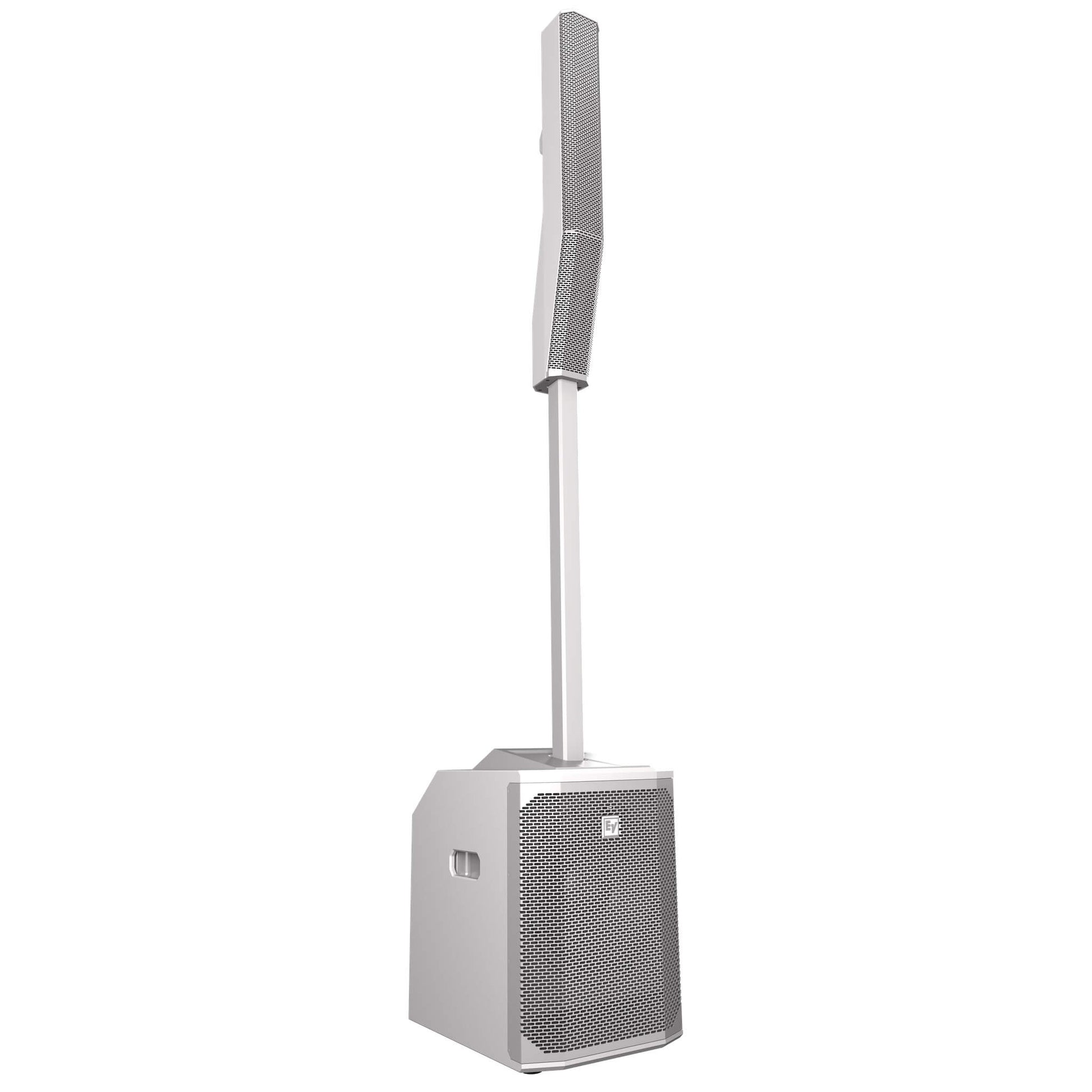

Electro-Voice EVOLVE 50 Portable Column System Speaker| Color: White

Electro-Voice EVOLVE 50 Portable Column System Speaker| Color: White

SoundPro Item: 16197 | Part Number: EVOLVE50-TB

Regular price $1,999.00
Regular price $1,368.00 Sale price $1,999.00
Your Price Sold out
MSRP: $1,368.00 | MAP: $1,999.00

In stock and ready to ship

  • Clean, Compact Design - Built to Blend In
  • Easy Transport & Setup
  • Professional PA Performance
  • Wide, Even Coverage
  • QuickSmart DSP
  • Wireless Control & Monitoring
  • High-Quality Bluetooth Audio
  • Now Available in White

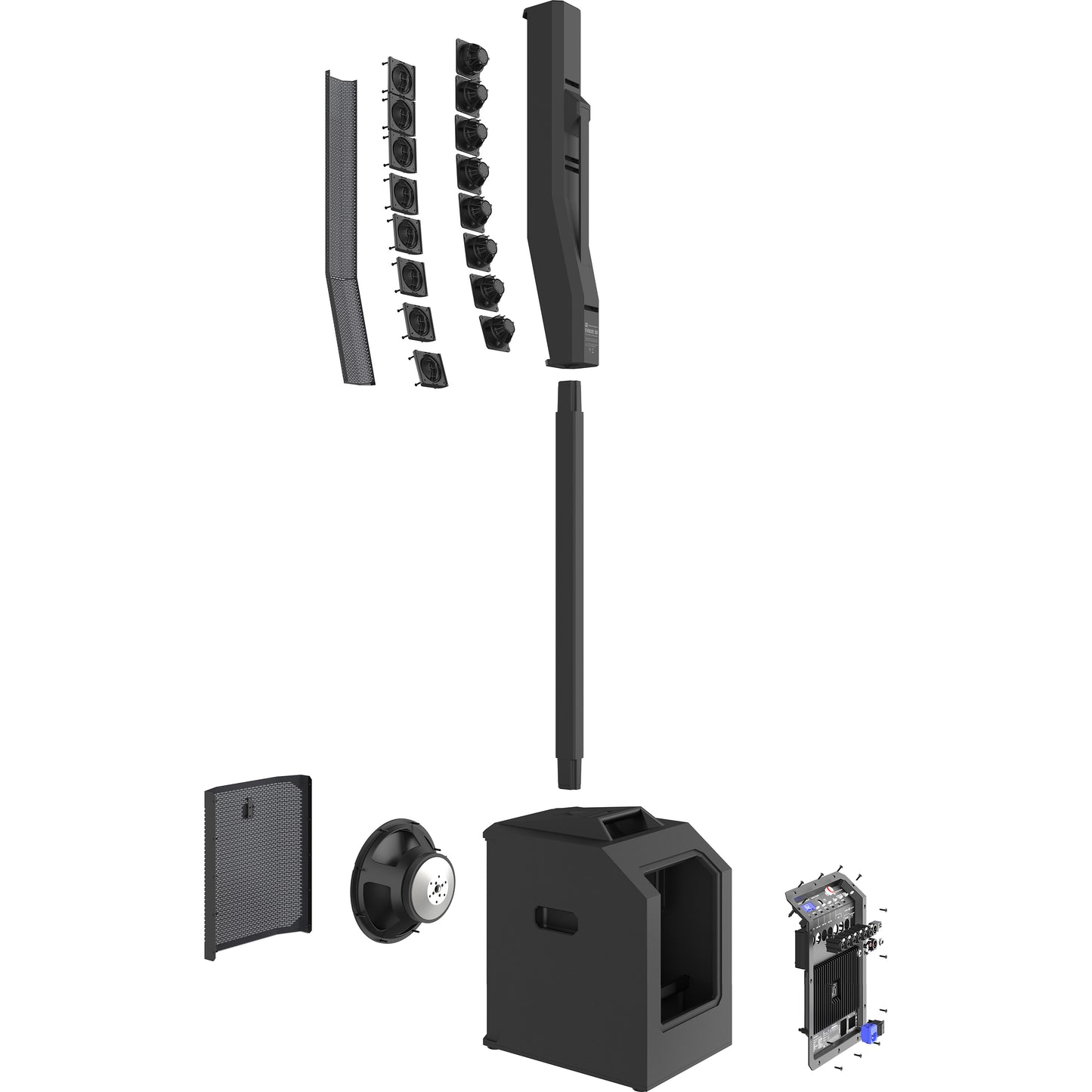

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.  The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.  The bi-directional aluminum pole's connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.  Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.  The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.  The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.  Bluetooth is available in select countries.

View full details

Specifications

Frequency response (-3 dB)1
43 Hz-20 KHz
Frequency range (-10 dB)1
37 Hz-20 KHz
Maximum SPL2
127 dB
Coverage (H x V)
120° x 40°
Amplifier rating
1000 W
LF,HFchannel rating
LF: 500 W, HF:500 W
Crossover frequency
200 Hz
Connectors
2x XLR/TRS Combo Jack Input,
1x 3.5 mm Input
1x Stereo RCA Input
1x Wireless Bluetooth® Audio Input
1x XLR THRU Output
1x XLR MIX OUT Output
Enclosure
Sub: 15 mm plywood
Column: Composite
Pole: Aluminum
Grille
Steel with black or white powder coat
Dimensions (HxWxD): mm (in)
Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
Net weight
Sub: 44.66 lb (20.3 kg)
Column: 10.34 lb (4.7 kg)
Pole: 2.75 lb (1.25 kg)
Sub cover: 0.9 lb (0.4 kg)
Bag for column and pole: 1.87 (0.85 kg)
Shipping weight
Sub box: 50.71 lb (23 kg)
Column box: 18.30 lb (8.3 kg)
Power consumption3
100-240 V AC, 50-60 Hz, 1.5-0.6 A
