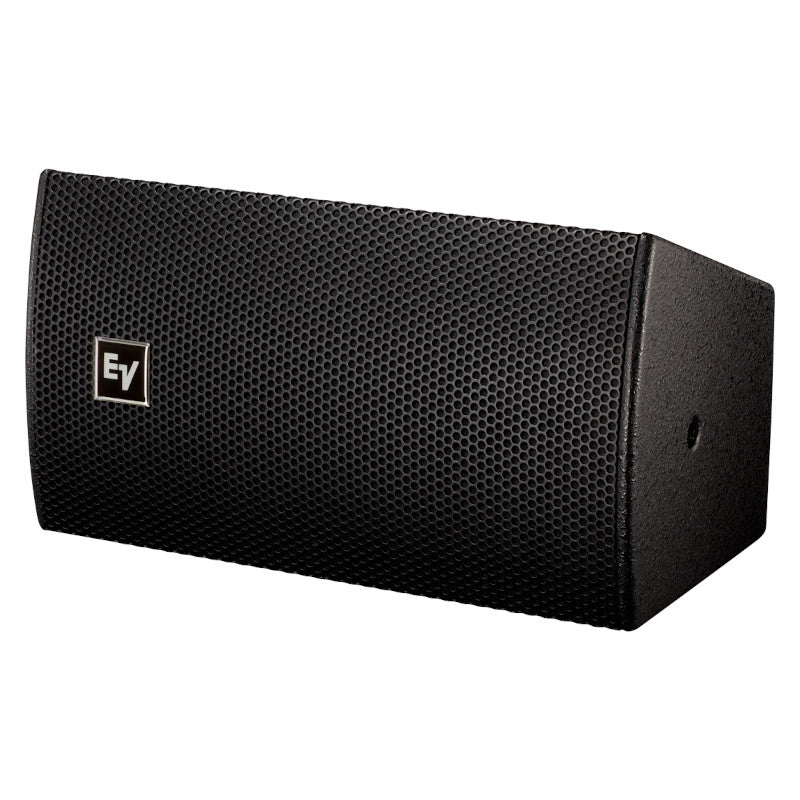

• Electro-Voice EVU-1082/95 8-Inch Passive Install Speaker black
1 1

Electro-Voice EVU-1082/95 8-Inch Passive Install Speaker | Color: Black

Electro-Voice EVU-1082/95 8-Inch Passive Install Speaker | Color: Black

SoundPro Item: 45650 | Part Number: F.01U.216.253

$906.00
$906.00 $906.00
Your Price Sold out
MSRP: $906.00 | MAP: $906.00

Usually ships in 5-7 business days

  • Sonically matched to all EV-Innovation lines
  • Sophisticated 18-dB-octave passive crossover/EQ networks
  • Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
  • Optional Neutrik Speakon(R) connector panel
  • One 1.3"(33mm) diaphragm I compression driver
  • U-bracket included
  • Optional 70V and 100V operation
  • OmniMount(R)-compatible rear mounting points
  • Available in black or white (interior use)
  • Ultracompact 10x16" enclosure
  • 90x50 degree rotatable waveguide
  • Ultra-high power handling for size: 175W continuous
  • 123 dB Max SPL
  • Asymmetrical trapezoidal enclosure design
  • Compatible with OmniMount
Log in or register for YOUR best price

Blend your sound into your surroundings with the EVU-1082/95 from Electro-Voice. This compact, two-way loudspeaker system is perfect when you need to fit high-quality sound reinforcement into a small space. The enclosure’s asymmetric angles let you mount the speaker into tight clearances while providing optimal coverage patterns.

The EVU-1082/95 incorporates the ICT-1-8, a high-output 1.3” diaphragm titanium compression driver coupled to a Constant Directivity™ 90° x 50° rotatable waveguide. The ICT-8-8 woofer is FEA-optimized, providing high sensitivity while achieving pristine speech intelligibility. The crossover design uses 18-dB-per-octave slopes with equalization for a smooth vocal response, linear off-axis response, and a protection circuit for long-term reliability.

View full details

Specifications

Dimensions
Height
9.72" (247mm)
Width
16.1" (409mm)
Depth
9.33" (237mm)
Weight
Weight Net
16.31lbs (7.4kg)
Shipping Weight
22.71lbs (10.3kg)
Electrical
Minimum Impedance
6Ω
Audio
Speaker Type
Full-Range, Two-Way
Max. SPL/1m (calc)²
123dB
Power Rating
700W
Axial Sensitivity (SPL, 1W @ 1 m)
95dB
Connectivity
Connector Type
4-pin Phoenix/Euroblock screw terminals (up to 10 AWG wire)
Construction
Enclosure Material
9-ply hardwood plywood
Grille
18-gauge steel with cloth behind
Available Color
Black or white
Finish
Textured paint
General
Frequency Range (-10 dB)
65 - 20000kHz (Half Space)
Suspension
(6) M8 threaded points
Weatherized
No
HF Transducer
One 1.3-inch (33 mm) diaphragm ICT-1-8 compression driver
Frequency Response (-3 dB)¹
110 - 16000Hz (Half Space)
Coverage (Nominal -6 dB) H
90°
LF Transducer One 8-inch (203 mm)
ICT-8-8 woofer
Coverage (Nominal -6 dB) V
50°
System Power Handling (Continuous/Program/Peak)
175//700Watts (EIA RS-426A (eight hours))
Recommended High-Pass Frequency
90Hz
Nominal Impedance
8Ω
Waveguide
6x6", rotatable
Passive Power Handling
700W peak
