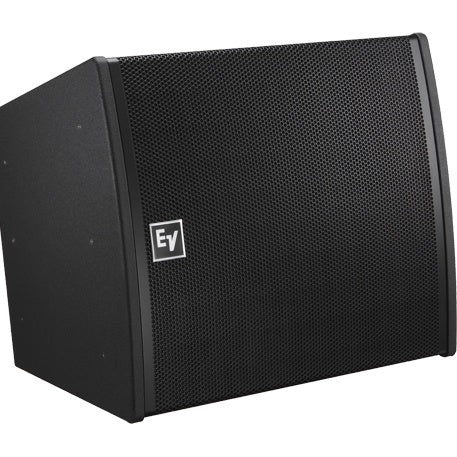

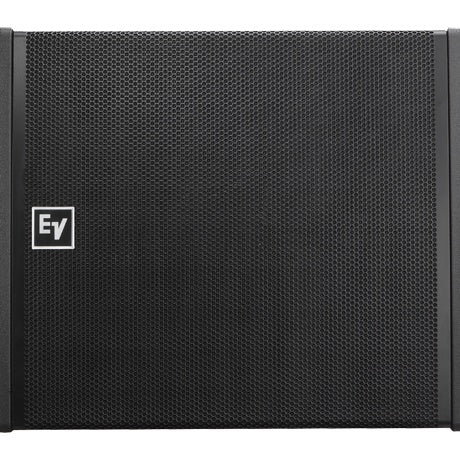

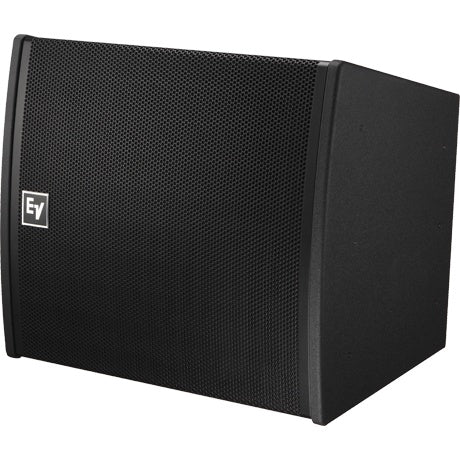

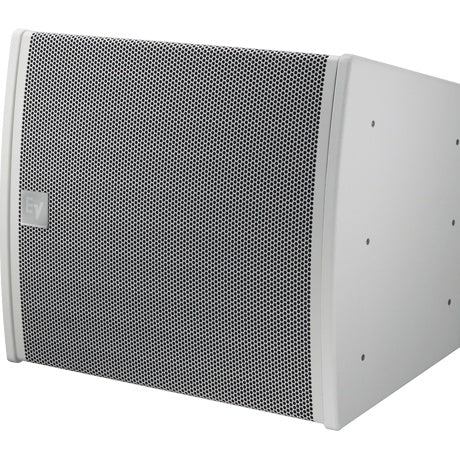

Electro-Voice EVA-2082S Dual-Element Full-Range Module | 120° x 20° | Black

Electro-Voice EVA-2082S Dual-Element Full-Range Module | 120° x 20° | Black

SoundPro Item: 42049 | Part Number: F.01U.272.907

$6,204.00
$6,204.00 $6,204.00
Your Price Sold out
MSRP: $6,204.00 | MAP: $6,204.00

Usually ships in 5-7 business days

  • Dual-Element Configuration Delivers Two Independent Array Sections Per Enclosure
  • Hydra Plane Wave Generator Technology Ensures Coherent Wavefront Propagation Across Coverage Pattern
  • Sixth-Order Passive Crossover With Integrated Protection Circuitry Safeguards High-Frequency Components

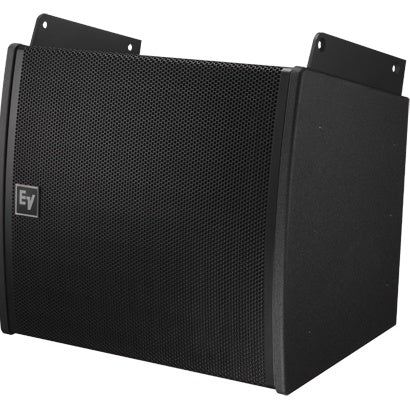

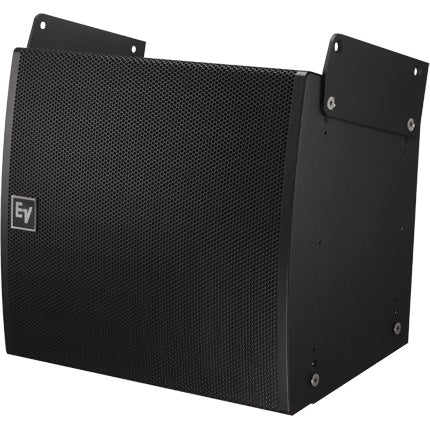

  • Hidden Suspension Hardware Maintains Visual Discretion In Architectural Environments
  • Phoenix Screw Terminal Input Provides Secure Connection For Permanent Installation Applications
  • PREVIEW Software Compatibility Enables Precise Array Modeling And Performance Prediction
Log in or register for YOUR best price

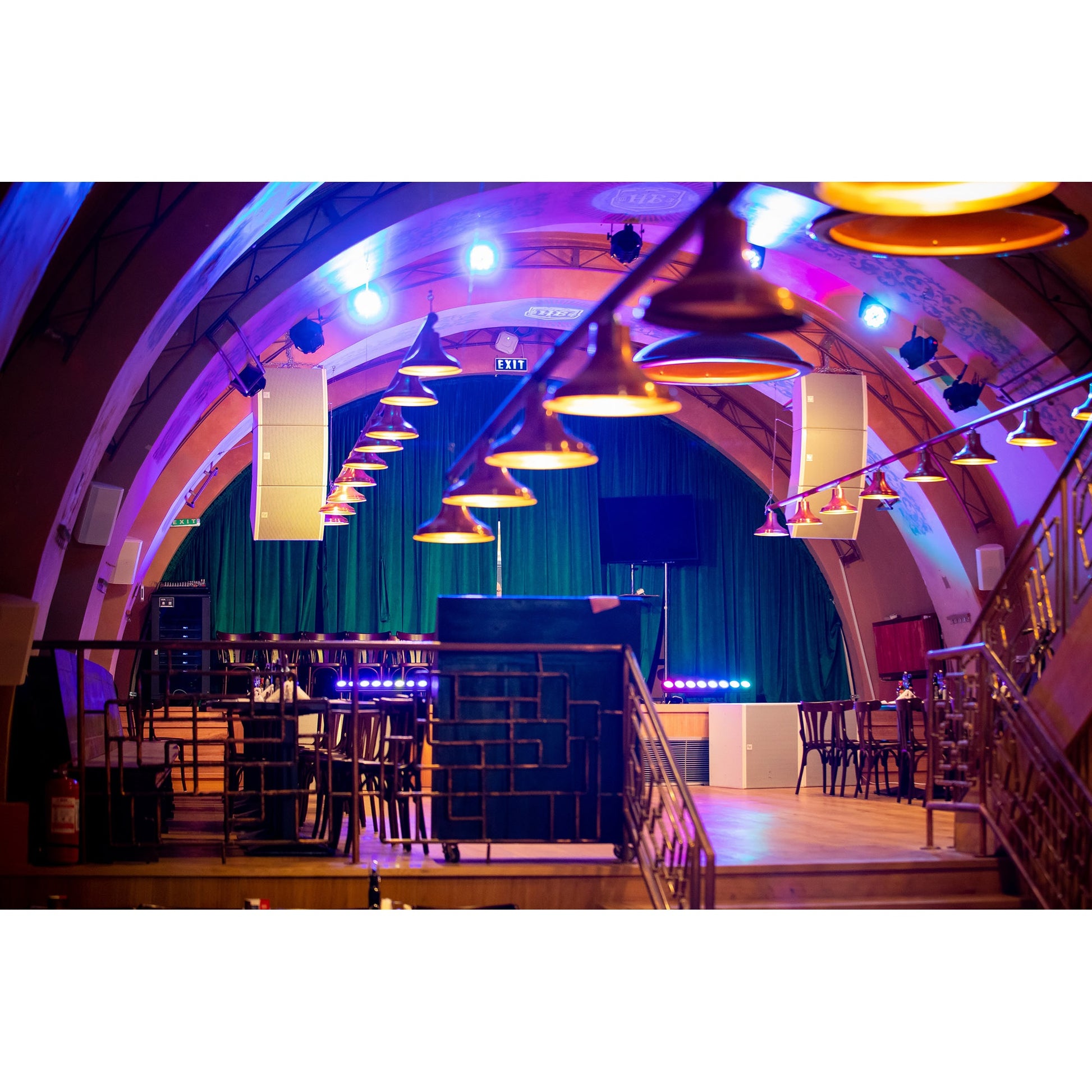

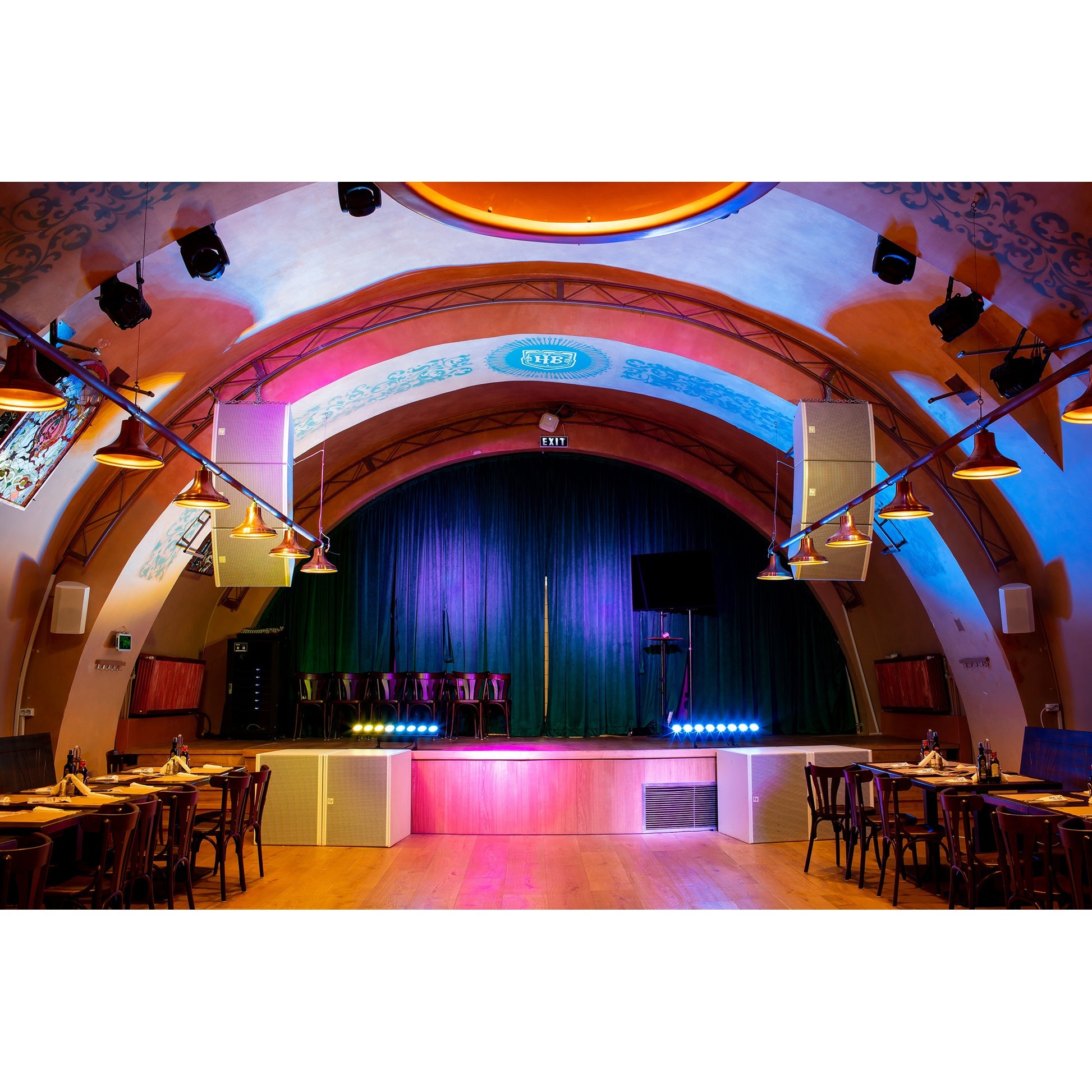

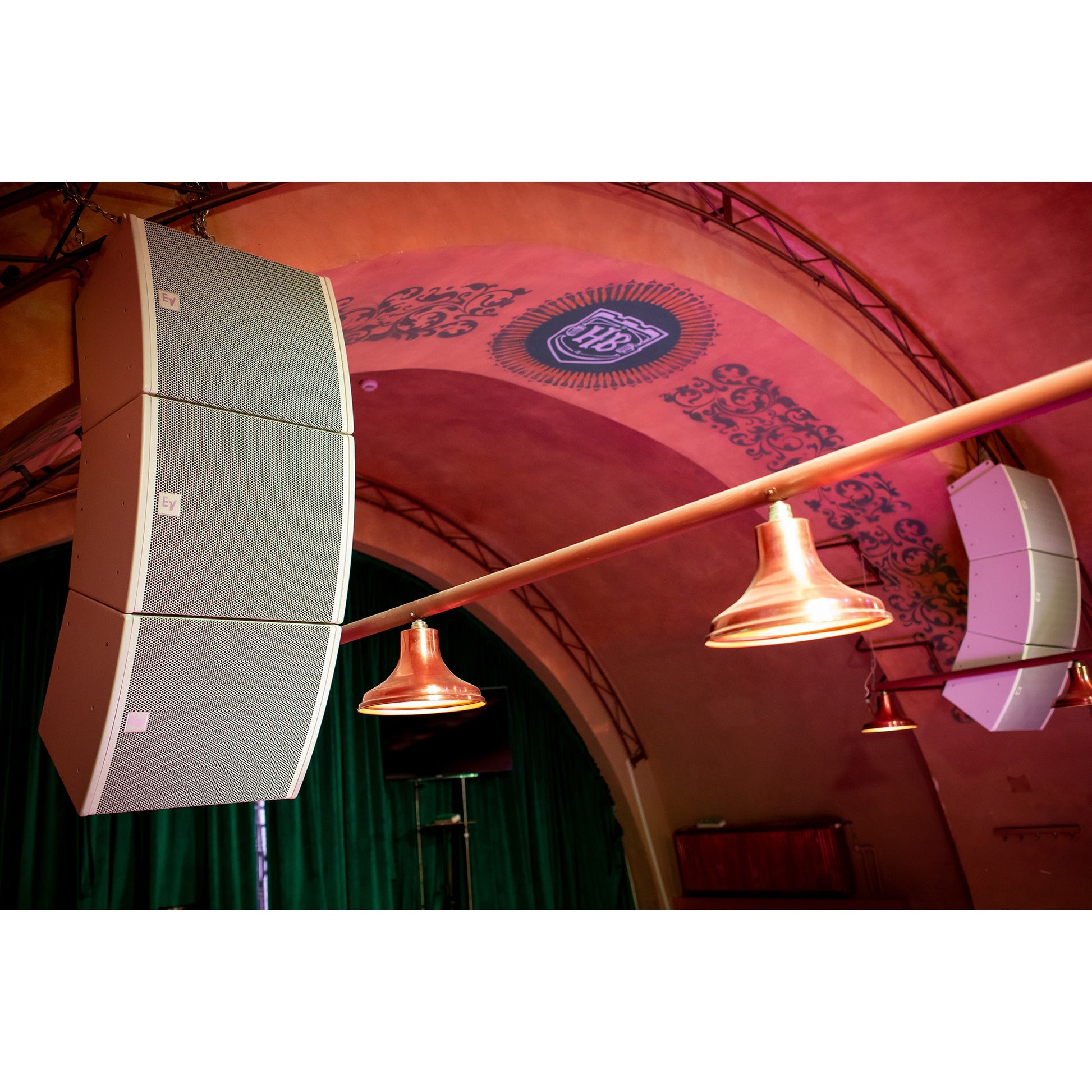

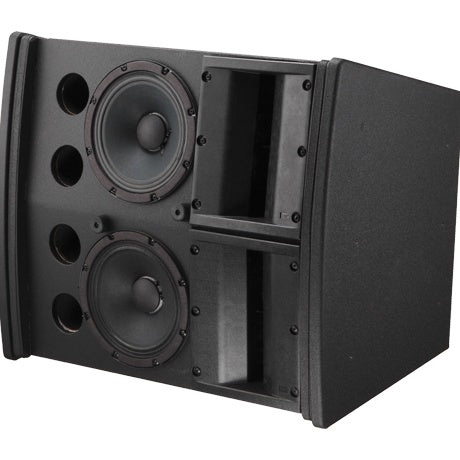

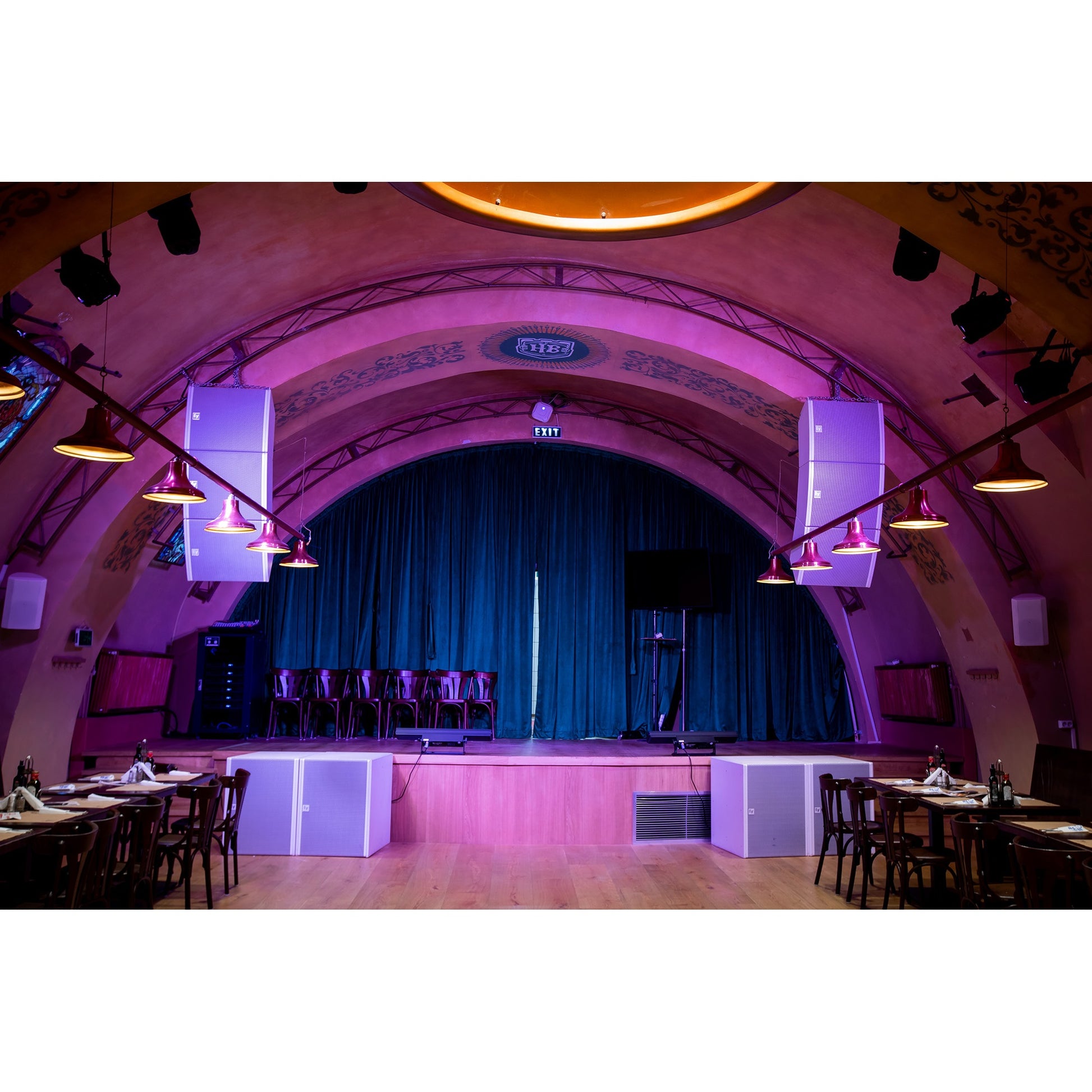

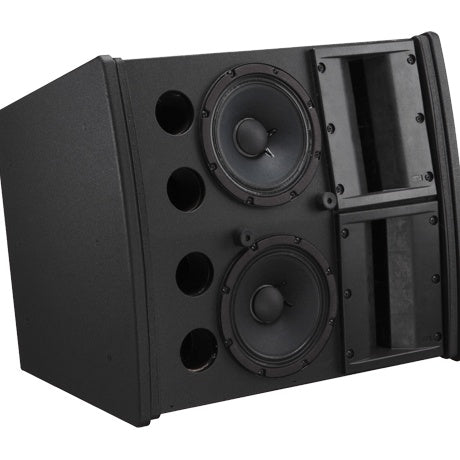

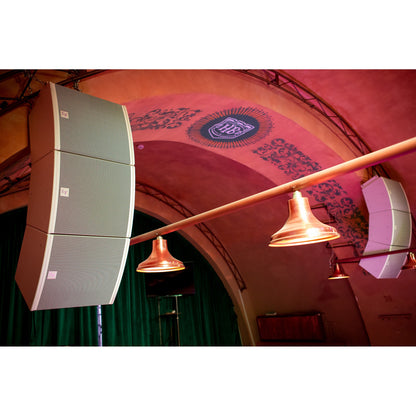

The EVA-2082S delivers professional line-array performance for houses of worship, performing arts centers, and corporate AV installations where consistent coverage and predictable output are non-negotiable. Its dual-element architecture houses two low-distortion woofers and four titanium-diaphragm compression drivers behind Hydra plane wave generators, ensuring uniform wavefront propagation across the narrow vertical dispersion pattern. Integration specialists value the hidden rigging points that maintain clean sightlines while the sixth-order passive network with high-frequency protection enables multi-box arrays driven from a single amplifier channel, reducing rack space and system complexity.

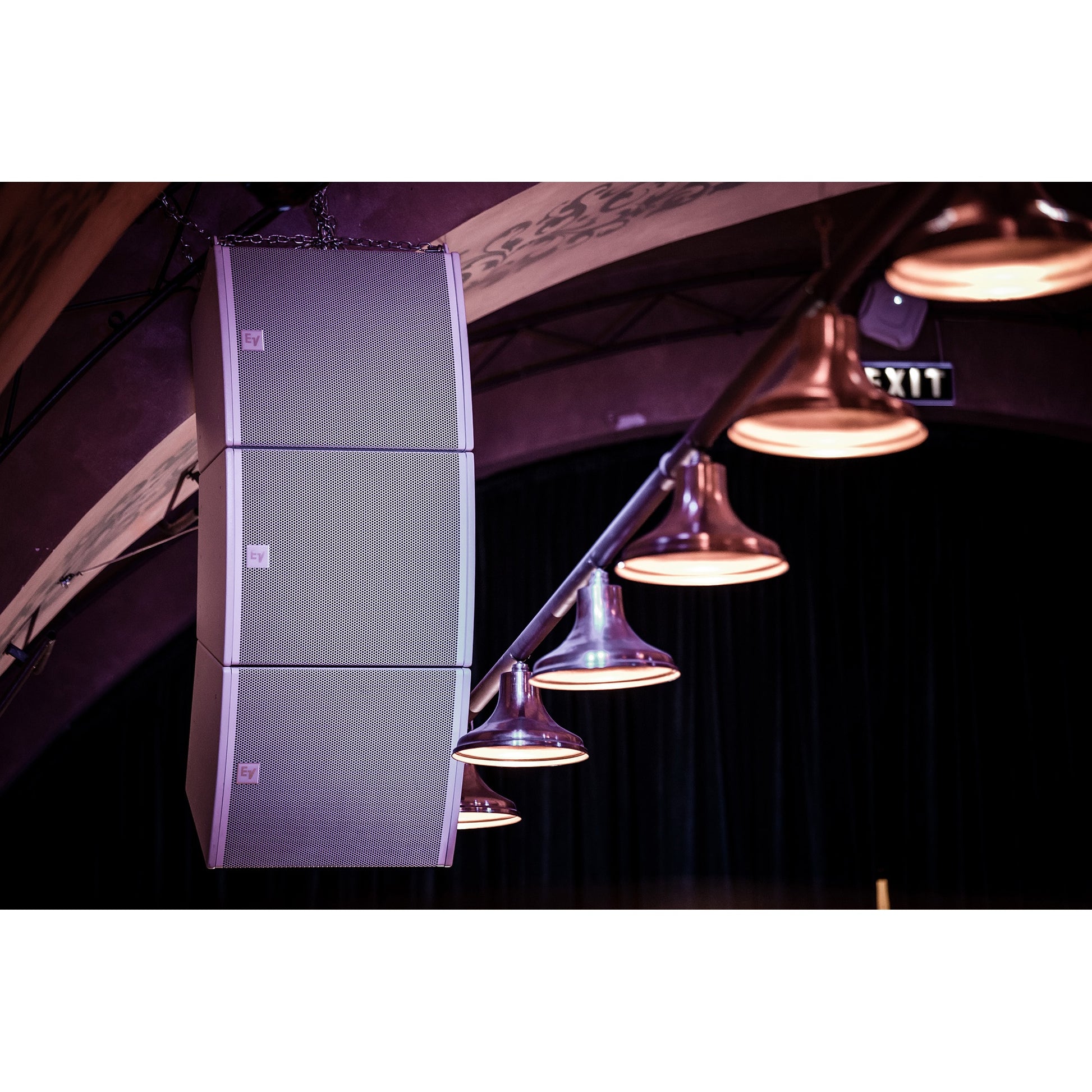

Birch plywood construction balances acoustic performance with structural integrity for suspended applications, while Phoenix screw terminals ensure secure connections in permanent installations. PREVIEW software integration allows design validation before deployment, eliminating guesswork in room-specific configurations. The ability to power up to eight modules from one amplifier output translates directly to lower infrastructure costs and simplified signal distribution in large-format systems.

Downloads

View full details

Specifications

Audio
Frequency Range (-10 dB)
45 - 20000 Hz
Frequency Response (-3 dB)
60 - 19000 Hz
Sensitivity 1 W/1 m
104 dB
Max. SPL/1m (calc)
135 dB
Coverage (Nominal -6 dB) H
120°
Coverage (Nominal -6 dB) V
20°
Crossover Frequency
1740 Hz
Recommended High-Pass Frequency
50 Hz
Nominal Impedance (Passive)
16 Ohms
Minimum Impedance
12 Ohms
System Power Handling (Continuous/Program/Peak)
350 W, 700 W, 1400 W
Passive Power Handling
1400 W
LF Transducer
(2) EVS2008, 8" (203mm) Driver
HF Transducer
(4) DH2005, 1.25" (32mm) Diaphragm Compression Driver
Speaker Type
Full-Range, Line-array
Construction
Enclosure Material
Birch plywood
Grille
16 GA Galvanneal, Powder-coated (PI Version - Stainless Steel with Hydrophobic Cloth
Connectivity
Input Connections
Phoenix/Euroblock style screw terminals
Dimensions
Height
512.2 mm
Width
596.9 mm
Depth
369.1 mm
Weight
Weight Net
36.8 lbs
Suspension
Suspension
EVA Grid (Sold Separately)
