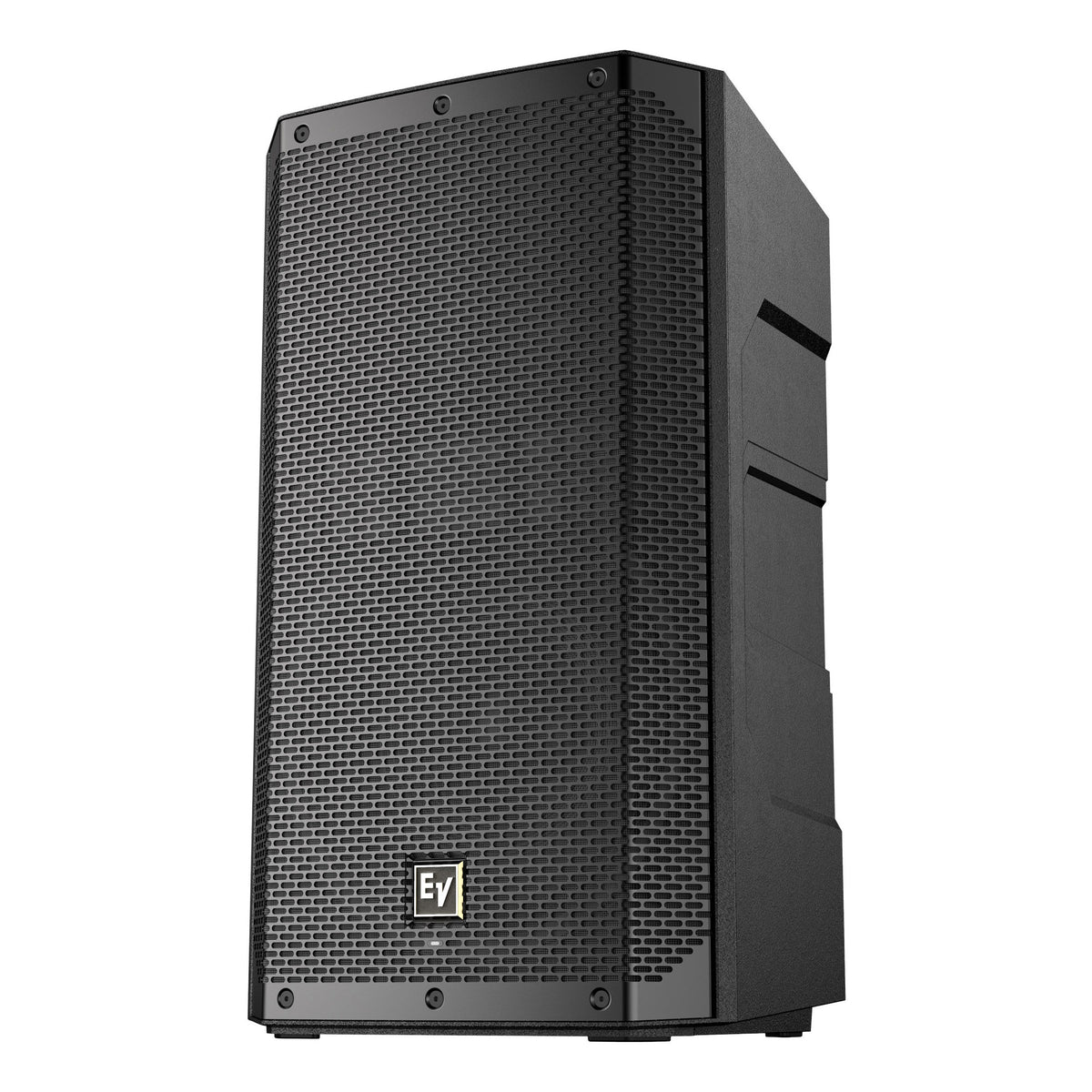

Electro-Voice ELX200-12P 12-Inch Powered Speaker | Color: Black

Electro-Voice ELX200-12P 12-Inch Powered Speaker | Color: Black

SoundPro Item: 16261 | Part Number: F.01U.326.040

Regular price $849.00
Regular price $1,485.00 Sale price $849.00
Your Price Sold out
MSRP: $1,485.00 | MAP: $849.00

Usually ships in 5-7 business days

  • EV QuickSmart Mobile application
  • QuickSmartDSP features best-in-class processing
  • High-efficiency 1200 W Class-D power amplifier delivers up to 130 dB peak SPL
  • SST waveguide provides  consistent coverage, minimal distortion, and maximized acoustical loading
  • Professional-grade hardware

Electro-Voice’s ELX200-12P powered speaker delivers an unprecedented combination of sound quality, portability, and durability. Unified in a sturdy, full-range enclosure, the ELX200-12P is characterized by strength and efficiency. Every aspect of ELX200 speaker series is designed for ideal results as part of the whole: acoustical, electrical, and mechanical components integrate seamlessly, making this speaker a robust workhorse capable of handling real-world abuse and professional applications.

The ELX200-12P features high-efficiency 1200W Class-D power amplifiers that deliver up to 130 dB peak SPL utilizing transducers that combine a 12” EVS-12M woofer with a DH-1L 1” titanium compression driver. Consistent coverage, minimal distortion, and enhanced acoustic loading are delivered via the transducers’ patented Signal Synchronized Transducers (SST) waveguide design.

Enjoy best-in-class processing from the fully integrated QuickSmartDSP. Its features include easy setup, four presets (Music, Live, Speech, and Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD. Electro-Voice’s QuickSmart Mobile application uses Bluetooth Low Energy (BTLE) technology to intuitively control, configure, and monitor up to six powered ELX200 loudspeakers simultaneously.

View full details

Specifications

Dimensions
Dimensions (HxWxD)
24.8x14.3x13.6"
Weight
Net Weight
34.4 pounds (15.6 kg)
Electrical
Power Consumption
100 - 240V~, 50 - 60 Hz, 1.8A
Audio
Power Rating
1200 W
Crossover Frequency
1700 Hz
Connectivity
Connectors
(1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
Construction
Enclosure
Polypropylene
Grille
18 AWG steel with powdercoat
General
Frequency Response (-3 dB)
57 Hz - 16 kHz
Frequency Range (-10 dB)
51 Hz - 20 kHz
Maximum SPL
130 dB
Coverage (H X V)
90° x 60°
LF Transducer
EVS-12M 300 mm (12 inches)
HF Transducer
DH-1C 1-inch titanium compression driver
Suspension
(3) M10 suspension points
