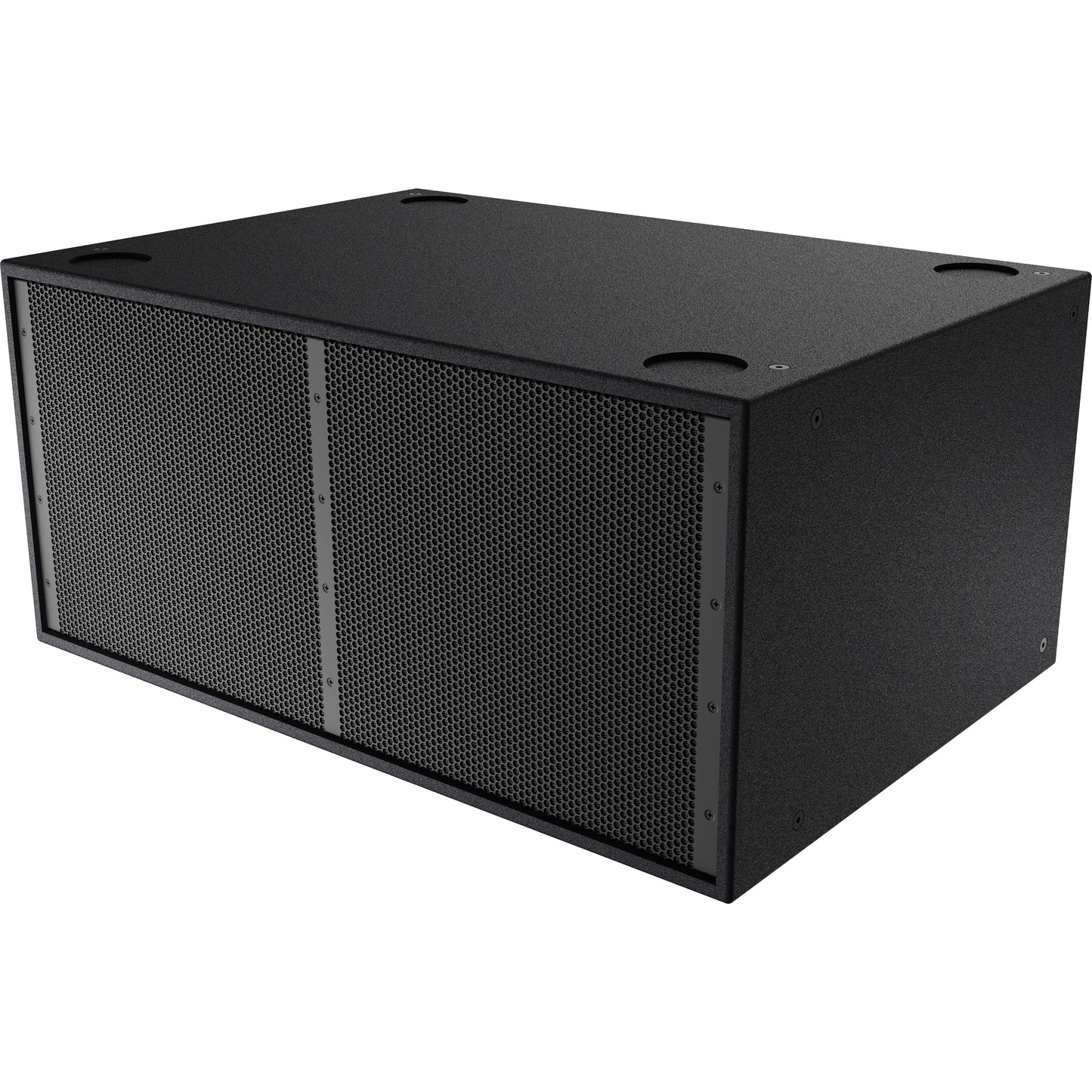

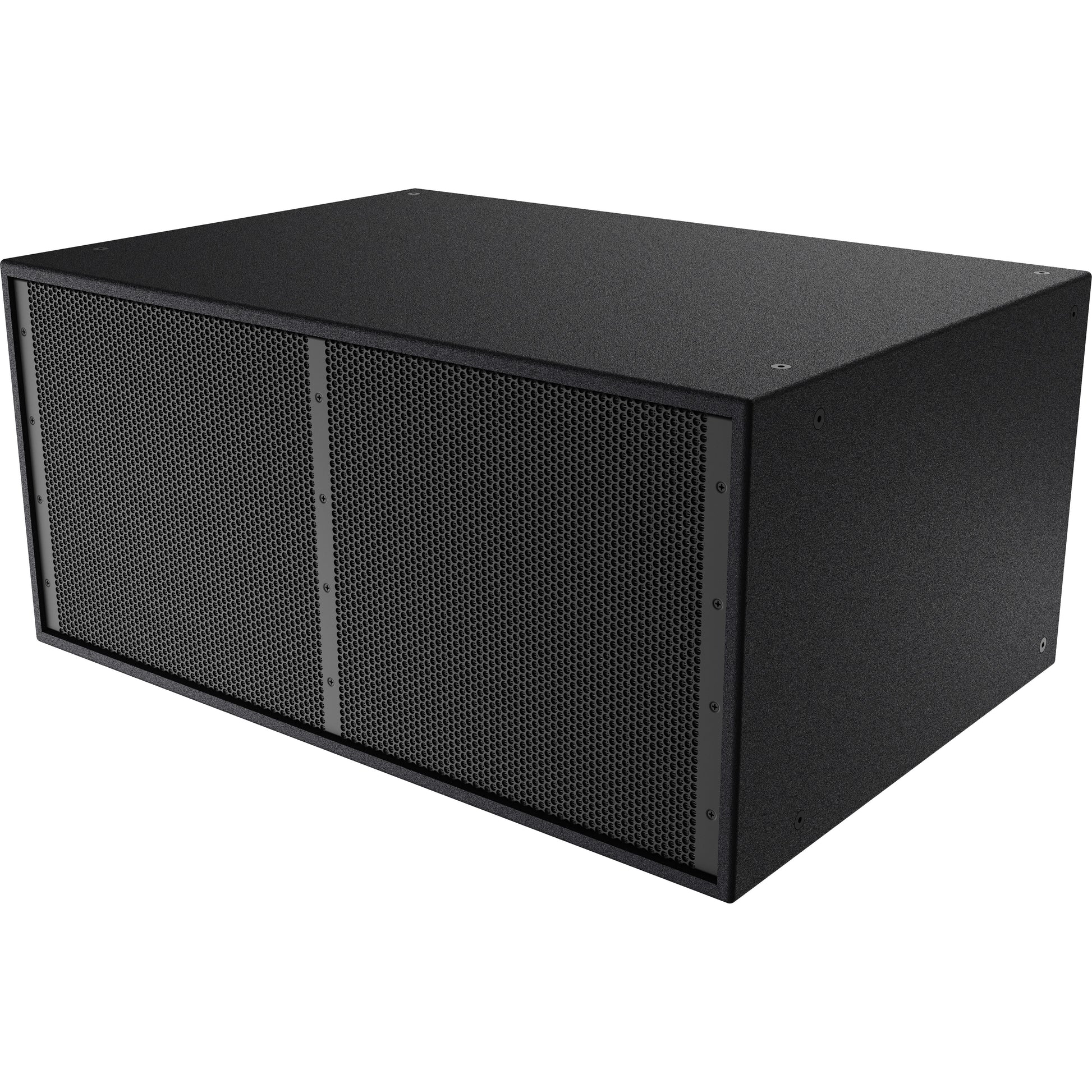

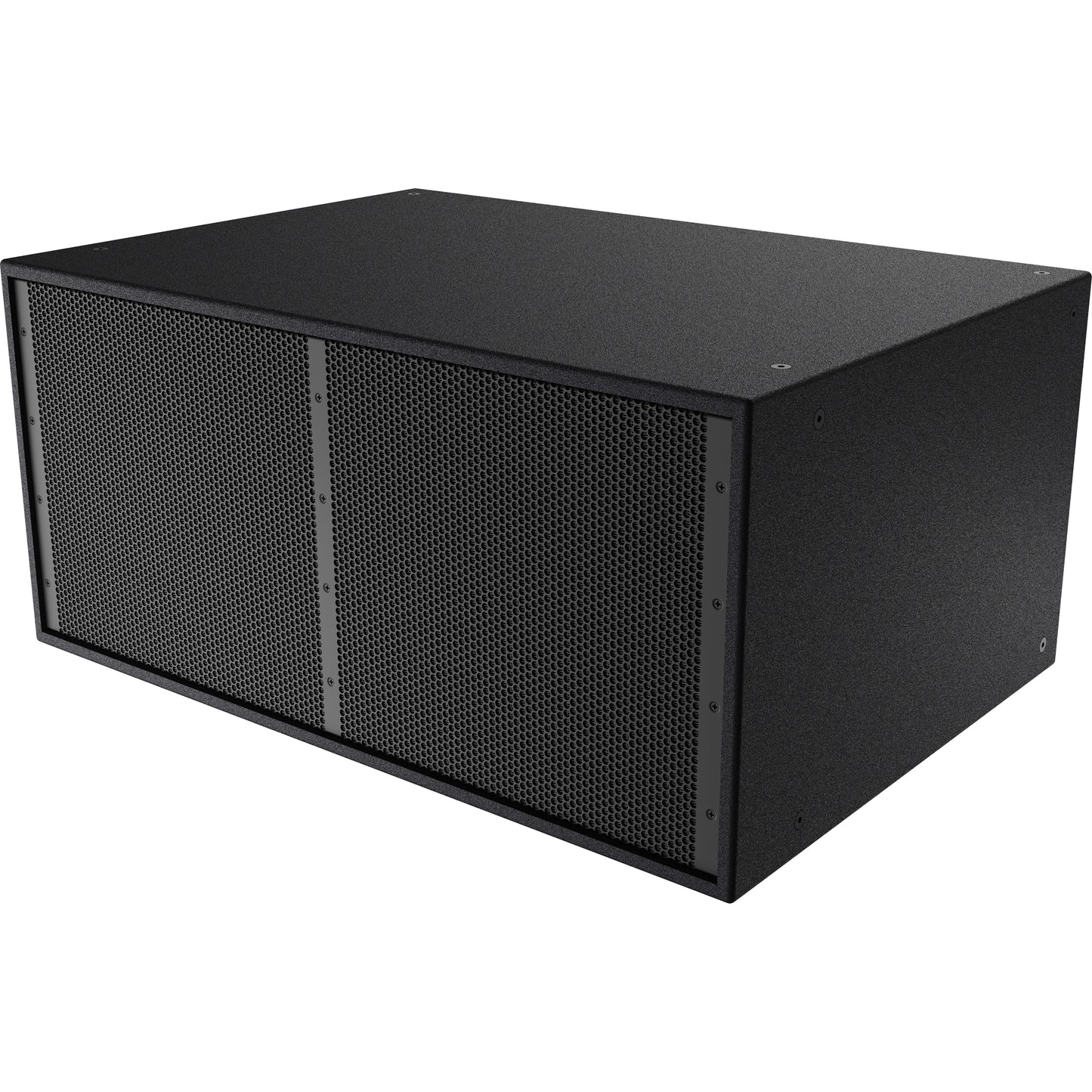

Electro-Voice X12i-128 Subwoofer Dual 18" X-Line Advance Install | Weatherized Fiberglass | Black

Electro-Voice X12i-128 Subwoofer Dual 18" X-Line Advance Install | Weatherized Fiberglass | Black

SoundPro Item: 45568 | Part Number: F.01U.360.967

$10,251.00
$10,251.00 $10,251.00
Your Price Sold out
MSRP: $10,251.00 | MAP: $10,251.00

Usually ships in 5-7 business days

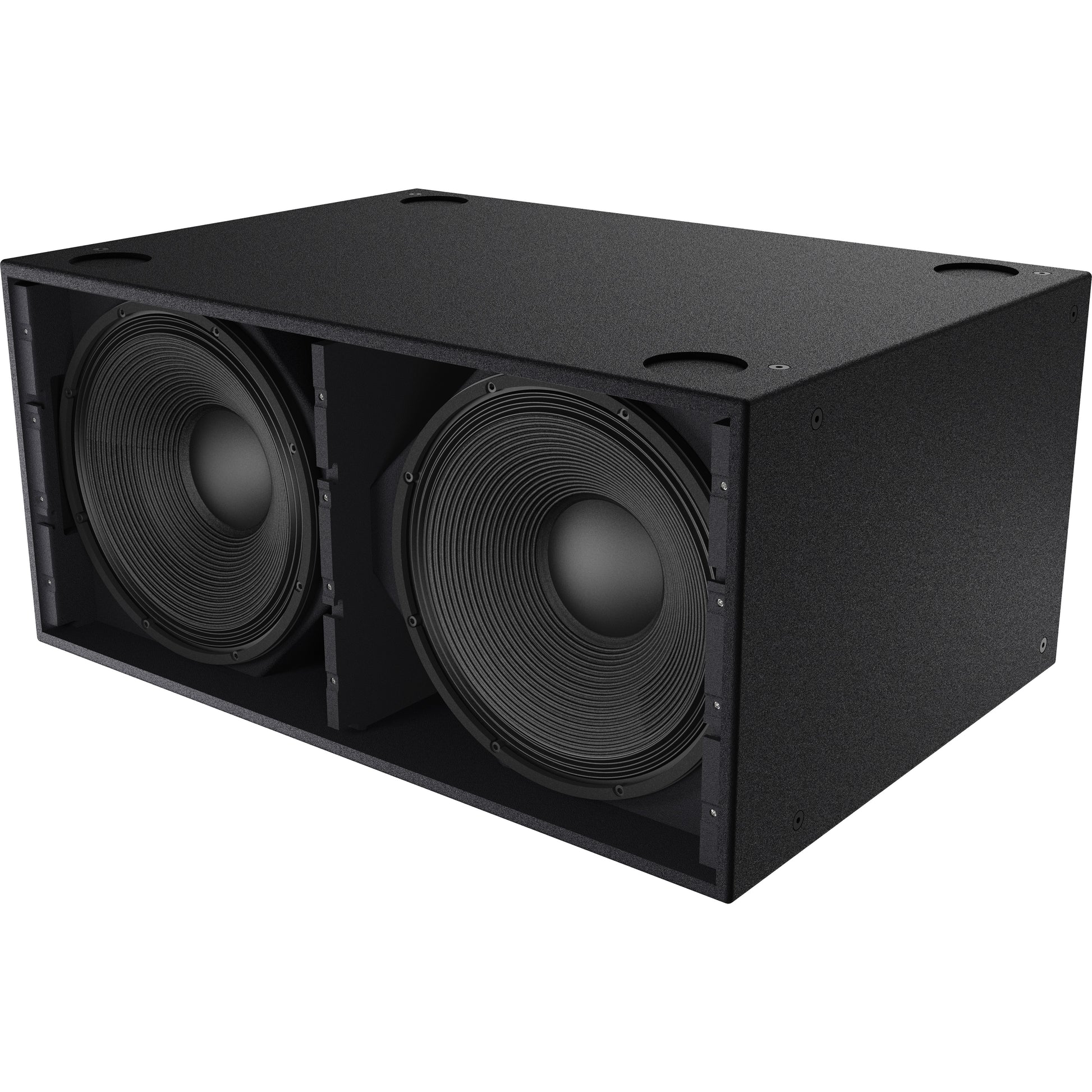

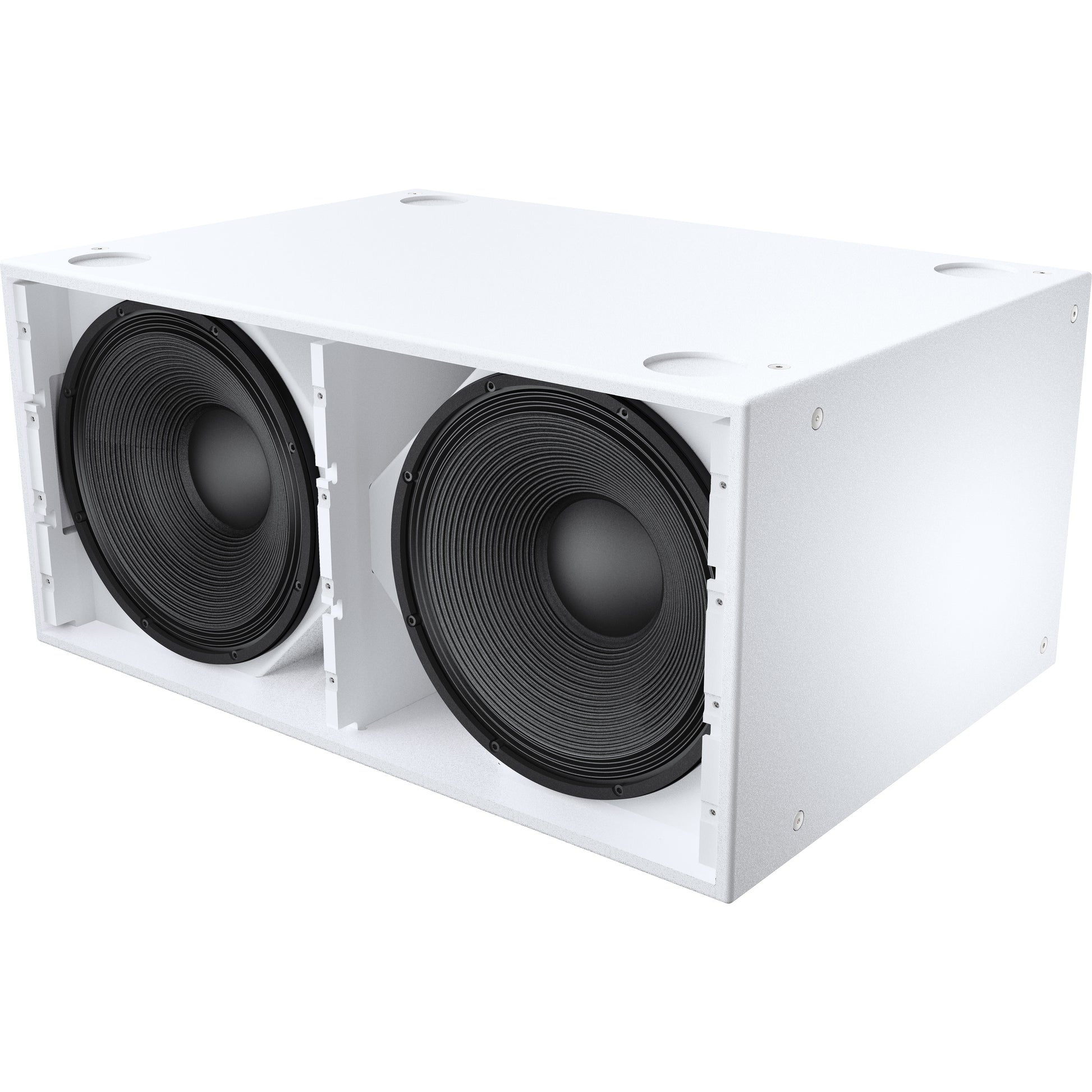

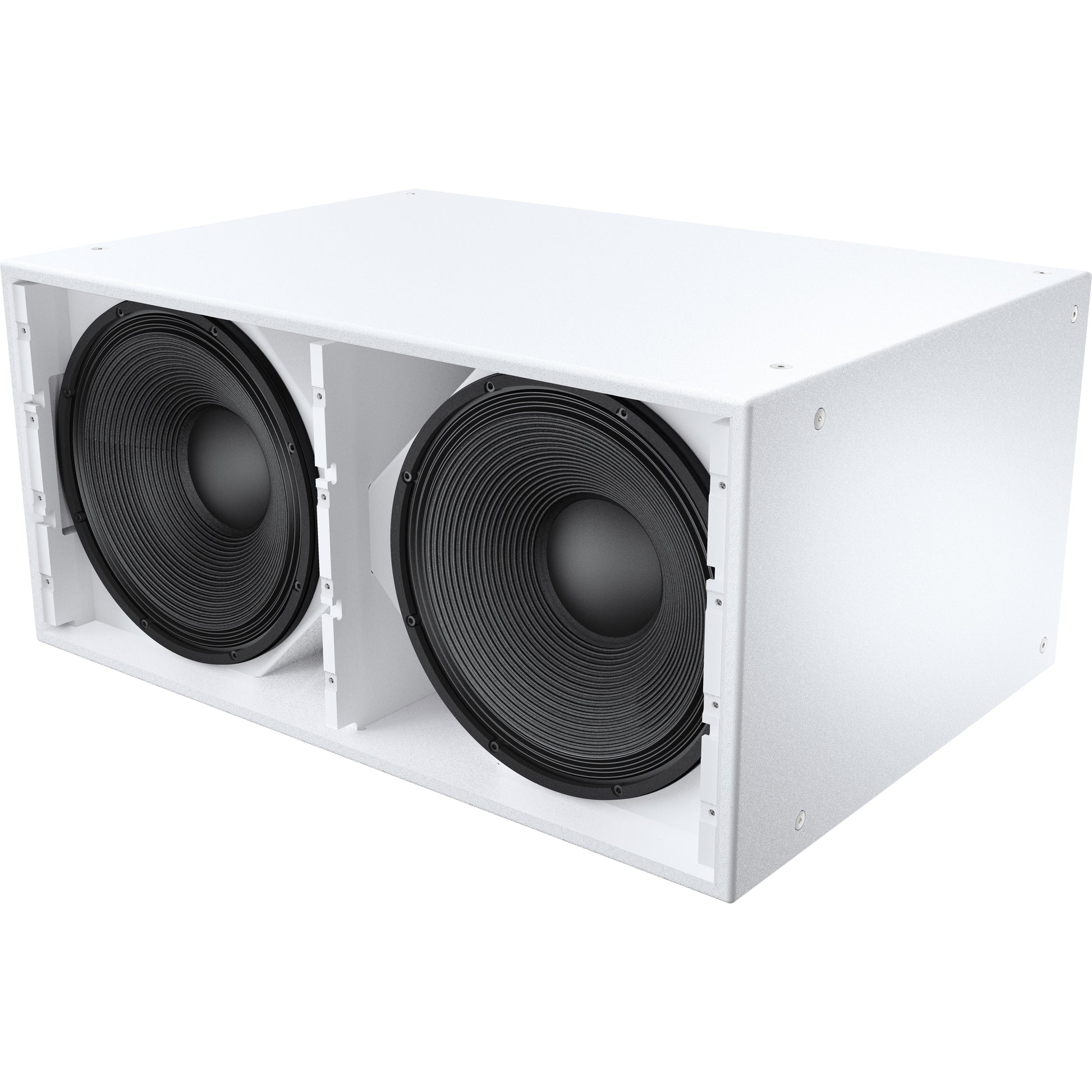

  • Dual DVF4180 Woofers Produce Low Distortion At Extreme Output Levels
  • Interlocking Feet Secure Ground Stack Configurations Without External Hardware
  • Four M10 Side Hard Points Enable Structural Mounting In Permanent Installations
  • Dual Phoenix Terminal Blocks Simplify High-Current Wiring In Distributed Systems
  • Weather-Resistant Plywood With Polyurea Coating Ensures Longevity In Controlled Environments
  • Stainless Steel Grille And Hardware Resist Corrosion In High-Humidity Venues
  • Acoustic Matching With X-Line Advance Cabinets Delivers Cohesive Full-Range Arrays
Log in or register for YOUR best price

The X12i-128 delivers state-of-the-art low-frequency performance in a compact footprint for fixed installation environments. Engineered to ground stack or fly, the system acoustically integrates with any X-Line Advance top cabinet, enabling cohesive full-range arrays in houses of worship, theaters, performing arts centers, and large-format corporate venues. Weather-resistant plywood construction with EVCoat polyurea finish ensures long-term reliability in controlled climates. Stainless steel grilles and hardware provide maximum corrosion resistance even in demanding conditions.

Optimized cardioid array configurations achieve up to 30 dB of rear rejection when multiple X12i-128 units are deployed, reducing stage wash and lobby bleed in multi-zone facilities. Dual high-current Phoenix terminal blocks simplify wiring in distributed systems, while interlocking feet stabilize ground stacks without additional hardware. Four M10 hard points on each side enable secure mounting to structural framing, and four additional top points support single-cabinet suspension. Electro-Voice PREVIEW software calculates precise array geometry and coverage predictions, accelerating system commissioning for integrators managing complex architectures.

Downloads

View full details

Specifications

Certifications
IP Rating
IP55
Audio
Frequency Response (-3 dB)
27 - 200 Hz
Frequency Response (-10 dB)
23 - 1950 Hz
Coverage (H x V)
Omni directional
Recommended High-Pass Frequency
27 Hz
Maximum SPL
138 dB continuous, 144 dB peak
Axial Sensitivity
102 dB (1 W/1 m)
Passive Power Handling
4000 W continuous, 16,000 W peak
Impedance
2 x 8 Ohm (nominal)
LF Transducer
2 x 18" DVF4180
Configuration
Dual mode: Each woofer is wired separately on Pins 1+/1- and 2+/2-
Connectivity
Connectors
Dual high current Phoenix terminal blocks
Construction
Enclosure
13-ply weather resistant birch with EVCoat polyurea finish, internally braced (Fiberglass coating on FG models)
Grille
14 GA 304 stainless steel with powder coat, hydrophobic screen
Color
RAL9005 black
Dimensions
Dimensions (H x W x D)
510 mm x 1094 mm x 764 mm (20.1" x 43.1" x 30.1")
Weight
Net Weight
86.6 kg (191 lbs)
Shipping
Shipping Weight
91.6 kg (202 lbs)
