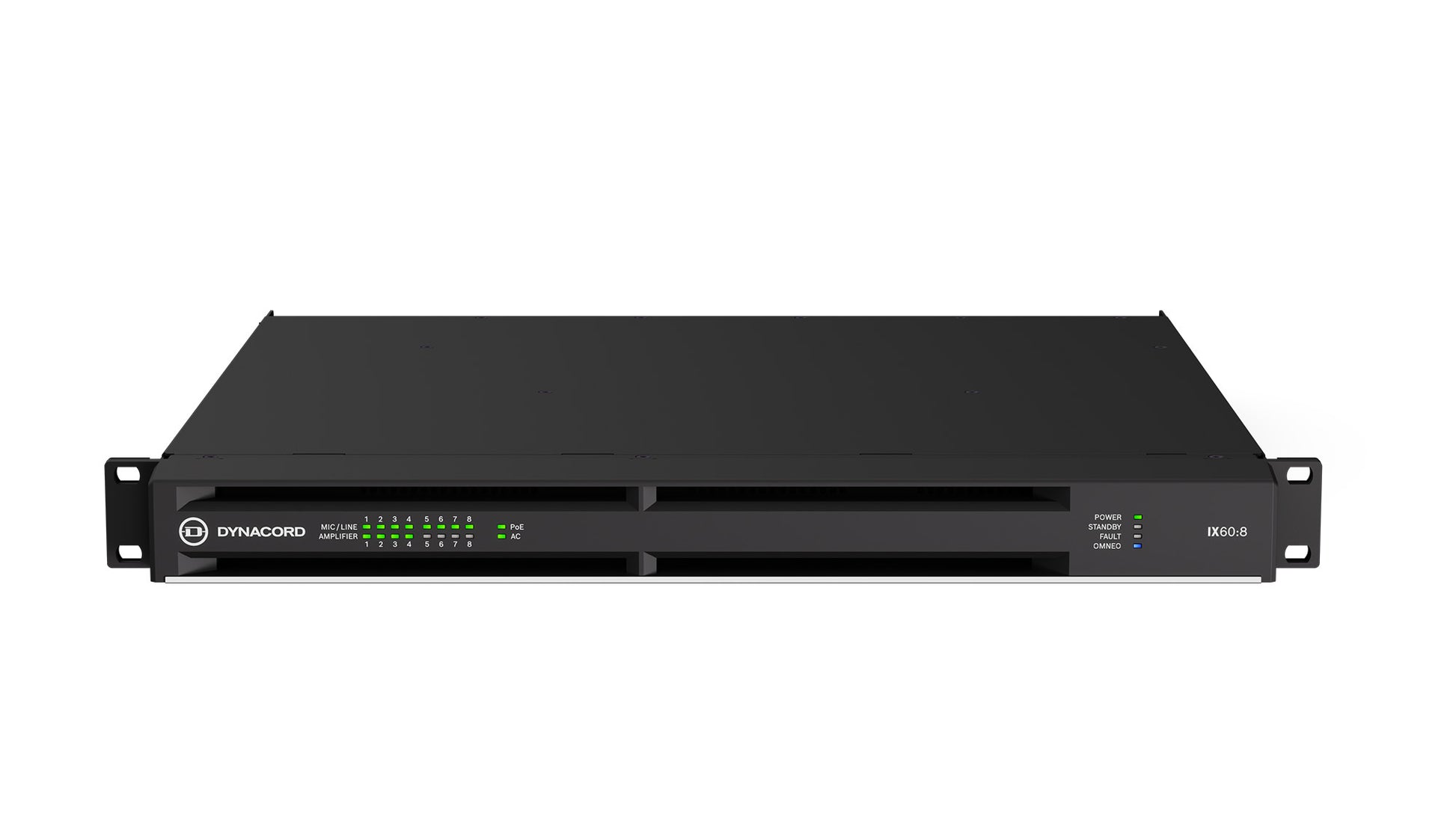

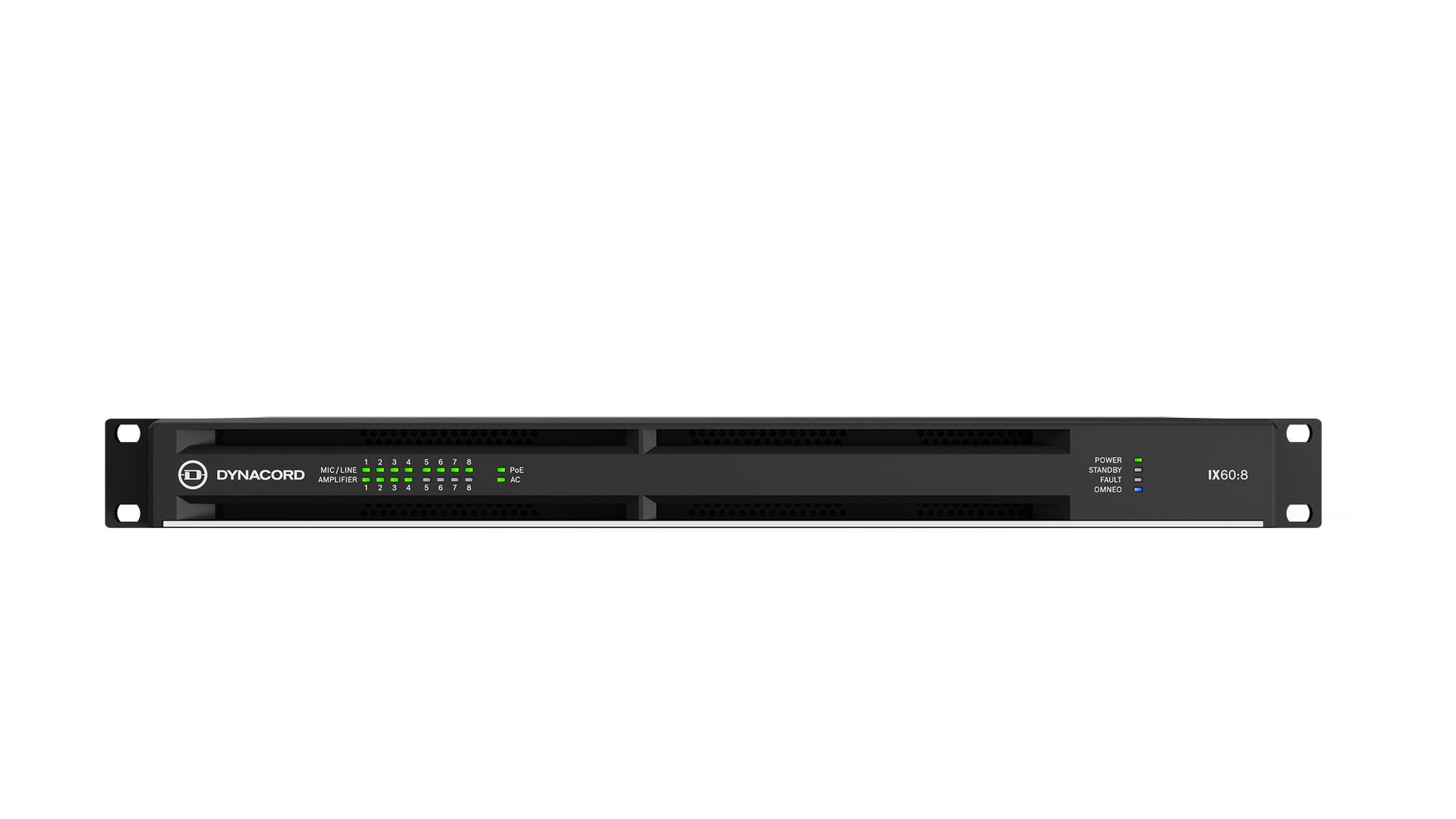

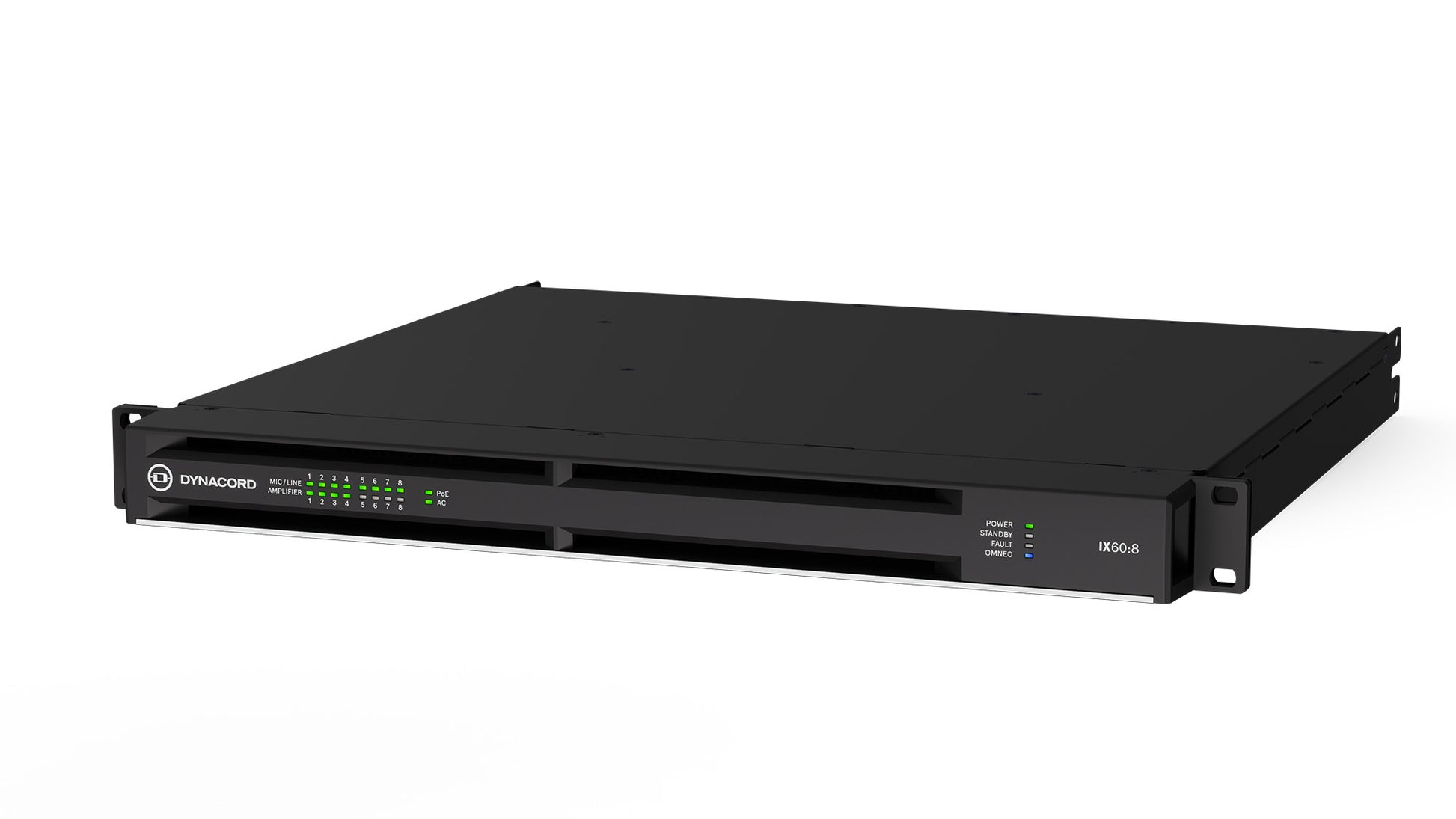

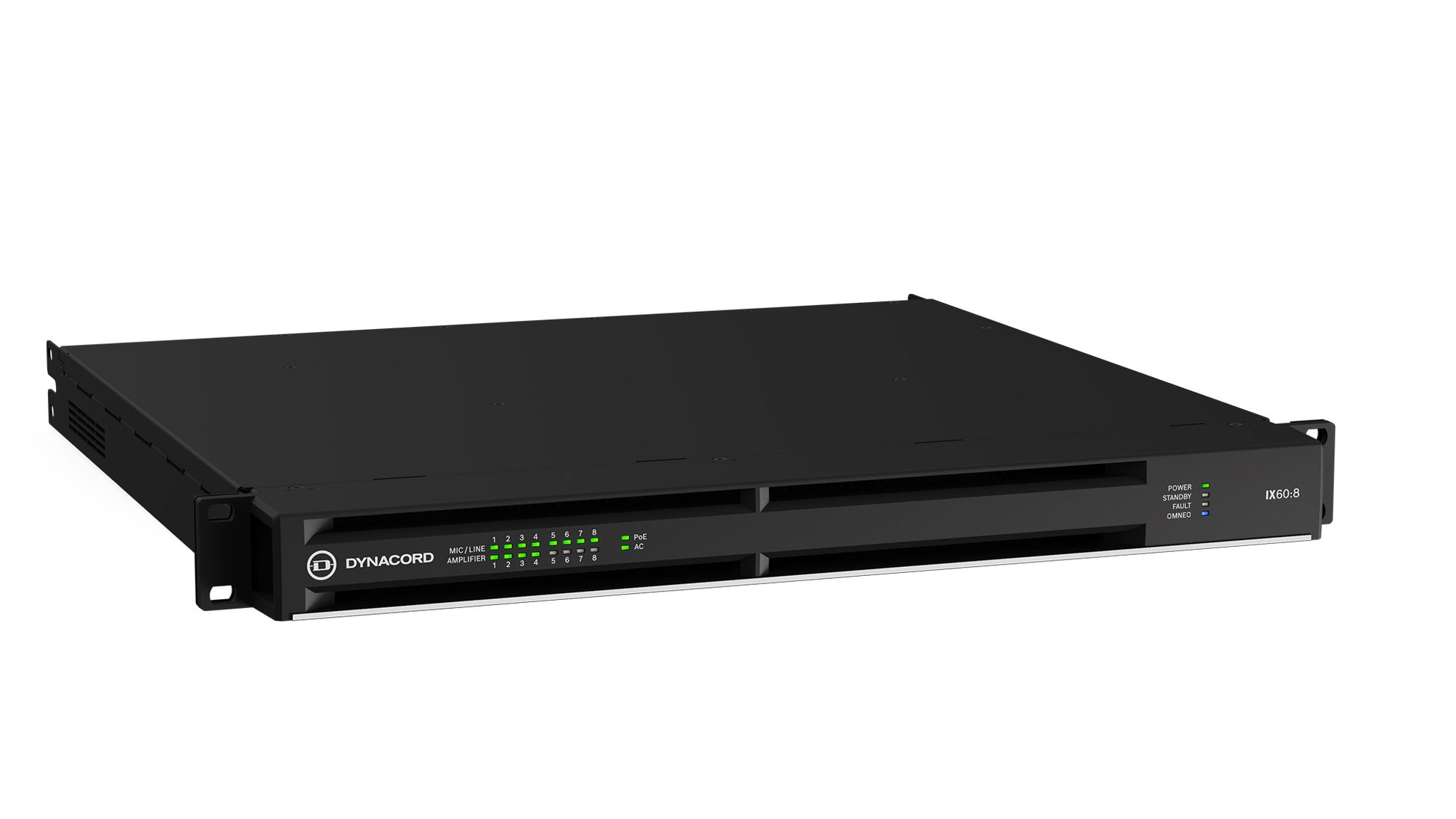

Dynacord IX Networked DSP Amplifier With Dante | 6 kW | 8-Channel

Dynacord IX Networked DSP Amplifier With Dante | 6 kW | 8-Channel

SoundPro Item: 152259 | Part Number: IX60:8-US

$6,773.00
$6,773.00 $6,773.00
Your Price Sold out
MSRP: $6,773.00 | MAP: $6,773.00

Usually ships in 5-7 business days

  • PowerTANK Topology Drives Both Hi-Z And Lo-Z Loads From A Single Amplifier Platform
  • Dante Break-In Capability On All Mic/Line Inputs Brings Analog Sources Into Network Signal Path
  • OCA/AES70 Remote Control Enables Full Integration With SONICUE Software And Third-Party Platforms
  • PoE GhostPOWER Maintains DSP, Network, And Input Functionality Independent Of Mains Supply
  • EcoRAIL Technology Optimizes Amplifier Efficiency Across All Operating Conditions
Log in or register for YOUR best price

The IX series brings networked amplifier intelligence to installed sound applications where uptime, flexibility, and integration matter. Designed for sports venues, houses of worship, live performance spaces, and hospitality environments, this platform combines powerTANK amplifier technology with native Dante connectivity and onboard DSP processing. The 96 kHz matrix mixer, dynamics, EQ, and FIR-Drive capability eliminate the need for external processors, while OCA/AES70 remote control integrates directly into SONICUE Sound System Software for unified system management.

Mic/line inputs function as Dante break-in points, allowing analog sources to enter the network at the amplifier. The MXE-style TaskEngine provides local logic for automation, scheduling, and third-party device integration without relying on external controllers. PoE ghostPOWER keeps the DSP, Dante network, and all mic/line inputs active even when mains power is lost, ensuring that signal routing and control remain operational during power transitions. ecoRAIL technology reduces operating costs by optimizing energy consumption across all load conditions.

Pilot-tone detection on all inputs and pilot-tone generation on all outputs enable sophisticated signal presence monitoring and automated failover scenarios. Glitch-free network redundancy with primary/secondary modes and RSTP support ensures continuous operation in mission-critical applications. Front-to-rear airflow and temperature-controlled, supervised fan cooling support rack-dense installations without acoustic penalties.

Downloads

View full details

Specifications

Audio
Total Rated Output Power
6.000 W
Number Of Amplifier Channels
8
Load (8 Ω, All Channels Driven Equally)
750 W
Maximum Per Channel
1000 W
Bridge
1.200 W
Max. Output Voltage Hi-Z/8Ω Mode, Per Channel
145 Vpk
Max. Output Current Lo-Z/4Ω Mode, Per Channel
33 Apk
Voltage Gain Lo-Z Mode, Ref. 1 kHz
32 dB, adjustable 20.0 - 44.0 dB
Input Sensitivity, Direct Drive Mode
+6 dBu ( 1.55 V), fixed
THD+N (3 dB Below Max. AES17, 1 kHz)
<0,1 %
Crosstalk (Ref. 1 kHz, 12 dB Below Max. 8Ω)
< -80 dB
Frequency Response (Ref. 1 kHz, Analog In-Speaker Out)
20 Hz to 20 kHz (±1 dB)
Sampling Rate
96 kHz internal, Dante 48/96 kHz switchable
Latency (Analog In-Speaker Out)
0.77 ms
Mic/Line Inputs
Number Of Mic/Line Inputs
8
Gain
0 to 60 dB
Maximum Input Level
+18 dBu
Phantom Power
+ 48 V, switchable per input
Input Impedance
>10 kΩ
E.I.N (A-weighted) @ 150Ω
-127 dBu

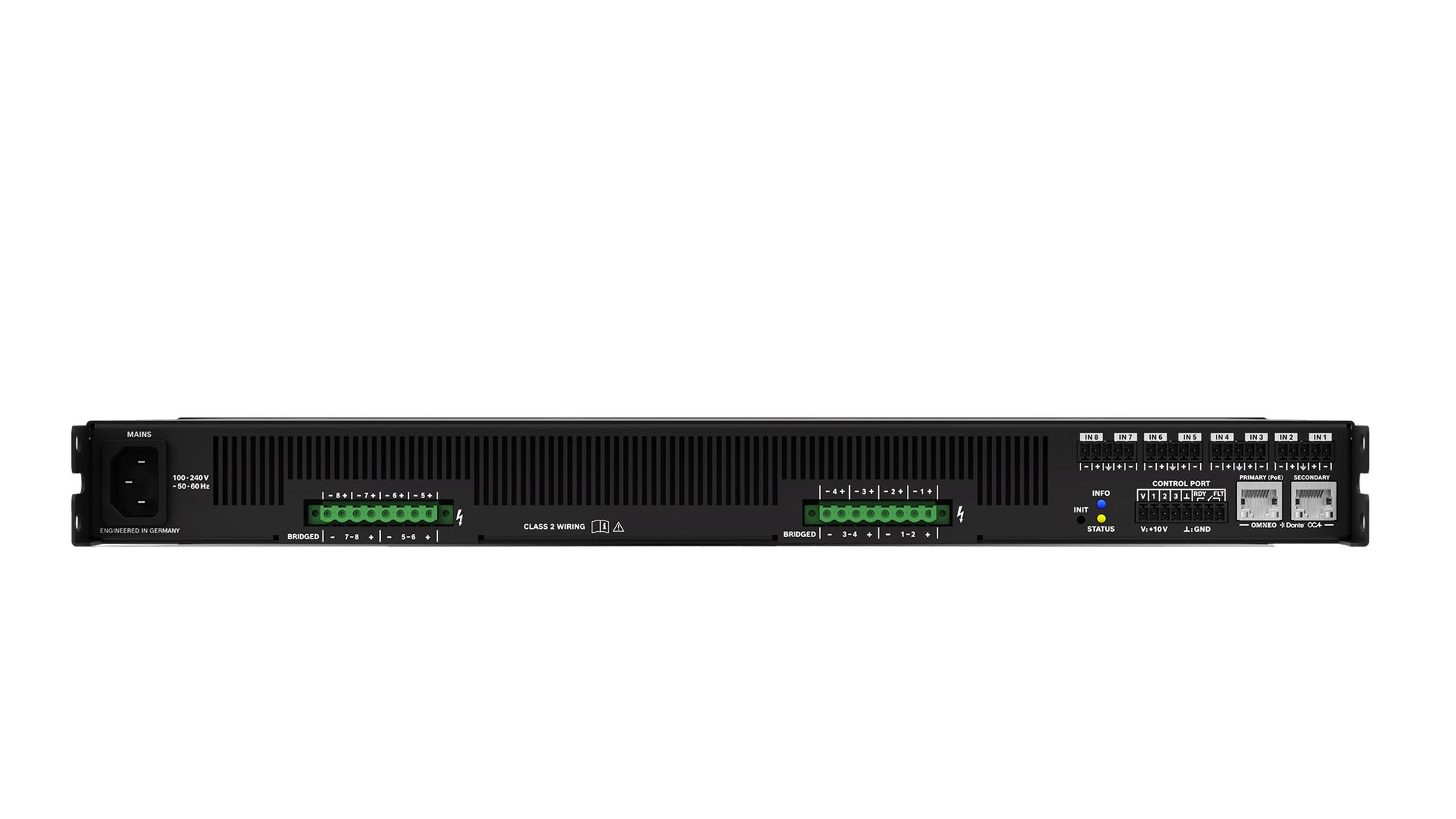

Connectivity
Mic/Line Inputs
4 x 5-pin Euroblock-style, male
Speaker Outputs
2 x 8-pin Euroblock-style, 2.5 mm² (12 AWG)
Network
2 x RJ45
Control Port
1 x 8-pin Euroblock-style
Mains Power Input
1 x IEC C14
Network
General
1000base-T/100base-TX, integrated switch
Redundancy Modes
Glitchfree (PRIMARY/SECONDARY), RSTP
Backup Power Supply (ghostPOWER)
1 x PoE (IEEE802.3af) on PRIMARY port
Network Audio (Inputs x Outputs)
8 x 8, 48/96 kHz, Dante
Control
GPIO Control Port
3 ports, switchable: analog in/digital in/digital out
Analog Input Range
0 V to +13 V, 133 kΩ input resistance
Digital Input Limits
ON: <1,5 V
Digital Outputs
ON: output switched to GND, max. 200 mA
Reference Voltage Output
+10V, max. 200 mA, supervised, short circuit protected
READY/FAULT
Galvanic isolated relay, max. 30 VDC/500 mADC
Electrical
Rated Power Consumption (1/8 Max. Output Power)
1.050 W
Eco Mode
39 W
Stand-by Mode
<15 W
Power Requirements
100 V to 240 V, 50 Hz to 60 Hz AC
Power Supply Technology
Switching mode power supply with digitally controlled power factor correction
Construction
Protections
Audio Limiters, High Temperature, DC, HF, Short Circuit, Back-EMF, Peak Current Limiters, Inrush Current Limiters, Mains Over-/Under Voltage Protection
Cooling
Front-to-rear, temperature controlled fan, supervised
Environmental
Ambient Temperature Limits
+5 °C to +40 °C (+40 °F to +105 °F)
Dimensions
Dimensions
483 mm x 44,1 mm x 447 mm (19" x 1.74" x 17.6")
Weight
Weight
8,75 kg (19.3 lbs)
Shipping
Shipping Weight
10,6 kg (23.4 lbs)
