Specifications
Dimensions
Transducer (quantity) Size

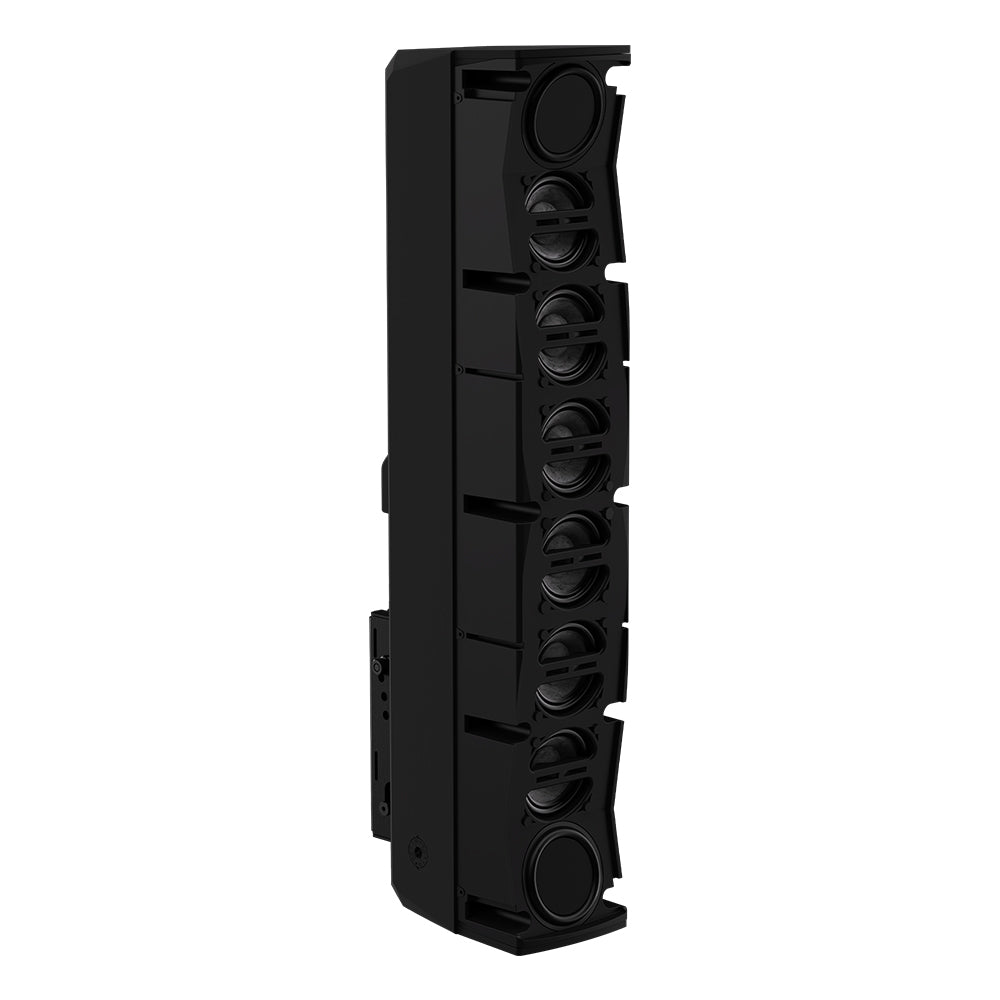

(6) 2.5 in active drivers (2) 2.5 in passive radiators
Dimensions (H X W X D)
22.83 in x 4.13 in x 5.67 in
Weight
Shipping Weight
14.33 lb
Electrical
Peak Input Voltage (Lo-Z) )
80 V
Nominal Impedance (Lo-Z)
8 Ω
Audio
Max SPL (Distance of 1m)
123 dB
Axial Sensitivity
90 dB SPL 1W/1m
Connectivity
Connector Type
4-pin Euroblock Input + Pass through
Construction
Mounting
SwifTilt Multi-angle Tilt + Pan Bracket
Color
RAL 9004 Signal black / RAL 9003 Signal white
Environmental
IP Rating
FW (outdoor full exposure), IP55c
Shipping
Weight
9.7 lb
General
Frequency Range (-10 dB)
70 Hz - 15,000 Hz
Coverage Angle(H X V)
130° x 20°
Power Handling (continuous)
100 W
Power Handling (program)
200 W
Recommended High-pass
≥70 Hz Butterworth, 24 dB/oct
Transformer Taps 70 V Line
60 W; 30 W; 15 W; 8 W; 4 W
Transformer Taps 100 V Line
60 W; 30 W; 15 W; 8 W
Suspension Points
(2) M8
Maximum Horizontal Pan Angle
+/- 80° (at all down-tilt angles)
Vertical Down-tilt Angles
0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
Mechanical
Wire Size
12AWG (maximum)
