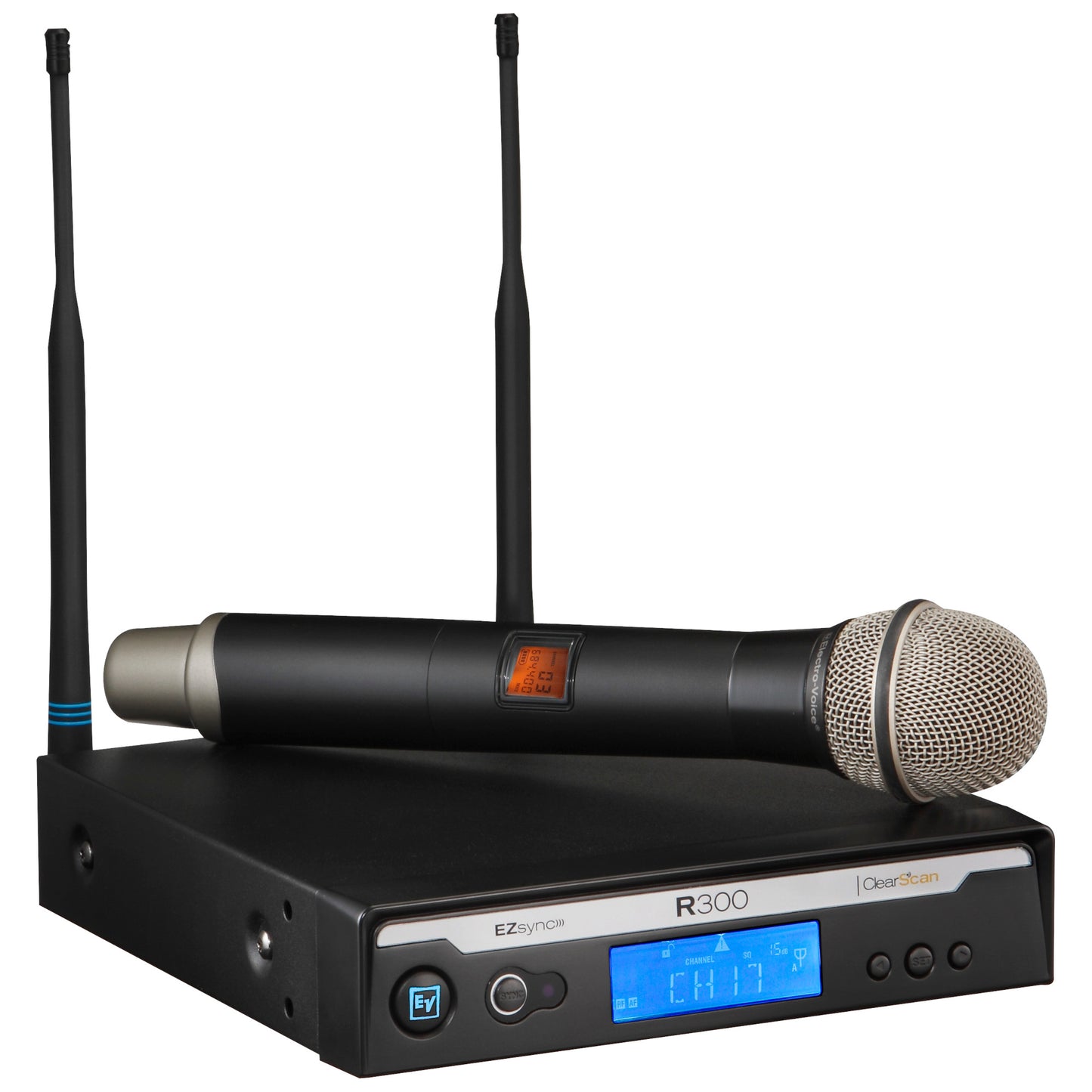

Specifications
Dimensions
Dimensions (HxWxD)
1.72x7.8x8" (43x206x210 mm)
Bodypack Dimensions (HxWxD)
3.3x2.6x0.89" (84x66x23mm)

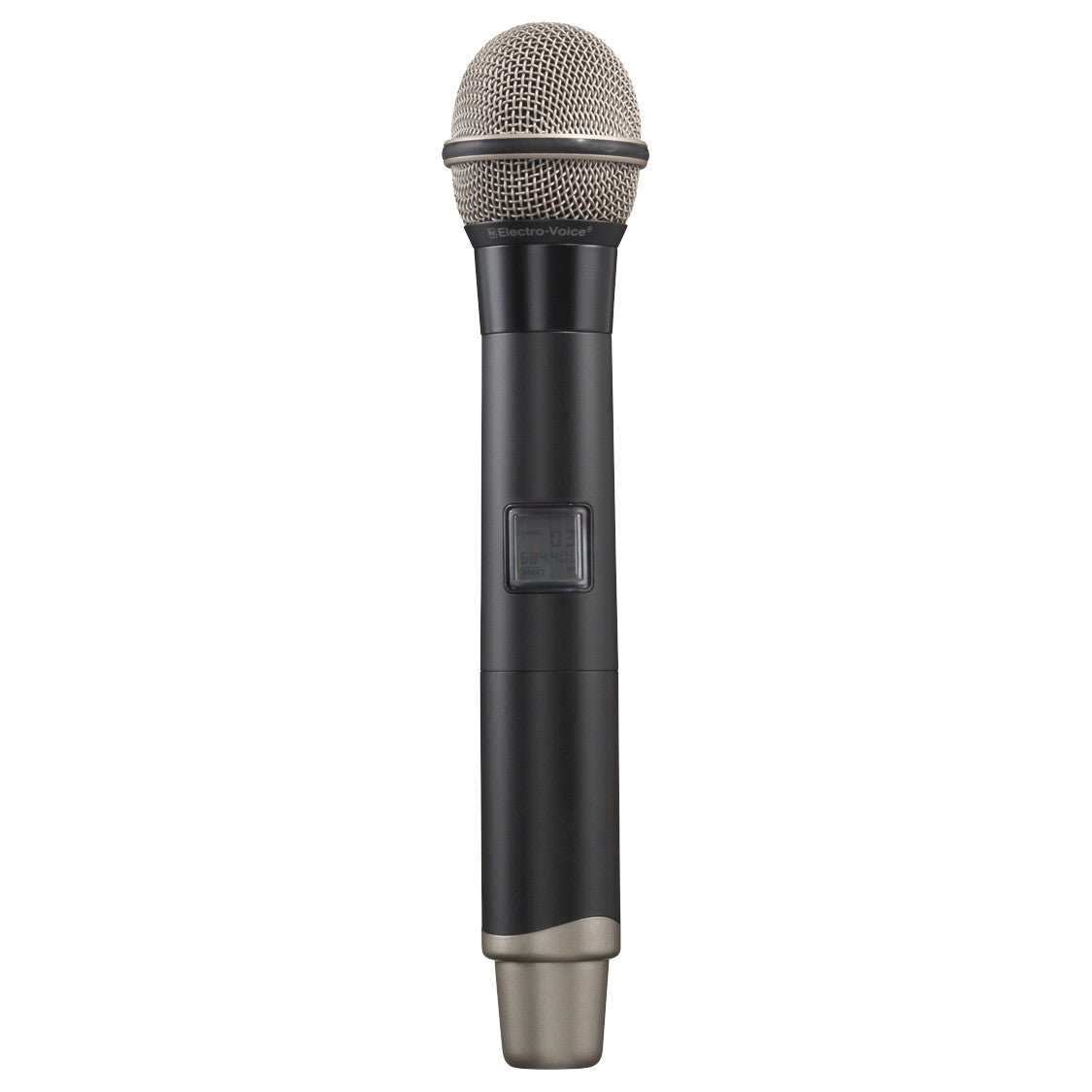

Handheld Dimensions (HxWxD)
26.7 cm (10.57 in) Long
Electrical
Power Requirements
12-16 VDC, 500mA max
Power Requirement
Two AA batteries
Battery Life (Typical)
> 14 hours with AA alkaline typical
Audio
RF Sensitivity
<1.0 μV for 12 dB SINAD
Frequency Response
80 Hz - 18 kHz ± 2 dB
Distortion
< 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation)
Signal-to-Noise Ratio
> 100 dB A-Weighted

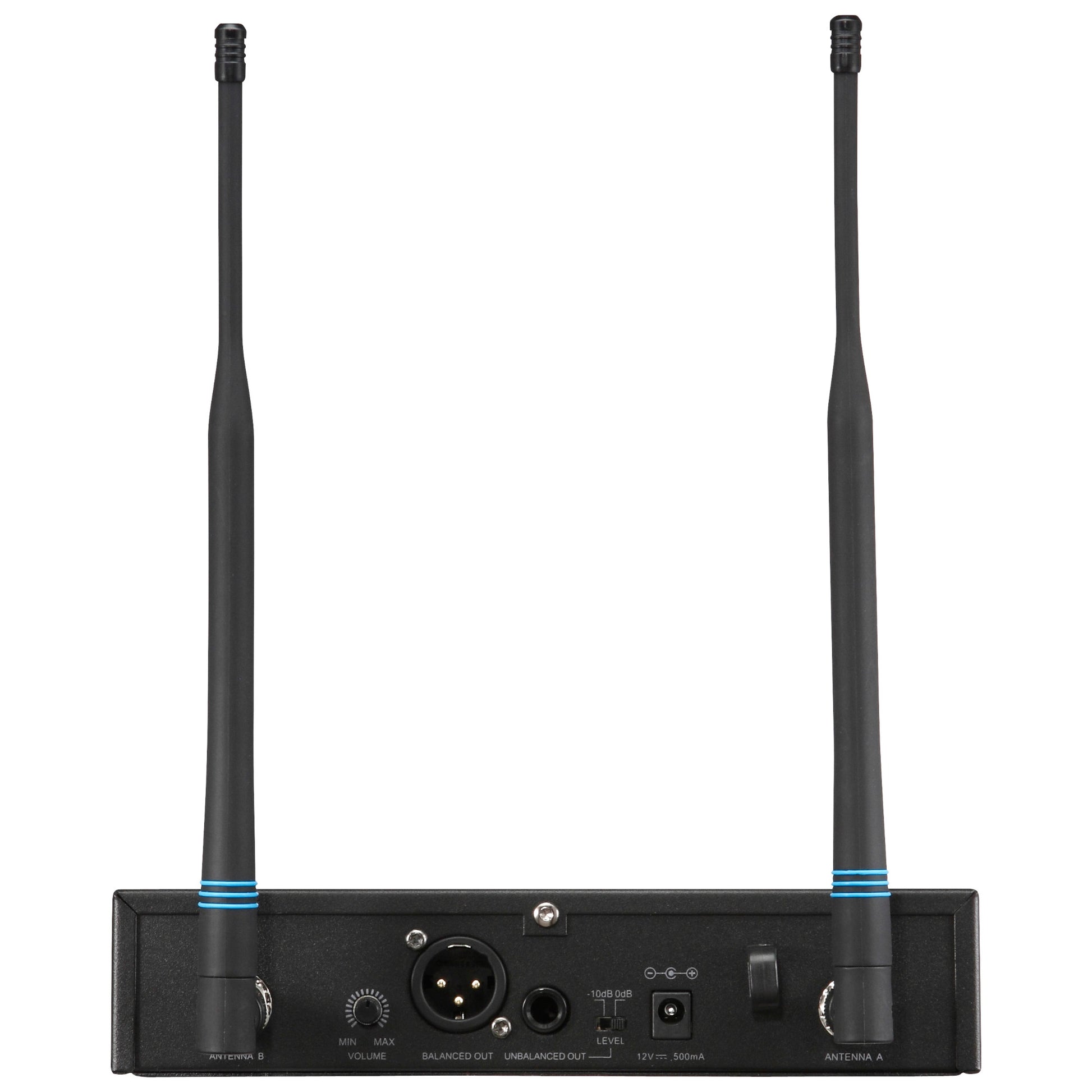

Connectivity
Balanced Output
20 dBV (max @ 40 kHz deviation)
Unbalanced Output
Adjustable 8 mV to 0.755V RMS
Radiated Output
8 mW typical
TA4F Connector Wiring
Pin 1 Ground; Pin 2 Mic Input; Pin 3 +5V bias; Pin 4 +5V thru 2.2kΩ
Controls

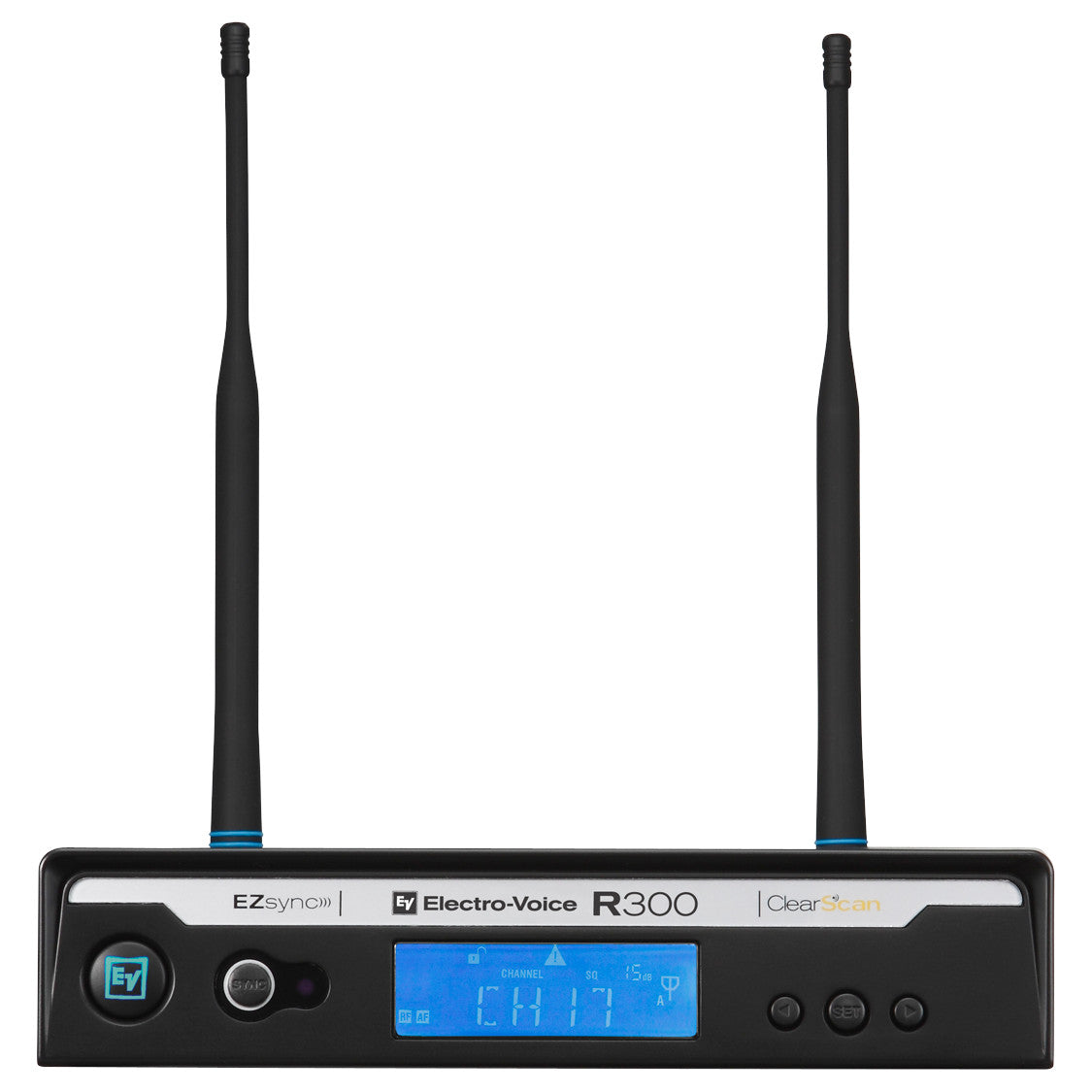

Back Lit LCD Display
Channel, Frequency, Mute, and Battery Level
Environmental
Operating Temperature
5°C to 45°C (41°F to 113°F)
General
Receiver Type
Synthesized PLL
A Band
618 - 634 MHz (Not Available in US or Canada)
B Band
678 - 694 MHz (Not Available in US or Canada)
C Band
516 - 532 MHz
E Band
850 - 865 MHz (Not Available in US or Canada)
Diversity
True Antenna
Image Rejection
> 55 dB
Dynamic Range
> 95 dB
Microphone Head
Electro-Voice PL22 Cardioid Dynamic
Standard Lavalier Microphone
Electro-Voice ULM18 Uni-Directional Condenser
Bodypack Antenna
Flexible external 1/4 wave
Handheld Antenna
Internal proprietary
RF
Number of Channels
32
Squelch
Tone Code plus Amplitude
Radio
Modulation
± 40 kHz
