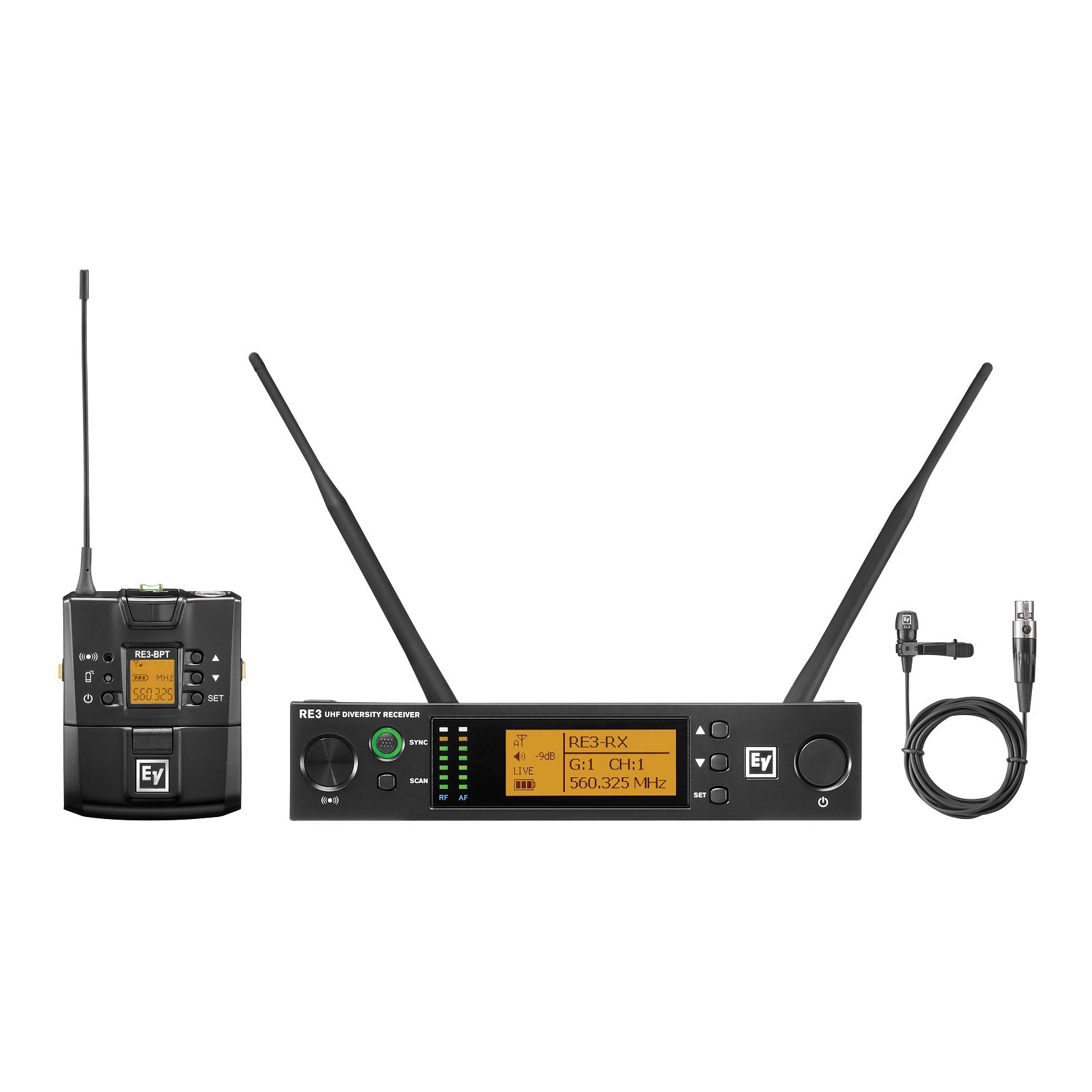

• Electro-Voice RE3-BPCL UHF Wireless Lavalier Microphone System
1 1

Electro-Voice RE3-BPCL UHF Wireless Lavalier Microphone System | Frequency: 6M (653 to 663 MHz)

Electro-Voice RE3-BPCL UHF Wireless Lavalier Microphone System | Frequency: 6M (653 to 663 MHz)

SoundPro Item: 39729 | Part Number: F.01U.354.233

$729.00
$813.00 $729.00
Your Price Sold out
MSRP: $813.00 | MAP: $729.00

Usually ships in 5-7 business days

  • Wireless UHF bodypack set
  • Cardioid lavalier mic for vocal applications
  • Ideal for performance and public speaking
Log in or register for YOUR best price

Bodypack UHF wireless set featuring CL3 cardioid lavalier microphone for voice performance and presentations. The CL3 is a robust, general-purpose lavalier microphone. It is ideal for presentation and public speaking where its full and accurate sonic characteristics, coupled with its feedback-rejecting cardioid polar pattern deliver a clear and intelligible voice.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

View full details

Specifications

Dimensions
Dimensions (cable length)
56.3" (1430 mm)
Dimensions (head length)
1.04" (26.4 mm)
Dimensions (head diameter)
0.4" (10.1 mm)
Dimensions (without antenna) Height
3.2 in. (81.5mm)Width: 2.54 in. (64.5mm)Depth: 0.98 in. (25mm)
Dimensions Width
8.27 inch (210mm)Height: (with feet attached) 1.85 inch (47mm)Height: (without feet attached) 1.73 inch (44mm)Depth: (including antenna jack) 6.89 inch (175mm)Depth: (not including antenna jack) 6.1 inch (155mm)Net
Weight
Net Weight
0.758 oz (21.5 g)
Shipping Weight
6.35 oz (180 g)
Electrical
Power Requirements
3-9 VDC
Battery
2 x AA alkaline battery or NiMH rechargeable battery
Total Harmonic Distortion (Thd)
<0.6%@1kHz
Audio Frequency Output Impedance
240Ω (unbalanced) 1400Ω (balanced)
Audio
Frequency Response
100 Hz - 15 kHz
Polar Pattern
Cardioid
Sensitivity
open circuitvoltage. 1 kHz: 20 mV/Pascal (-34 dBV/PA)
Impedance
3700 ohms
Receiving Sensitivity
-81dBm for -12dB SINAD
Audio Frequency Output Level
Ref:±22.5kHz Dev@1kHz Tone
Performance
Bandwidth
36MHz
Connectivity
Microphone Connector
4-pin mini plug
RF Power Output Frequency Band Specific
5L (488-524MHz): Low 10mW / High 50mW5H (560-596MHz): Low 10mW / High 50mW6M (653-663MHz): Low 10mW / High 20mW8M (823-865MHz) 10mWT (803-806MHz): Low 10mW / High 50mW
Input Jack
4-pin mini jack
¼” (6.3mm) Phone Jack
-10dBV
XLR Jack
-4dBV(Line),-24dBV(MIC)
Output Ports
1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
Construction
Head Finish
Non-reflecting black
Material
Die cast aluminum, steel wire clothgrille, black flexible PVC cable
Charging Contacts
Yes
Finish
Black polyurethane paint
Controls
Display by
LCD + LED
Function Display by
LCD
Contents of Display
Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Shipping
Weight
2.71 lbs [1.23 kg]Gross
General
Element Type
Self-biased condenser
Maximum SPL
115 dB SPL
RE3-ACC-CL3 Lavalier
Polarity Pin #1 - Ground, shieldPin #2 - AudioPin #3 - Bias voltagePin #4 - N/C
Frequency Oscillation Mode
Phase-locked loop (PLL)
MHz (488-524 MHz)5H
36
MHz (560-596 MHz)6M
10
MHz (653-663 MHz)8M
(823-865 MHz)*T: 3 MHz (803-806 MHz)*8M is split into two segments:823-832MHz: 9MHz
Sync Frequency
Ultrasonic
Function Controls
Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
RF Stability
<±10kHz@Fc
Modulation Frequency Shift
Wideband FM ±48kHz deviation
Harmonic Radiation
<−50dBc
Gross Weight
8.29 oz. (0.235 kg)
Carrier Frequency Range
470 - 865 MHz (tuning bandwidth is band-dependent)
Diversity
Antenna diversity
Signal/Noise Ratio
>100dB(A)
Antenna Booster Power
DC12 - 15V/100mA
Control Functions
Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options
Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Squelch and Noise Muting
Noise muting and tone code locking
Power Supply
DC12~15V/500mA
RF
Antenna Type
Detachable ½ wave with BNC connector
