Electro-Voice RE3-BPNID UHF Wireless Bodypack System | Frequency: 5H (560 to 596 MHz)

Electro-Voice RE3-BPNID UHF Wireless Bodypack System | Frequency: 5H (560 to 596 MHz)

SoundPro Item: 39743 | Part Number: F.01U.353.065

$559.00
$624.00 $559.00
Your Price Sold out
MSRP: $624.00 | MAP: $559.00

Usually ships in 5-7 business days

  • Wireless UHF bodypack set
  • Quick and easy setup
  • Rock-solid system performance
Log in or register for YOUR best price

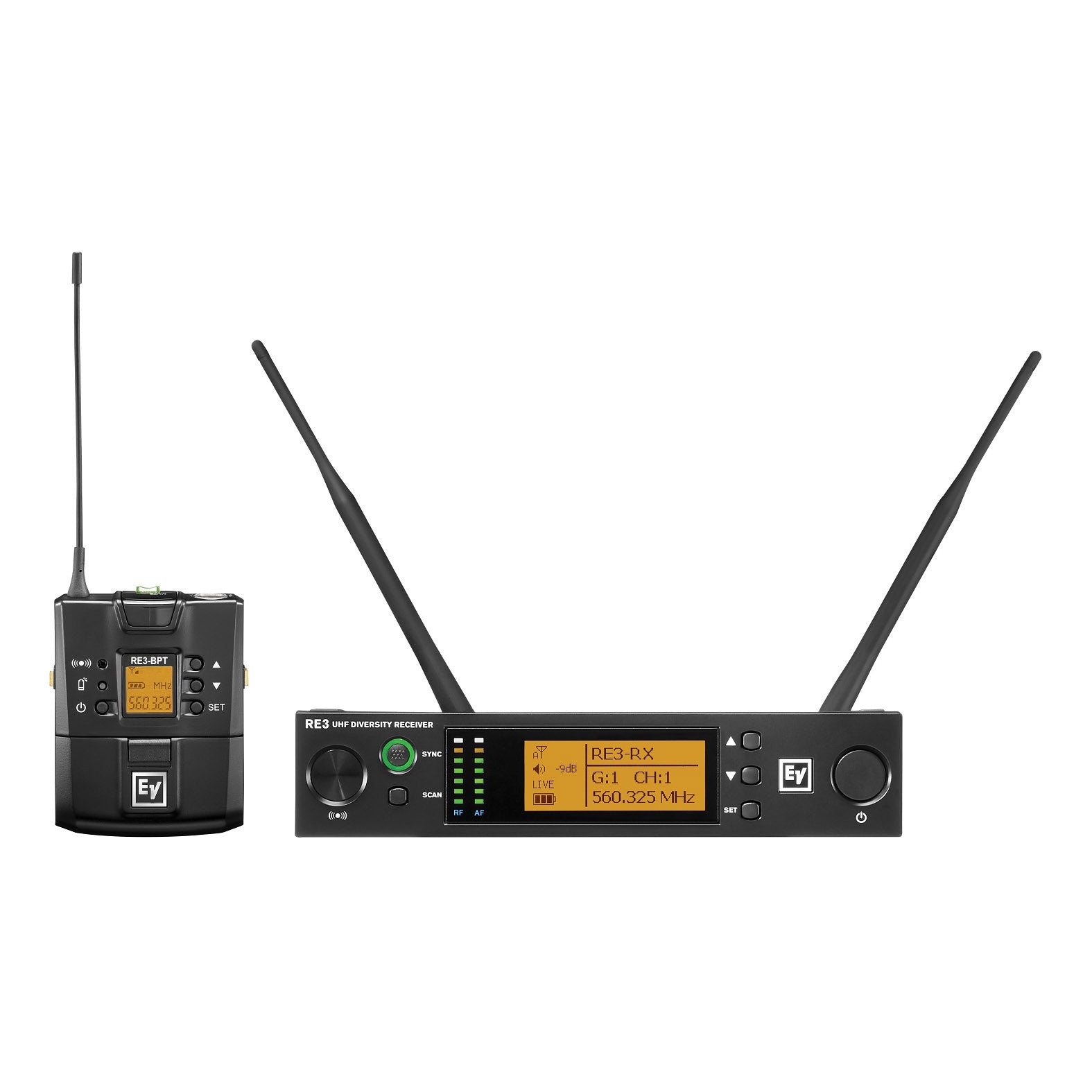

The Electro-Voice RE3-BPNID UHF Wireless Bodypack System is comprised of an RE3-BPT Bodypack Transmitter, an RE3-RX Diversity Receiver, and accessories. Serving as an ideal foundation set, it can be completed when coupled with any Electro-Voice lavalier, headworn, or instrument input device.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust bodypack transmitter and diversity receiver delivers rock-solid system performance.

View full details

Specifications

Dimensions
Dimensions (without antenna) Height
3.2 in. (81.5mm)Width: 2.54 in. (64.5mm)Depth: 0.98 in. (25mm)Net weight: 6.14 oz. (0.174 kg)Gross weight: 8.29 oz. (0.235 kg)
Dimensions Width
8.27 inch (210mm)Height: (with feet attached) 1.85 inch (47mm)Height: (without feet attached) 1.73 inch (44mm)Depth: (including antenna jack) 6.89 inch (175mm)Depth: (not including antenna jack) 6.1 inch (155mm)Net
Electrical
Battery
2 x AA alkaline battery or NiMH rechargeable battery
Total Harmonic Distortion (Thd)
<0.6%@1kHz
Audio Frequency Output Impedance
240Ω (unbalanced) 1400Ω (balanced)
Audio
Receiving Sensitivity
-81dBm for -12dB SINAD
Frequency Response
63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Audio Frequency Output Level Ref
±22.5kHz Dev@1kHz Tone¼” (6.3mm) Phone Jack:-10dBVXLR Jack:-4dBV(Line),-24dBV(MIC)
Performance
Bandwidth
36MHz
Connectivity
RF Power Output Frequency Band Specific
5L (488-524MHz): Low 10mW / High 50mW5H (560-596MHz): Low 10mW / High 50mW6M (653-663MHz): Low 10mW / High 20mW8M (823-865MHz) 10mWT (803-806MHz): Low 10mW / High 50mW
Input Jack
4-pin mini jack
Output Ports
1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
Construction
Charging Contacts
Yes
Finish
Black polyurethane paint
Controls
Display by
LCD + LED
Function Display by
LCD
Contents of Display
Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Shipping
Weight
2.71 lbs [1.23 kg]Gross
General
Frequency Oscillation Mode
Phase-locked loop (PLL)
MHz (488-524 MHz)5H
36
MHz (560-596 MHz)6M
10
MHz (653-663 MHz)8M
(823-865 MHz)*T: 3 MHz (803-806 MHz)*8M is split into two segments:823-832MHz: 9MHz863-865MHz: 2MHz
Sync Frequency
Ultrasonic
Function Controls
Power, mute, group, channel, frequency, sensitivity adjustment, input level attenuation, RF power, auto off, key lock.
RF Stability
<±10kHz@Fc
Modulation Frequency Shift
Wideband FM ±48kHz deviation
Harmonic Radiation
<−50dBc
Carrier Frequency Range
470 - 865 MHz (tuning bandwidth is band-dependent)
Diversity
Antenna diversity
Signal/Noise Ratio
>100dB(A)
Antenna Booster Power
DC12 - 15V/100mA
Control Functions
Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options
Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Squelch and Noise Muting
Noise muting and tone code locking
Power Supply
DC12~15V/500mA
RF
Antenna Type
Detachable ½ wave with BNC connector
