Electro-Voice RE3-ND76 UHF Wireless Handheld Microphone System | Frequency: 6M (653 to 663 MHz)
Electro-Voice RE3-ND76 UHF Wireless Handheld Microphone System | Frequency: 6M (653 to 663 MHz)
SoundPro Item: 39832 | Part Number: RE3-ND76-6M
Usually ships in 5-7 business days
- UHF wireless set
- ND76 dynamic microphone with cardioid pattern
- Frequency scan and sync functions
- Radio link between transmitter and receiver

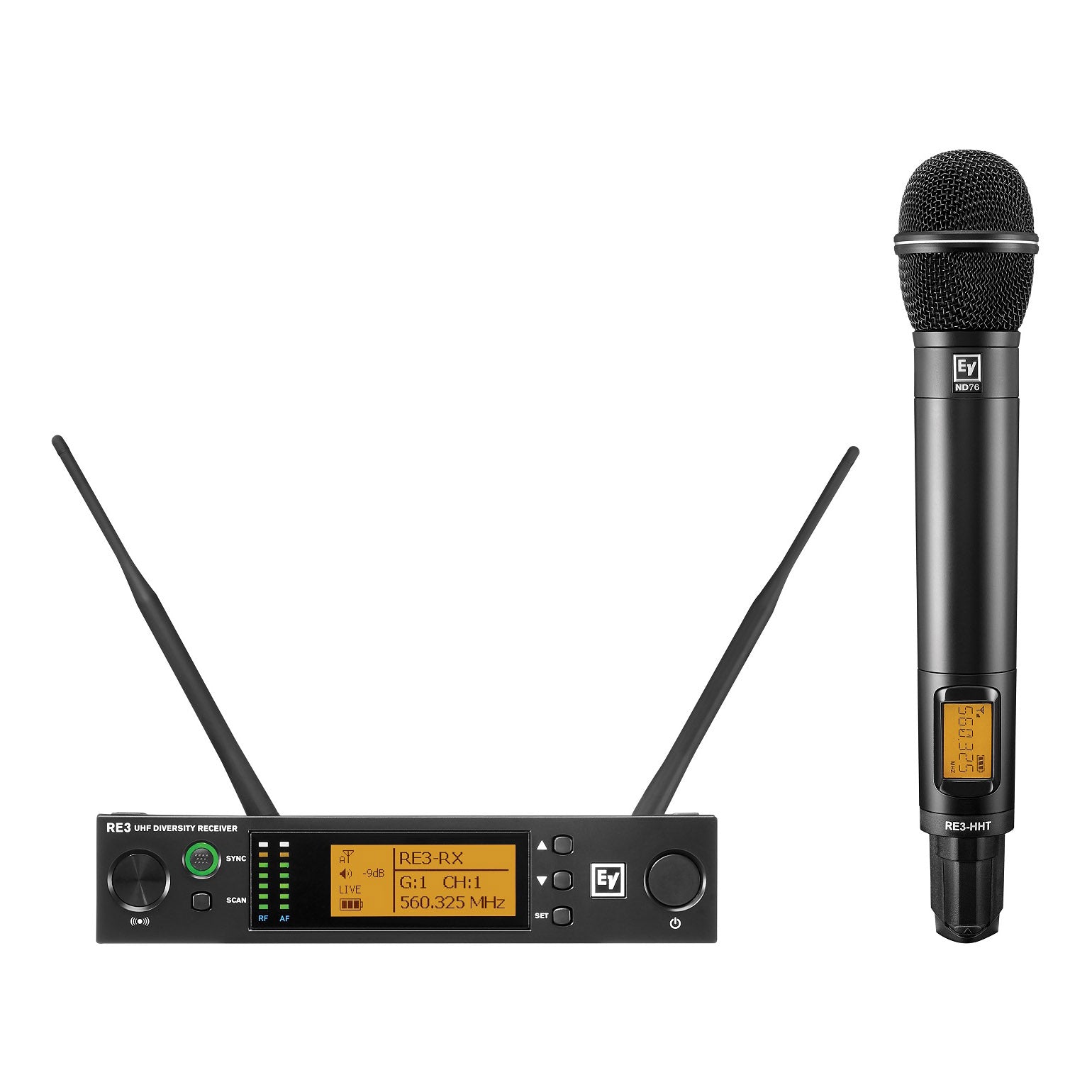

Handheld UHF wireless set featuring ND76 dynamic cardioid microphone head for vocal performance and presentations. The ND 76's crisp, clear, and balanced vocal presence is ideal for all-around voice applications.
Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.
- 5L frequency488 - 524 Mhz
- 5H frequency560 - 596 Mhz
- 6M frequency653 - 663 Mhz
- Microphone
- Element type: dynamic neodymium magnet structure
- Frequency response: 30 Hz-17 kHz (close), 70 Hz-17 kHz (far)
- Polar pattern: cardioid
- Sensitivity: 5.6 mV/Pascal (-45 dBV/Pa)
- Max SPL: 135.5 dB SPL (1% THD)
- Impedance: 1000 ohms
- Power requirements: 4-8 VDC
- Polarity: positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
- Electrical contact: 3-ring/3-pin
- Threaded coupling: 1.25" diameter, 28 UN-2A thread pitch
- Handheld transmitter
- Frequency oscillation mode: PLL (phase-locked loop)
- Sync frequency: ultrasonic
- Function controls: power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock
- RF stability: <±10kHz@Fc
- Modulation frequency shift: wideband FM, ±48kHz deviation
- Harmonic radiation: <-50dBc
- Diversity receiver
- Frequency oscillation mode: PLL (phase-locked loop)
- Sync frequency: ultrasonic 40 kHz
- Bandwidth: 36MHz
- Signal/noise ratio: >100dB(A)
- THD: <0.6%@1kHz
- Frequency response: 51Hz~16kHz±2dB
- Antenna type: detachable ½ wave with BNC connector
- Output ports: 1x balanced XLRM jack, 1x unbalanced 1/4" TS jack
- Power supply: DC12~15V/500mA
