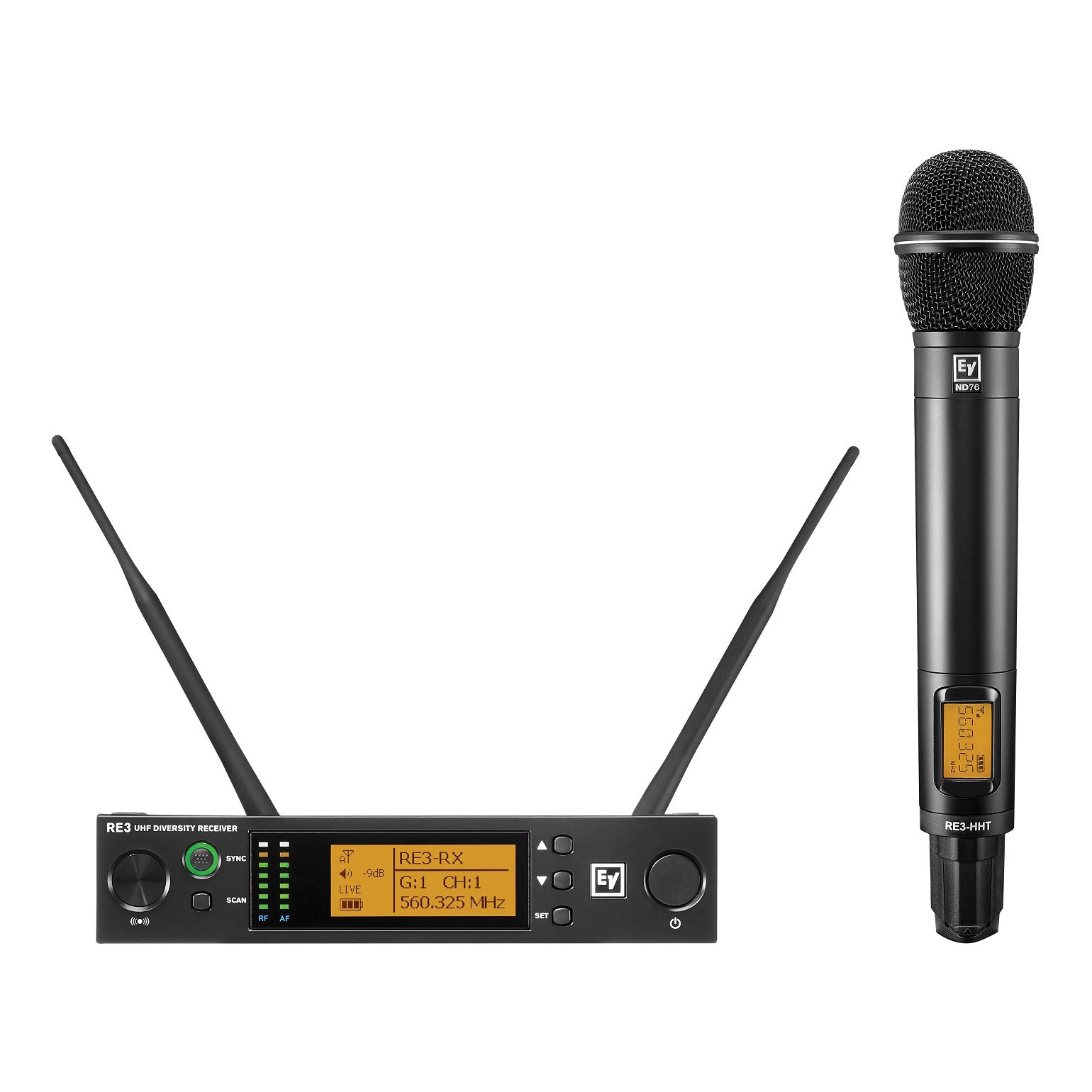

Electro-Voice RE3-ND76 UHF Wireless Handheld Microphone System | Frequency: 5H (560 to 596 MHz)

Electro-Voice RE3-ND76 UHF Wireless Handheld Microphone System | Frequency: 5H (560 to 596 MHz)

SoundPro Item: 39828 | Part Number: F.01U.354.200

Regular price $659.00
Regular price $735.00 Sale price $659.00
Your Price Sold out
MSRP: $735.00 | MAP: $659.00

Usually ships in 5-7 business days

  • UHF wireless set
  • ND76 dynamic microphone with cardioid pattern
  • Frequency scan and sync functions
  • Radio link between transmitter and receiver

Handheld UHF wireless set featuring ND76 dynamic cardioid microphone head for vocal performance and presentations. The ND 76's crisp, clear, and balanced vocal presence is ideal for all-around voice applications.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

View full details

Specifications

Electrical
Power Requirements
4-8 VDC
Electrical Contact
3-ring/3-pin
Audio
Frequency Response
30 Hz-17 kHz (close), 70 Hz-17 kHz (far)
Polar Pattern
cardioid
Sensitivity
5.6 mV/Pascal (-45 dBV/Pa)
Max SPL
135.5 dB SPL (1% THD)
Impedance
1000 ohms
THD
<0.6%@1kHz
Performance
Bandwidth
36MHz
Connectivity
Output Ports
1x balanced XLRM jack, 1x unbalanced 1/4" TS jack
General
5L Frequency
488 - 524 Mhz
5H Frequency
560 - 596 Mhz
6M Frequency
653 - 663 Mhz
Element Type
dynamic neodymium magnet structure
Polarity
positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
Threaded Coupling
1.25" diameter, 28 UN-2A thread pitch
Frequency Oscillation Mode
PLL (phase-locked loop)
Sync Frequency
ultrasonic
Function Controls
power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock
RF Stability
<±10kHz@Fc
Modulation Frequency Shift
wideband FM, ±48kHz deviation
Harmonic Radiation
<-50dBc
Signal/noise Ratio
>100dB(A)
Power Supply
DC12~15V/500mA
RF
Antenna Type
detachable ½ wave with BNC connector
