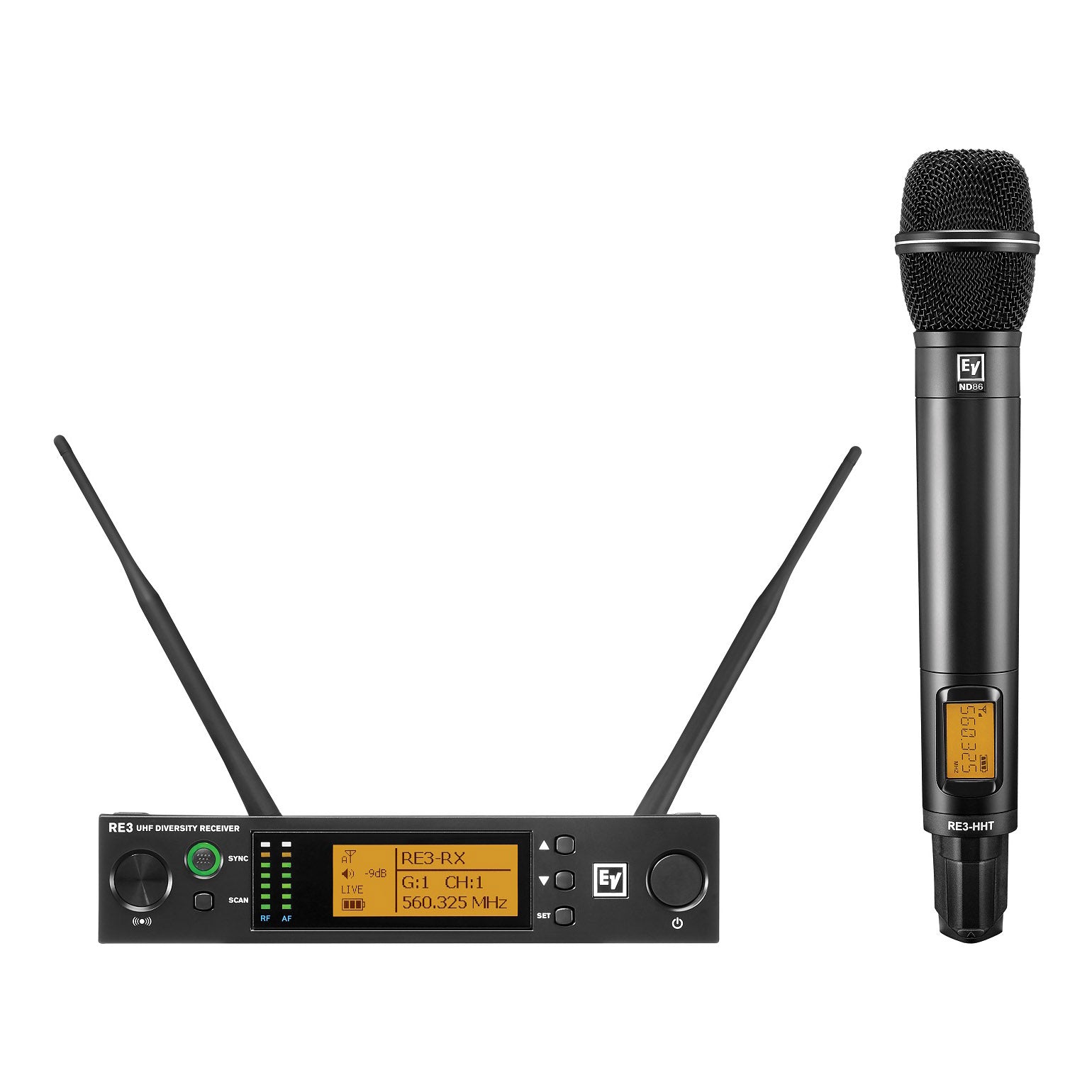

Electro-Voice RE3-ND86 UHF Wireless Handheld Microphone System | Frequency: 5L (488 to 524 MHz)

Electro-Voice RE3-ND86 UHF Wireless Handheld Microphone System | Frequency: 5L (488 to 524 MHz)

SoundPro Item: 39836 | Part Number: F.01U.354.204

$689.00
$769.00 $689.00
Your Price Sold out
MSRP: $769.00 | MAP: $689.00

Usually ships in 5-7 business days

  • Wireless UHF handheld set
  • Features ND86 dynamic supercardioid mic head
  • Great for vocal applications
  • Delivers smooth, detailed sound
  • Provides excellent acoustic control
  • Quick and easy setup
  • Rock-solid system performance
Log in or register for YOUR best price

The RE3-ND86 UHF Handheld Mic System includes an ND86-RC3 Wireless Head + Capsule, RE3-HHT Handheld Transmitter, and RE3-RX Diversity Receiver.

This Electro-Voice set features ND86 dynamic supercardioid microphone head for vocal performance and presentations. The ND86's sound is present, smooth, and detailed, and its supercardioid polar pattern provides excellent acoustic control in even the largest of venues.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

View full details

Specifications

Dimensions
Dimensions, Length Diameter
3.6 in. (91 mm)2.0 in. (50.5 mm)
Dimensions Width
8.27 inch (210mm)Height: (with feet attached) 1.85 inch (47mm)Height: (without feet attached) 1.73 inch (44mm)Depth: (including antenna jack) 6.89 inch (175mm)Depth: (not including antenna jack) 6.1 inch (155mm)Net
Dimensions (without head) Height
7.52 inch (191mm)Width at threaded end: 1.46 inch (37mm)Width at control cover: 0.856 inch (22mm)Net
Weight
Net Weight
6.5 oz (184 g)
Shipping Weight
8.4 oz (238 g)
Weight (without head)
12.2oz [346 grams]Gross
Electrical
Power Requirements
4-8 VDC
Electrical Contact
3-Ring/3-Pin
Total Harmonic Distortion (Thd)
<0.6%@1kHz
Audio Frequency Output Impedance
240Ω (unbalanced) 1400Ω (balanced)
Battery
2 x AA alkaline battery or NiMH rechargeable battery
Microphone Electrical Contact
3-ring/3-pin
Audio
Frequency Response, Close
30 Hz-17 kHz
Frequency Response, Far
70 Hz-17 kHz
Polar Pattern
Supercardioid
Sensitivity, Open Circuitvoltage @ 1 Khz
5.6 mV/Pascal (-45 dBV/Pa
Impedance
1000 ohms
Receiving Sensitivity
-81dBm for -12dB SINAD
Frequency Response
63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Audio Frequency Output Level Ref
±22.5kHz Dev@1kHz Tone¼” (6.3mm) Phone Jack:-10dBVXLR Jack:-4dBV(Line),-24dBV(MIC)
Performance
Bandwidth
36MHz
Connectivity
ND86-RC3 Wireless Head with ND86 Capsule
Threaded coupling 1.25" diameter28 UN-2A thread pitch"
Output Ports
1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
Construction
Finish
Black polyurethane paint
Materials
Aluminum, steel, steel wire grillescreen
Charging Contacts
Yes
Controls
Function Display by
LCD
Contents of Display
Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Display by
LCD + LED
Shipping
Weight
2.71 lbs [1.23 kg]Gross
General
Element Type
Dynamic neodymium magnet structure
Maximum SPL
134.5 dB SPL (1% THD)
Polarity
Positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
Frequency Oscillation Mode
Phase-locked loop (PLL)
Carrier Frequency Range
470 - 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency
Ultrasonic 40 kHz
Diversity
Antenna diversity
Signal/Noise Ratio
>100dB(A)
Antenna Booster Power
DC12 - 15V/100mA
Control Functions
Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options
Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Squelch and Noise Muting
Noise muting and tone code locking
Power Supply
DC12~15V/500mA
Function Controls
Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
RF Stability
<±10kHz@Fc
RE3-HHT Handheld Transmitter
Modulation Frequency Shift Wideband FM±48kHz deviation
Harmonic Radiation
<-50dBc
Microphone Coupling
1.25” diameter, 28 UN-2A thread pitch
RF
Antenna Type
Detachable ½ wave with BNC connector
