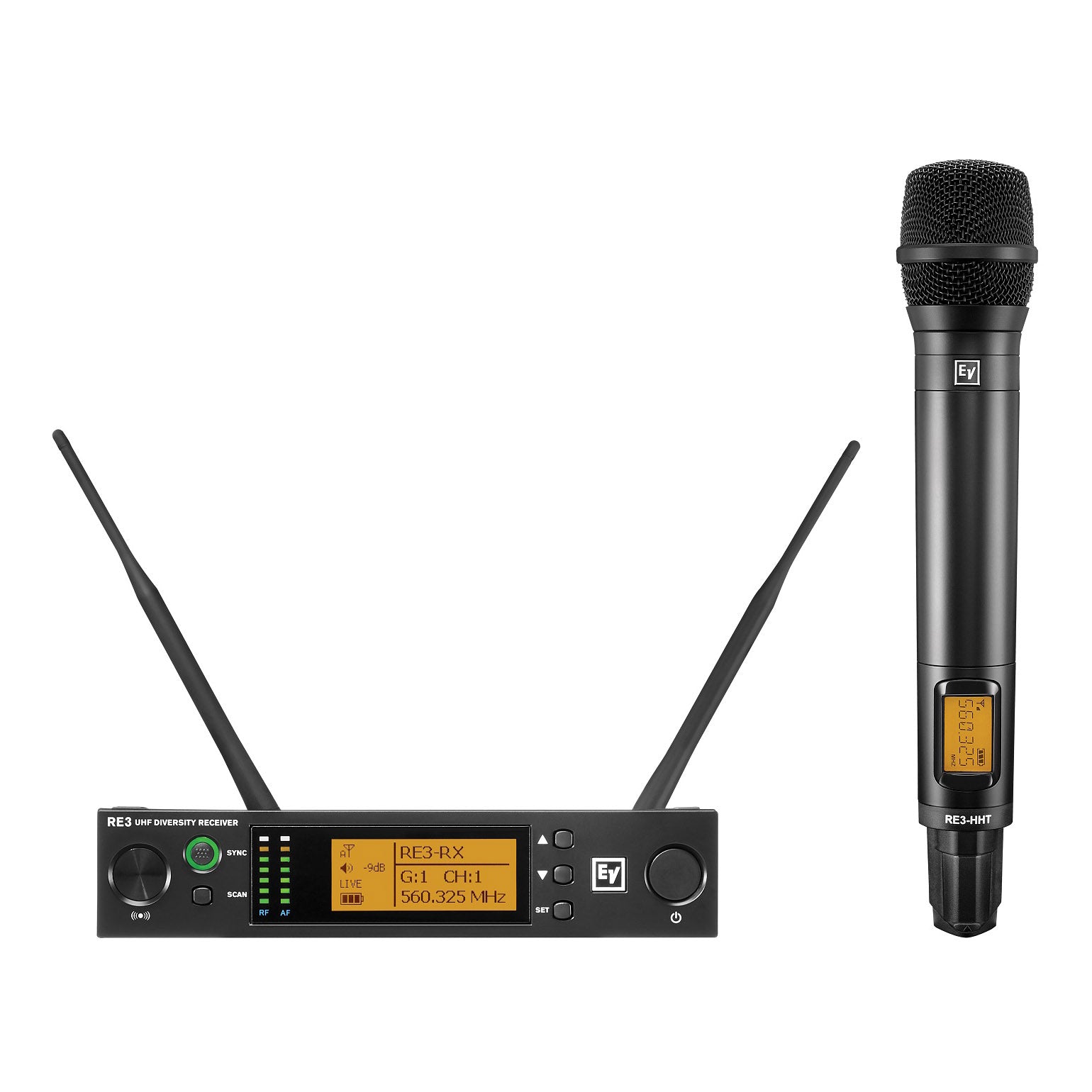

Electro-Voice RE3-RE420 UHF Wireless Handheld Microphone System | Frequency: 5H (560 to 596 MHz)

Electro-Voice RE3-RE420 UHF Wireless Handheld Microphone System | Frequency: 5H (560 to 596 MHz)

Soundpro Item: 39853 | Part Number: RE3-RE420-5H

$937.00
$937.00 $937.00
Your Price Sold out
MSRP: $937.00 | MAP: $937.00
  • Wireless UHF handheld set
  • Features RE420 condenser cardioid mic head
  • Great for vocal applications
  • Delivers rich, detailed, full sound with warm and clear low-end, natural and open midrange, and crisp and clear high end
  • Quick and easy setup
  • Rock-solid system performance
Log in or register for YOUR best price

Handheld UHF wireless set featuring RE420 condenser cardioid microphone head for vocal performance and presentations. The RE420's sound is rich, detailed and full-bodied, with a warm and clear low-end, natural and open midrange, and a clear, crisp, and detailed high end.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

View full details

Specifications

  • RE420-RC3 Wireless Head with RE420 Capsule
    • Element type: Self-biased condenser
    • Frequency response: 50 Hz-20 kHz
    • Polar pattern: Cardioid
    • Sensitivity, open circuitvoltage @ 1 kHz: 5.6 mV/Pascal (-45 dBV/Pa)
    • Clipping (max SPL) : 137 dB SPL (1% THD)
    • Self noise: 22 dB SPL "A" weighed (0 dB=20 μPa)
    • Dynamic range: 115 dB
    • Signal-to-Noise ratio: 72 dB
    • Output impedance: 1000 ohms
    • Power requirements: 4-8 VDC phantom power
    • Polarity: Positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
    • Electrical contact: 3-Ring/3-Pin
    • Threaded coupling
      • 1.25" diameter 28
      • UN-2A thread pitch
    • Finish: Black polyurethane paint
    • Materials: Aluminum, steel, steel wire grillescreen
    • Dimensions (length, diameter): 3.36 in. (85.3 mm); 1.95 in. (49.6 mm)
    • Net weight: 4.6 oz (130 g)
    • Shipping weight: 6.5 oz (184 g)
  • RE3-RX Diversity Receiver
    • Frequency Oscillation Mode: Phase-locked loop (PLL)
    • Carrier Frequency Range: 470 - 865 MHz (tuning bandwidth is band-dependent)
    • Sync Frequency: Ultrasonic 40 kHz
    • Diversity: Antenna diversity
    • Bandwidth: 36MHz
    • Signal/Noise Ratio: >100dB(A)
    • Total Harmonic Distortion (Thd): <0.6%@1kHz
    • Receiving Sensitivity: -81dBm for -12dB SINAD
    • Frequency Response: 63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
    • Antenna Type: Detachable ½ wave with BNC connector
    • Antenna Booster Power: DC12 - 15V/100mA
    • Function Display By: LCD
    • Contents Of Display: Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
    • Control Functions: Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
    • Sync Data Options: Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
    • Audio Frequency Output Level
      • Ref:±22.5kHz Dev@1kHz Tone
      • ¼” (6.3mm) Phone Jack:-10dBV
      • XLR Jack:-4dBV(Line),-24dBV(MIC)
    • Audio Frequency Output Impedance: 240Ω (unbalanced) 1400Ω (balanced)
    • Squelch and noise muting: Noise muting and tone code locking
    • Output Ports: 1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
    • Power Supply: DC12~15V/500mA
    • Finish: Black polyurethane paint
    • Dimensions
      • Width: 8.27 inch (210mm)
      • Height: (with feet attached) 1.85 inch (47mm)
      • Height: (without feet attached) 1.73 inch (44mm)
      • Depth: (including antenna jack) 6.89 inch (175mm)
      • Depth: (not including antenna jack) 6.1 inch (155mm)
      • Net Weight: 2.71 lbs [1.23 kg]
      • Gross Weight: 3.28 lbs [1.49 kg]
  • RE3-HHT Handheld Transmitter
    • Frequency Oscillation Mode: Phase-locked loop (PLL)
    • Sync Frequency: Ultrasonic
    • Display By: LCD + LED
    • Function Controls: Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
    • RF Stability: <±10kHz@Fc
    • Modulation Frequency Shift
      • Wideband FM
      • ±48kHz deviation
    • Harmonic Radiation: <-50dBc
    • Battery: 2 x AA alkaline battery or NiMH rechargeable battery
    • Charging Contacts: Yes
    • Microphone Coupling: 1.25” diameter, 28 UN-2A thread pitch
    • Microphone Electrical Contact: 3-ring/3-pin
    • Finish: Black polyurethane paint
    • Dimensions (without head)
      • Height: 7.52 inch (191mm)
      • Width at threaded end: 1.46 inch (37mm)
      • Width at control cover: 0.856 inch (22mm)
      • Net Weight (without head): 12.2oz [346 grams]
      • Gross Weight (without head): 16.9oz [480 grams]
