Electro-Voice RE3-RE520 UHF Wireless Handheld Microphone System | Frequency: 6M (653 to 663 MHz)

Electro-Voice RE3-RE520 UHF Wireless Handheld Microphone System | Frequency: 6M (653 to 663 MHz)

SoundPro Item: 39881 | Part Number: F.01U.354.223

$929.00
$1,038.00 $929.00
Your Price Sold out
MSRP: $1,038.00 | MAP: $929.00

Usually ships in 5-7 business days

  • Wireless UHF handeld set
  • Features RE520 condenser supercardioid mic head
  • Great for vocal applications
  • Delivers detailed, full, and vivid sound with tight and clear low end, natural midrange, and detailed high end
  • Supercardioid pattern provides excellent acoustic isolation
  • Quick and easy setup
  • Rock-solid system performance
Log in or register for YOUR best price

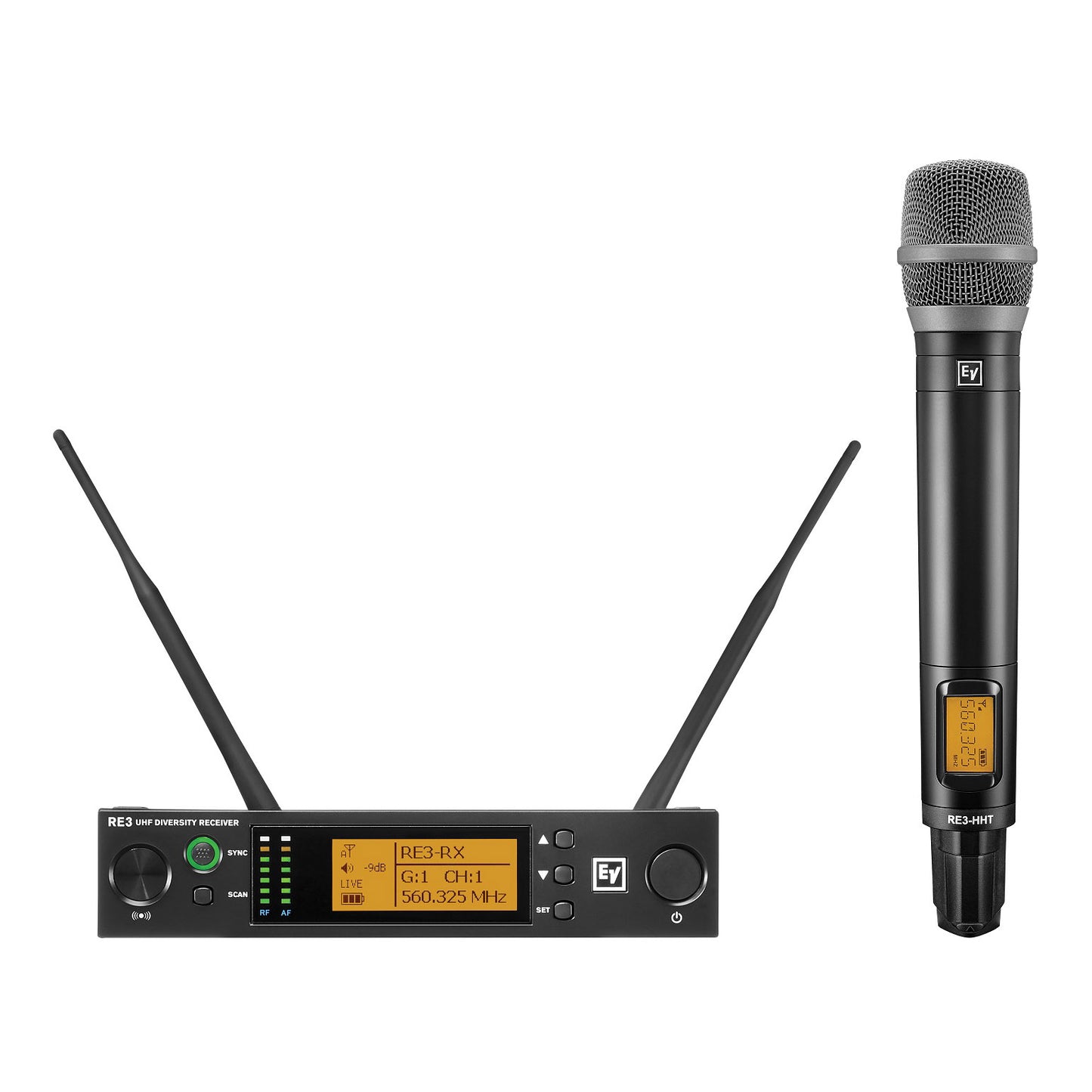

The RE3-RE520 UHF Wireless Handheld Mic System includes an RE520-RC3 Wireless Head + Capsule, RE3-HHT Handheld Transmitter, and RE3-RX Diversity Receiver.

This Electro-Voice handheld UHF wireless set features RE520 condenser supercardioid microphone head for vocal performance and presentations. The RE520's sound is detailed, full, and vivid, with a tight and clear low end, natural and present midrange, and an exceptionally-detailed high end. The supercardioid pattern provides excellent acoustic isolation.

Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

View full details

Specifications

Dimensions
Dimensions (length, diameter)
3.36 in. (85.3 mm)1.95 in. (49.6 mm)
Dimensions Width
8.27 inch (210mm)Height: (with feet attached) 1.85 inch (47mm)Height: (without feet attached) 1.73 inch (44mm)Depth: (including antenna jack) 6.89 inch (175mm)Depth: (not including antenna jack) 6.1 inch (155mm)Net
Dimensions (without head) Height
7.52 inch (191mm)Width at threaded end: 1.46 inch (37mm)Width at control cover: 0.856 inch (22mm)Net
Weight
Net Weight
4.6 oz (130 g)
Shipping Weight
6.7 oz (190 g)
Weight (without head)
12.2oz [346 grams]Gross
Electrical
Sensitivity, Open Circuit (voltage @ 1 kHz)
5.6 mV/Pascal (-45 dBV/Pa)
Power Requirements
4-8 VDC phantom power
Electrical Contact
3-Ring/3-Pin
Total Harmonic Distortion (Thd)
<0.6%@1kHz
Audio Frequency Output Impedance
240Ω (unbalanced) 1400Ω (balanced)
Battery
2 x AA alkaline battery or NiMH rechargeable battery
Microphone Electrical Contact
3-ring/3-pin
Audio
Frequency Response
50 Hz-20 kHz
Polar Pattern
Cardioid
Clipping (max SPL)
139 dB SPL (1% THD)
Self Noise
22 dB SPL "A" weighed (0 dB=20 μPa)
Signal-to-Noise Ratio
72 dB
Output Impedance
1000 ohms
Receiving Sensitivity
-81dBm for -12dB SINAD
Audio Frequency Output Level Ref
±22.5kHz Dev@1kHz Tone¼” (6.3mm) Phone Jack:-10dBVXLR Jack:-4dBV(Line),-24dBV(MIC)
Performance
Bandwidth
36MHz
Connectivity
Output Ports
1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
Construction
Finish
Black polyurethane paint
Materials
Aluminum, steel, steel wire grillescreen
Charging Contacts
Yes
Controls
Function Display by
LCD
Contents of Display
Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
Display by
LCD + LED
Shipping
Weight
2.71 lbs [1.23 kg]Gross
General
Element Type
Self-biased condenser
Dynamic Range
117 Db
Polarity
Positive pressure on diaphragmproduces positive voltage at centercontact relative to ground contact
Threaded Coupling
1.25" diameter 28 UN-2A thread pitch
Frequency Oscillation Mode
Phase-locked loop (PLL)
Carrier Frequency Range
470 - 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency
Ultrasonic 40 kHz
Diversity
Antenna diversity
Signal/Noise Ratio
>100dB(A)
Antenna Booster Power
DC12 - 15V/100mA
Control Functions
Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options
Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Squelch and Noise Muting
Noise muting and tone code locking
Power Supply
DC12~15V/500mA
Function Controls
Power, mute, group, channel, frequency, sensitivity adjustment, RF power, auto off, key lock.
RF Stability
<±10kHz@Fc
RE3-HHT Handheld Transmitter
Modulation Frequency Shift Wideband FM±48kHz deviation
Harmonic Radiation
<-50dBc
Microphone Coupling
1.25” diameter, 28 UN-2A thread pitch
RF
Antenna Type
Detachable ½ wave with BNC connector
