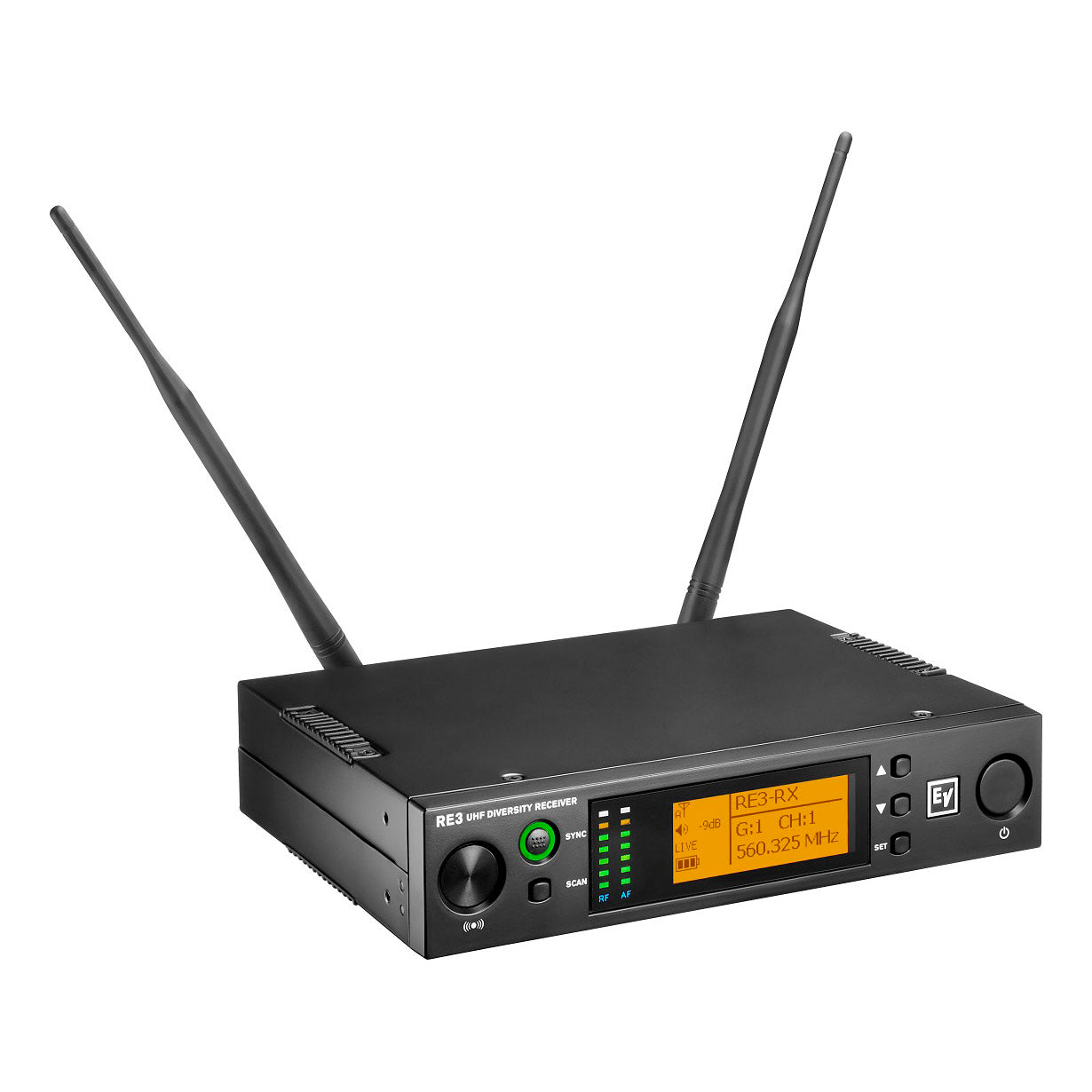

Electro-Voice RE3-RX Half-Rack Wireless Diversity Receiver | Frequency: 5H (560 to 596 MHz)

Electro-Voice RE3-RX Half-Rack Wireless Diversity Receiver | Frequency: 5H (560 to 596 MHz)

SoundPro Item: 39892 | Part Number: F.01U.353.080

$399.00
$445.00 $399.00
Your Price Sold out
MSRP: $445.00 | MAP: $399.00

Usually ships in 5-7 business days

  • Diversity reception minimizes dropouts
  • Frequency scanning for selecting open frequencies
  • Sync function links transmitter to receiver for easy setup
  • Up to 36 MHz tuning bandwidth (band specific) for trouble-free operation
  • Easy-to-read LCD display
Log in or register for YOUR best price

UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR and unbalanced ¼" TRS outputs.

The receiver pairs perfectly with any RE3-HHT handheld or RE3-BPT bodypack transmitter within the same band. Setup is quick and simple using the RE3 clear frequency scan and sync functions, and the radio link between the robust handheld transmitter and diversity receiver delivers rock-solid system performance.

The RE3-RX is a professional rack-mountable, 1/2 space diversity receiver. Designed to function as the control center for an RE3 wireless set, it features frequency scanning and synchronizing, as well as full transmitter control settings which synchronize to a mated transmitter.

The diversity reception technology minimizes the chances of signal dropouts by providing two separate antenna locations which are electronically chosen moment-by-moment based on signal strength and stability.

The easy-to-use frequency scanning function simplifies locating and tuning to a clear operating frequency. The sync function wirelessly synchronizes all operating parameters to the mated transmitter.

The wide tuning bandwidth provides access to a wide range of frequencies, selectable in 25kHz steps for trouble-free operation of single and multi-channel systems.

The easy-to-read LCD display provides vivid viewing of all menus and operating parameters.

View full details

Specifications

Dimensions
Dimensions
Width 8.27 inch (210mm), Height (with feet attached) 1.85 inch (47mm), Height (without feet attached) 1.73 inch (44mm), Depth (including antenna jack) 6.89 inch (175mm), Depth (not including antenna jack) 6.1 inch (155mm), Net Weight 2.71 lbs [1.23 kg], Gross Weight 3.28 lbs [1.49 kg]
Electrical
Total Harmonic Distortion (Thd)
<0.6%@1kHz
Audio Frequency Output Impedance
240Ω (unbalanced) 1400Ω (balanced)
Audio
Receiving Sensitivity
-81dBm for -12dB SINAD
Frequency Response
63Hz~16kHz±2dB (BPT) 51Hz~16kHz±2dB (HHT)
Performance
Bandwidth
36MHz
Connectivity
¼” (6.3mm) Phone Jack
-10dBV
XLR Jack
-4dBV(Line),-24dBV(MIC)
Output Ports
1 x balanced XLRM jack 1 x unbalanced ¼” TS (6.3mm) jack
Construction
Finish
Black polyurethane paint
Controls
Function Display by
LCD
Contents of Display
Group, channel, frequency, antenna A/B, transmitter battery level, transmitter status (mute, live, or no sync), output level attenuation, AF indication, RF indication, key lock indicator.
General
Frequency Oscillation Mode
Phase-locked loop (PLL)
Carrier Frequency Range
470 - 865 MHz (tuning bandwidth is band-dependent)
Sync Frequency
Ultrasonic 40 kHz
Diversity
Antenna diversity
Signal/Noise Ratio
>100dB(A)
Antenna Booster Power
DC12 - 15V/100mA
Control Functions
Power, scan, frequency, group, channel, squelch, TX sensitivity, TX attenuation, TX RF power, TX auto off, TX key lock, TX display info, TX sync configuration, RX output volume, RX output level, RX antenna booster power, RX key lock, RX display contrast, RX display brightness, RX system reset.
Sync Data Options
Frequency, group, channel, sensitivity level, attenuation status, RF power, auto off status, key lock status, transmitter display (freq or Gp/Ch)
Ref
±22.5kHz Dev@1kHz Tone
Squelch and Noise Muting
Noise muting and tone code locking
Power Supply
DC12~15V/500mA
RF
Antenna Type
Detachable ½ wave with BNC connector
