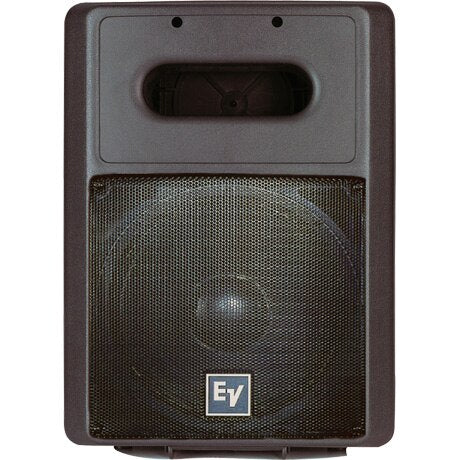

Electro-Voice SB122 12-Inch Compact Passive Subwoofer
Electro-Voice SB122 12-Inch Compact Passive Subwoofer
SoundPro Item: 42162 | Part Number: F.01U.265.572
Usually ships in 5-7 business days
- SB122 performance with enhanced weather-resistance
- Low-pass filter for parallel connection without added amp
- Large vent for enhanced LF output
- Cast-frame EVS12SB long-excursion woofer
- Power handling: 400W continuous, 1600W peak
- Parallel Neutrik SpeakON high current input connectors
- Strong, composite trapezoidal enclosure
- Pole mount on top for pairing with Zx1
- Integral handle
- Available in black
The SB122 12-Inch Compact Subwoofer from Electro-Voice is quite possibly the smallest, most powerful subwoofer on the planet. Packing 400-watt continuous power handling (1600-watt peak) into a 33 lbs (15 kg) package, the SB122 delivers incredible performance for its size.
Designed to enhance the bass of Electro-Voice’s Sx and Zx Series of speaker systems, the SB122 combines a long-throw 12" woofer with a strong, lightweight composite enclosure. The large vent provides less compression and turbulence, increasing low-frequency output.
A crucial component of the SB122 is its cast frame EVS12SB transducer. This 12-inch high excursion subwoofer driver was engineered specifically for the SB112 and uses the same motor and suspension design as the EVS18S used in EV’s larger systems.
Boasting an integral low-pass filter, the SB122 can be directly connected in parallel with a full-range speaker, with impressive low-end results without the necessity of connecting to external amplifiers or processors. This filter is transparent below 160Hz, allowing the sub to be used independently in biamp applications without needing to disable the internal filter. On the other hand, it is recommended to use a 40Hz Hi-pass (subsonic) filter when incorporating the SB112 into applications that utilize maximum output in biamp or when needing to protect the full-range system when running in parallel.
A pole mount socket at the top of the SB122’s enclosure allows you to conveniently mount a small full-range speaker such as the Zx1 or Sx80 using an optional ASP-1 accessory pole, resulting in a compact system that sounds much bigger than it looks. (Loudspeakers and accessory pole are sold separately.) Additionally, this subwoofer’s integrated handle makes it easier to transport or reposition in the stage or studio.
