Electro-Voice SX100+ 12-Inch Passive Speaker | Color: Black
Electro-Voice SX100+ 12-Inch Passive Speaker | Color: Black
SoundPro Item: 47394 | Part Number: SX100+E
In stock and ready to ship
- Compact, portable sound reinforcement
- Ideal for live sound, speech, DJ, AV, institutional use
- 1.25" DH3/2010A titanium HF compression driver
- 65x65 degree Constant-directivity Varipath horn
- High efficiency, 127 db maximum SPL
- Power handling: 200W continuous, 800W peak
- Ring-Mode Decoupling (RMD) for increased intelligibility
- Trapezoidal black or white copolymer enclosure
- Integral monitor stand, pole mount, rigging points

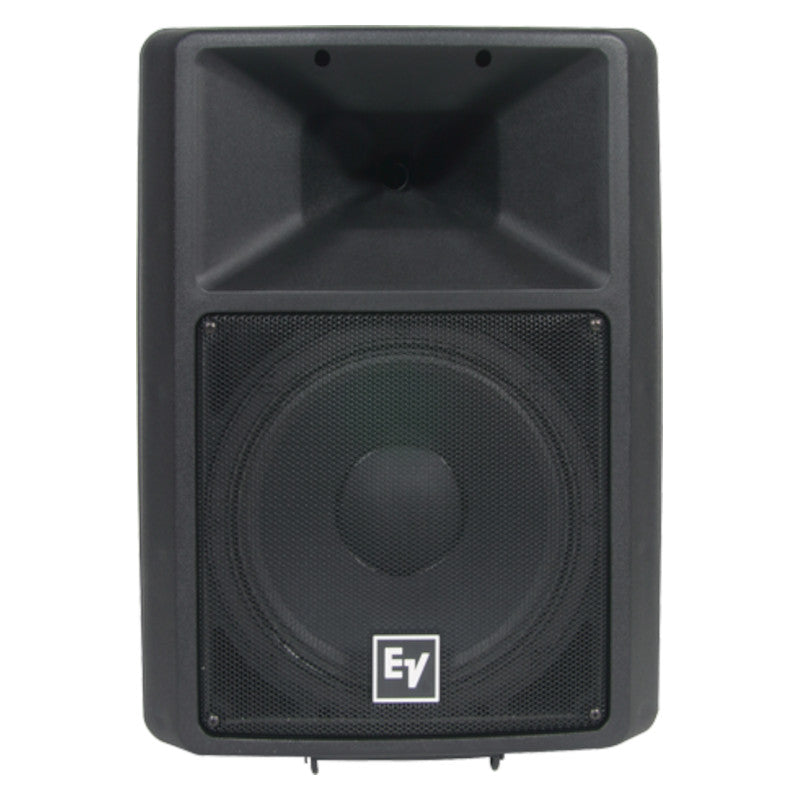

Ideal for live sound, speech, DJ performance, and installed applications, the Electro-Voice SX100+ is a 200-watt, 12-inch two-way, high-efficiency, constant-directivity portable speaker system. Its performance and compact physical design make it perfect for many applications requiring quality sound in portable and fixed environments.
The high-frequency section of the SX100+ utilizes a molded-in, 65° x 65° constant-directivity horn, enhancing intelligibility while ensuring vocals sound natural and clear in noisy, reverberant spaces. The SX100+ also boasts a uniform coverage pattern and maintenance of off-axis sound quality—even at 45° off-axis (a 90° total coverage angle). The horn’s Varipath throat geometry spreads driver output to the corners of the room for even coverage. The high-frequency horn is driven by the DH3, a one-inch-throat, wide-bandwidth, titanium-diaphragm driver using a unique, convex-drive TimePath phasing plug structure (U.S. Patent #4,525,604) for smooth and extended high-frequency response.
- Frequency Response (-10 dB)60Hz - 25,000Hz
- Sensitivity98 dB
- Max. SPL127 dB
- Nominal Impedance8 Ω
- Min. Impedance5.6 Ω
- Coverage (HxV)65° x 65°
- Power Handling
- Continuous: 200W
- Peak: 800W
- LF Transducer12"
- HF Transducer1"
- ConnectorsNeutrik Speakon®
- Enclosure Materialcopolymer
- Grillepowder coated steel
- Dimensions (HxWxD)23.1x16.9x12.3"
- Weight32 lbs
