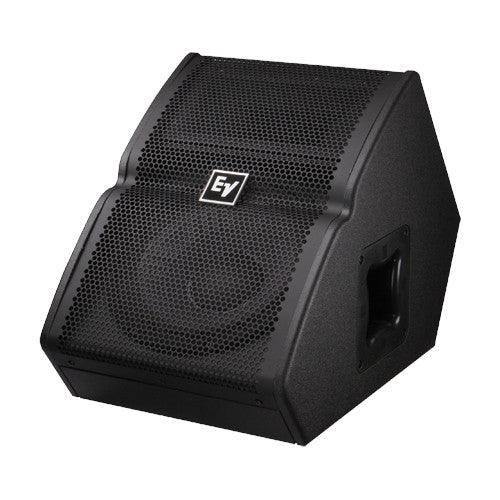

Electro-Voice TX1122FM 12-Inch Passive Stage Monitor
Electro-Voice TX1122FM 12-Inch Passive Stage Monitor
SoundPro Item: 42179 | Part Number: F.01U.302.277
Usually ships in 5-7 business days
- Two-way, high-output design
- Vented LF enclosure
- Neutrik Speakon® paralleled pass-through connectors
- Two integrated handles
- Ideal for small-to-medium stages
- Signal Synchronized Transducers™ for woofer/tweeter alignment
- Low-distortion SMX2121 woofer with fully symmetric drive
- 1.25" DH3/2010A titanium HF compression driver
- Constant-directivity 90º H x 50º V horn
- Integrated 24 dB/octave crossover with HF protection
- 99 dB sensitivity, 132 dB maximum SPL
- Power handling: 500 W continuous, 2000W peak
- Black EVCoat™ finish
The TX1122FM from Electro-Voice is a 12-inch, passive stage monitor ideal for use on small- to medium-sized stages where high-quality vocal and instrument applications are required in a lightweight package. This monitor boasts an innovative combination of transducers, rugged enclosure, and crossover technology to deliver compact, yet capable performance.
The TX1122FM is part of Electro-Voice’s Tour-X Series. TX floor monitors are designed to complement all full-range cabinets in this family with consistent voicing. The recessed input panel with dual NL4 connectors is located on the rear of the enclosure, which keeps the connectors hidden and away from the performers on stage.
Its internally-braced enclosure uses a combination of plywood and MDF and utilizes EV’s patent-pending Signal Synchronized Transducers—these align the woofer and compression driver by locating them on separate baffles and integrate a low distortion port between the baffles. This results in the acoustic centers of the woofer and compression driver being closer together, synchronizing arrival time; the voice coils of the compression driver and woofer are in the same plane, achieving linear phase response; and the size of both baffles are smaller than a single baffle; resulting in a smaller footprint. To top it off, the enclosure is finished with a black EVCoat for maximum strength while remaining lightweight.
Specifications
