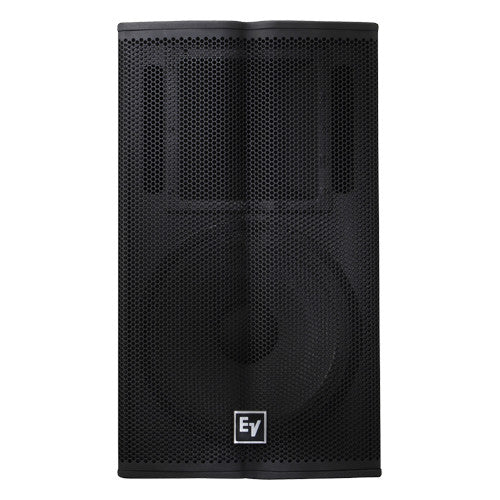

Electro-Voice TX1152 15-Inch Passive Speaker
Electro-Voice TX1152 15-Inch Passive Speaker
SoundPro Item: 42180 | Part Number: TX1152
Usually ships in 5-7 business days
- High-output, high-quality sound
- Excellent pattern control for medium throw use
- Low-distortion SMX2151 woofer with fully symmetric drive
- 1.25" DH3/2010A titanium HF compression driver
- Rotatable Constant-directivity 60º x 40º horn
- Advanced 4th-order crossover with HF protection
- 100 dB sensitivity, 133 dB maximum SPL
- Power handling: 500 W continuous, 2000 W peak
- Lightweight trapezoidal plywood/MDF enclosure
- Pole mount for use with subwoofer or stand
- Six M10 threaded suspension points
- Black EVCoat finish
The TX1152 from Electro-Voice is a 15-Inch Passive Speaker that boasts features that make it equally suited for portable or fixed installation applications.
This a high power, high sensitivity, 2-way loudspeaker system can be used in a variety of applications where high quality sound reinforcement is required in a lightweight package. The TX1152 utilizes the DH3, a high output 1.25 inch titanium compression driver, coupled to a Constant Directivity 60° x 40° horn. This combination results in a smooth response to 20 kHz and excellent pattern control in medium throw applications.
The TX1152 has a variety of features that make it equally suited for portable or fixed installation applications. The trapezoidal enclosure is constructed out of a combination of plywood and MDF, and coated with EVCoat for maximum strength while still remaining lightweight. The unique grille design is very strong, dent resistant, and features a rotatable logo. Four way handles allow for gripping the TX1152 in a variety of positions, a pole mount allows for placement on a subwoofer or a tripod. Six (6) M10 threaded points allow a single TX1152 to be suspended in a various positions. The recessed input panel with dual NL4 connector panel keeps the connectors hidden while allowing the TX1152 to be used with the TX1181 subwoofer for extended sub bass on a single amplifier channel, with no additional processing needed.
- Frequency response (-3 dB)55 Hz - 20 kHz1
- Frequency range (-10 dB)40 Hz - 20 kHz1
- Recommended high-pass frequency40 Hz
- Axial sensitivity100 dB (1W/1m)
- Max calculated SPL133 dB
- Horizontal coverage60° or 40°
- Vertical coverage 40° or 60°
- Power handling500W continuous, 2000W peak
- LF transducerSMX2151, 15" (381 mm) driver
- HF transducerDH3, 1.25" (32 mm) diaphragm compression driver
- Crossover frequency1650 Hz
- Nominal impedance8 Ohm
- Minimum impedance5.6 Ohm
- Connectors(2) Neutrik Speakon NL4’s
- EnclosurePlywood and MDF with EVCoat
- Grille16 GA steel, black powdercoat, with rotatable logo
- Suspension(6) M10 threaded points - (2) on each side and (2) on the rear of enclosure
- ColorBlack
- Dimensions (HxWxD)30.6x17.5x17.5" (776x446x446mm)
- Net weight61.2 lbs (27.8 kg)
- Shipping weight68.7 lbs (31.2 kg)
