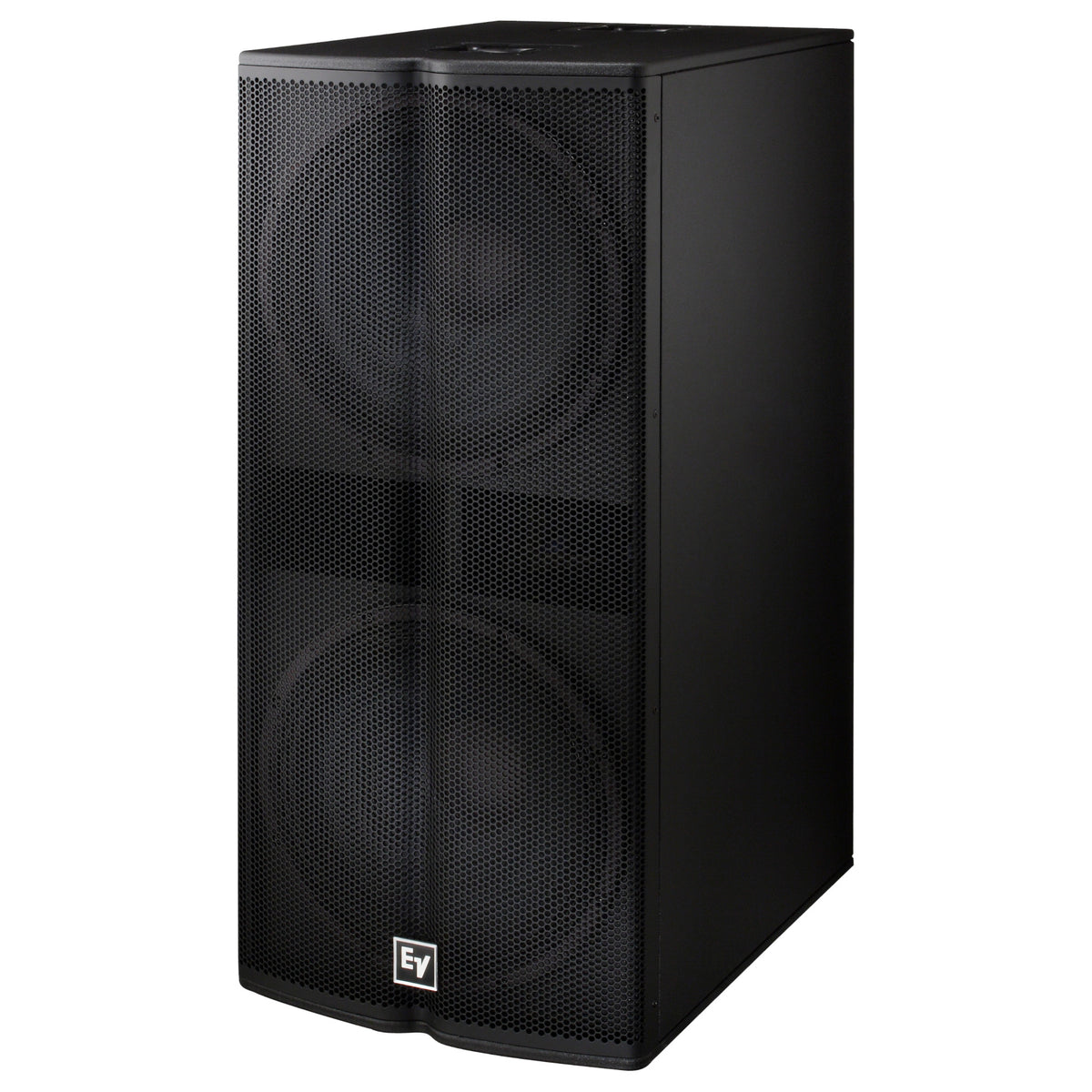

Electro-Voice TX2181 Dual 18-Inch Passive Subwoofer

Electro-Voice TX2181 Dual 18-Inch Passive Subwoofer

SoundPro Item: 42024 | Part Number: F.01U.302.276

Regular price $2,836.00
Regular price $2,836.00 Sale price $2,836.00
Your Price Sold out
MSRP: $2,836.00 | MAP: $2,836.00

Usually ships in 5-7 business days

  • High-power LF supplement to TX2152
  • Low-distortion port design
  • Two high-excursion EVS-18S woofers
  • Use with processor and dedicated amp channel
  • 103 dB sensitivity, 138 dB max SPL
  • Power handling: 1000W continuous, 4000W peak
  • Mount points (6) for optional wheel kit
  • Braced plywood/MDF enclosure
  • Black EVCoat finish

The Electro-Voice TX2181 is a dual subwoofer system that is designed to add high-output, high-impact bass response to the TX2152 loudspeaker system. The TX2181 can move tremendous amounts of air, thanks to dual EVS-18S high excursion woofers, a well-braced enclosure, and a low-distortion port design. The EVS-18S woofers feature 4-layer voice coils and cast frames for high power handling and maximum durability. The TX2181 is designed to be used with a processor and a dedicated amplifier channel in a biamp configuration.

The TX2181 has many features that make it a versatile subwoofer system. The enclosure is constructed out of a combination of MDF and plywood. It is coated with a black EVCoat finish for maximum strength and durability—all while keeping the sub’s weight to a minimum. Built to take on the rigors of touring or heavy-duty permanent use, the TX1181’s unique grille design is very strong, is dent resistant, and features a rotatable logo. Four-way handles allow for gripping the TX2181 in a variety of positions. The recessed input panel with dual NL4 connectors keeps the connectors hidden and allows for closer placement to a wall or other boundary. The TX2181 is the same width and height as the TX2152, providing a single-column appearance when stacked, and uses the minimum amount of space when stored or transported. Mounting points on the rear of the enclosure allow the optional TX-W1 wheel kit to be attached for easy portability. (The TX2152 and TX-W1 are sold separately.)

View full details

Specifications

Dimensions
Dimensions (HxWxD)
45.4x20x27.2" (1154x508x691 mm)
Weight
Net Weight
123.5 lbs (56.1 kg)
Shipping Weight
139 lbs (63.1 kg)
Electrical
Minimum Impedance
2.9 Ohm
Audio
Axial Sensitivity
103 dB (1W/1m)
Max. Calculated SPL
138 dB
Connectivity
Connectors
(2) Neutrik Speakon NL4’s
Construction
Enclosure Material
Plywood and MDF with EVCoat
Grille
16 GA steel, black powdercoat, with rotatable logo
Color
Black
General
Frequency Response (-3 dB)
50 Hz - 160 Hz
Frequency Range (-10 dB)
40 Hz - 1.5 kHz
Rec. Low Pass Frequency
80 Hz - 120 Hz
Horizontal Coverage
Omnidirectional
Vertical Coverage
Omnidirectional
Power Handling
1000W continuous, 4000W peak
LF Transducers
(2) EVS-18S, 18 in (457 mm) drivers
Nominal Impedance
4 Ohm
