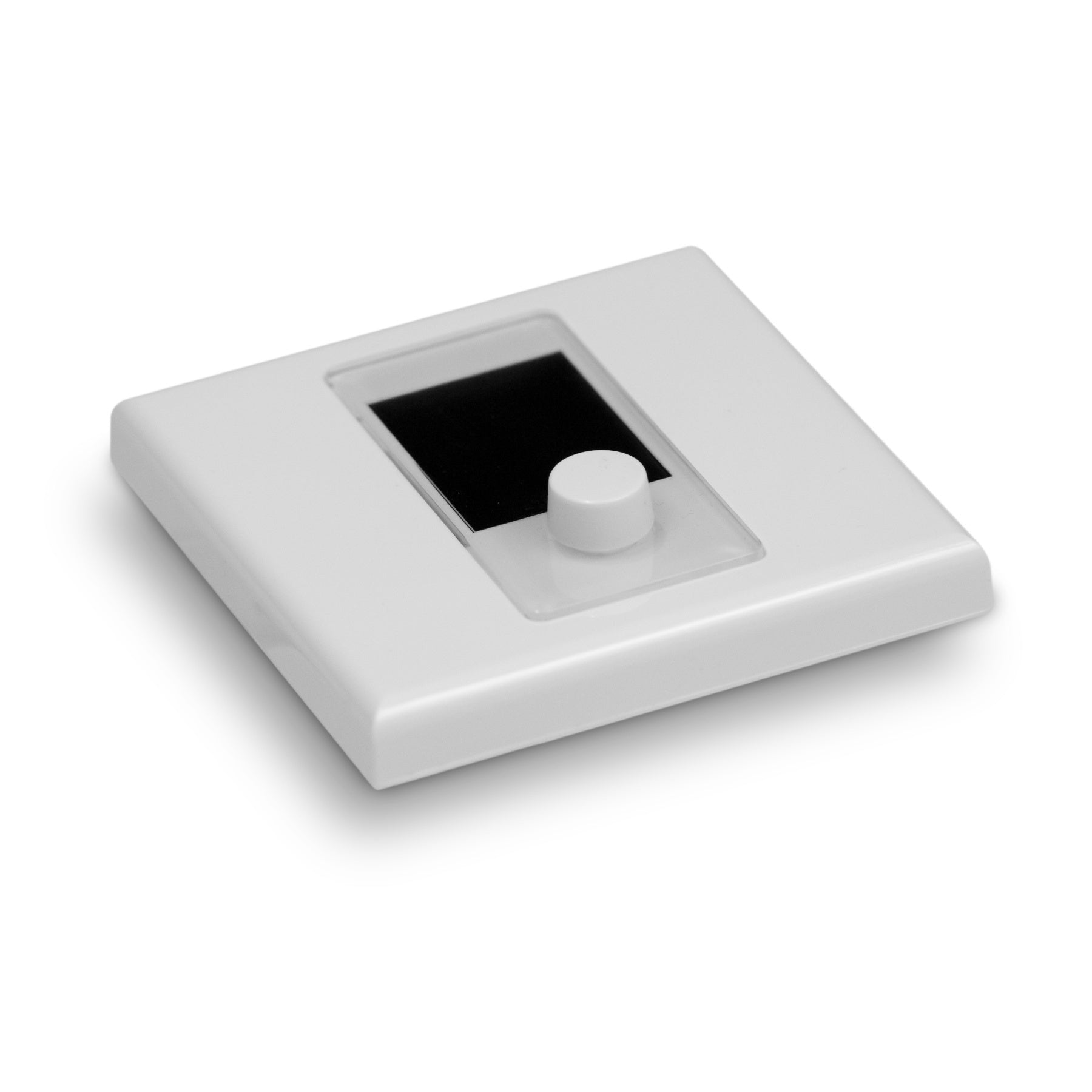

Electro-Voice WPN1 Networked Wall Panel Controller | US

Electro-Voice WPN1 Networked Wall Panel Controller | US

SoundPro Item: 134715 | Part Number: WPN1-US

$338.00
$338.00 $338.00
Your Price Sold out
MSRP: $338.00 | MAP: $338.00

Usually ships in 5-7 business days

  • Rotary Encoder Interface Simplifies Navigation Without Touchscreen Complexity
  • SONICUE Panel Designer Enables Custom Menu Structures For Each Deployment
  • PIN-Protected Menus Restrict User Access To Authorized Zones And Functions
  • MXE5 Logic Integration Triggers Commands For Third-Party AV And Building Systems

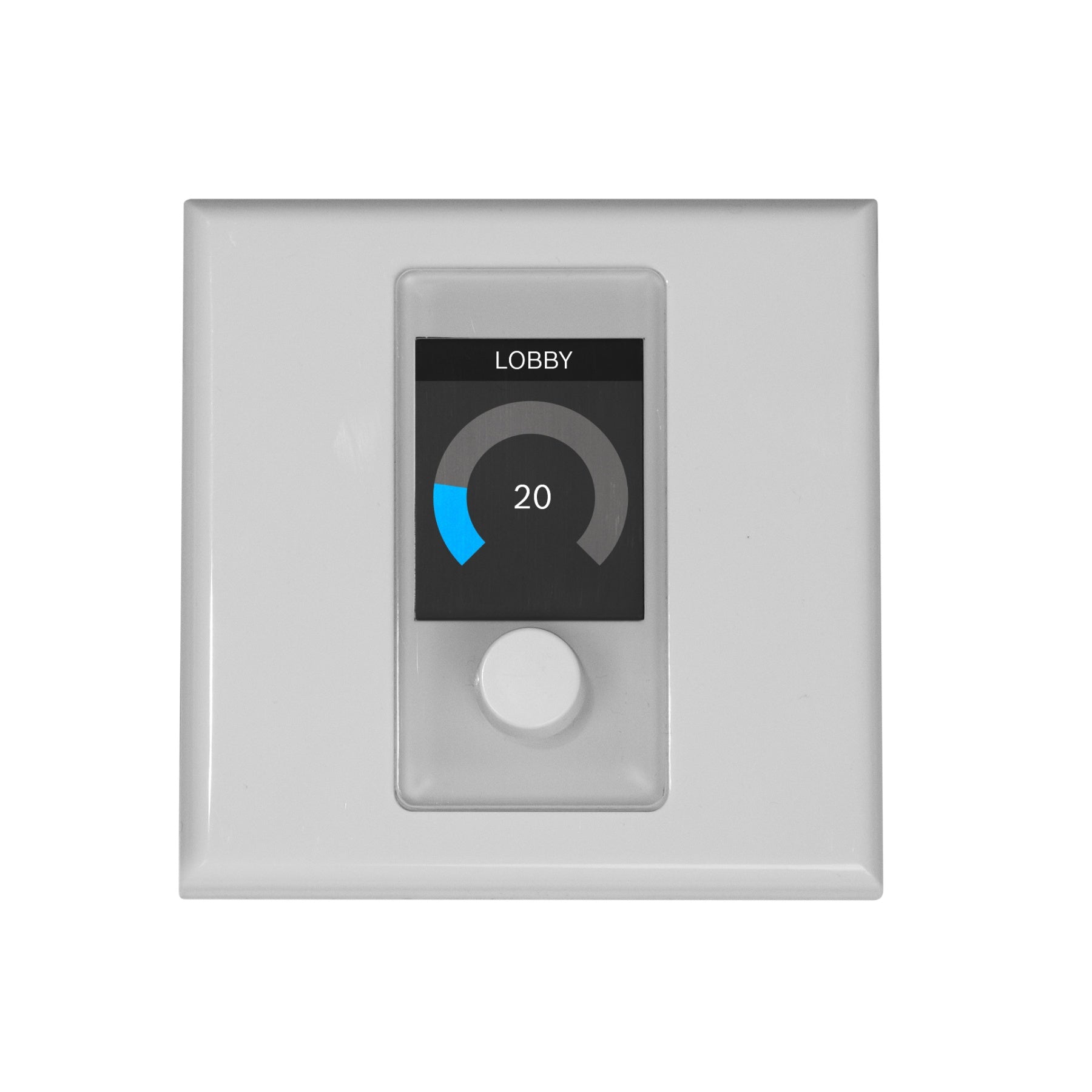

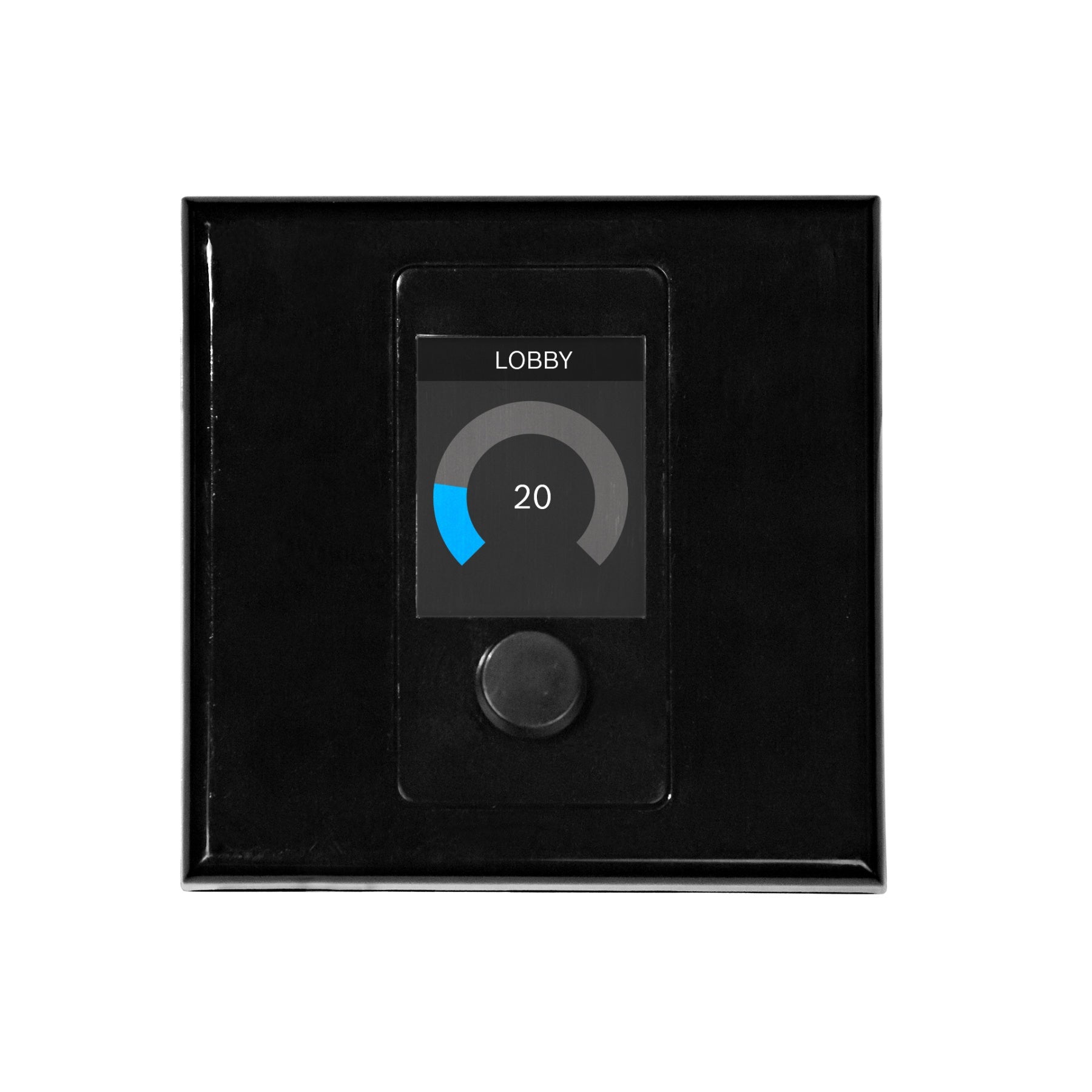

  • Interchangeable White And Black Front Plates Adapt To Installed Aesthetics On Site
Log in or register for YOUR best price

The WPN1 brings professional system control to installed audio environments where simplified operation is critical. Designed for integration with the SONICUE Sound System Software ecosystem, this networked panel enables installers to deploy zone-level control for MXE5 Matrix Mix Engines and IPX amplifiers across commercial facilities, hospitality venues, and corporate spaces. Its rotary encoder interface and color display allow end users to adjust parameters without accessing rack equipment or software consoles.

Configuration through SONICUE's panel designer allows integrators to build dedicated user experiences ranging from single-zone volume adjustment to multi-zone control with individual PIN-protected access levels. The controller supports characters for local languages and provides visual feedback through its color TFT screen, bridging the gap between basic wall controls and full touch panel systems. When paired with MXE5 system logic, the WPN1 can also trigger commands for third-party AV equipment and building control devices, extending its role beyond audio-only applications.

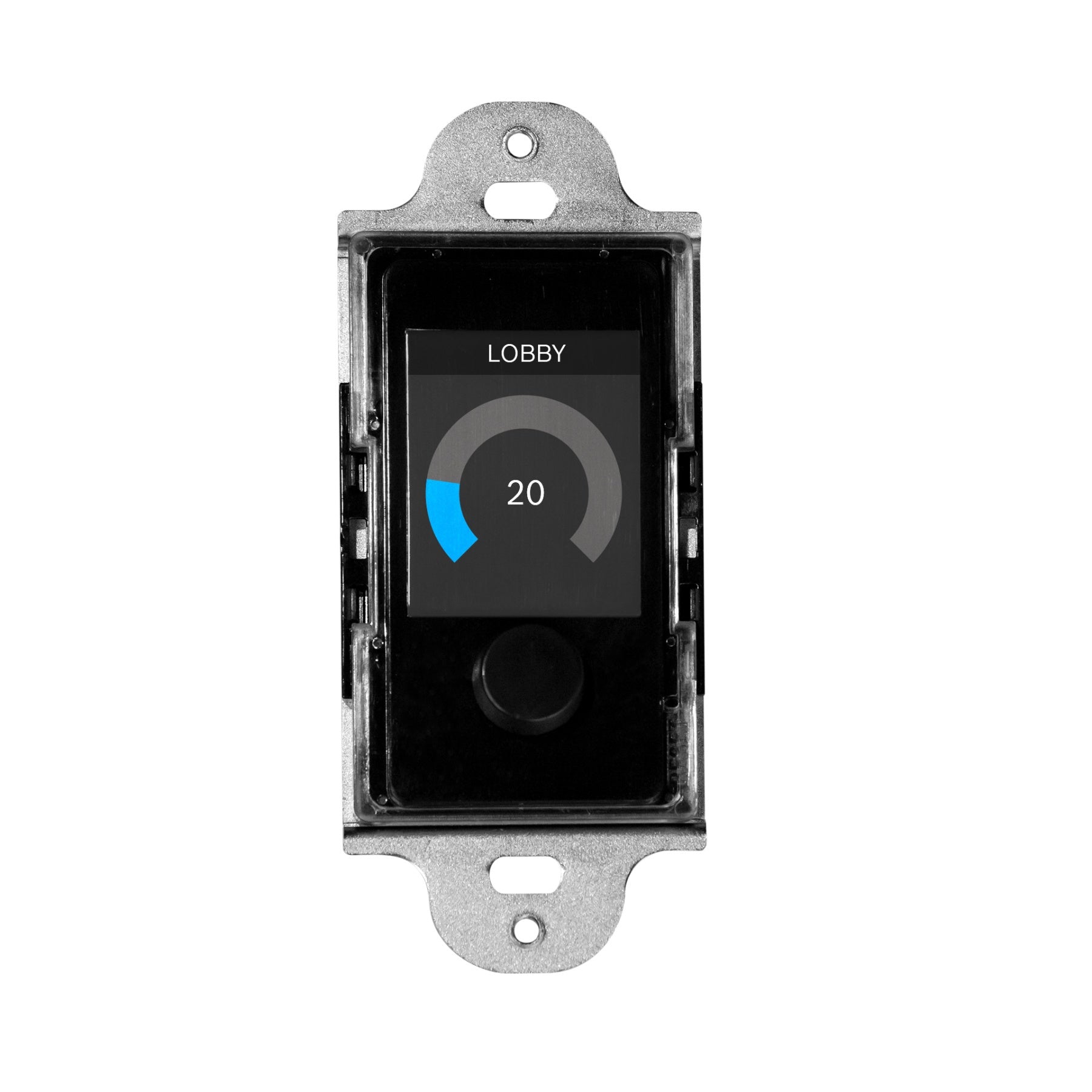

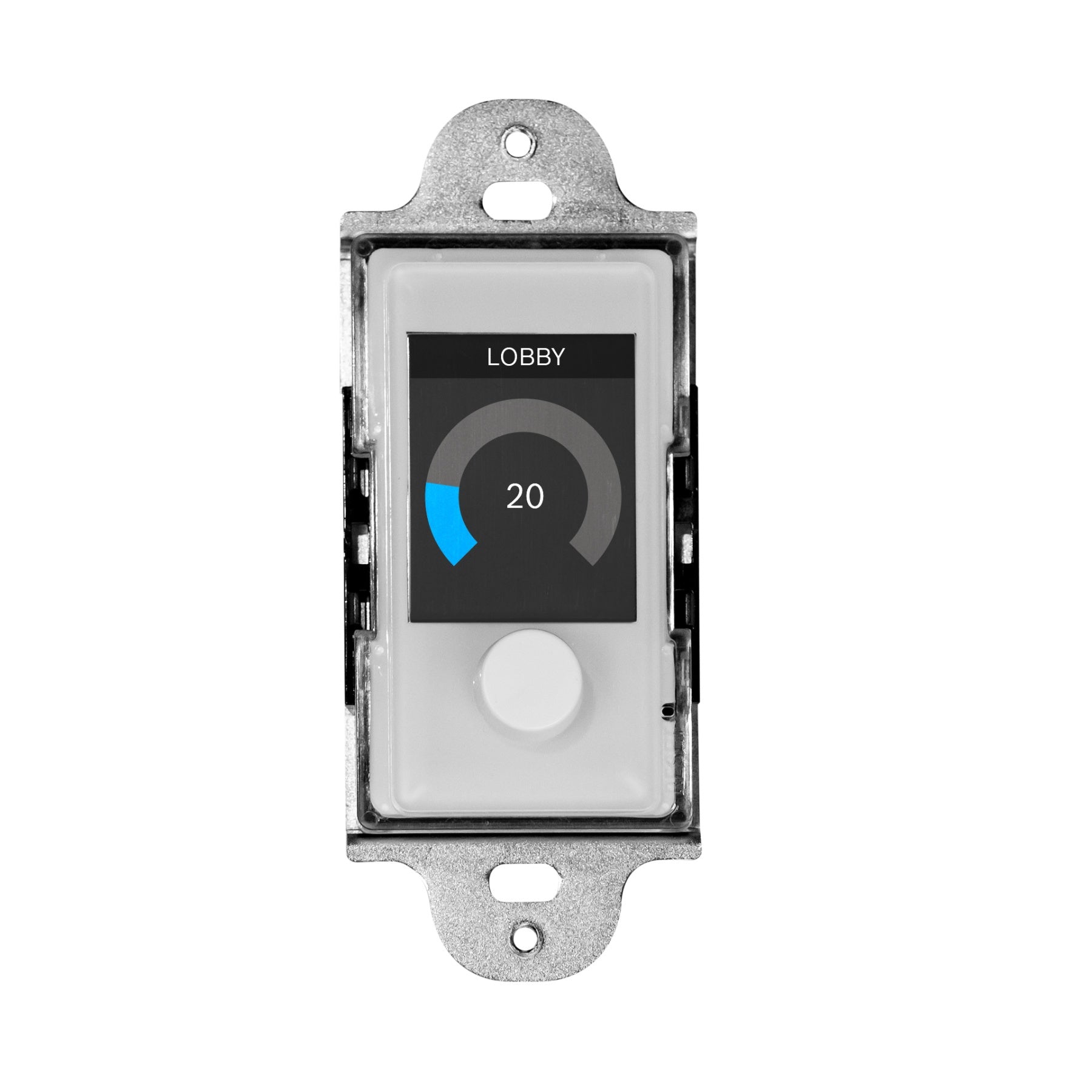

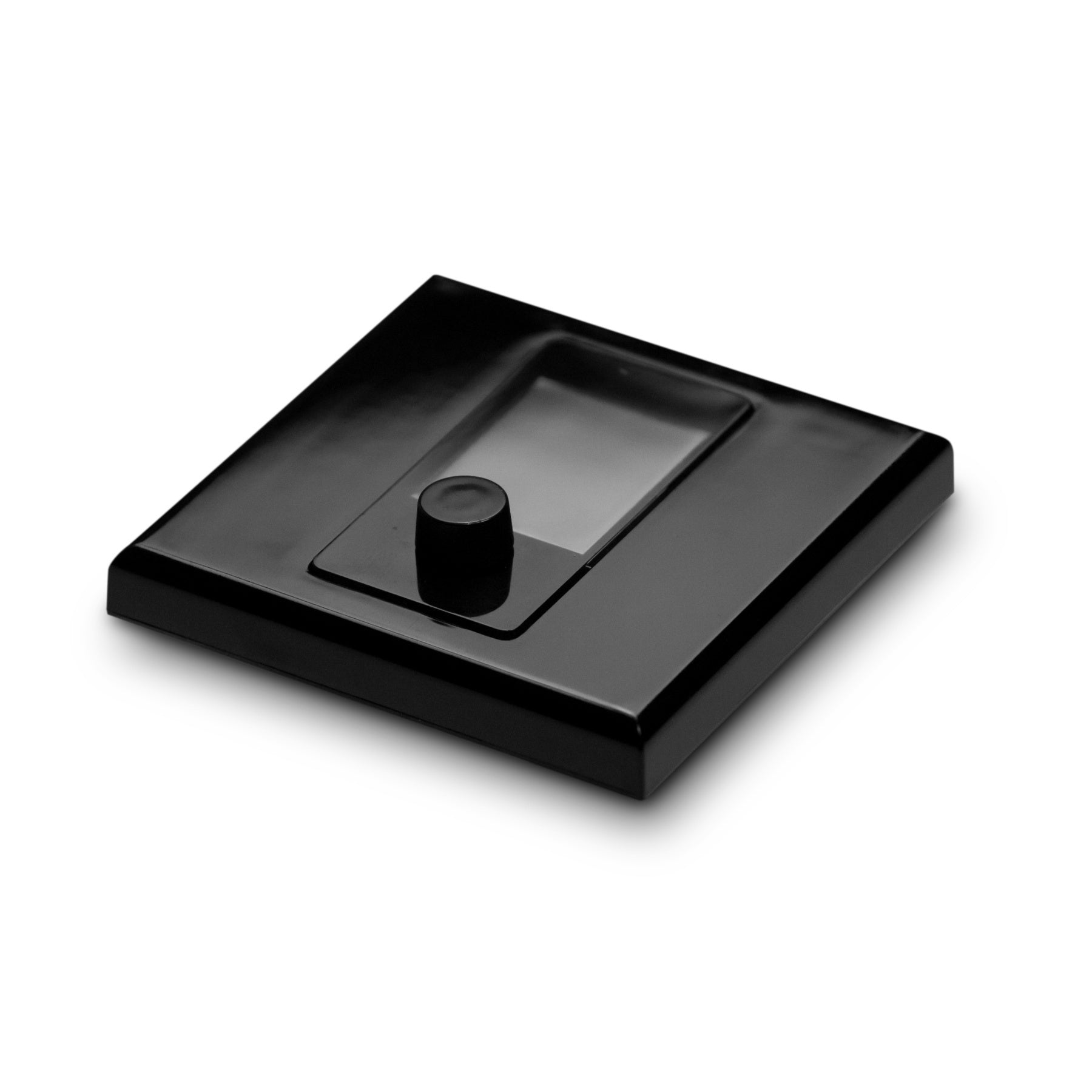

The NEMA single-gang form factor fits standard North American wall boxes, and Power over Ethernet simplifies installation by eliminating the need for separate power runs. Each unit ships with interchangeable white and black front plates and encoder caps, allowing contractors to match the final aesthetic on site without ordering separate SKUs.

Downloads

View full details

Specifications

Display
Type
TFT
Size
1.77 in
Resolution
160 x 128 pixels
Brightness
480 cd/m2
Connectivity
Network
Ethernet 100BASE-TX, 1000BASE-T
PoE Standard
IEEE 802.3af
PoE Nominal Voltage
48 VDC
Power
Consumption
≤ 1.30 W
Compatibility
Software
SONICUE (≥1.2.4)
Control Server
MXE51
Construction
Color
White, changeable to black
Mounting Type
Wall-mounted
Required Box Size
62 mm diameter, ≥60 mm deep
Environmental
Operating Temperature
0 °C – 45 °C (32 °F – 113 °F)
Operating Relative Humidity
15% – 93% noncondensing
Dimensions
Product (H x W x D)
86.1 mm x 86.1 mm x 47.2 mm (4.2 in x 1.7 in x 1.9 in)
Weight
Product
93 g (0.21 lb)
Shipping
253 g (0.47 lb)
