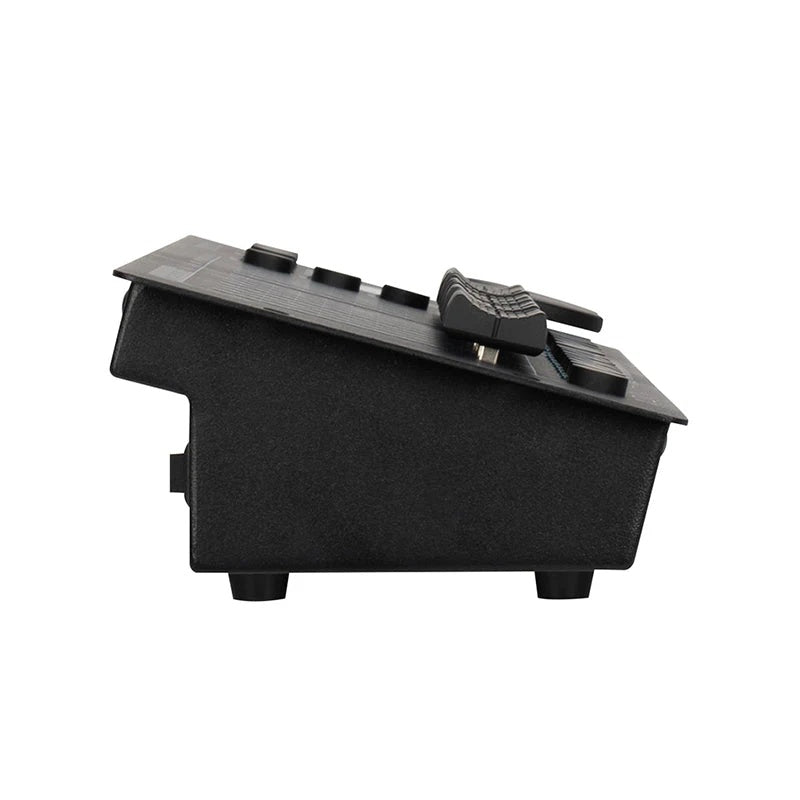

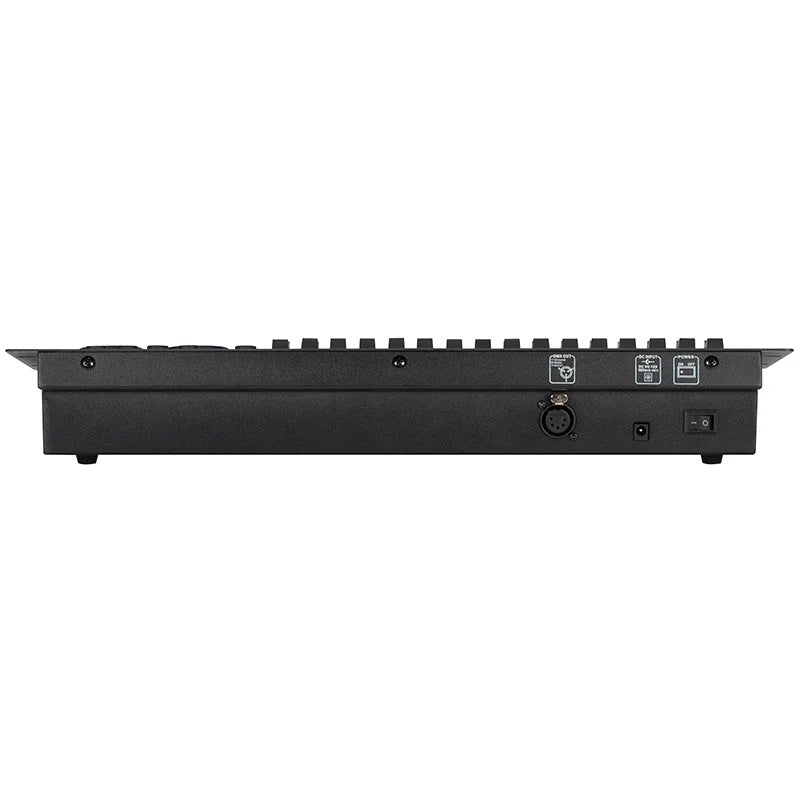

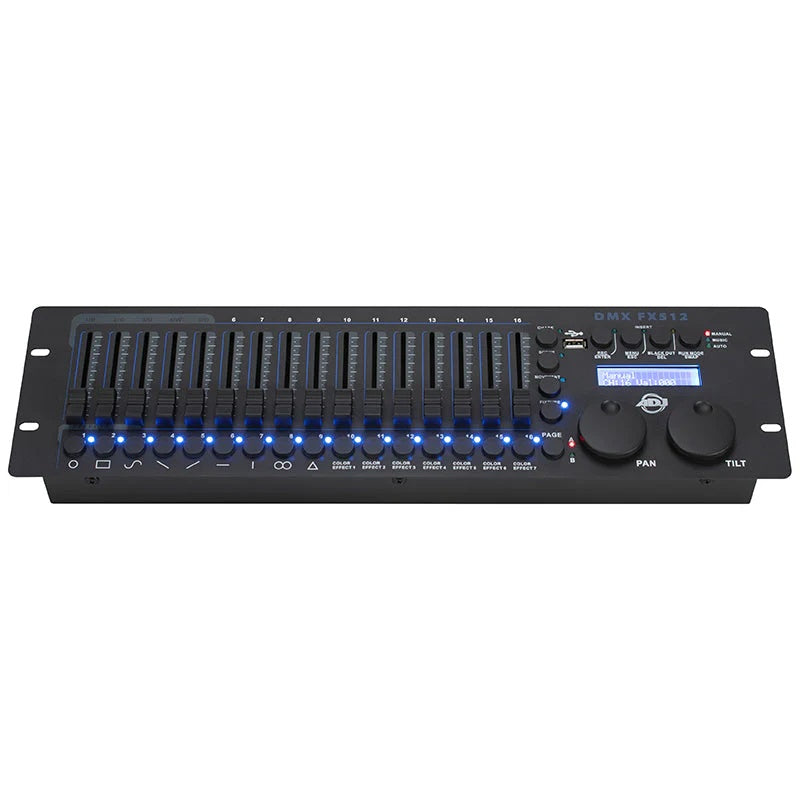

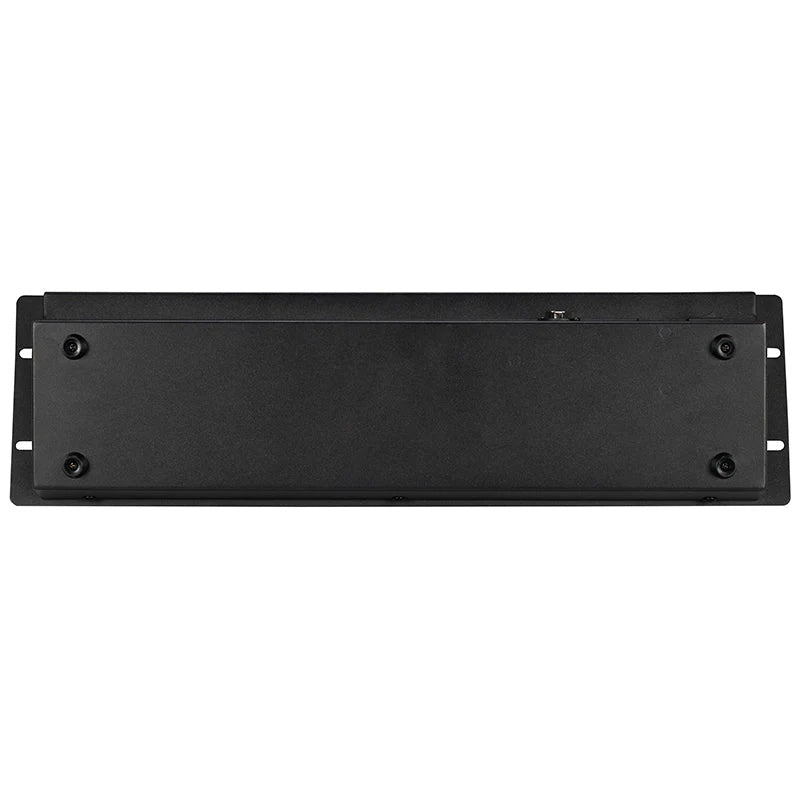

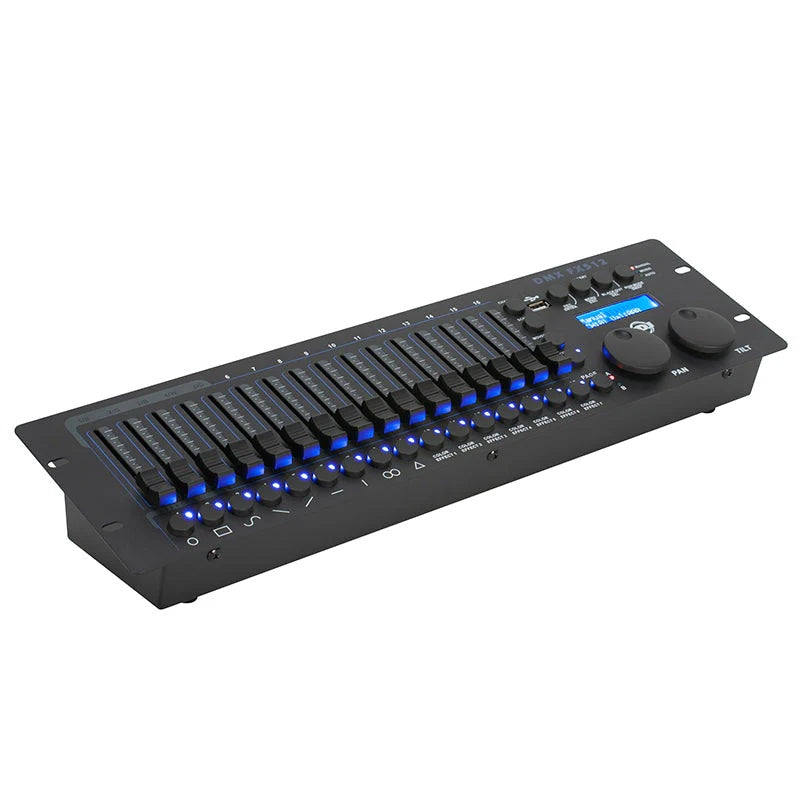

Eliminator Lighting DMX FX512 512-Channel Rack-Mount DMX Console
Eliminator Lighting DMX FX512 512-Channel Rack-Mount DMX Console
SoundPro Item: 203423 | Part Number: DMX FX512
Usually ships in 5-7 business days
- RDM Protocol Enables Remote Fixture Addressing Without Physical Access To Each Device
- 16 Built-In Effect Generators Cover Both Moving Head And RGB LED Fixture Types
- Five Simultaneous Chases Deliver Complex Layered Looks During Live Performance
- Soft-Patchable Faders And Assignable Pan/Tilt Wheels Adapt To Any Fixture Layout
- Built-In Mic With Digitally Adjustable Sound Sensitivity Drives Audio-Reactive Programming
- Front-Panel USB Port Supports Data Backup And Controller Firmware Updates
- Rubber Feet Allow Free-Standing Desk Use Without Rack Mounting
The DMX FX512 is built for lighting designers and operators who need hands-on DMX control in fixed installations or touring environments. Targeting churches, nightclubs, stages, and event production facilities, it occupies three rack spaces in a standard 19-inch rack while remaining light enough to sit freely on a front-of-house desk thanks to its integrated rubber feet. The combination of physical faders, dedicated Pan/Tilt wheels, and 16 Effects/Fixture select buttons gives operators tactile feedback that touchscreen-only solutions cannot replicate during fast-moving live events.
RDM protocol support sets this controller apart from entry-level 512-channel desks. Rather than walking the rig to manually address each fixture, operators can remotely read and configure DMX addresses and channel modes directly from the console — a significant time saver during venue turnovers or multi-show touring schedules. Soft-patchable faders extend flexibility further, allowing channel assignments to be reconfigured without rewiring the DMX universe.
With 16 built-in effect generators — nine optimized for moving heads and seven for RGB LED fixtures — the console generates dynamic looks without requiring external software or a separate media server. Five chases can run simultaneously, each drawing from up to 100 programmable steps, giving programmers substantial palette depth for complex theatrical or entertainment lighting designs. The front-panel USB port supports data backup and firmware updates, ensuring the controller stays current with new fixture profiles and feature releases.
Specifications
