Eliminator Lighting MBDMX-PLUS DMX Mirror Ball Motor With Pinspot Power
Eliminator Lighting MBDMX-PLUS DMX Mirror Ball Motor With Pinspot Power
SoundPro Item: 140790 | Part Number: MBDMX-PLUS
Usually ships in 5-7 business days
- DMX Primary/Secondary Linking Synchronizes Up To Four Units For Uniform Rotation
- Dual 3-Prong Edison Outlets Power Pinspots Directly From The Motor
- Two-Channel DMX Design Keeps Address Usage Minimal On Any Console
- Circuit Breaker Protection Eliminates Fuse Replacement During Operation

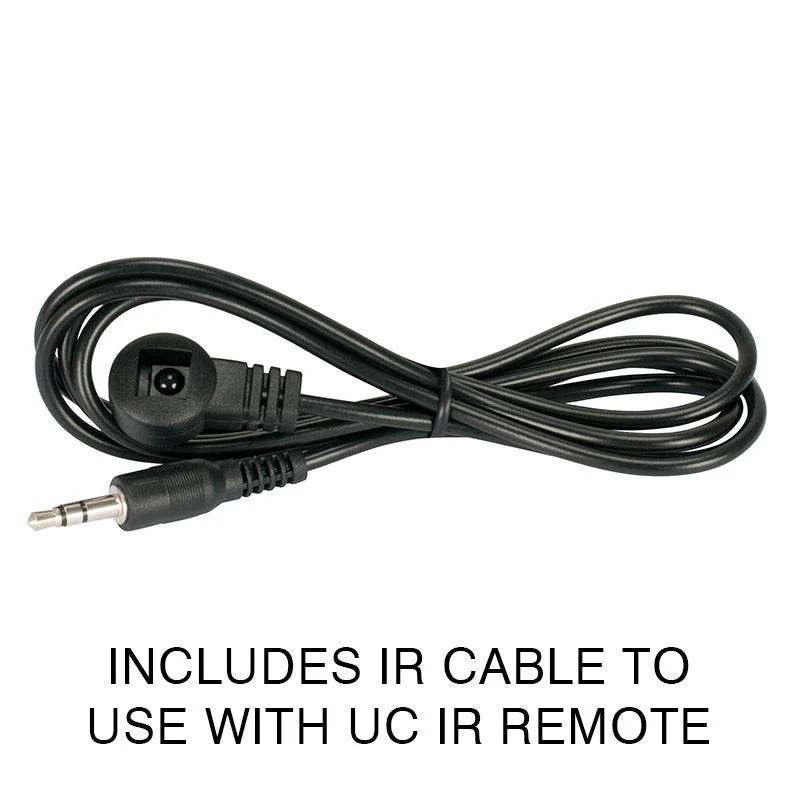

- Infrared Cable Included Enables Optional UC IR Remote Wireless Control
- Quarter-Inch Socket Provides Broad Compatibility With Standard Rigging Hardware

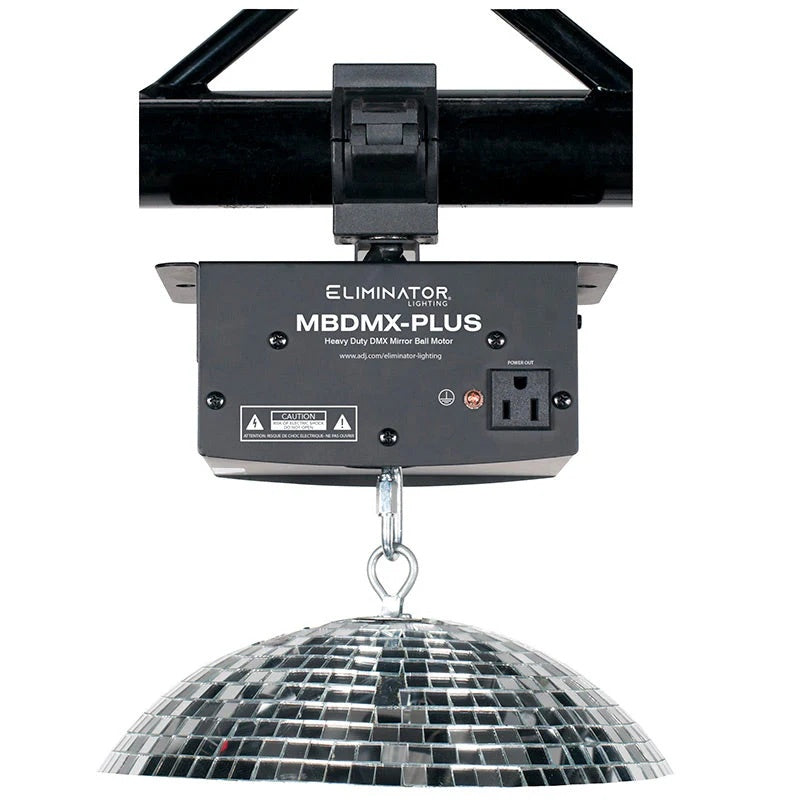

The Eliminator Lighting MBDMX-PLUS is built for installers, mobile entertainers, and club lighting designers who need reliable DMX-controlled mirror ball automation without compromising on safety or flexibility. It accepts mirror balls up to 20 inches and mounts via a standard quarter-inch socket, making it compatible with a wide range of rigging configurations found in nightclubs, event venues, and permanent installations.
Where this motor separates itself from single-channel alternatives is its Primary/Secondary linking capability — up to four units can be data-linked via 3-pin DMX In/Out for perfectly synchronized rotation across multiple mirror balls simultaneously, a critical advantage for large dance floors or multi-zone installs. Two onboard 3-prong Edison outlets eliminate the need for additional power runs to pinspots, keeping your cable management clean. The two-channel DMX footprint keeps address space lean: one channel handles motor speed and direction, the other controls pinspot power on/off. An included infrared cable enables UC IR remote control as an optional trigger method, giving mobile DJs and touring acts a wireless fallback.
Circuit breaker protection removes the fuse-swapping hassle common on budget motors, and the indoor-rated build is well-suited for recurring installations where long-term reliability matters. Whether you are building a permanent mirror ball rig or running a touring dance production, the MBDMX-PLUS delivers the control and connectivity professional setups demand.
