Specifications
Light Source

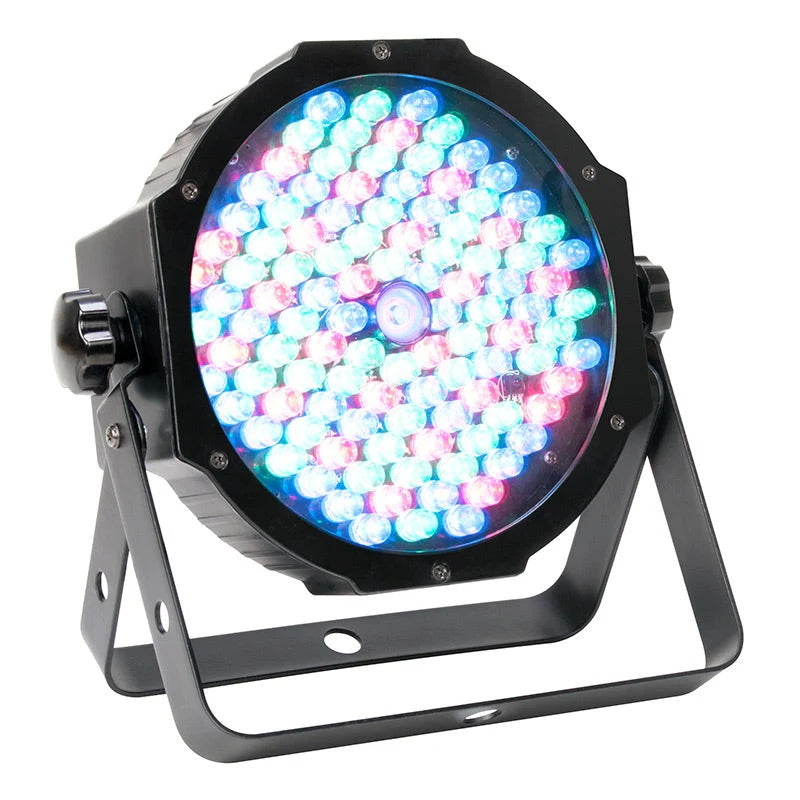

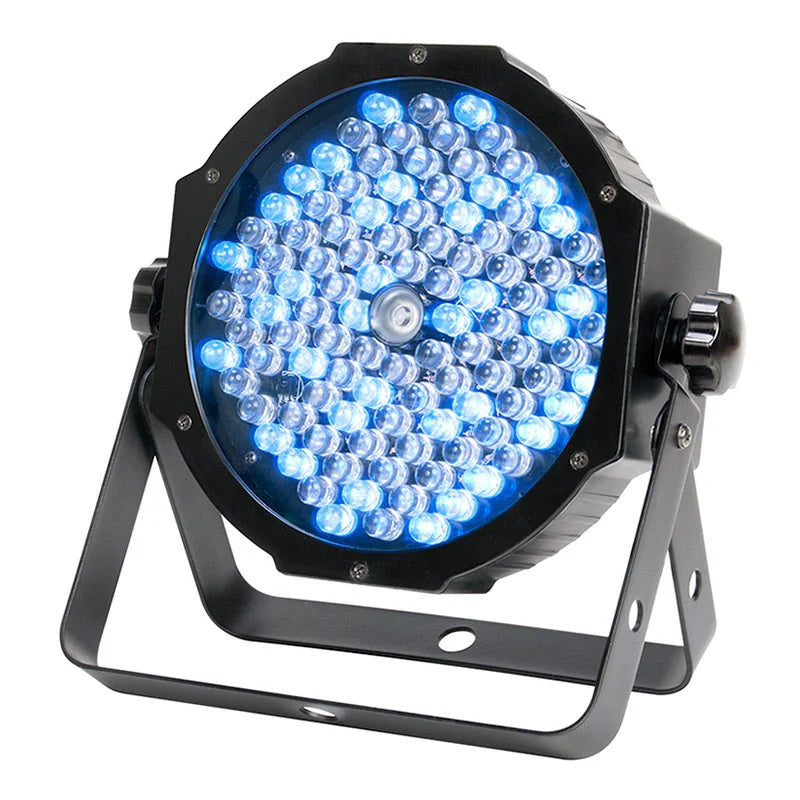

LED Configuration
107x 10mm LEDs (26 Red, 45 Green, 36 Blue) + 1x 3W UV LED
LED Lifespan
50,000 hrs.
Performance
Light Output @ 2M
345 LUX
Light Output @ 4M
92 LUX
Beam Angle
30 degrees
Control
DMX Channel Modes
4/5/6/9/10 channels
Operational Modes
RGB+UV Dimmer, Sound Active, Auto Run, Static Color, DMX Controlled
Sound Active Shows
16
Built-In Shows
32 (16 Color Changing, 16 Color Fading)
Color Macros
64
Dimmer Curves
5 (Standard, Stage, TV, Architectural, Theatre)
Electronic Dimming
0-100%
Configuration
Stand Alone or Primary/Secondary

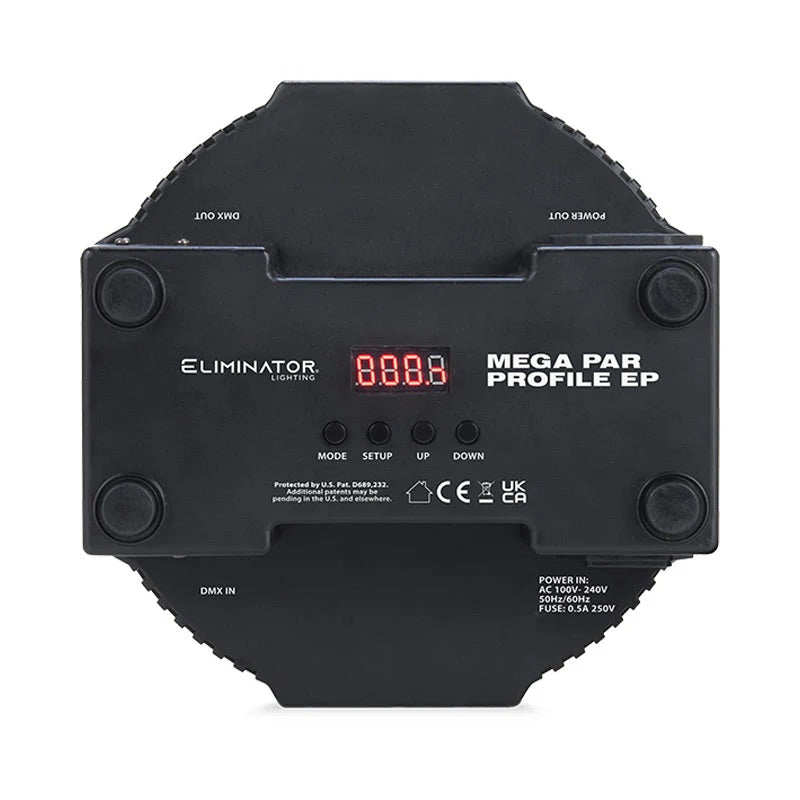

Display
4-button function display with inversion mode

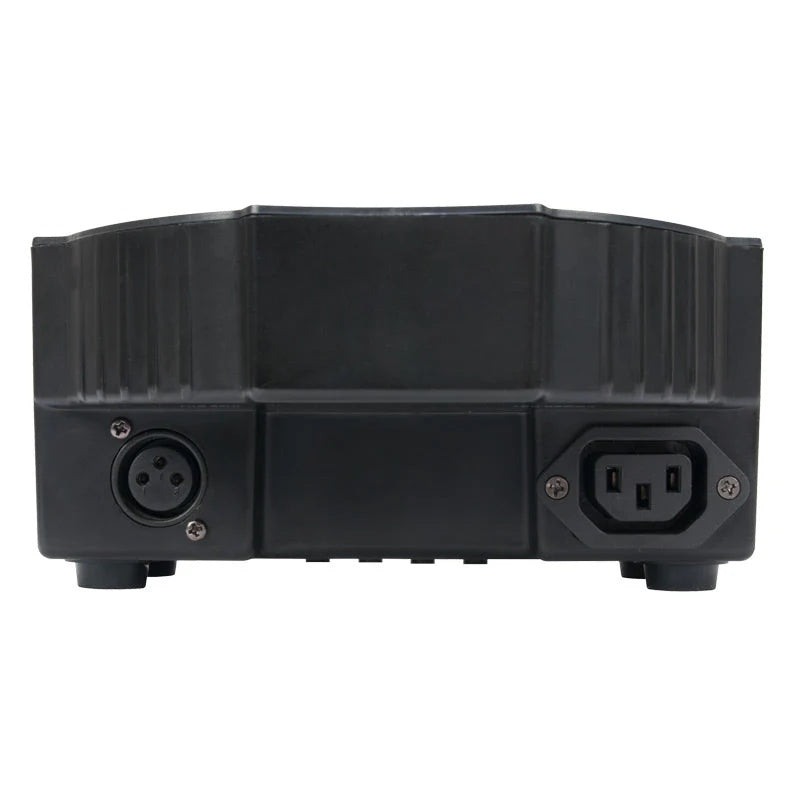

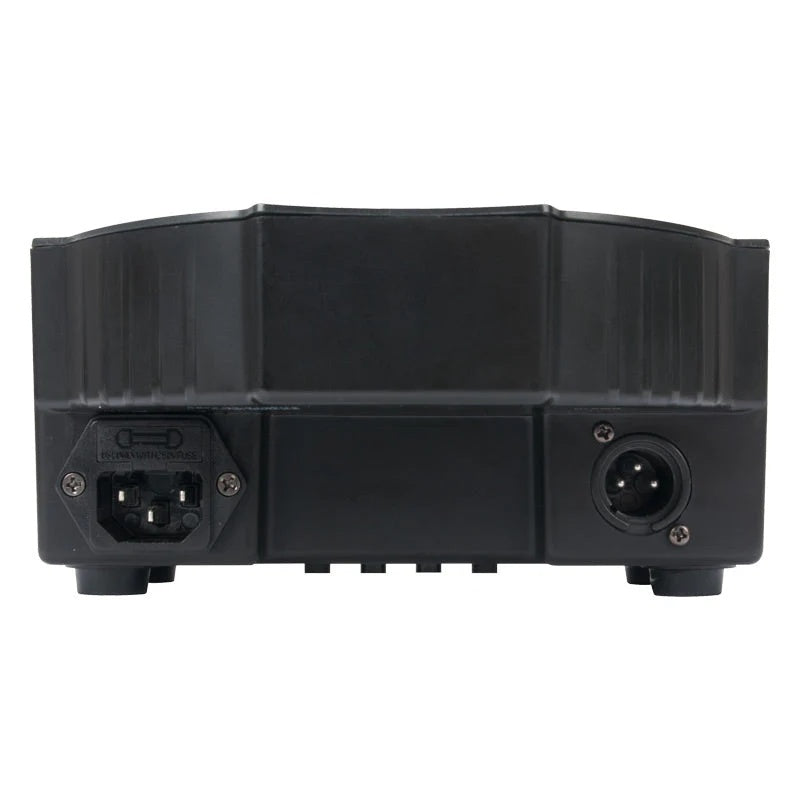

Connectivity
DMX
3-pin DMX In/Out
AC Power
IEC AC In/Out (daisy-chain)
Max Daisy-Chain @ 120V
33 units
Max Daisy-Chain @ 230V
60 units
Power Cable Length
1.8 meter (IEC)
Wireless Remote Compatibility
ADJ LED RC2 (up to 30 ft. / 10M, sold separately)
Electrical
Voltage
AC 100-240V, 50/60Hz
Power Draw
16W Max
Dimensions
Length
9"
Width
8.75"
Height
3.5"
Metric Dimensions
225 x 220 x 85 mm
Weight
Product Weight
3 lbs. / 1.1 kg
Included Items
Mounting
Scissor yoke (for truss hang, wall mount, or ground use)
