Specifications
Light Source
Fixture Count
4
LEDs Per Fixture
12x 1-Watt RGBW (3 red, 3 green, 3 blue, 3 white)
Beam Angle
25 degrees
Max Power
80W
Electrical
Input Voltage
AC 100Vā240V, 50/60Hz
Input Connector
IEC
Connectivity
DMX Channels
8

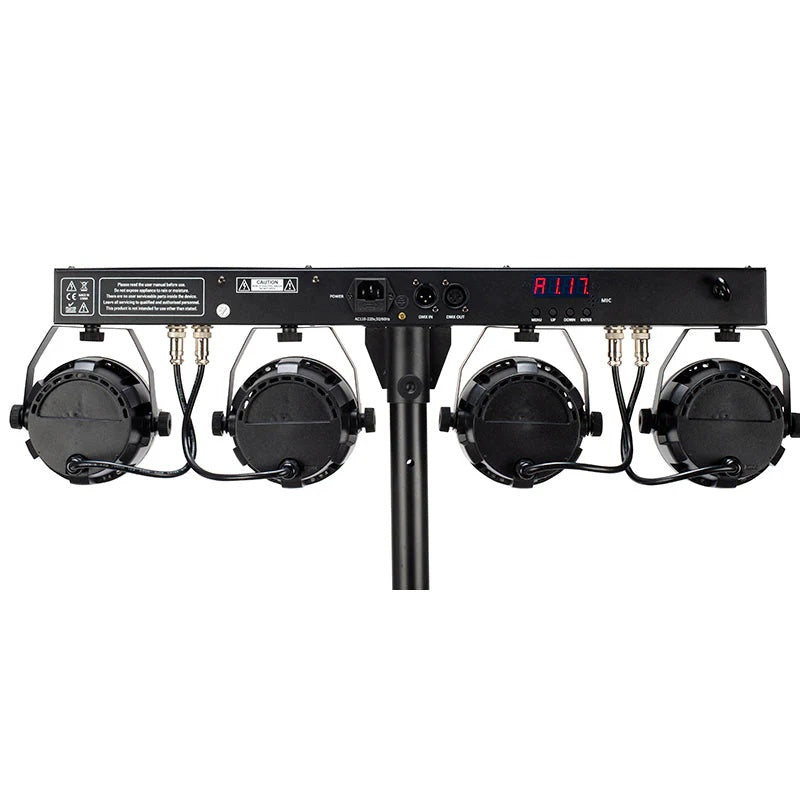

DMX Connectors
3-pin DMX In/Out
Controls

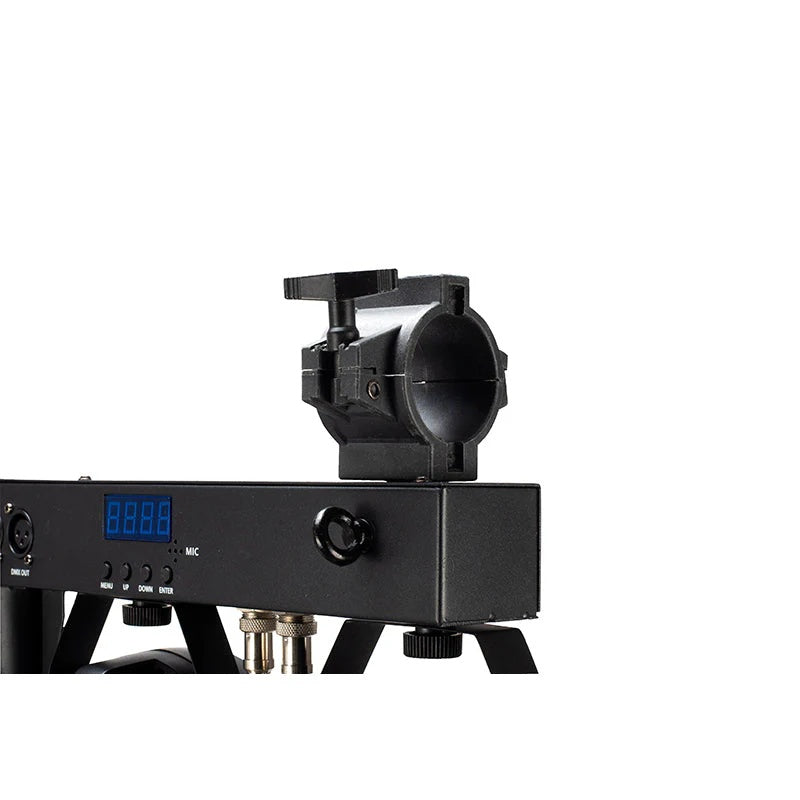

Onboard Interface
4-button LED display menu
Control Modes
Sound Active, DMX, Auto, Primary/Secondary
Remote Type
IR Wireless
Dimensions
Bar Dimensions
28.7" x 8.1" x 3.5" (730mm x 205mm x 89mm)
Dimensions In Carry Bag
1030mm x 150mm x 395mm
Tripod Footprint (Fully Open)
33.9" x 29.9" (860mm x 760mm)
Tripod Height Min
47.25" / 1200mm
Tripod Height Max (Without Bar)
74.4" / 1890mm
Tripod Height Max (With Bar)
76.4" / 1900mm
Weight
Bar With Lights
6 lbs / 2.7kg
Bar With Lights And Stand
12.8 lbs / 5.8kg

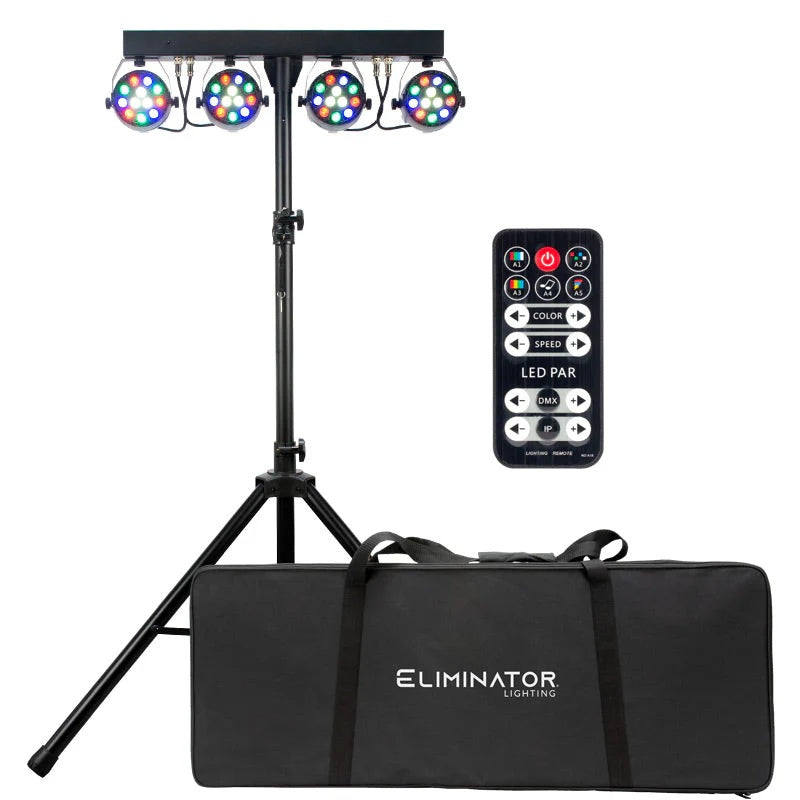

Included Items

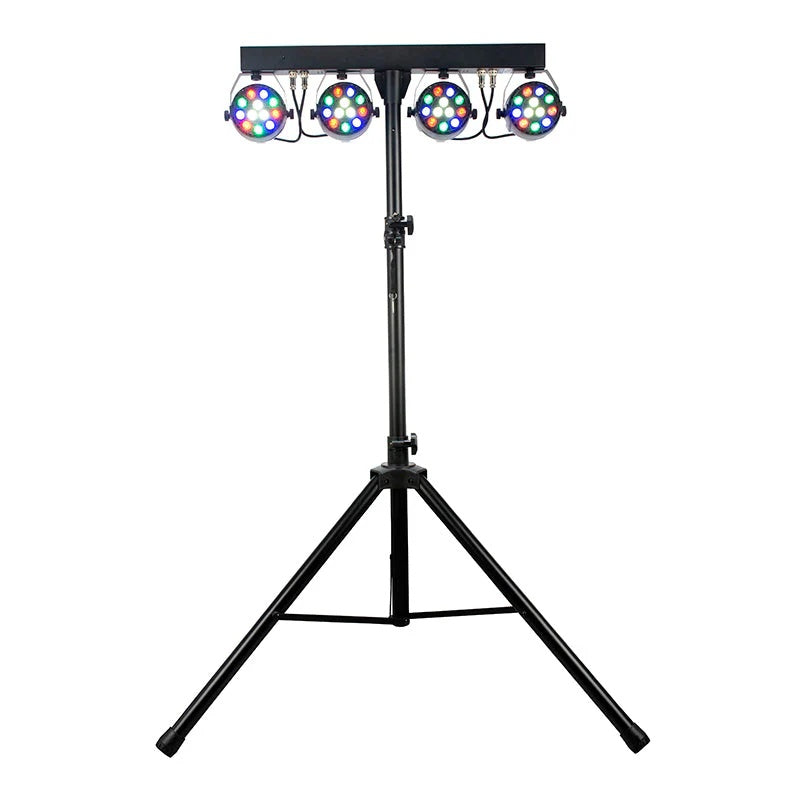

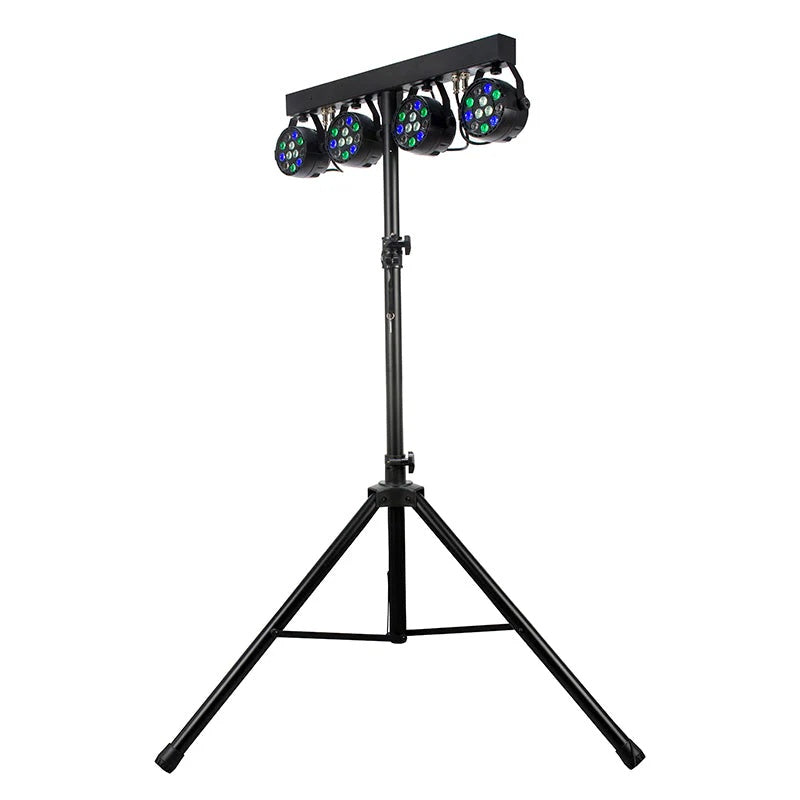

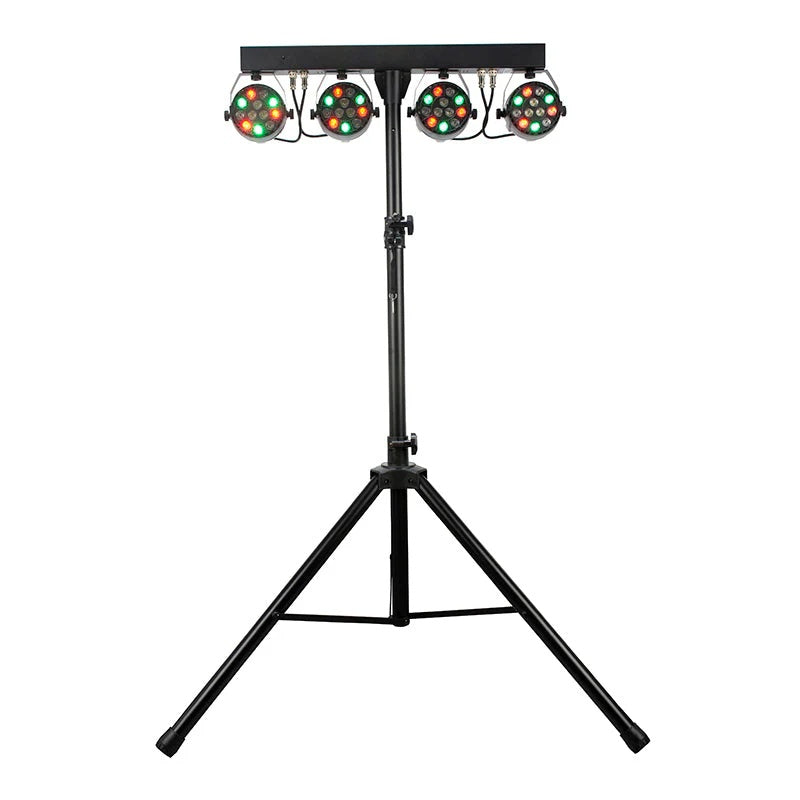

Fixtures
4x LED Par on linear base
Stand
4-section lighting tripod

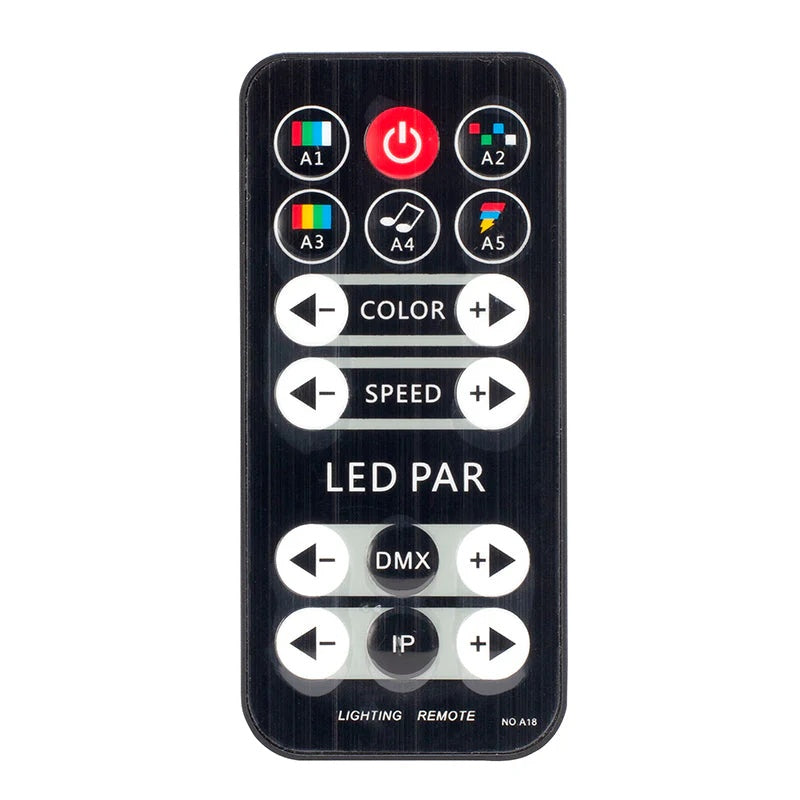

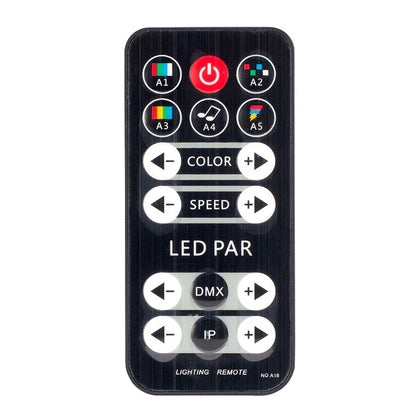

Remote
IR wireless remote control

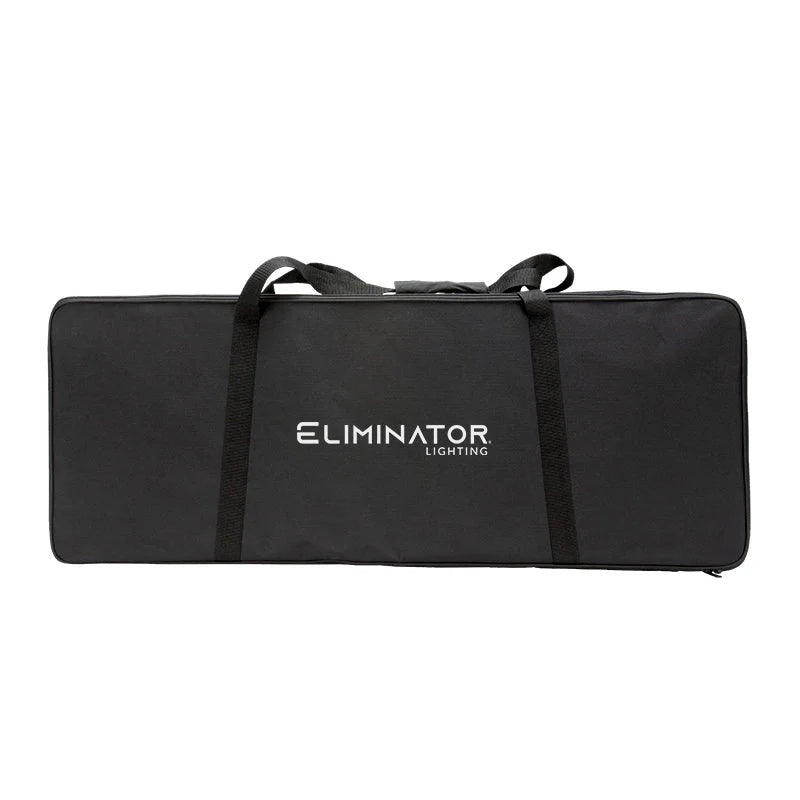

Bag
Transportation bag
Cable
IEC power cable
