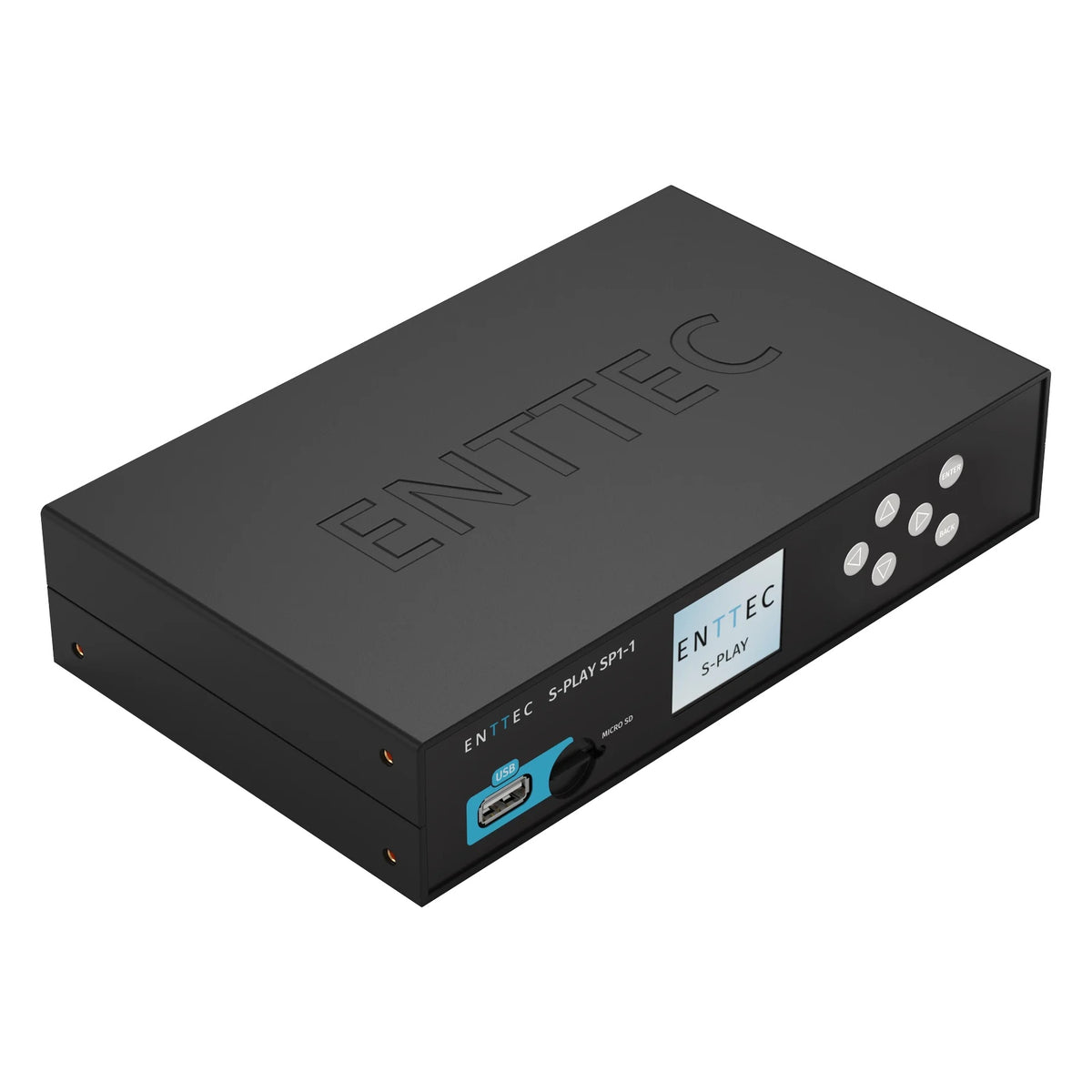

• S-Play SP1-1 show recorder isometric top view showing embossed logo on black steel chassis with front LCD and navigation keypad, Enttec

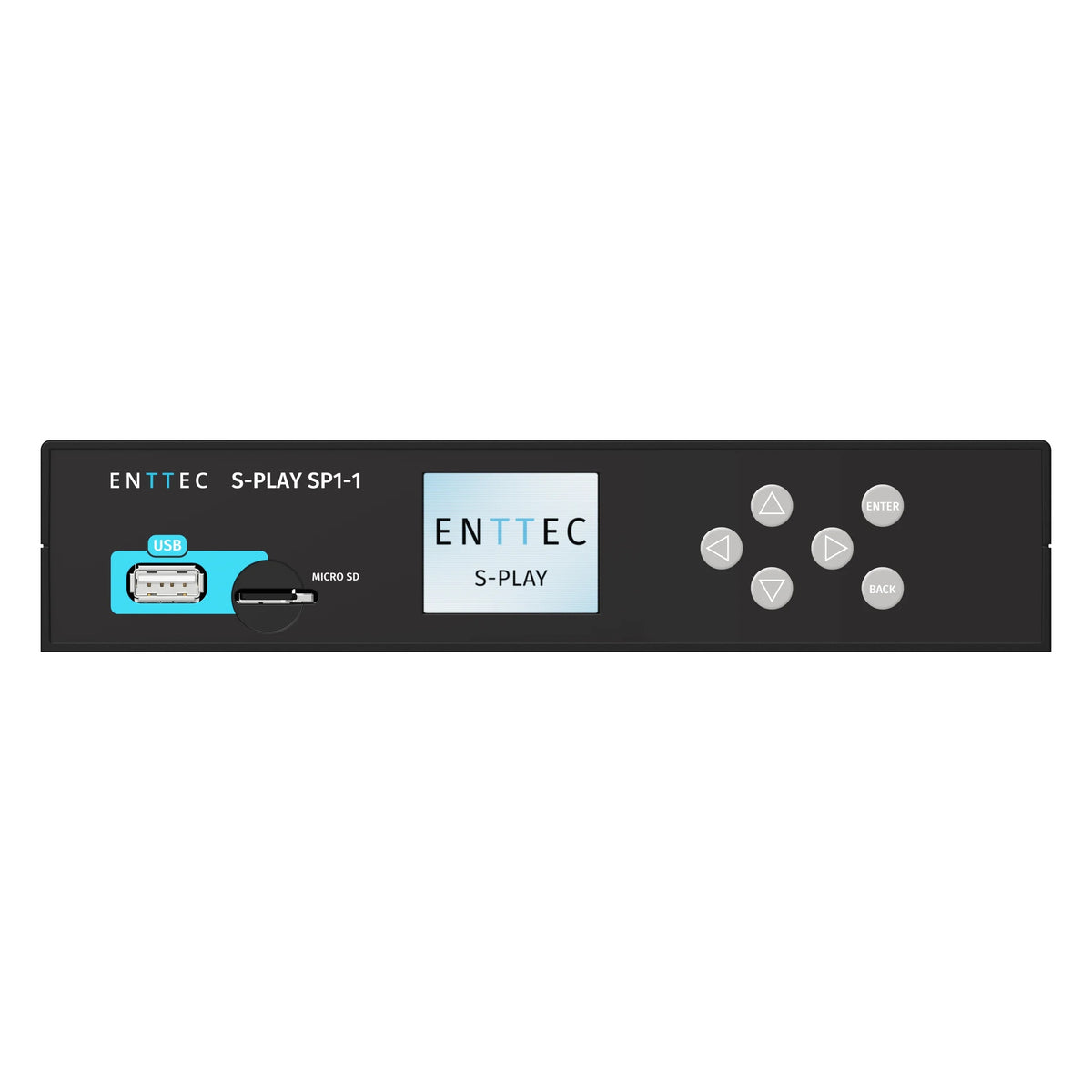

  • S-Play SP1-1 front panel detail with USB port, micro SD slot, LCD display and five-button navigation pad, Enttec

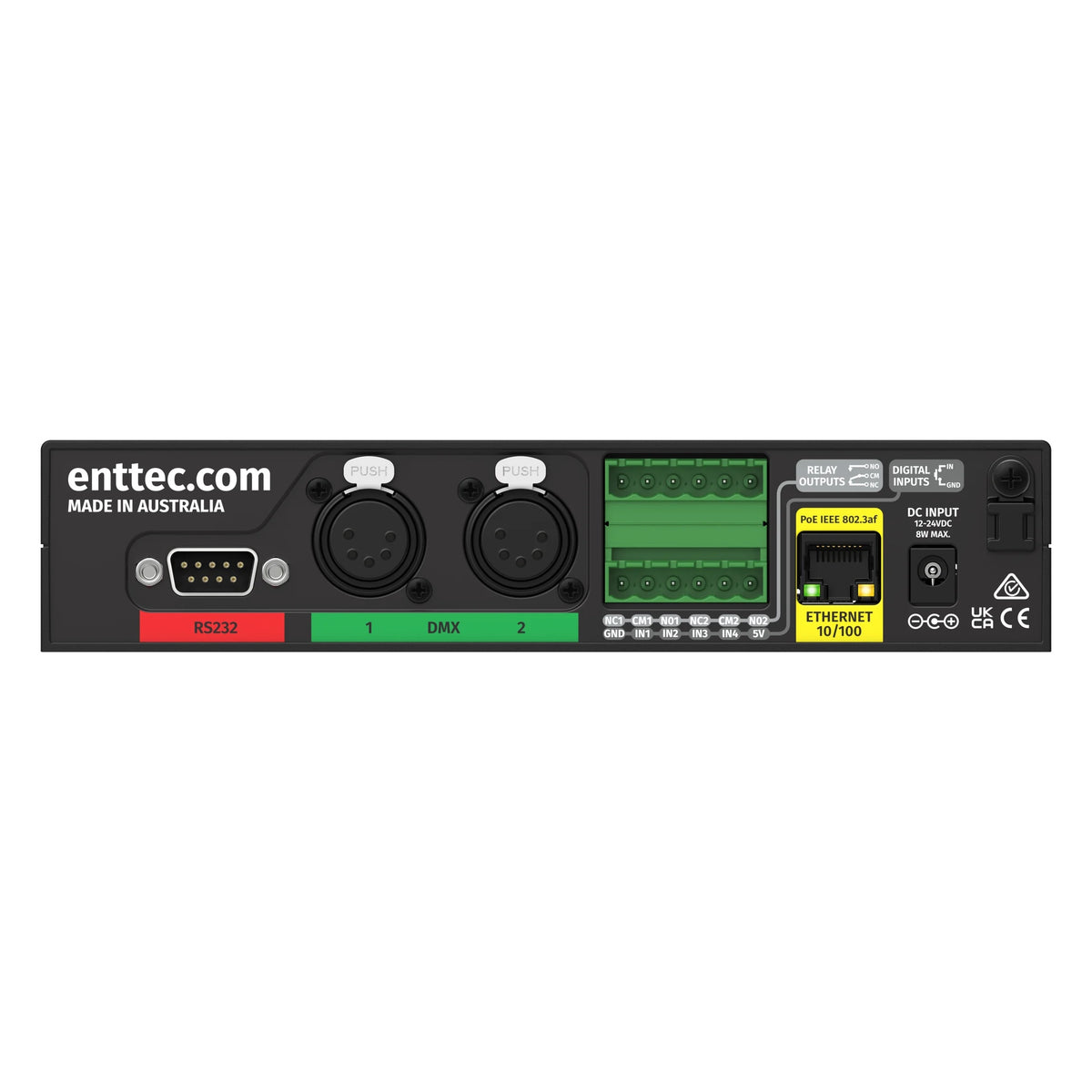

  • S-Play SP1-1 rear panel showing RS232 DB9, two DMX XLR ports, green Phoenix relay and digital I/O terminals, PoE Ethernet and DC input, Enttec

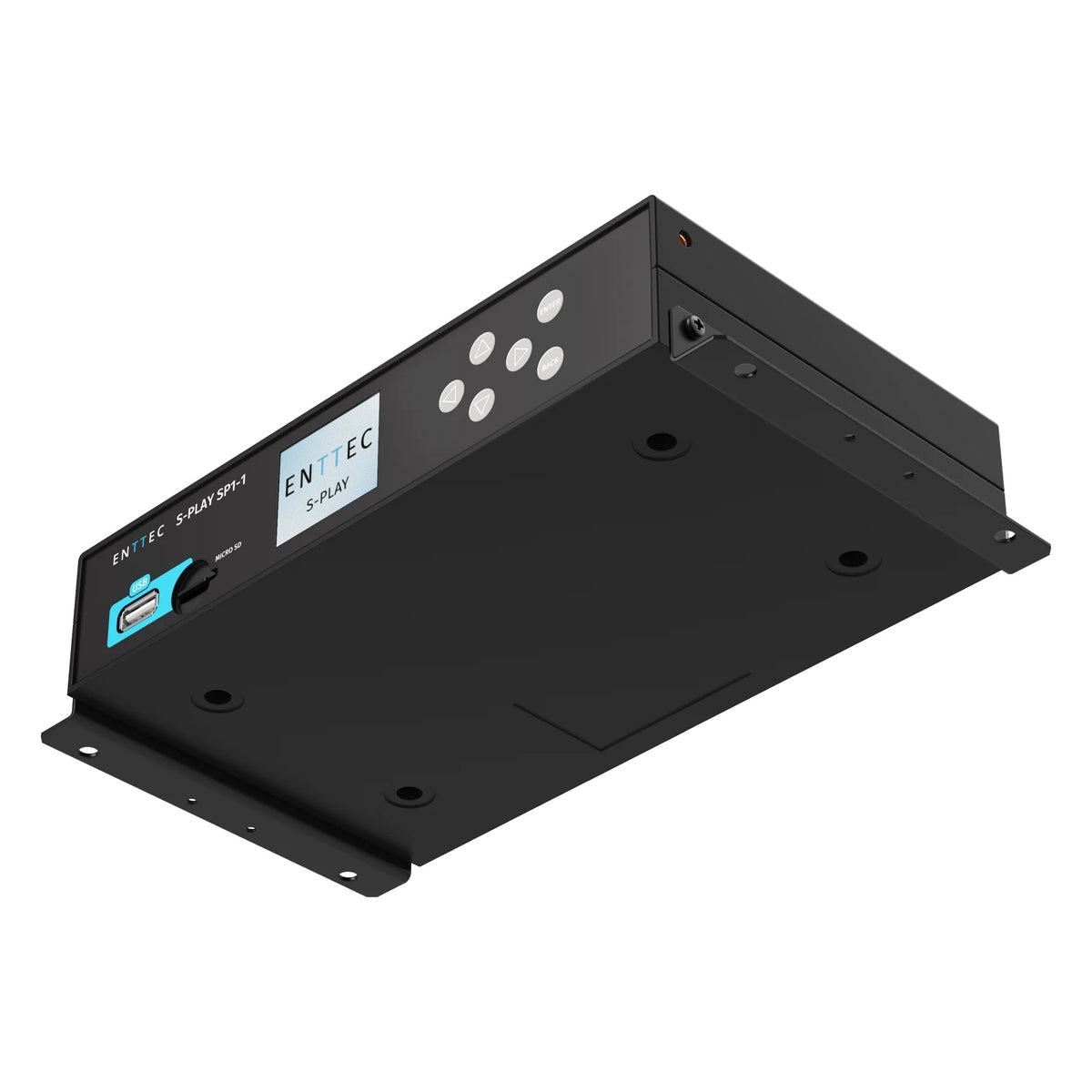

  • S-Play SP1-1 isometric bottom view with surface-mount bracket plate and screw holes fitted, Enttec

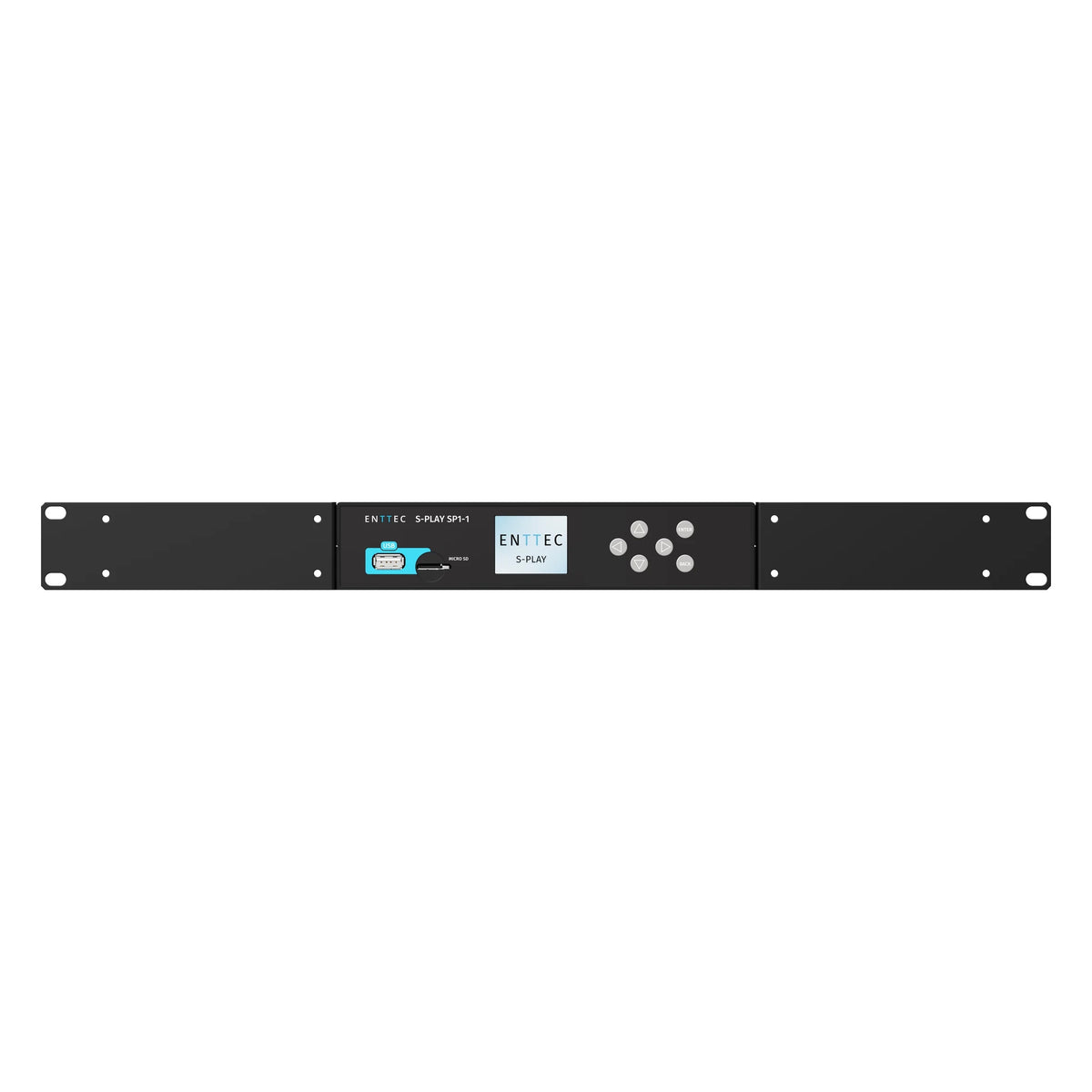

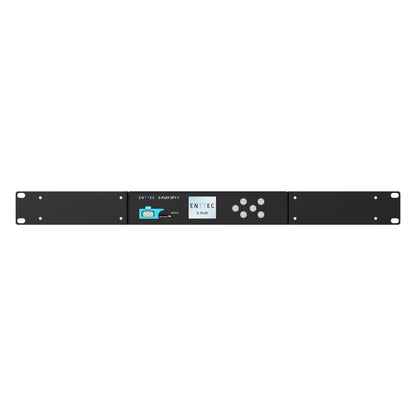

  • S-Play SP1-1 installed in 1U rack mount kit, front view with rack ears and center-mounted control panel, Enttec

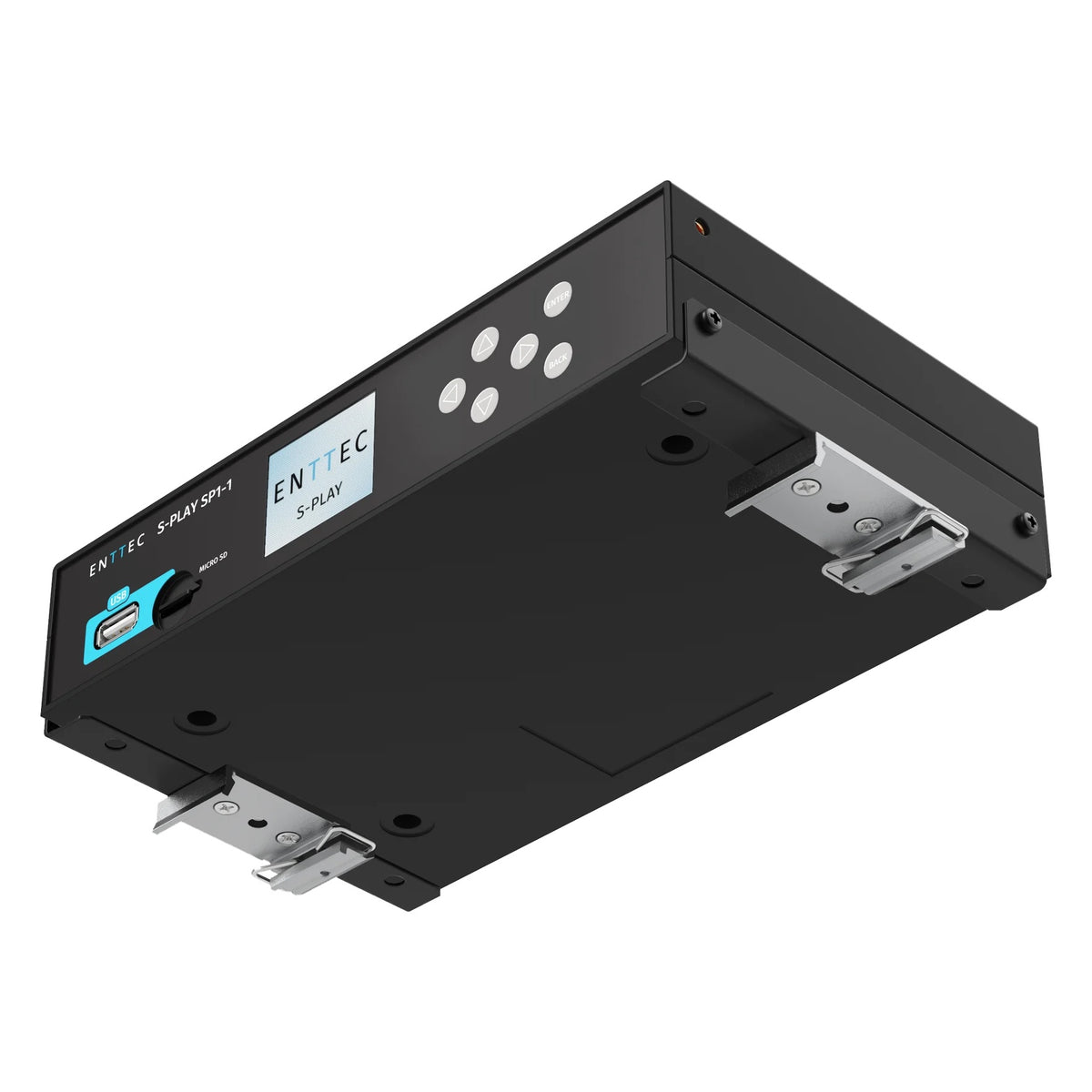

  • S-Play SP1-1 isometric underside view with DIN rail mounting clips attached, Enttec
1 6

Enttec 70092 S-Play SP-1 Smart Show Recorder And Playback Controller

Enttec 70092 S-Play SP-1 Smart Show Recorder And Playback Controller

SoundPro Item: 212617 | Part Number: 70092

$2,185.00
$2,300.00 $2,185.00
Your Price Sold out
MSRP: $2,300.00 | MAP: $2,185.00

Usually ships in 5-7 business days

  • Cue Recording With Effects Generator Speeds Up Show Creation
  • Playlist Design Tools Combine Multiple Shows Into Organized Sequences
  • Custom Web Interfaces Let Non-Technical Staff Trigger Scenes
  • Open API Control Integrates With Third-Party Show Control Systems
  • Scheduled Playback Runs Shows Unattended Once Programmed
  • Remote Access Allows Show Changes Without A Site Visit
Log in or register for YOUR best price

The SP-1 suits lighting designers, integrators, and venue technicians who need dependable show playback without leaving a full console or laptop running on site. Once programs are built and loaded, the unit takes over, so theaters, museums, retail environments, themed attractions, and hospitality spaces can run consistent scenes from power-up every day.

It bridges legacy and networked lighting. It can output to fixtures over its onboard DMX connections or distribute across the network, which lets one device drive a small rig or a large pixel and fixture install. Digital inputs and relays let it tie into building systems, show control, and wall panels, while custom web pages give staff a simple interface so non-technical operators can start scenes without touching the programming.

Compared with basic DMX recorders, the SP-1 combines a built-in effects generator, a scheduler, remote access, and API control in one housing. Rack, surface, and DIN rail mounting options make it practical for equipment rooms and control cabinets alike, and PoE support reduces cabling at remote locations.

Downloads

View full details

Specifications

Certifications
IP Rating
IP20
Compliance
RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Warranty
3-year return-to-base manufacturer warranty
Dimensions
Unit Dimensions
200mm x 120mm x 42 mm
Product Width
4.724412"
Product Length
7.87402"
Product Height
1.6535442"
Weight
Unit Weight
0.47kg / 1.04lbs
Product Weight
1.04 lbs
Electrical
Input Voltage
12V DC to 24V DC
Power Input
DC jack
Max Power Draw
8W
Ethernet Port / PoE
RJ45 / PoE IEEE 802.3af
Performance
DMX Universe Playback
2U (1024 channels of USITT DMX512-A)
Art-Net / sACN Universe Playback
32U (16,384 channels)
Max Refresh Rate
Art-Net & sACN: 60 FPS / USITT DMX512-A: 40 FPS
Max Playlist Count
200
Max Cue Tracks Per Playlist
4
Max Cues (Including Static, Dynamic and Effect)
200
Max Triggers
200
Max Events
200
Max Custom Interfaces
10
Internal Show Storage Capacity
8GB (~10 hours of 32 universes at 40fps)
Expandable Storage
Removable USB + Micro SD card
Connectivity
DMX Port
2 x 5-pin XLR (female)
RS232 Port
1 x male DB9
Digital Input
4 digital inputs + 1 GND (5-pin screw terminal)
Relay
2 x relay, 6-pin screw terminal (max switching 60W, 125VA/2A)
OSC API
Yes
HTTP API
Yes
Scheduler
Yes
Remote Access
Yes
Multi-Sync
Yes
Construction
Body Material
ABS plastic & anodised aluminium
Mounting
Rack, surface & TS35 DIN rail mountable
Cooling Method
Convection
Controls
LCD + Buttons
Yes
Factory Reset
Web interface / LCD menu
Included Items
Power Supply
12V PSU & international plugs included
Mounting Hardware
Ears, clips & screws included
Environmental
Operating Temperature
0°C to 50°C / 32°F to 122°F
Operating Humidity
0 to 95% (non-condensing)
Shipping
Shipping Dimensions
335mm x 265mm x 78mm
Shipping Weight
1.20kg / 2.65lbs
Package Weight
2.65 lbs
Package Width
10.4330765"
Package Length
13.188983499999999"
Package Height
3.0708678"
