Epson BrightLink 1480Fi 1080p 3LCD Interactive Laser Display
Epson BrightLink 1480Fi 1080p 3LCD Interactive Laser Display
SoundPro Item: 50598 | Part Number: V11H921520
Usually ships in 5-7 business days
- Super bright - 5,000 lumens color/white brightness; 1080p Full HD laser display
- Enhance learning environments - large, 100" display provides 75 percent larger interactive area than 75" panels
- Laser light source life - virtually maintenance-free 20,000-hour laser light source with no lamps
- Pen-based interactivity - turn almost any wall or existing whiteboard interactive; allows up to two users to write and draw at once
- Touch ready - optional touch module available for touch-based interactivity with up to six points of touch
- Time-saving installation - automatic image alignment
- Digital whiteboard - draw, save, print and email without a PC; share whiteboard content to other network-connected BrightLink projectors
- Built-in wireless - use free Epson iProjection™ software to connect, display and share content simultaneously to/from up to 50 connected devices
- SMART Learning Suite - includes 1-year subscription and support for SMART Notebook®, SMART amp™, SMART lab™, SMART Learning Suite Online and more
Increase engagement and collaboration in classrooms and meeting spaces with the dynamic BrightLink 1480Fi 1080p 3LCD interactive laser display. Designed with convenience in mind, this ultra bright, 5,000-lumen ultra short-throw projector offers easy installation and a virtually maintenance-free 20,000-hour laser light source with no lamps. Offering a 16:9 display up to 100", the 1480Fi provides 75 percent more interactive space than 75" panels for a fully immersive display in meeting spaces and classrooms. With support for optional BrightLink touch modules, it allows up to eight users to work on a single interactive canvas. Plus, it comes with a host of PC-free features including collaborative whiteboard sharing, printing, emailing and more.
- Projection System
- Epson® 3LCD, 3-chip technology1
- Projection Method: Ceiling/wall mount/table mount
- Driving Method: Epson Poly-silicon TFT Active Matrix
- Native Resolution: 1080p (1366 x 768 x 2)
- Resolution on Screen: 1080p (2.1 million pixels)
- Pixel Number: 1,049,000 Pixels (1366 x 768) 3 chips
- Color Brightness - Color Light Output: 5,000 lumens [2]
- White Brightness - White Light Output: 5,000 lumens [2]
- Aspect Ratio: 16:9 (native), supports 4:3, 16:10
- Size - projected distance: (16:9) 65" – 100"
- Keystone Correction
- Horizontal: ± 3 degrees
- Vertical: ± 3 degrees
- USB Plug 'n Play: Mac® 10.4 or later; Windows 7 or later
- Contrast Ratio: Up to 2,500,000:1
- Color Reproduction: Up to 1.07 billion colors
- Light Source Life
- 20,000 hours (Normal)
- 30,000 hours (Extended)[3]
- Illumination Technology: Laser Diode
- Operating Temperature32° to 104 °F (0 ° to 40 °C)
- Dimensions (WxDxH)18.1x18.2x14.8"
- Weight (with cable cover)21.4 lbs (9.7 kg)
- Projection Lens
- Type: Manual focus
- F-number: 1.50
- Focal Length: 3.9 mm
- Zoom Ratio: Digital zoom 1.0 – 1.35x
- Throw Ratio Range: (16:9) 0.27 – 0.37, (4:3) 0.37 – 0.50, (16:10) 0.30 – 0.42
- Interactive Specifications
- Interactive Technology: Infrared, 850 nm
- Interactive Modes: Whiteboard Mode: 2x pens and 6x fingers PC-free Annotation Mode: 2x pens and 6x fingers Computer Interactivity Mode, Easy Interactive Tools: 2x pens and 6x fingers
- Interactive Area: 65" – 100" diagonal (16:9, 1080p1)
- System Compatibility: Microsoft® Windows 8/8.1, Windows 10, Windows 7 SP1 (All editions except for Starter) macOS 10.11/macOS 10.12.x, UBUNTU, 16.04 LTS, 19.04, 18.04 LTS
- Other Interactive Software
- Epson Easy Interactive Driver (Mac and PC — required for DuoLink); Windows and Linux: driver not required Mac: Mac OS X 10.7/10.8/10.9/10.10/10.11/macOS® 10.12.x Epson Easy Interactive Tools for Windows and Mac
- Interactive Input Device
- Type of Interactive Input Device: Digital pen or finger
- Multiple Pen Support: Yes
- Interactive Pen Functions
- Mouse functions (left and right click), electronic pen, LED battery status indicator
- Interactive Pen Dimensions:
- Size: 6.3" (L) x 0.95" (W); Weight: 1.1 oz (without battery)
- Compatible Pen Battery Types: AA x 1, Manganese dry cell, Alkaline dry cell, Panasonic eneloop® BK-3MCCx
- Projector Details

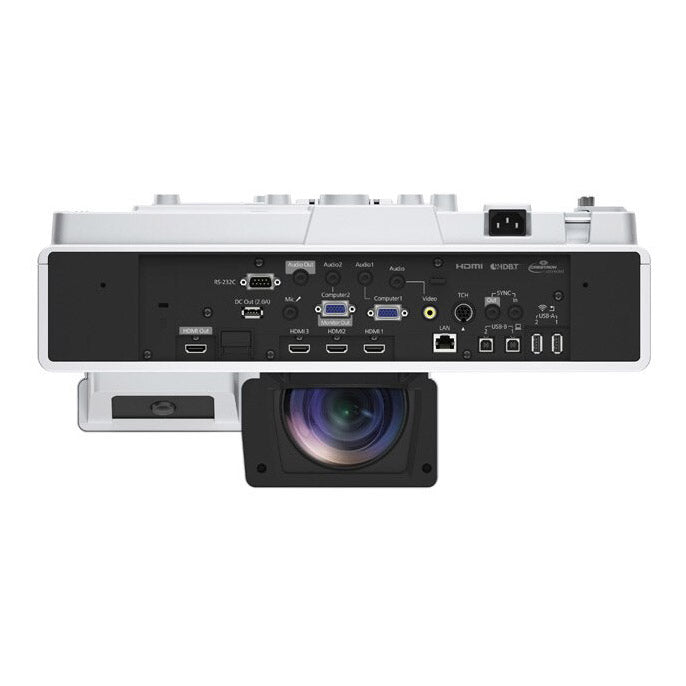

- Interfaces
- HDMI®: 3
- HDMI Out: 1
- Computer/Component Video: 2x D-sub 15 pin
- Composite Video: 1x RCA (Yellow)
- Audio In: 3x Mini stereo
- Audio Out: 1x Mini stereo
- Microphone In: 1
- USB Connector: 2x Type B (USB display, audio and mouse, k/b control interactivity)
- USB Connector: 2x Type A (USB memory/document camera)
- 1x RJ-45
- Serial: 1x RS-232c
- Monitor Out: 1x D-sub 15 pin (shared with computer 2)
- Integrated Wireless LAN: 802.11 b/g/n/ac
- Interactive Synchronization: Mini Stereo In
- Interactive Synchronization: Mini Stereo Out
- Touch Unit Connection Port
- Speaker: 8 W x 2
- Fan Noise
- Quiet Mode: 27 dB
- Normal Mode: 36 dB
- Interfaces
- Power
- Power Supply Voltage: 100 – 240 V ± 10%, 50/60 Hz
- Power Consumption: ECO Mode: 270 W
- Normal Mode: 381 W
- Standby (Communication On): 2.0 W
- Standby (Communication Off): 0.5 W
- WirelessSecurity: Kensington lock provision, security anchor bar, password-protect function
