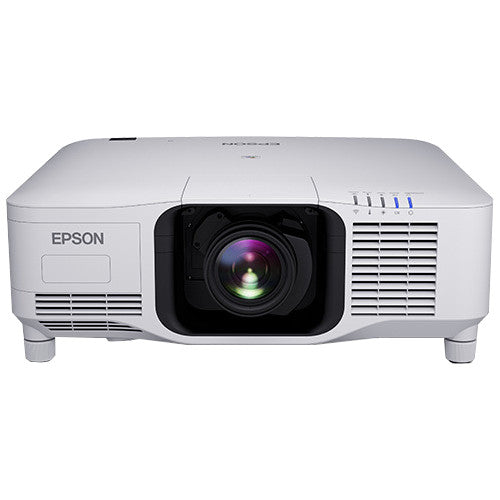

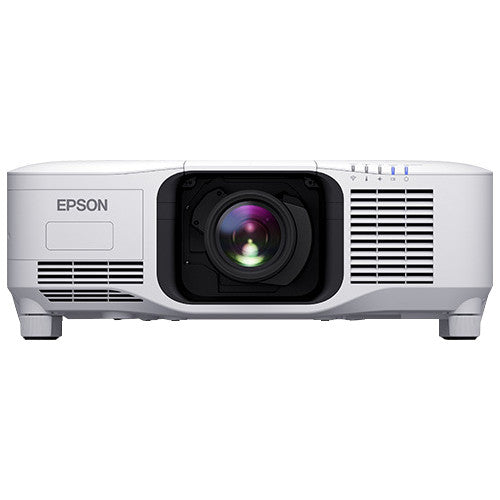

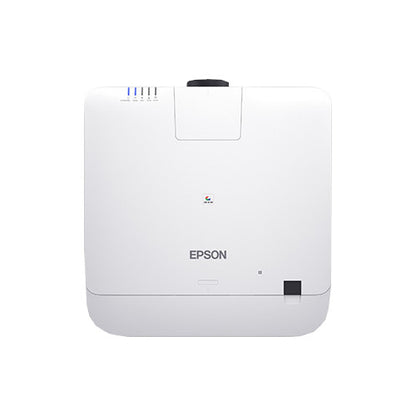

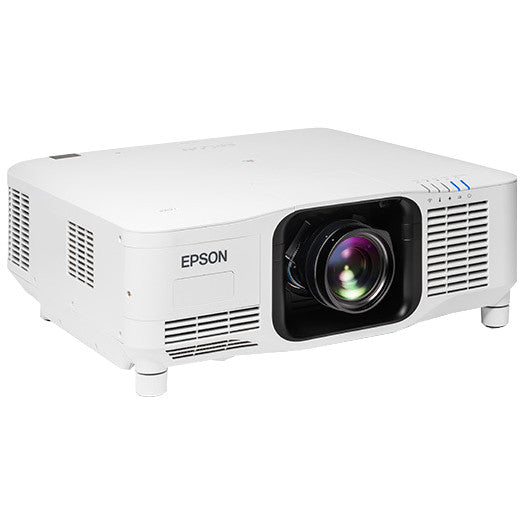

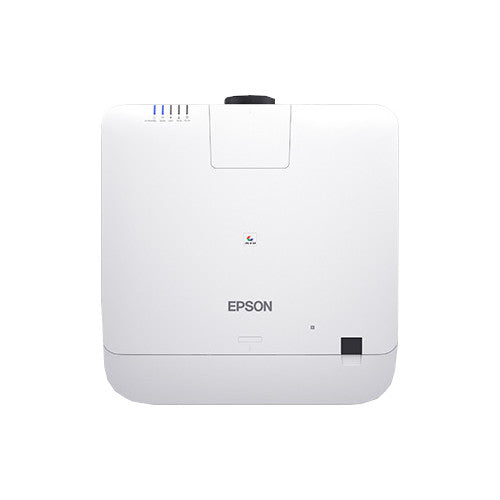

Epson EB-PU2116W 16000 Lumen 3LCD Laser Projector
Epson EB-PU2116W 16000 Lumen 3LCD Laser Projector
SoundPro Item: 140050 | Part Number: V11HA64920
Usually ships in 5-7 business days
- 16,000 lumens white/color brightness2
- WUXGA with 4K Enhancement1
- 20,000-hour virtually maintenance-free laser light source3
- 9 optional powered lenses (sold separately)
- Hermetically sealed optical unit; filterless cabinet
Experience the power and flexibility of the EB-PU2116W large venue laser projector. The compact EB-PU2116W produces ultra bright, 16,000-lumen images2 from a standard 120 V power source. And it features full HD WUXGA resolution with 4K Enhancement Technology1 for exceptional image quality.
The EB-PU2116W uses a 20,000-hour virtually maintenance-free laser light source3. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

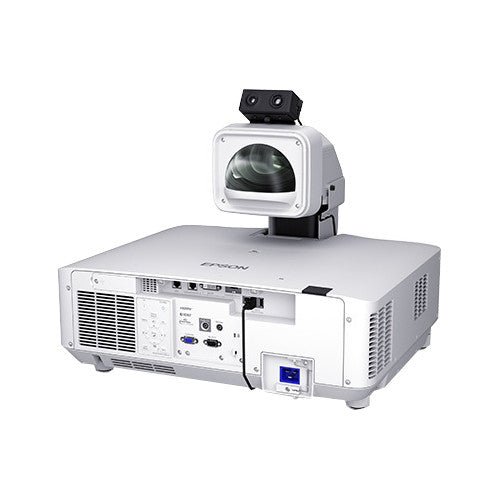

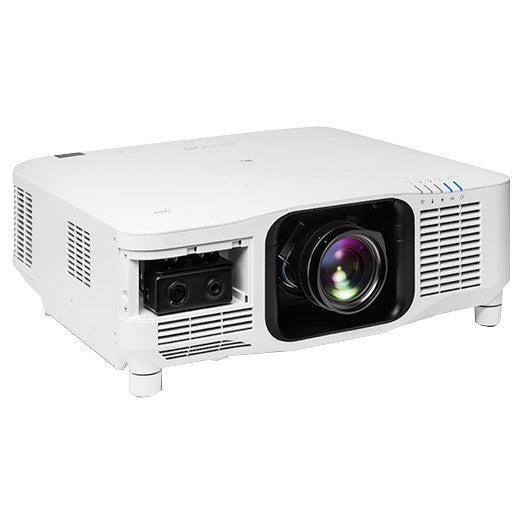

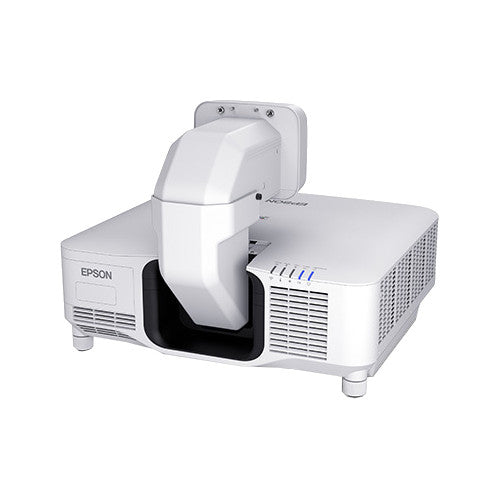

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation (sold separately) and includes a host of premium features for fast setup, such as built-in NFC functionality4, and the optional attachable PixAlignTM camera to streamline multi-projector setups.

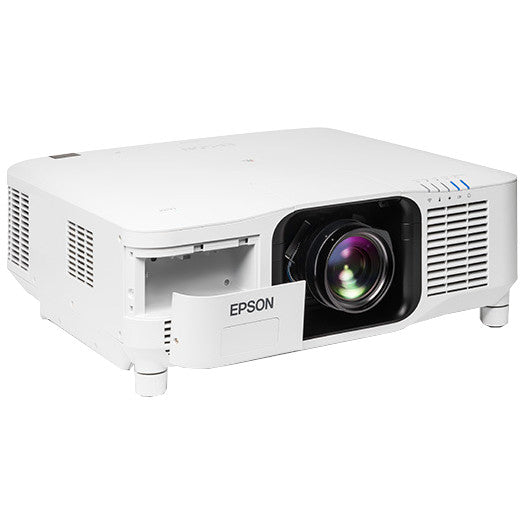

NOTE: Compartment shown is space for optional camera.
- Projection SystemHigh-aperture Epson 3-chip 3LCD technology
- Projection Method Front/rear/ceiling mount
- Driving Method Poly-Silicon TFT Active Matrix
- Pixel Number 2,304,000 dots (1920 x 1200) x 3
- Signal Input Maximum Display Resolution: 4096 x 2160 (resizing display); Display Resolution: 1920 x 1200 pixels
- Native Resolution WUXGA with 4K Enhancement2 (1920 x 1200 x 2)
- Resolution on Screen WUXGA with 4K Enhancement2 / 4.6 million pixels
- Aspect Ratio Supports 4:3, 16:10, 16:9*, 21:9 (With vertical image shift control within letterbox area)
- Pixel Arrangement Cross stripe
- Color Brightness1 Color Light Output: 16,000 lumens
- White Brightness1 White Light Output: 16,000 lumens
- Contrast Ratio 2,500,000:1 (Dynamic Contrast: On)
- Brightness Uniformity (Typical) 85%
- Color Reproduction Up to 1.07 billion colors
- Keystone Correction Vertical: ±45 degrees; Horizontal: ±30 degrees
- Illumination Technology Laser Diode
- Projection Lens (Standard)
- Visit Epson.com for information on optional lenses.
- Standard Lens ELPLM15 (sold separately)
- Type Powered shift/focus/zoom
- F-Number 2.0 – 2.1
- Focal Length 14.8 mm – 17.7 mm
- Zoom Ratio Optical Zoom: 1.0 – 1.6
- Throw Ratio Range 1.57 – 2.56
- Lens Shift Vertical: ±60%; Horizontal: ±18%
- Operating Temperature 32°F to 122°F (0°C to 50°C)
- Power Supply Voltage 100V – 240V AC ± 10%, 50 Hz – 60 Hz
- Power Consumption
- 1,118W (Normal/Custom)
- 791W (Quiet/Extended)
- 2.0W Standby (Network Standby)
- 0.4W Standby (Energy Saving)
- Fan Noise 38 dB (Normal Mode); 34 dB (ECO)
- IP Rating IP5X10
- Security Security cable hole, lens lock, Kensington® lock provision, wireless LAN unit lock
- Video I/O
- Input Signal Input Video Signal (HDMI®, DVI-D and HDBaseT® ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/4096 x 2160
- Auto Power On: Signal Detection on HDMI/Plug-In Detection (HDMI, VGA 15-pin)
- Sleep Mode: Yes (with timer)
- HDMI CEC Control Yes

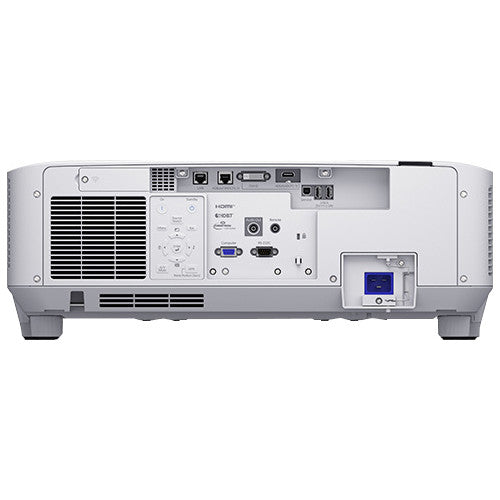

- Interfaces
- HDMI x 1 (HDCP 2.3)
- HDBaseT x 1
- DVI-D x 1
- VGA x 1
- Variable Audio Out: Mini Stereo x 1
- USB Type-B x 1
- USB Type-A x 2 (5 V, 2.0 A)
- USB Type-A for Wireless LAN (optional)
- Serial: RS-232c x 1 (9-pin)
- Remote Mini Stereo
- Network: RJ-45
- Dimensions (WxDxH) Including Feet 23.1x19.4x8.6"
- Weight 53.5 lbs (24.3 kg)
- Remote Control
- Features Power, Source Search Selection, Lens Shift/Zoom/
- Focus, Test Pattern Selection, A/V Mute, Freeze, User ID, Auto
- Aspect, Color Mode, Number, Page Up and Down, E-Zoom, Volume,
- Help, Menu, Enter, ESC and Pointer Functions
- Operating Angle
- Front: Right/Left: 60 to +60; Upper/Lower: +30 to 30 degrees
- Rear: Right/Left: 30 to +30; Upper/Lower: +40 to +10 degrees
- Operating Distance 98 ft
- Eco Features
- RoHS compliant
- End-of-life options available11
- Epson America, Inc. is a SmartWay® Transport Partner12
- Limited Warranty and Service
- Warranty Three-year limited or 20,000 hours, whichever comes first, in the U.S. and Canada
- Service Toll-free telephone support, Monday through Friday
- Epson ConnectionSM
- Pre-Sales Support (U.S. and Canada): 800-463-7766
- Website: www.epson.com
- Epson PreferredSM Plus Extended Service Plan
- 3-Year Upgrade to Next-Business-Day Whole Unit Exchange13 for Years 1-3 EPPPRJPU3
- 5-Years Next-Business-Day Whole Unit Exchange13 for Years 1-5 EPPPRJPUE5
- Other extended service plans may be available
