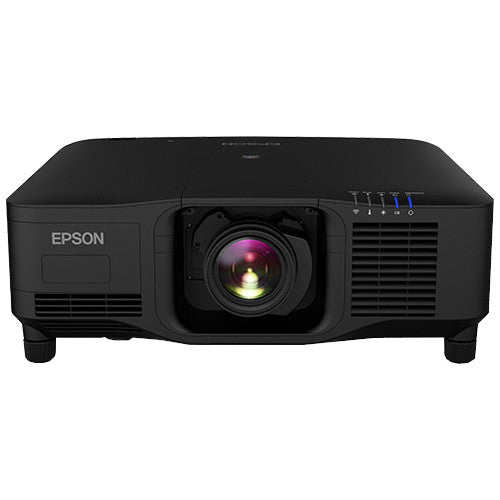

• Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projector

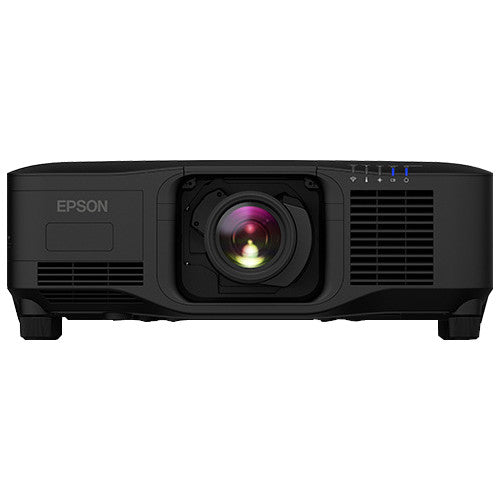

  • Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projector front

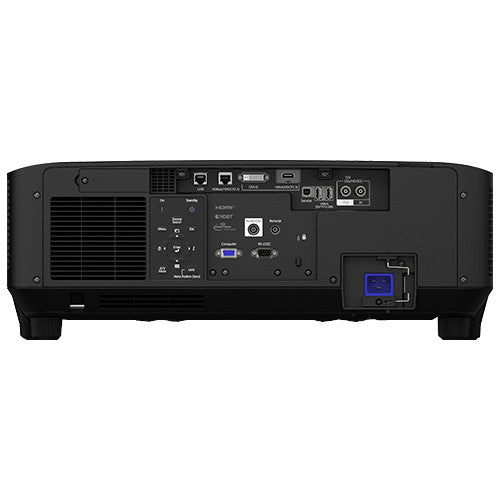

  • Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projector back

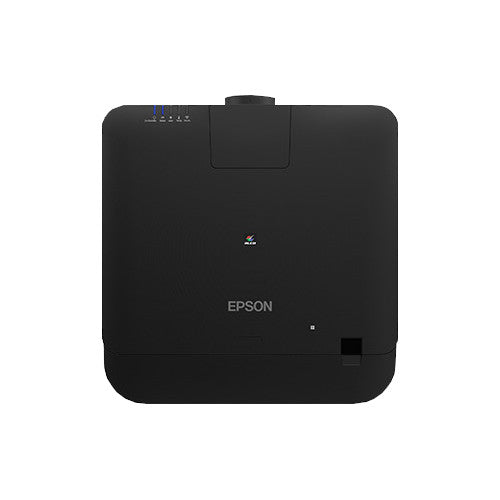

  • Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projector top

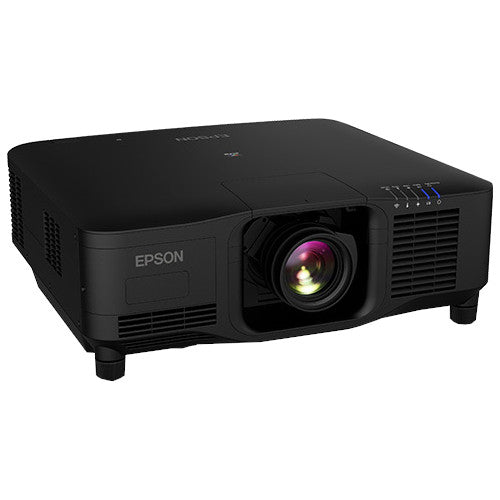

  • Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projector 1

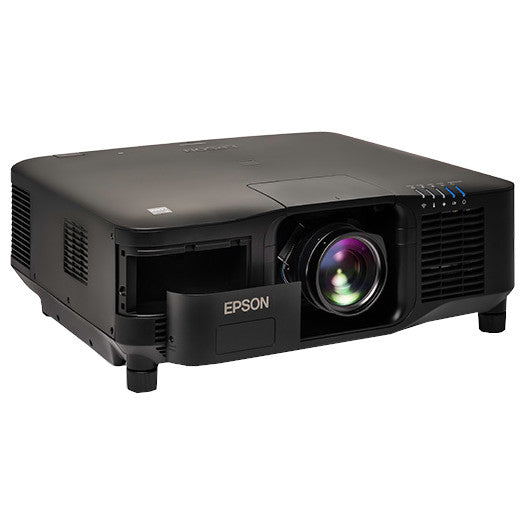

  • Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projector 2

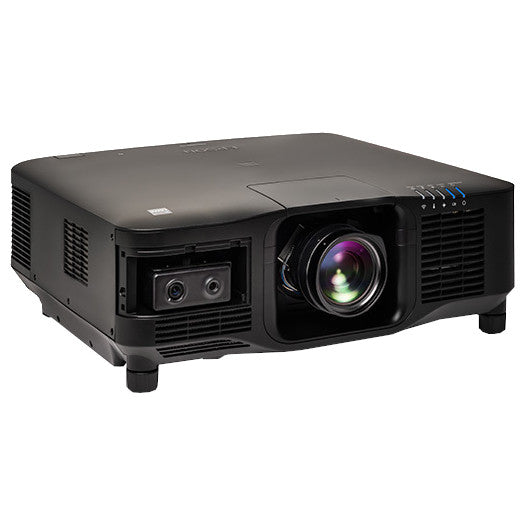

  • Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projector 3

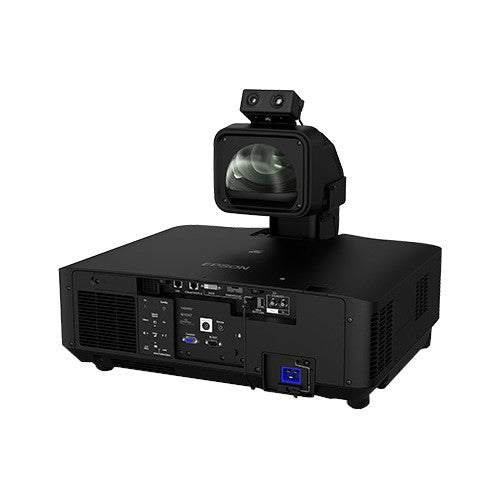

  • Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projector front with lens

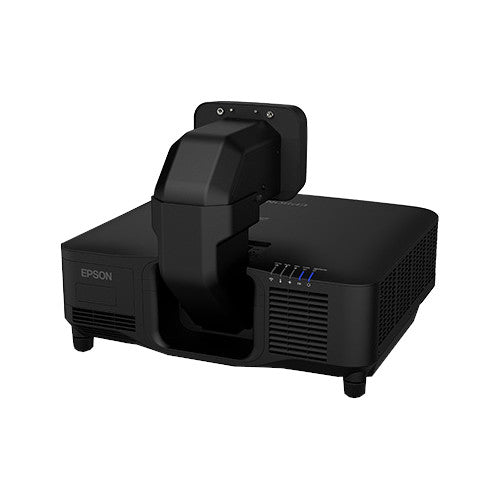

  • Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projector back with lens
1 9

Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projecto

Epson EB-PU2220B 20000 Lumen 3LCD Large Venue Laser Projecto

SoundPro Item: 135678 | Part Number: V11HA66820

$50,660.00
$72,279.00 $50,660.00
Your Price Sold out
MSRP: $72,279.00 | MAP: $50,660.00

Usually ships in 5-7 business days

  • 20,000 lumens of equal white and color brightness2
  • WUXGA with 4K Enhancement1
  • 20,000-hour virtually maintenance-free laser light source4
  • 9 optional powered lenses (sold separately)
  • Hermetically sealed; filterless cabinet
Log in or register for YOUR best price

Experience the power and flexibility of the EB-PU2220B large venue laser projector. This 20,000-lumen projector2 is incredibly compact, lightweight and energy efficient3. Featuring a sleek, black cabinet, this premium laser projector is optimized for live events with 3G-SDI input and output to accommodate daisy-chaining and long cable runs, plus a mechanical shutter to protect the projector during laser light shows.

The EB-PU2220B produces ultra bright, 20,000-lumen images2 and uses a 20,000-hour virtually maintenance-free laser light source4. It also features a hermetically sealed optical engine for high dust resistance and a filterless cabinet for low-maintenance operation.

The projector pairs with 9 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality5, and the optional attachable PixAlignTM camera to streamline multi-projector setups.

NOTE: Camera, lens, frame, and mount accessories sold separately.

View full details

Specifications

Dimensions
Focal Length
14.8 mm – 17.7 mm
Dimensions (WxDxH) Including Feet
23.1x19.4x8.6"
Electrical
Power Supply Voltage
220V – 240V AC ± 10%, 50/60 Hz
Power Consumption
1,301W (Normal/Custom), 899W (Quiet/Extended), 2.0W Standby (Network Standby), 0.4W Standby (Energy Saving)
Audio
Variable Audio Out
Mini Stereo x 1
Optics
Zoom Ratio
Optical Zoom: 1.0 – 1.6
Connectivity
Signal Input
Maximum Display Resolution: 4096 x 2160 (resizing display); Display Resolution: 1920 x 1200 pixels
Input Signal
Input Video Signal (HDMI®, DVI-D and HDBaseT® ports): 480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160 / 4096 x 2160
HDMI CEC Control
Yes
Network
RJ-45
Construction
Color Brightness1
Color Light Output: 20,000 lumens
Color Reproduction
Up to 1.07 billion colors
Projection Lens (Standard)
Visit Epson.com for information on optional lenses., F-Number 2.0 – 2.1
Standard Lens
ELPLM15 (sold separately)
Lens Shift
Vertical: ±60%; Horizontal: ±18%
Environmental
Operating Temperature
32°F to 122°F (0°C to 50°C)
IP Rating
IP5X10
Shipping
Weight
53.7 lbs (24.4 kg)
General
Projection System
High-aperture Epson 3-chip 3LCD technology
Projection Method
Front/rear/ceiling mount
Driving Method
Poly-Silicon TFT Active Matrix
Pixel Number
2,304,000 dots (1920 x 1200) x 3
Native Resolution
WUXGA with 4K Enhancement2 (1920 x 1200 x 2)
Resolution on Screen
WUXGA with 4K Enhancement2 / 4.6 million pixels
Aspect Ratio
Supports 4:3, 16:10, 16:9*, 21:9* (* With vertical image shift control within letterbox area)
Pixel Arrangement
Cross stripe
White Brightness1
White Light Output: 20,000 lumens
Contrast Ratio
2,500,000:1 (Dynamic Contrast: On)
Brightness Uniformity (Typical)
85%
Keystone Correction
Vertical: ±45 degrees; Horizontal: ±30 degrees
Illumination Technology
Laser Diode
Type
Powered shift/focus/zoom
Throw Ratio
Range 1.57 – 2.56
Fan Noise
45 dB (Normal Mode); 37 dB (ECO)
Security
Security cable hole, lens lock, Kensington® lock provision, wireless LAN unit lock
Auto Power
On Signal Detection on HDMI/Plug-In Detection (HDMI, VGA 15-pin)
Sleep Mode
Yes (with timer)
Interfaces
3G-SDI in/out, HDMI x 1 (HDCP 2.3), HDBaseT x 1, DVI-D x 1, VGA x 1, USB Type-B x 1, USB Type-A x 2 (5 V, 2.0 A), USB Type-A for Wireless LAN (Optional), Remote Mini Stereo
Serial
RS-232c x 1 (9-pin)
Remote Control
Features Power, Source Search Selection, Lens Shift/Zoom/, Focus, Test Pattern Selection, A/V Mute, Freeze, User ID, Auto, Aspect, Color Mode, Number, Page Up and Down, E-Zoom, Volume, Help, Menu, Enter, ESC and Pointer Functions
Operating Angle Front
Right/Left: 60 to +60; Upper/Lower: +30 to 30 degreesRear: Right/Left: 30 to +30; Upper/Lower: +40 to +10 degrees
Operating Distance
98 ft
Eco Features
RoHS compliant, End-of-life options available11, Epson America, Inc. is a SmartWay® Transport Partner12
Pre-Sales Support (U.S. and Canada)
800-463-7766
Website
www.epson.com
Epson PreferredSM Plus Extended Service Plan
3-Year Upgrade to Next-Business-Day Whole Unit Exchange13 for Years 1-3 EPPPRJPU3, 5-Years Next-Business-Day Whole Unit Exchange13 for Years 1-5 EPPPRJPUE5, Other extended service plans may be available
Warranty
Limited Warranty and Service
Warranty Three-year limited or 20,000 hours, whichever comes first, in the U.S. and Canada, Service Toll-free telephone support, Monday through Friday, Epson ConnectionSM
