- Projection System3LCD, 3-chip technology
- Projection MethodFront / rear / ceiling mount
- Driving MethodPoly-silicon TFT Active Matrix
- Pixel Number1,024,000 dots (1280 x 800) x 3
- Color Brightness - Color Light Output4000 lumens[1]
- White Brightness - White Light Output4000 lumens[1]
- Aspect Ratio16:10
- Resolution1280 x 800 (WXGA)
- Resize640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA60-3), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 900 (WXGA++), 1600 x 1200 (UXGA60)
- Lamp Type210 W UHE
- Lamp Life
- ECO mode: Up to 17,000 hours[4]
- Medium mode: Up to 10,000 hours[4]
- Normal mode: Up to 8,000 hours[4]
- Throw Ratio Range1.30 (Zoom:Wide), 1.56 (Zoom:Tele)
- Size - projected distance33" to 320" (0.91 to 9.07 m) (Zoom:Wide)
- Keystone Correction
- Vertical: ±30 degrees (Automatic)
- Horizontal: ±30 degrees (Slider)
- USB Plug 'n PlayProjector is compatible with PC and Mac® computers
- Contrast RatioUp to 16,000:1
- Color Processing10 bit
- Color ReproductionUp to 1.07 billion colors
- Power Supply Voltage100 – 240VAC ±10%, 50 / 60Hz AC
- Power Consumption
- ECO mode: 235 W
- Normal mode: 345 W
- Communication on: 2.0 W Standby
- Communication off: 0.3 W Standby
- Projection Lens
- Type: Manual focus
- F-number: 1.49 – 1.72
- Focal Length: 16.9 mm – 20.28 mm
- Zoom Ratio: 1.0 – 1.2
- Remote Control
- Features: A/V Mute, Freeze, Split, Aspect, Color Mode, Auto, MHL Menu, Volume
- Operating Distance:19.7' (6 m)
- Operating Angle
- Right / Left: ±30 degrees
- Upper / Lower: ±15 degrees
- Projector Dimensions
- Including feet (WxDxH):11.8x9.8x3.6"
- Excluding feet (WxDxH):11.6x10.2x3.4"
- Projector Details
- Display Performance
- NTSC: 480 lines
- PAL: 576 lines (Depends on observation of the multi-burst pattern)
- /ul>
- Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

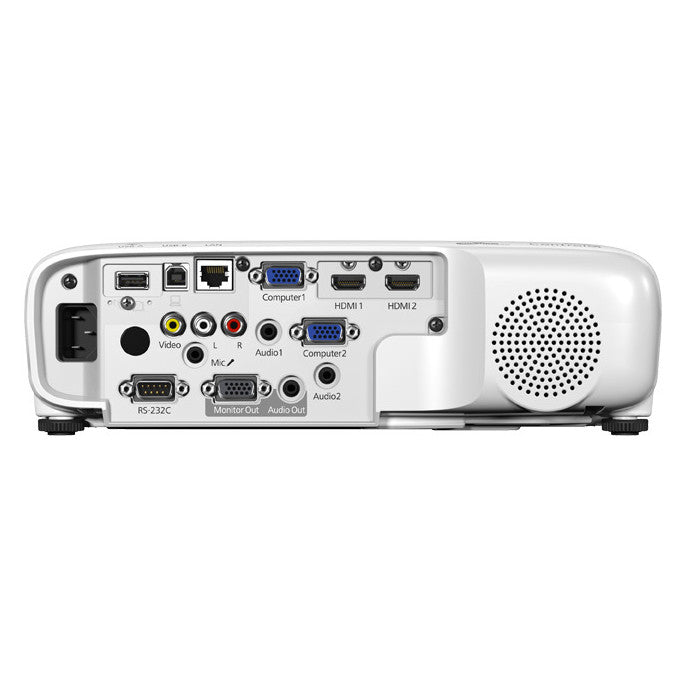

- Interfaces
- 1x USB-A
- 1x USB-B
- 1x LAN
- 2x HDMI
- 2x Computer/Component
- 1x Video
- 1x RS-232c
- 1x Stereo Mini-jack (Mic)
- 1x Monitor Out
- Audio 1 & 2
- Audio L & R
- 1x Audio Out
- Wireless LAN port: 802.11 b/g/n (optional – module sold separately)
- Speaker: 16 W (mono)
- Fan Noise
- ECO mode: 28 dB
- Normal mode: 37 dB
- Eco Features
- RoHS compliant
- Recyclable product7
- Epson America, Inc. is a SmartWaySM Transport Partner[8]
- Temperature41° to 95° F (5° to 35° C)
- Weight6.17 lbs (2.8 kg)
- Security
- Kensington®-style lock provision
- Padlock
- Security anchor bar
- Display Performance
