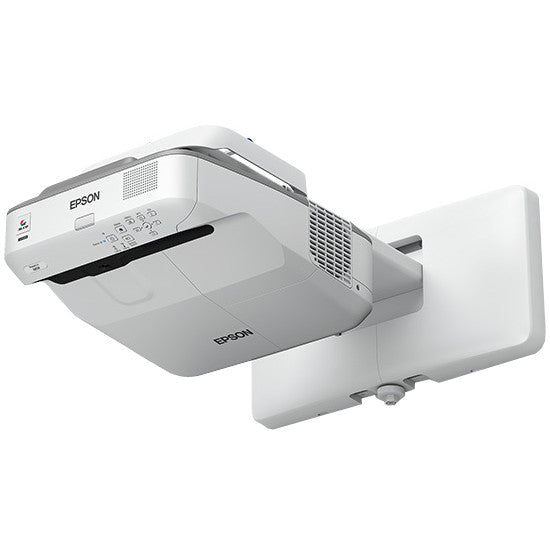

Epson PowerLite 685W WXGA 3LCD Presentation Display

Epson PowerLite 685W WXGA 3LCD Presentation Display

SoundPro Item: 50631 | Part Number: V11H744520

$1,460.00
$1,460.00 $1,460.00
Your Price Sold out
MSRP: $1,460.00 | MAP: $1,460.00

Usually ships in 5-7 business days

  • High Color Brightness, and reliable performance - 3LCD, 3-chip technology
  • Bright display - 3,500 lumens color/white brightness
  • Amazing, widescreen images - native WXGA resolution (1280 x 800) and 16:10 format
  • Long-life lamp - lasts up to 10,000 hours in ECO Mode
  • Ultra short-throw presentation display - get a 100" image from as little as 11" away with virtually no shadow interference
  • Simultaneously display and control multiple device screens - wirelessly share content from up to four devices, including Chromebooks, with Moderator software
  • Manage your display and send announcements remotely - easy network connectivity; software included
  • Wireless support - display Chromebook, iOS®, Android™, Mac® and PC screens
  • Versatile connectivity - 3x HDMI® supports multiple high-definition A/V devices, with MHL® support
  • Long-life lamp - lasts up to 10,000 hours in ECO Mode
  • Powerful sound to engage every student - built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode
Log in or register for YOUR best price

Take classroom collaboration to another level with the PowerLite 685W widescreen ultra short-throw presentation display. Designed for today's BYOD classroom, this WXGA performer displays 100" images from just 11" away for optimal visibility. Offering high Color Brightness, Epson® 3LCD projectors and displays ensure bright, vivid images. Delivering 3,500 lumens of color and white brightness, the 685W ensures stimulating presentations. It also features wireless functionality (module sold separately) and advanced connectivity, so teachers can share content from multiple devices, including Chromebooks - up to four at once with Moderator software. Plus, its lamp lasts up to 10,000 hours in ECO Mode.

View full details
  • Specifications Projector
    • Projection System: 3LCD, 3-chip technology
    • Projection Method: Front / rear / wall mount / table
    • Driving Method: Poly-silicon TFT Active Matrix
    • Pixel Number: 1,024,000 dots (1280 x 800) x 3
    • Color Brightness - Color Light Output: 3500 lumens1
    • White Brightness - White Light Output: 3500 lumens1
    • Aspect Ratio: 16:10
    • Resolution: 1280 x 800 (WXGA)
    • Resize: 640 x 480 (VGA); 800 x 600 (SVGA); 1024 x 768 (XGA); 1280 x 960 (SXGA2); 1280 x 1024 (SXGA3); 1366 x 768 (WXGA 60-2); 1440 x 900 (WXGA+); 1400 x 1050 (SXGA+); 1600 x 900 (WXGA++); 1600 x 1200 (UXGA)
    • Lamp Type: 250 W UHE
    • Lamp Life
      • ECO mode: Up to 10000 hours2
      • Normal mode: Up to 5000 hours2
    • Throw Ratio Range: 0.28 - 0.37
    • Size - projected distance: 60" – 100" (0.34 – 0.6 m)
    • Keystone Correction: Manual
      • Vertical: ±3 degrees
      • Horizontal: ±3 degrees
    • Contrast Ratio: Up to 14,000:1
    • Color Processing: 10 bit
    • Color Reproduction: Up to 1.07 billion colors
  • General
    • Temperature: 41° to 104° F (5° C to 40° C)
    • Weight: 12.6 lbs
    • Security
      • Kensington®-style lock provision
      • Padlock and security cable hole
      • Password protect function
    • Eco Features: RoHS compliant, Recyclable product8, Epson America, Inc. is a SmartWay® Transport Partner9
  • Power
    • Power Supply Voltage: 100 – 240V ±10%, 50 / 60Hz
    • Power Consumption
      • ECO mode: 324 W
      • Normal mode: 373 W
      • Communication on: 2.2 W standby
      • Communication off: 0.23 W standby
  • Projection Lens
    • Type: Digital zoom / Manual focus
    • F-number: 1.6
    • Focal Length: 3.7 mm
    • Zoom Ratio: Digital zoom 1.0 – 1.35
    • Connectivity Projector: Standard Connectivity - Projector is Mac compatible via USB, DVI to HDMI or VGA adapter (not included), DP to HDMI or VGA (not included)
  • Remote Control
    • Features: Source Search, HDMI/Video, LAN, Computer, USB, Power, Aspect, Color Mode, Volume, E-zoom, A/V Mute, Freeze, Menu, Page Up and Down, Home, Auto, Mouse Functions, User, Split Screen7
    • Operating Distance: Front / Rear: 19.7' (6 m)
  • Projector Dimensions (WxDxH)
    • Including feet: 14.5x15.8x7.4"
    • Excluding feet: 14.5x15.8x5.9"
  • Projector Details
    • Display Performance
      • NTSC: 480 lines
      • PAL: 576 lines
      • (Depends on observation of the multi burst pattern)
    • Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
    • Interfaces
        Wireless LAN Port 802.11(USB) b/g/n (Optional – module sold separately)
      • Microphone: 1x
      • RS-232c: 1x
      • Video: 1x
      • Audio in: 3x Mini Stereo
      • USB (Type B): 1x
      • USB (Type A Power): 1x
      • Audio-out: 1x
      • Monitor-out: 1x / Computer 2
      • Computer: 2x
      • Network: 1x RJ-45
      • 3x HDMI (1x MHL)
    • Speaker: x 1 (16W)
    • Fan Noise: 29 dB / 35 dB
