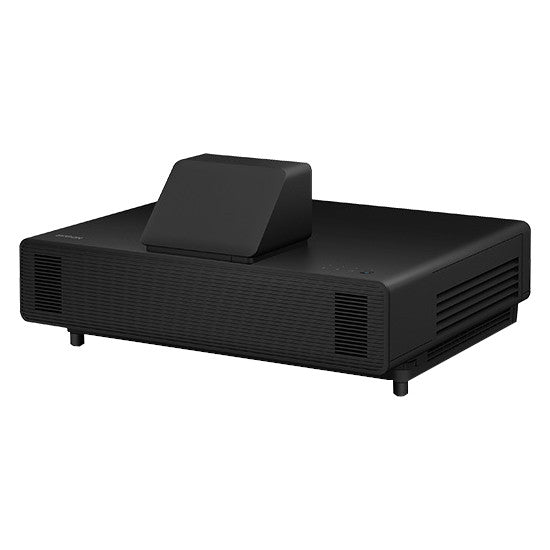

• Epson PowerLite 805F Full HD 1080p Ultra Short-throw Laser Projector

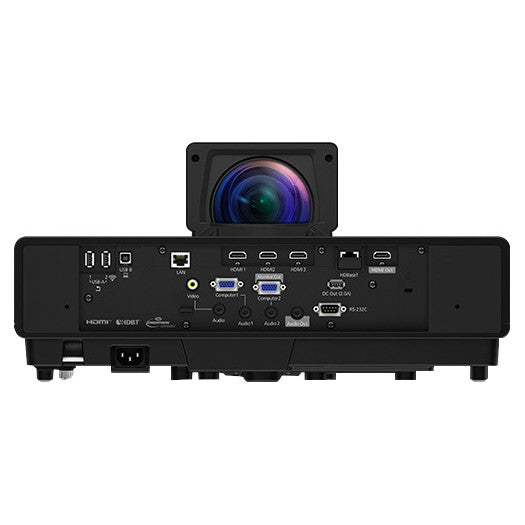

  • Epson PowerLite 805F Full HD 1080p Ultra Short-throw Laser Projector back
1 2

Epson PowerLite 805F Full HD 1080p Ultra Short-throw Laser Projector

Epson PowerLite 805F Full HD 1080p Ultra Short-throw Laser Projector

SoundPro Item: 141532 | Part Number: V11H923620

$2,825.00
$4,727.00 $2,825.00
Your Price Sold out
MSRP: $4,727.00 | MAP: $2,825.00

Usually ships in 5-7 business days

  • 5,000 lumens of color and white brightness1
  • Full HD 1080p resolution; project up to 130"
  • 20,000-hour laser light engine with no lamps2
  • HDMI connections, HDBaseT and optional 5GHz wireless connectivity3
  • Built-in edge blending and split screen5 features for easy, scalable projection
  • Content management software and creative content app for easy creation and management of content for digital signage
Log in or register for YOUR best price

Captivate your audience with vibrant, incredible signage displays using the PowerLite 805F ultra short-throw laser projector. Offering 5,000 lumens of brightness1 and Full HD 1080p technology, the PowerLite 805F transforms a variety of spaces with vibrant, true-to-life images up to 130" diagonal. Ideal for in-store displays, gallery walls, restaurant décor and more, this versatile ultra short-throw digital signage projector easily delivers sharp, colorful images, even in small spaces, and includes comprehensive content management software for customizing displays with unique creative effects. Plus, with a virtually maintenance-free, 20,000-hour optical laser light source engine with no lamps to replace2, projecting eye-catching signage has never been more convenient.

View full details
  • Projection System RGB liquid crystal shutter projection system
  • Driving Method Poly-silicon TFT Active Matrix
  • Native Resolution 1080p6 (1366 x 768 x 2)
  • Resolution on Screen 1080p6 (2.1 million pixels)
  • Pixel Number 1,049,000 pixels (1366 x 768) x 3 chips
  • Color Brightness1 Light Output: 5,000 lumens
  • White Brightness1 White Light Output: 5,000 lumens
  • Aspect Ratio Supports 4:3, 16:10, 16:9*, 16:6*, 21:9* (*With vertical image shift control within letterbox area)
  • Display Resolution 1080p (1366 x 768 x 2)
  • Light Source Laser Diode
  • Light Source Life2
    • Normal Mode: Up to 20,000 hours
    • Extended Mode: Up to 30,000 hours
  • Throw Ratio Range 0.27 (Zoom: Wide), 0.37 (Zoom: Tele)
  • Size (Projected Distance)
    • 65" – 130" [0.39 – 0.80 m] (Zoom: Wide) 16:9
    • 61" – 120" [0.40 – 0.80 m] (Zoom: Tele) 16:6
  • Keystone Correction Manual Vertical: ± 3 degrees; Horizontal: ± 3 degrees
  • Dynamic Contrast Ratio Over 2,500,000:1
  • Color Reproduction Up to 1.07 billion colors
  • Projection Lens
    • Type Digital zoom, Focus (Manual)
    • F-number 1.5
    • Focal Length 3.9mm
    • Zoom Ratio 1 – 1.35 (Digital zoom)
  • Software
    • In addition to compatibility with Epson’s standard suite of software, this product has a direct playback function via USB. Work with:
      • - Epson Projector Content Manager Software (Visit our support pages for the latest version)
      • - Epson Creative Projection Application
  • Operating Temperature 41° to – 113°F (0° to 45°C); (20 – 80% humidity, no condensation)
  • Power Supply Voltage 100 – 240 V AC ± 10%, 50/60 Hz
  • Auto Power On Signal Detection on HDMI / Plug-in Detection (HDMI, USB, VGA 15-pin, BNC)
  • Sleep Mode Yes (with timer)
  • Power Consumption
    • Normal Mode: 381W
    • Quiet Mode: 270W
    • Standby Mode: 2.0W
    • Energy-saving Mode: 0.5W
  • Fan Noise
    • Normal Mode: 36 dB
    • Quiet Mode: 27 dB
    • Security: Enterprise Level Security Encryption
    • Country of Origin: China
  • Interfaces
    • 3x HDMI (with CEC Control)
    • 1x HDBaseT
    • 1x Analog D-sub 15 Pin (input)
    • 1x RCA Composite
    • 1x HDMI (out)
    • 1x Analog D-sub 15 Pin video (input/monitor out)
    • 3x Stereo Mini In
    • 1x Stereo Mini Out
    • 1x RS232C Control Port
    • 2x USB Connector Type A (data/wireless)
    • 1x USB Connector Type A (for Power Only 5V 2A)
    • 1x USB Connector Type B for USB Display
    • 1x Wired LAN RJ-45
    • 1x USB-B Type (Firmware update)
    • Wireless support with optional LAN Adapter:
    • IEEE 802.11b (2.4GHz): 11 Mbps*
    • IEEE 802.11g (2.4GHz): 54 Mbps*
    • IEEE 802.11n (2.4GHz): 72.2 Mbps*
    • IEEE 802.11a (5GHz): 54 Mbps*
    • IEEE 802.11n (5GHz): 150.0 Mbps*
    • IEEE 802.11ac (5GHz): 325 Mbps*
  • Dimensions (WxDxH)
    • Projector: 18.1x17.7x9"
    • Weight: 20.7 lbs (without cable cover) 21.4 lbs (with cable cover)
  • Remote Control
    • Features A/V Mute, Focus, Zoom, Volume, HDMI, LAN, Keystone, Pattern, Menu, Effect, USB, Computer, USB Viewer, Color Mode, Default, ID, Aspect, Freeze, Home Operating Angle
    • Front: Right/left: -30 to +30 degrees, Upper/lower: 0 to +60 degrees
    • Rear: Right/left: -55 to +55 degrees, Upper/lower: +75 to +15 degrees
    • Operating Distance 20 ft (6 m)
  • Eco Features
    • RoHS compliant
    • Recyclable product7
    • Epson America, Inc. is a SmartWay® Transport Partner8
  • Support
    • Epson ConnectionSM
      • Pre-sales support: U.S. and Canada (800) 463-7766
      • Internet website: www.epson.com
    • Service Programs
      • 3-year projector limited warranty or 20,000 hours, whichever comes first.
      • Epson Road Service program. Dedicated toll-free support (U.S. and Canada only)
  • Notes
    • [1] Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
    • [2] No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
    • [3] Internet connection required for download. Data usage fee may apply.
    • [4] Optional accessory must be purchased.
    • [5] Split Screen feature requires remote control. Consult your user manual for input combinations.
    • [6] Pixel shifting technology achieves Full HD resolution on screen.
    • [7] For convenient and reasonable recycling options, visit www.epson.com/recycle
    • [8] SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
