- Projection SystemRGB liquid crystal shutter projection system
- Driving Method Poly-silicon TFT active matrix
- Native Resolution 1080p with 4K Enhancement1 (1920 x 1080 x 2)
- Resolution on Screen 1080p with 4K Enhancement1 (4.1 million pixels)
- Pixel Number 2,073,600 pixels (1920 x 1080) x 3 chips
- Color Brightness2 Color light output: 5,000 lumens
- White Brightness2 White light output: 5,000 lumens
- Aspect Ratio Supports 16:9, 16:10, 4:3,21:9*, 16:6* (with vertical image shift control within letterbox area); * 21:9 and 16:6 images can be adjusted vertically within the letterbox. When using digital zoom, images can be adjusted vertically and horizontally within the letterbox area.
- Throw Ratio Range 0.16 (Zoom: Wide), 0.22 (Zoom: Tele)
- Image Size (Projected Distance)
- 80" to 160" (Zoom Wide: 10.9" – 22.7") at 16:9
- 74" to 148" (Zoom Wide: 10.9" – 22.7") at 16:10
- 66" to 130" (Zoom Wide: 10.9" – 22.7") at 4:3
- 76" to 151" (Zoom Wide: 10.9" – 22.7") at 21:9
- 75" to 148" (Zoom Wide: 10.9" – 22.7") at 16:6
- Light Source Laser diode
- Light Source Life3
- Normal Mode: Up to 20,000 hours
- Extended Mode: Up to 30,000 hours
- Dynamic Contrast Ratio Over 2,500,000:1
- Color Reproduction Up to 1.07 billion colors
- Manual Keystone Correction/Foot Adjuster
- Vertical: ±3.6 degrees
- Horizontal: ±0.9 degrees
- Display Modes
- Dynamic
- Presentation
- Cinema
- Natural
- BlackBoard
- DICOM SIM
- Multi-Projection
- Face Brightness
- Projection Lens
- Type: Digital zoom, Focus (manual)
- F-Number: 1.8
- Focal Length: 2.3 mm
- Zoom Ratio 1 – 1.35 (digital zoom)
- Software
- Epson Setting Assistant app (Google Play™ Store/Apple® App Store®)
- Epson iProjection™5
- Epson Projector Management (desktop/connected)
- In addition to compatibility with Epson’s standard suite of software, this product has a direct playback function via USB.
- Works with:
- - Epson Projector Content Management (visit our support pages for the latest version)
- - Epson Creative Projection app for iOS®

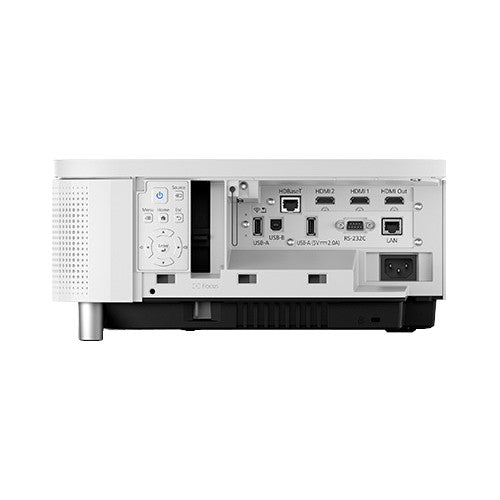

- Interfaces
- 2x HDMI (HDCP 2.3)
- 1x HDBaseT
- 1x HDMI (out)
- 1x RS-232c Control Port
- 1x USB Connector Type A (data/wireless)
- 1x USB Connector Type A (power 5 A, 2 V and data)
- 1x USB Connector Type B (firmware update)
- 1x Wired LAN RJ-45
- Built-In Wireless Support:
- Infrastructure, Firmware Update, USB Display and Access Point – Wi-Fi Direct®:
- IEEE 802.11b (2.4 GHz): 11 Mbps* (infrastructure only)
- IEEE 802.11g (2.4 GHz): 54 Mbps*
- IEEE 802.11n (2.4 GHz): 72.2 Mbps*
- IEEE 802.11a (5 GHz): 54 Mbps*
- IEEE 802.11n (5 GHz): 150.0 Mbps*
- IEEE 802.11ac (5 GHz): 325 Mbps*
- Wi-Fi CERTIFIED™ Miracast R2
- *Maximum speed and range are achievable when used with same enhanced mode technology. Actual features and performance may vary depending on your computer system, the environment and other factors.
- Compatible Network Control/ManagementMicrosoft Teams® Front Row, PJ-Link Class-2, Art-Net, Crestron® Connected, Extron® IP Link, Extron XTP, AMX® Device Discovery
- Speakers 2x 8W
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature14°F to 140°F (-10°C to 60°C); (20% – 80% humidity, no condensation)
- Power Supply Voltage 100V – 240V AC ± 10%, 50 Hz/60 Hz
- Auto Power On Signal Detection on HDMI/Plug-In Detection
- Power Consumption
- Normal Mode: 398W
- Quiet Mode: 296W
- Standby Mode: 2.0W
- Energy-Saving Mode: 0.4W
- Fan Noise
- Normal Mode: 35 dB
- Quiet Mode: 26 dB
- Security: Enterprise-level security encryption
- Country of Origin: Philippines
- Dimensions
- Projector: 27.4x13.5x5.7"
- Weight: 27.6 lbs
- Remote Control
- Features: Power, A/V Mute, Split, E-Zoom, Volume, HDMI, LAN, ESC, Num, Auto, Enter, Directional Arrows, Menu, Effect, Source Search, USB, Computer, Color Mode, Default, ID, Aspect, Freeze, User, Home
- Operating Angle
- Front: Right/Left: -30 to +30 degrees, Upper/Lower: 0 to +60 degrees
- Rear: Right/Left: -55 to +55 degrees, Upper/Lower: +75 to +15 degrees
- Operating Distance: 20 ft (6 m)
- Eco Features
- RoHS compliant
- End-of-life options available6
- Epson America, Inc. is a SmartWay® Transport Partner
- Security
- Infrastructure:
- OPEN
- WPA2/WPA3-PSK
- WPA2/WPA3-EAP
- Supported EAP: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
- Access Point (Wi-Fi Direct): WPA2-PSK(AES)
- Infrastructure:
- Limited Warranty and Service
- Warranty Three-year limited in the U.S. and Canada
- Service Whole unit exchange, usually Next-Business-Day8, Toll-free telephone support, Monday through Friday
- Epson ConnectionSM
- Pre-Sales Support (U.S. and Canada): 800-463-7766
- Website: www.epson.com
- Epson PreferredSM Plus Extended Service Plan8
- 1-Year Next-Business-Day Whole Unit Exchange9 EPPEXPF1
- 2-Year Next-Business-Day Whole Unit Exchange9
- EPPEXPF2 (available for up to a total of 5 years of continuous coverage)
