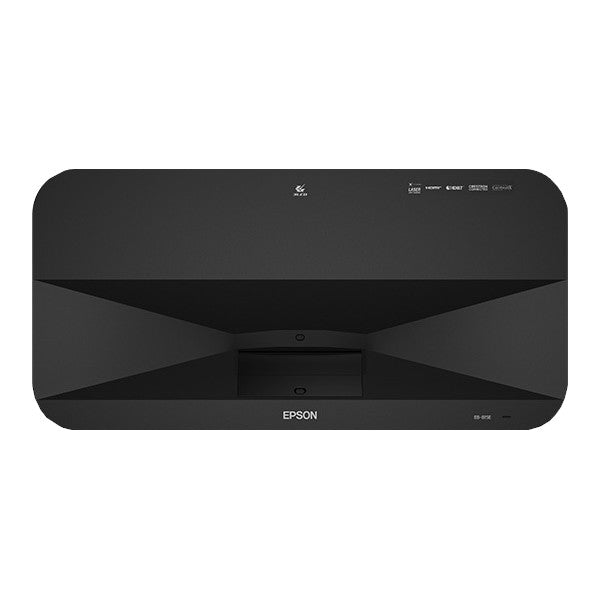

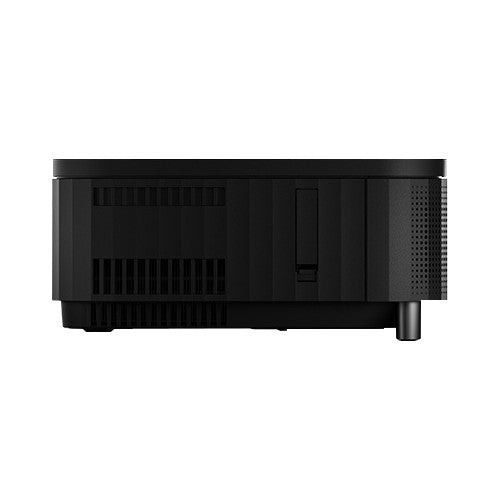

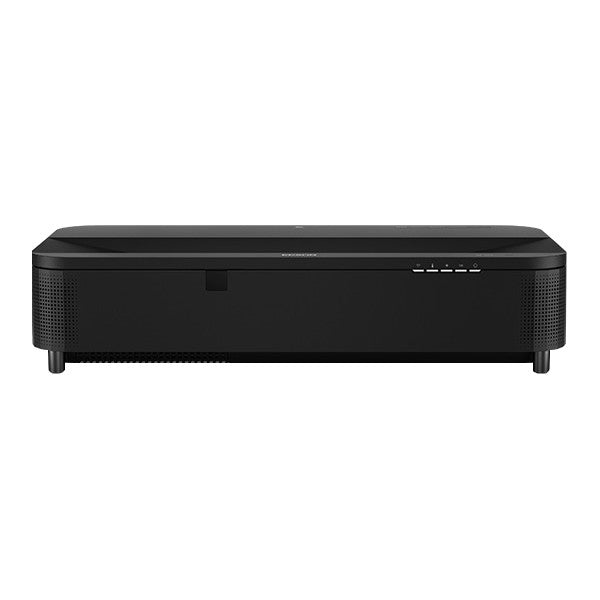

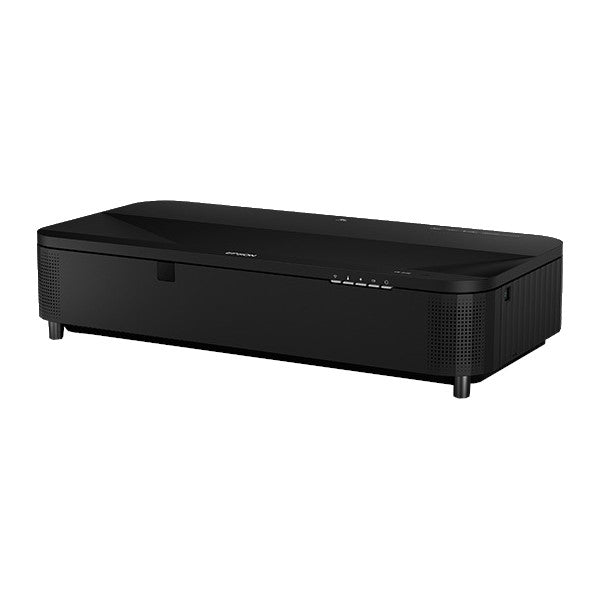

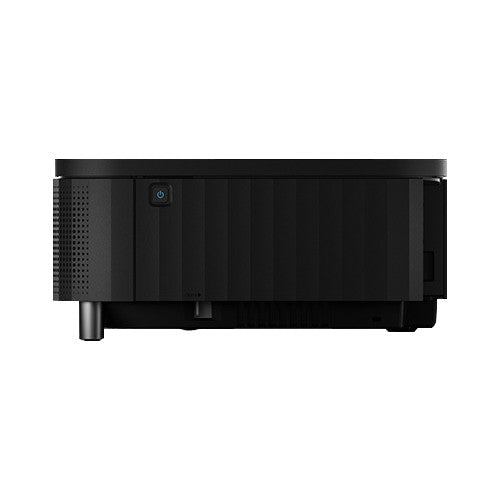

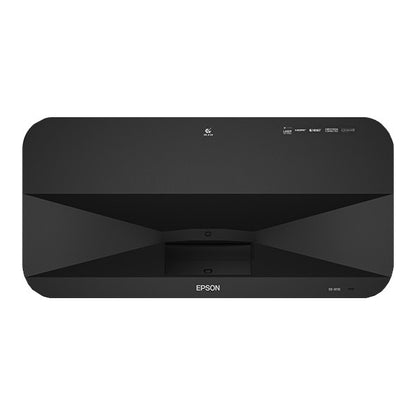

Epson PowerLite 815E 3LCD Extreme Short Throw Lamp-Free Laser Projector
Epson PowerLite 815E 3LCD Extreme Short Throw Lamp-Free Laser Projector
SoundPro Item: 141703 | Part Number: V11HA99120
Usually ships in 5-7 business days
- 3-chip 3LCD technology; 5,000 lumens of color/white brightness2
- 1080p with 4K Enhancement1 for stunning image clarity
- Up to 160" diagonal image; 4.5x larger than a 75" flat panel
- Easy integration with native 16:9 aspect ratio; supports 16:10, 21:9, 16:6
The all-black PowerLite® 815E extreme short throw lamp-free laser projector with innovative 4K Enhancement Technology1 offers a modern, flexible display solution for corporate meeting rooms and collaborative hybrid workspaces, as well as captivating digital signage. With 5,000 lumens of color and white brightness2 and innovative 3-chip 3LCD technology, it provides a sharp, amazingly bright, virtually glare-free display. The projector’s stylish, space-saving design delivers immersive, larger-than-life images up to 160''—4.5 times larger than a 75" flat panel—merely inches away from the wall for bold, bright obstruction-free viewing.
In addition to a standard 16:9 display, the PowerLite 815E goes beyond the limits of ordinary flat panels by supporting an ultra-wide 21:9 and 16:6 display to ensure an equitable hybrid meeting room experience where participants can easily see and be seen. Enjoy a newly designed, state-of-the-art cooling system and a laser light source of up to 30,000 hours that’s virtually maintenance-free3, eliminating the need to ever purchase or replace a lamp again!
Packed with a wide range of connectivity options—including HDBaseT®, HDMI®, USB, RS-232 and Miracast®, as well as built-in wired/wireless networking—this compact and smartly designed projector is ready to display in minutes from areas such as credenzas and tabletops, delivering exceptionally large images in space-constrained settings. Additionally, you can take advantage of advanced edge-blending functionality and versatile 360-degree placement capabilities and create eye-catching, immersive displays in storefronts, museums or any environment where the 815E’s subtle, black design can seamlessly blend in. Installation is effortless thanks to innovative digital zoom and image shifting features, for easy image alignment, and the Epson Setting Assistant app4 that automatically smoothes edges and corners in seconds from the convenience of a smart device.
- Projection SystemRGB liquid crystal shutter projection system
- Driving Method Poly-silicon TFT active matrix
- Native Resolution 1080p with 4K Enhancement1 (1920 x 1080 x 2)
- Resolution on Screen 1080p with 4K Enhancement1 (4.1 million pixels)
- Pixel Number2,073,600 pixels (1920 x 1080) x 3 chips
- Color Brightness2 Color light output: 5,000 lumens
- White Brightness2 White light output: 5,000 lumens
- Aspect Ratio Supports 16:9, 16:10, 4:3, 21:9*, 16:6* (with vertical image shift control within letterbox area); * 21:9 and 16:6 images can be adjusted vertically within the letterbox area. When using digital zoom, images can be adjusted vertically and horizontally within the letterbox area.
- Throw Ratio Range 0.16 (Zoom: Wide), 0.22 (Zoom: Tele)
- Image Size (Projected Distance)
- 80" to 160" (Zoom Wide: 10.9" – 22.7") at 16:9
- 74" to 148" (Zoom Wide: 10.9" – 22.7") at 16:10
- 66" to 130" (Zoom Wide: 10.9" – 22.7") at 4:3
- 76" to 151" (Zoom Wide: 10.9" – 22.7") at 21:9
- 75" to 148" (Zoom Wide: 10.9" – 22.7") at 16:6
- Light Source Laser diode
- Light Source Life3
- Normal Mode: Up to 20,000 hours
- Extended Mode: Up to 30,000 hours
- Dynamic Contrast Ratio Over 2,500,000:1
- Color ReproductionUp to 1.07 billion colors
- Manual Keystone Correction/Foot Adjuster
- Vertical: ±3.6 degrees
- Horizontal: ±0.9 degrees
- Display Modes
- Dynamic
- Presentation
- Cinema
- Natural
- BlackBoard
- DICOM SIM
- Multi-Projection
- Face Brightness
- Projection Lens
- Type Digital zoom, Focus (manual)
- F-Number 1.8
- Focal Length 2.3 mm
- Zoom Ratio 1 – 1.35 (digital zoom)
- Software
- Epson Setting Assistant app (Google Play™ Store/Apple® App Store®)
- Epson iProjection™5
- Epson Projector Management (desktop/connected)
- In addition to compatibility with Epson’s standard suite of software, this product has a direct playback function via USB.
- Works with:
- - Epson Projector Content Management (visit our support pages for the latest version)
- - Epson Creative Projection app for iOS®

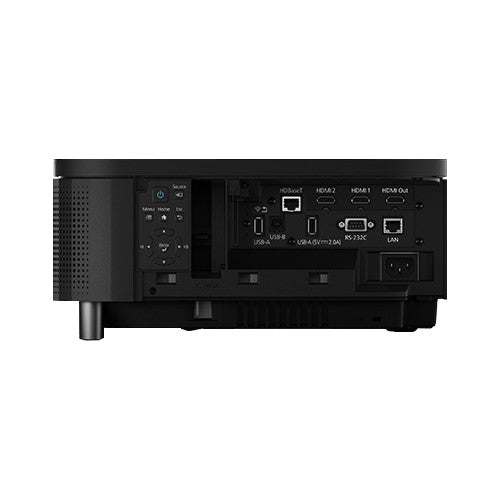

- Interfaces
- 2x HDMI (HDCP 2.3)
- 1x HDBaseT
- 1x HDMI (out)
- 1x RS-232c Control Port
- 1x USB Connector Type A (data/wireless)
- 1x USB Connector Type A (power 5 A, 2 V and data)
- 1x USB Connector Type B (firmware update)
- 1x Wired LAN RJ-45
- Built-In Wireless Support:
- Infrastructure, Firmware Update, USB Display and Access Point – Wi-Fi Direct®:
- IEEE 802.11b (2.4 GHz): 11 Mbps* (infrastructure only)
- IEEE 802.11g (2.4 GHz): 54 Mbps*
- IEEE 802.11n (2.4 GHz): 72.2 Mbps*
- IEEE 802.11a (5 GHz): 54 Mbps*
- IEEE 802.11n (5 GHz): 150.0 Mbps*
- IEEE 802.11ac (5 GHz): 325 Mbps*
- Wi-Fi CERTIFIED™ Miracast R2
- * Maximum speed and range are achievable when used with same enhanced mode technology. Actual features and performance may vary depending on your computer system, the environment and other factors.
- Compatible Network Control/ManagementMicrosoft Teams® Front Row, PJ-Link Class-2, Art-Net, Crestron® Connected, Extron® IP Link, Extron XTP, AMX® Device Discovery
- Speakers 2x 8W
- Operating Temperature 32°F to 104°F (0°C to 40°C)
- Storage Temperature14°F to 140°F (-10°C to 60°C); (20% – 80% humidity, no condensation)
- Power Supply Voltage 100V – 240V AC ± 10%, 50 Hz/60 Hz
- Auto Power On Signal Detection on HDMI/Plug-In Detection
- Power Consumption
- Normal Mode: 398W
- Quiet Mode: 296W
- Standby Mode: 2.0W
- Energy-Saving Mode: 0.4W
- Fan Noise
- Normal Mode: 35 dB
- Quiet Mode: 26 dB
- SecurityEnterprise-level security encryption
- Country of OriginPhilippines
- Dimensions (WxDxH) 27.4x13.5x5.7"
- Weight27.6 lbs
- Remote Control
- Features: Power, A/V Mute, Split, E-Zoom, Volume, HDMI, LAN, ESC, Num, Auto, Enter, Directional Arrows, Menu, Effect, Source Search, USB, Computer, Color Mode, Default, ID, Aspect, Freeze, User, Home
- Operating Angle
- Front: Right/Left: -30 to +30 degrees, Upper/Lower: 0 to +60 degrees
- Rear: Right/Left: -55 to +55 degrees, Upper/Lower: +75 to +15 degrees
- Operating Distance: 20 ft (6 m)
- Security
- Infrastructure:
- OPEN
- WPA2/WPA3-PSK
- WPA2/WPA3-EAP
- Supported EAP: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
- Access Point (Wi-Fi Direct): WPA2-PSK(AES)
- Infrastructure:
- Eco Features
- RoHS compliant
- End-of-life options available6
- Epson America, Inc. is a SmartWay® Transport Partner7
- Limited Warranty and Service
- Warranty: Three-year limited in the U.S. and Canada
- Service: Whole unit exchange, usually Next-Business-Day8, Toll-free telephone support, Monday through Friday
- Epson ConnectionSM
- Pre-Sales Support (U.S. and Canada): 800-463-7766
- Website: www.epson.com
- Epson PreferredSM Plus Extended Service Plan8
- 1-Year Next-Business-Day Whole Unit Exchange9 EPPEXPF1
- 2-Year Next-Business-Day Whole Unit Exchange9
- EPPEXPF2
- (available for up to a total of 5 years of continuous coverage)
- Notes
- [1] 4K Enhancement Technology shifts each pixel to surpass Full HD resolution on screen.
- [2] Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
- [3] No required maintenance for the light source for up to 30,000 hours (Extended Mode) or 20,000 hours (Normal Mode). Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
- [4] Internet connection required for download. Data usage fee may apply.
- [5] For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats. See www.epson.com for details.
- [6] For convenient and reasonable recycling options, visit www.epson.com/recycle
- [7] SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
- [8] Product comes with a 3-year limited warranty with the option to purchase Extended Service Plans up to a total of 5 years of continuous coverage. Extended Service Plan can be purchased at any time that you are covered under an Epson limited warranty or Epson Extended Service Plan. See individual service plan for details.
- [9] Expedited shipping not available in all areas. Orders must be placed and processed by 1 p.m. Pacific Time, Monday through Friday, excluding holidays.
