- Projection System 3LCD, 3-chip technology
- Projection Method Front / rear / ceiling mount
- Driving Method Poly-silicon TFT Active Matrix
- Pixel Number 1,024,000 dots (1280 x 800) x 3
- Color Brightness - Color Light Output 4200 lumens1
- White Brightness - White Light Output 4200 lumens1
- Aspect Ratio 16:10
- Resolution 1280 x 800 (WXGA)
- Resize640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA60-3), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 900 (WXGA++), 1600 x 1200 (UXGA60)
- Lamp Type230 W UHE
- Lamp Life
- ECO mode: Up to 17,000 hours4
- Medium mode: Up to 10,000 hours4
- Normal mode: Up to 6,500 hours4
- Throw Ratio Range1.38 (Zoom:Wide), 2.24 (Zoom:Tele)
- Size - projected distance29" – 280" (0.85 – 8.4 m) (Zoom:Wide); 29" – 280" (1.40 – 13.71 m) (Zoom:Tele)
- Keystone Correction
- Vertical: ±30 degrees (Automatic)
- Horizontal: ±30 degrees (Slider)
- USB Plug 'n PlayProjector is compatible with PC and Mac® computers
- Contrast RatioUp to 16,000:1
- Color Processing10 bit
- Color ReproductionUp to 1.07 billion colors
- Temperature41° to 95° F (5° to 35° C)
- Weight6.83 lb (3.1 kg)
- Security
- Kensington®-style lock provision
- Padlock
- Security anchor bar
- Power Supply Voltage100 – 240VAC ±10%, 50 / 60Hz AC
- Power Consumption
- ECO mode: 235 W
- Normal mode: 354 W
- Communication on: 2.0 W Standby
- Communication off: 0.3 W Standby
- Projection Lens
- Type:Manual focus
- F-number:1.51 – 1.99
- Focal Length:18.2 – 29.2 mm
- Zoom Ratio:1.0 – 1.6
- Remote Control
- Features: A/V Mute, Freeze, Split, Aspect, Color Mode, Auto, MHL Menu, Volume
- Operating Distance:19.7' (6 m)
- Operating Angle
- Right / Left: ±30 degrees
- Upper / Lower: ±15 degrees
- Projector Dimensions
- Including feet (WxDxH):12.1x11.5x4.1”
- Excluding feet (WxDxH):12.1x11.1x3.5"
- Projector Details
- Display Performance
- NTSC: 480 lines
- PAL: 576 lines
- (Depends on observation of the multi-burst pattern)
- Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

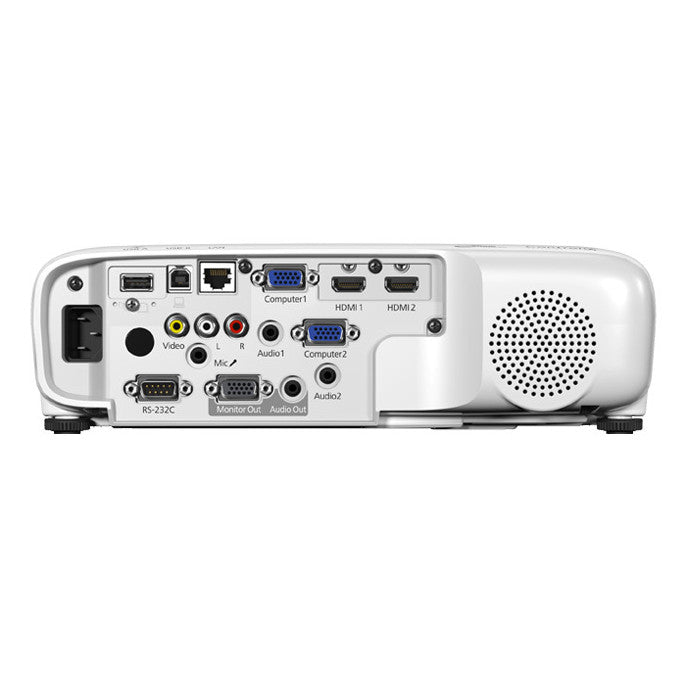

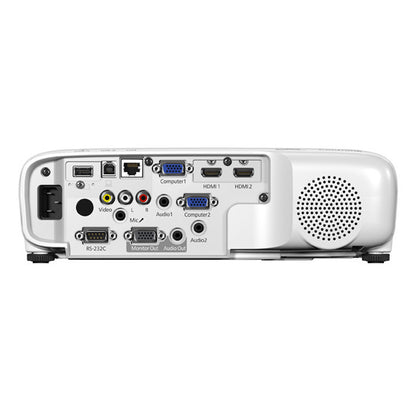

- Interfaces
- 1x USB-A
- 1x USB-B
- 1x LAN
- 2x HDMI
- 2x Computer/Component
- 1x Video
- 1x RS-232c
- 1x Stereo Mini-jack (Mic)
- 1x Monitor Out
- Audio 1 & 2
- Audio L & R
- 1x Audio Out
- Wireless LAN port: 802.11 b/g/n (optional – module sold separately)
- Speaker:16 W (mono)
- Fan Noise
- ECO mode: 28 dB
- Normal mode: 37 dB
- Eco Features
- RoHS compliant
- Recyclable product7
- Epson America, Inc. is a SmartWaySM Transport Partner8
- Display Performance
