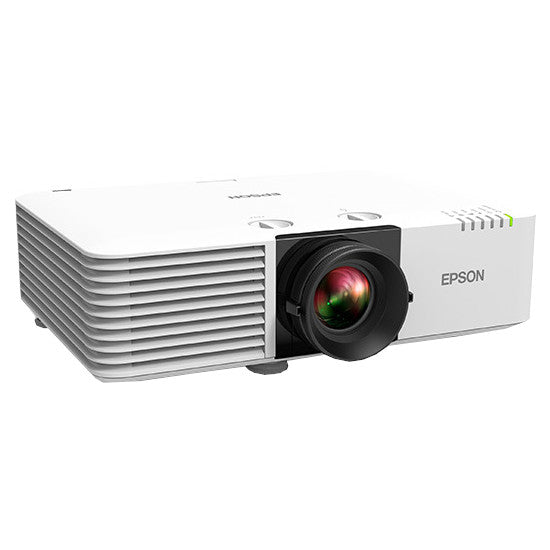

• Epson PowerLite L530U Full HD WUXGA Long-throw Laser Projector

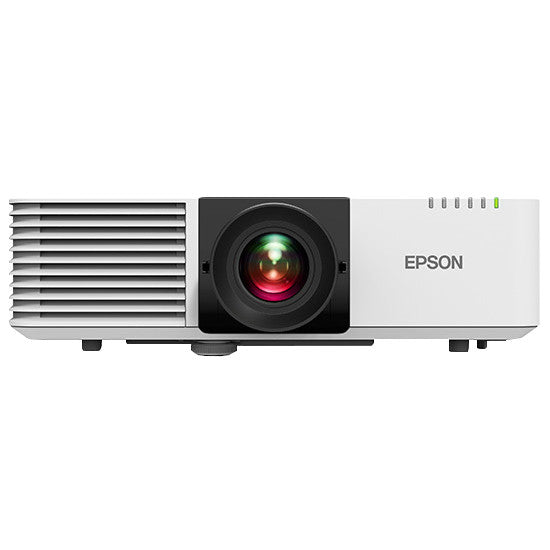

  • Epson PowerLite L530U Full HD WUXGA Long-throw Laser Projector front

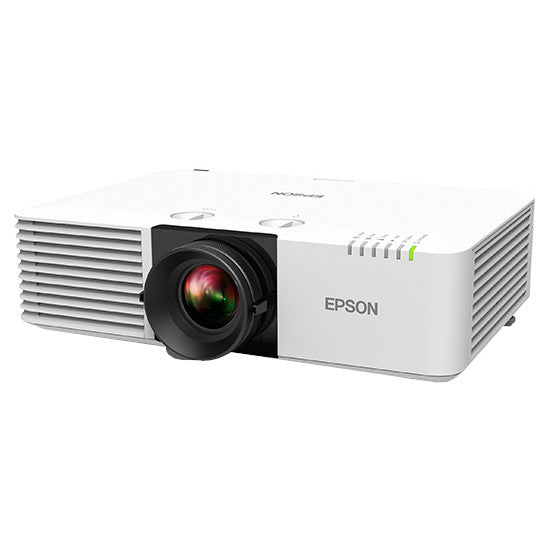

  • Epson PowerLite L530U Full HD WUXGA Long-throw Laser Projector left

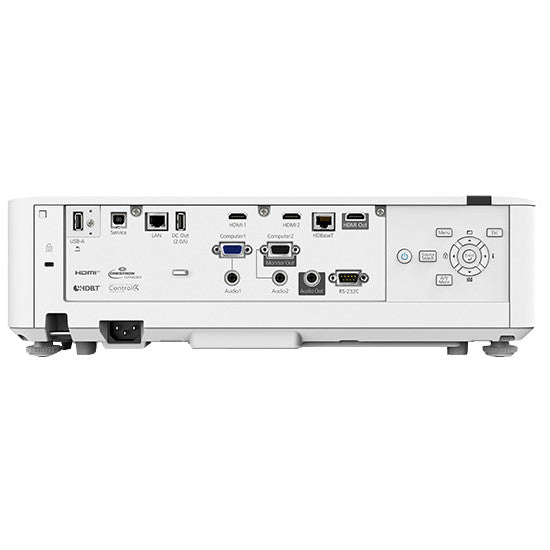

  • Epson PowerLite L530U Full HD WUXGA Long-throw Laser Projector back

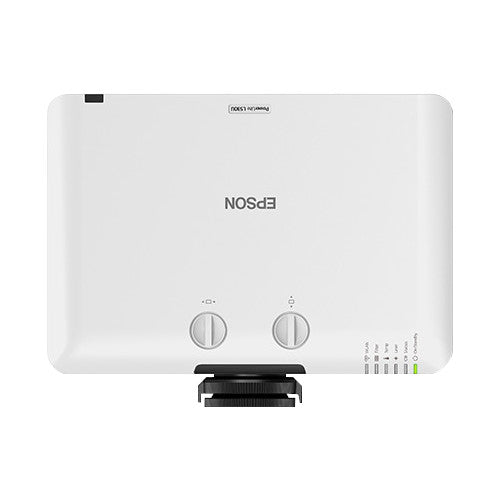

  • Epson PowerLite L530U Full HD WUXGA Long-throw Laser Projector top

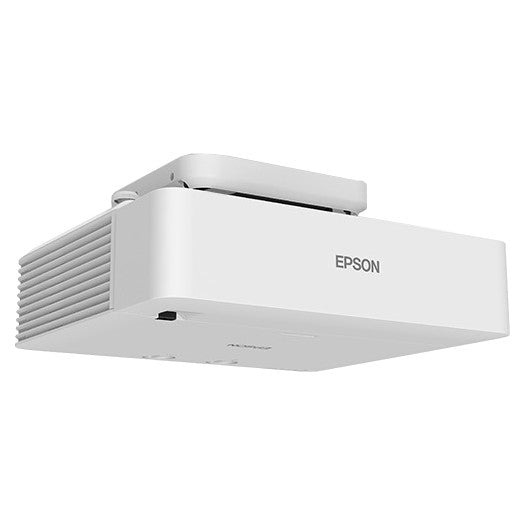

  • Epson PowerLite L530U Full HD WUXGA Long-throw Laser Projector mounted 1

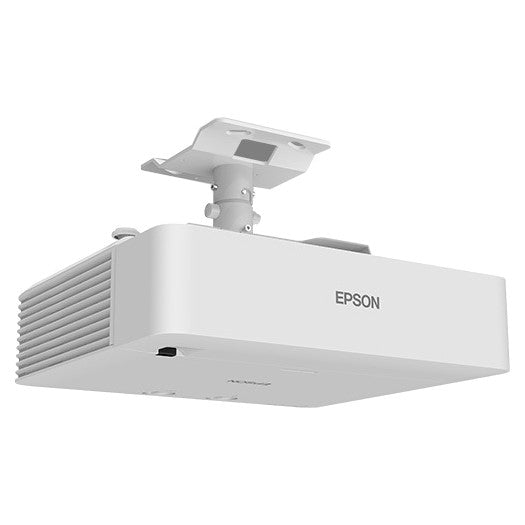

  • Epson PowerLite L530U Full HD WUXGA Long-throw Laser Projector mounted 2
1 7

Epson PowerLite L530U Full HD WUXGA Long-throw Laser Projector

Epson PowerLite L530U Full HD WUXGA Long-throw Laser Projector

SoundPro Item: 119655 | Part Number: V11HA27020

$2,943.00
$5,548.00 $2,943.00
Your Price Sold out
MSRP: $5,548.00 | MAP: $2,943.00

Usually ships in 5-7 business days

  • 3-chip 3LCD image quality
  • Up to 5,200 lumens
  • Up to 2,500,000:1 dynamic contrast ratio displays remarkable sharpness and detail
  • Full HD WUXGA support, accepts 4K signal
  • 1920 x 1200 resolution
  • Breakthrough laser light source
  • Display from 50-500" diagonal (16:10) or ultra wide (16:6)
  • Built-in tools simplify installation
  • Horizontal and vertical lens shift
  • 1.6x optical zoom, e-zoom
  • Geometric tools include horizontal and vertical keystone, edge blending, arc correction, Quick Corner, and more
  • Variety of connectivity options
  • Can connect with Miracast
Log in or register for YOUR best price

Share bright, easy-to-read displays for meetings, lectures and more with the PowerLite L530U long-throw laser projector. Offering an incredible 5,200 lumens of brightness, the PowerLite L530U enhances spaces with vibrant, true-to-life, Full HD WUXGA images. Ideal for business, education and beyond, this versatile projector displays up to 500" and provides an array of features for engaging, impactful experiences, including integrated wireless networking and Miracast® for easy sharing from laptops and smart devices. A convenient, easy-to-use solution, the PowerLite L530U features a virtually maintenance-free 20,000-hour laser light source3, plus built-in tools, lens shift and advanced software for easy, streamlined installation.

View full details

Specifications

Dimensions
LCD Size
0.67-inch (C2fine)
Dimensions (WxDxH)
Excluding Feet 17.32x11.97x4.8", Including Feet 17.32x12.59x5.35", Weight 17 lbs
Electrical
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz AC
Power Consumption
301 W (Normal Mode) 232 W (Quiet and Extended) 2.0 W Standby (Communication on) 0.3 W Standby (Communication off)
Audio
Audio in
Mini Stereo x 2
Variable Audio Out
Mini Stereo x 1
Speaker(s)
10 W (mono)
Connectivity
Wireless Specifications (Optional)
Module sold separately., Frequency Type (Modulations) 802.11b/g/n (2.4GHz)
Construction
Color Brightness[1]
Color Light Output: 5,200 lumens
Color Reproduction
Up to 1.07 billion colors Size (projected distance) 50" – 500"
Projection Lens (Standard)
Type Optical Zoom (Manual)/Focus (Manual), F-number 1.5 – 1.7, Focal Length 20.0 mm – 31.8 mm, Zoom Ratio Optical zoom 1 – 1.6x, Throw Ratio Range 1.35 – 2.20, Lens Cover Lens cap (without string)
Environmental
Operating Temperature
32 ° to 113 °F (0 ° to 45 °C)
General
Projection System
RGB liquid crystal shutter projection system
Projection Method
Front/rear/ceiling mount
Driving Method
Poly-silicon TFT Active Matrix
Pixel Number
2,304,000 dots (1920 x 1200) x 3 Native Resolution 1920 x 1200 (WUXGA)
Resize
640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Aspect Ratio Supports
16:10
Pixel Arrangement
Cross stripe
White Brightness[1]
White Light Output: 5,200 lumens
Contrast Ratio
2,500,000:1
Brightness Uniformity (typical)
86%
Projected Distance
80" screen 2.33 – 3.78 m
Keystone Correction
Vertical: ±30 degrees; horizontal: ±30 degrees
Illumination Technology
Laser Diode
Light Source Life[2]
Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
Security Type Quick Mode
OPEN, WPA2-PSK
Advanced Mode
WPA/WPA2-PSK, WPA/WPA2-EAP
Interfaces
HDMI x 2, VGA x 2, HDBaseT x 1, USB connector Type-B x 1, USB connector Type-A x 1, Wired LAN RJ-45 x 1, Wireless LAN - Optional Accessory
Monitor Out
Mini D-Sub 15 pin x 1
Serial
RS-232c x 1
Effective Scanning Frequency Range (Analog)
Pixel Clock 13.5 MHz – 162 MHz (up to UXGA 60 Hz), Horizontal 15 kHz – 92 kHz Vertical 50 Hz – 85 Hz
Effective Scanning Frequency Range (Digital)
Pixel Clock 13.5 MHz to 297 MHz, Horizontal 15 kHz to 135 kHz, Vertical 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
Remote Control
Features Power, source search selection, test pattern selection, A/V mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions Operating Angle Front Right/Left ±60 degrees; Upper/Lower: +30 to -20 degrees, Operating Distance 26 ft
Operating Angle Rear Right/Left ±30 Degrees; Upper/Lower
+50 to +10 degrees
Eco Features
RoHS compliant, Recyclable product [4], Epson America, Inc. is a SmartWay® Transport Partner [5]
Support Epson Connection
SM Pre-sales support U.S. and Canada 800-463-7766 Internet website www.epson.com, Service Programs The projector has a limited warranty of 3 years. Epson Road Service program with free Next-Business-Day replacement [6], PrivateLine® dedicated toll-free support (U.S. and Canada only)
Fan Noise
31 dB (Normal Mode); max. 23 dB (ECO Mode)
Security
Security cable hole, Kensington lock provision
A/V Mute
Yes
Screen Mirroring
Optional
Split Screen
Yes
Content Playback
Yes
Quick Corner
Yes
Arc Correction
Yes
Edge Blending
Yes
Screen Sharing
Yes
