- Projection System3LCD, 3-chip technology
- Projection Method Front/rear/ceiling mount
- Driving Method Poly-silicon TFT Active Matrix
- Pixel Number 1,024,000 dots (1280 x 800) x 3
- Color Brightness2 Color Light Output: 3,800 lumens
- White Brightness2 White Light Output: 3,800 lumens
- Aspect Ratio 16:10
- Native Resolution 1280 x 800 (WXGA)
- Resize 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA60-3), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1680 x 900 (WXGA++), 1600 x 1200 (UXGA60)
- Lamp Type 210 W UHE
- Lamp Life3
- ECO Mode: Up to 17,000 hours
- Medium Mode: Up to 10,000 hours
- Normal Mode: Up to 8,000 hours
- Throw Ratio Range 1.30 (Zoom:Wide), 1.56 (Zoom:Tele)
- Size (Projected Distance) 33" to 320" (0.91 to 9.07 m) (Zoom:Wide)
- Keystone Correction
- Vertical: ± 30 degrees (Automatic)
- Horizontal: ± 30 degrees (Slider)
- USB Plug ’n Play Projector is compatible with PC and Mac computers
- Contrast Ratio Up to 16,000:1
- Color Reproduction Up to 1.07 billion colors
- Display Performance NTSC: 480 lines, PAL: 576 lines (Depends on observation of the multi-burst pattern)
- Input Signal NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/ SECAM
- Speaker 5W (mono)
- Operating Temperature 41° to 95°F (5° to 35°C)
- Power Supply Voltage 100 – 240V AC ±10%, 50/60 Hz
- Power Consumption
- ECO Mode: 235W
- Medium Mode: 303W
- Normal Mode: 345W
- Standby (Communication On): 2.0W
- Standby (Communication Off): 0.3W
- Fan Noise
- ECO Mode: 28 dB
- Normal Mode: 37 dB
- Security Kensington-style lock provision, padlock, and security anchor bar
- Color Reproduction Up to 1.07 billion colors
- Projection Lens
- Type: Manual focus
- F-number: 1.49 – 1.72
- Focal Length: 16.9 – 20.28
- Zoom Ratio: Optical zoom 1.0 – 1.2

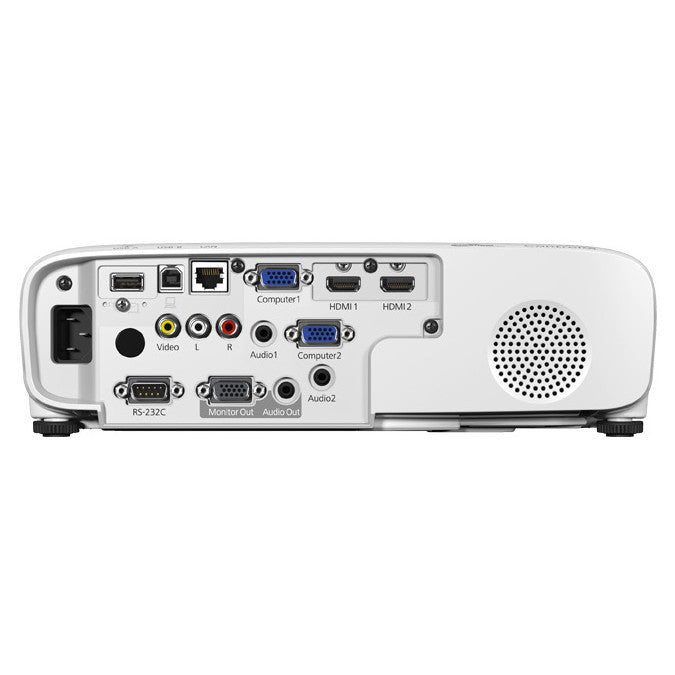

- Interfaces
- 1x USB-A
- 1x USB-B
- 1x LAN
- 2x HDMI
- 2x Computer/Component
- 1x Video
- 1x RS-232c
- 1x Monitor Out
- Audio 1 & 2
- Audio R & L
- 1x Audio Out
- Wireless LAN Port: 802.11b/g/n/a (optional – module sold separately)
- Dimensions (WxDxH)
- Including Feet: 11.8x9.8x3.6"
- Excluding Feet: 11.8x9.8x3.4"
- Weight: 5.95 lbs (2.7 kg)
- Remote Control
- Features A/V Mute, Split, Aspect, Color Mode, Auto, Volume
- Operating Angle
- Right/left: ± 30 degrees
- Upper/lower: ± 15 degrees
- Operating Distance 19.7' (6 m)
- Eco Features
- RoHS compliant
- Recyclable product7
- Epson America, Inc. is a SmartWay® Transport Partner8
- Support
- Epson ConnectionSM
- Pre-sales support (U.S. and Canada): 800-463-7766
- Internet website: www.epson.com
- Service Programs
- 2-year projector limited warranty, Epson
- Road Service program, PrivateLine® dedicated toll-free support and 90-day lamp limited warranty
- Epson ConnectionSM
