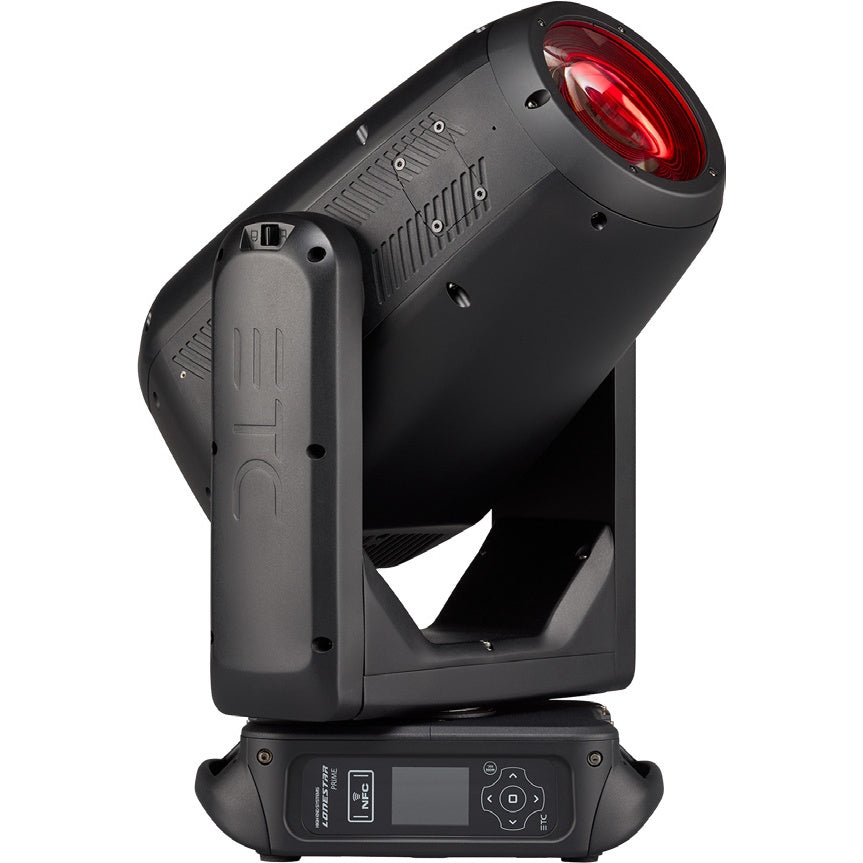

ETC 2550A1250-F Lonestar Prime 17,000 Lumen IP54 Moving Spot

ETC 2550A1250-F Lonestar Prime 17,000 Lumen IP54 Moving Spot

SoundPro Item: 206849 | Part Number: 2550A1250-F

$9,995.00
$9,995.00 $9,995.00
Your Price Sold out
MSRP: $9,995.00 | MAP: $9,995.00

Usually ships in 5-7 business days

  • Extra Bright Color Boost White LED Engine Delivers 48 Lumens Per Watt At Native 80 CRI
  • Dual Flag CMY Color Mixing With Dedicated CTO Wheel Enables Precise Temperature Control
  • Full Curtain Four Plane Framing System Provides Total Beam Shaping Authority

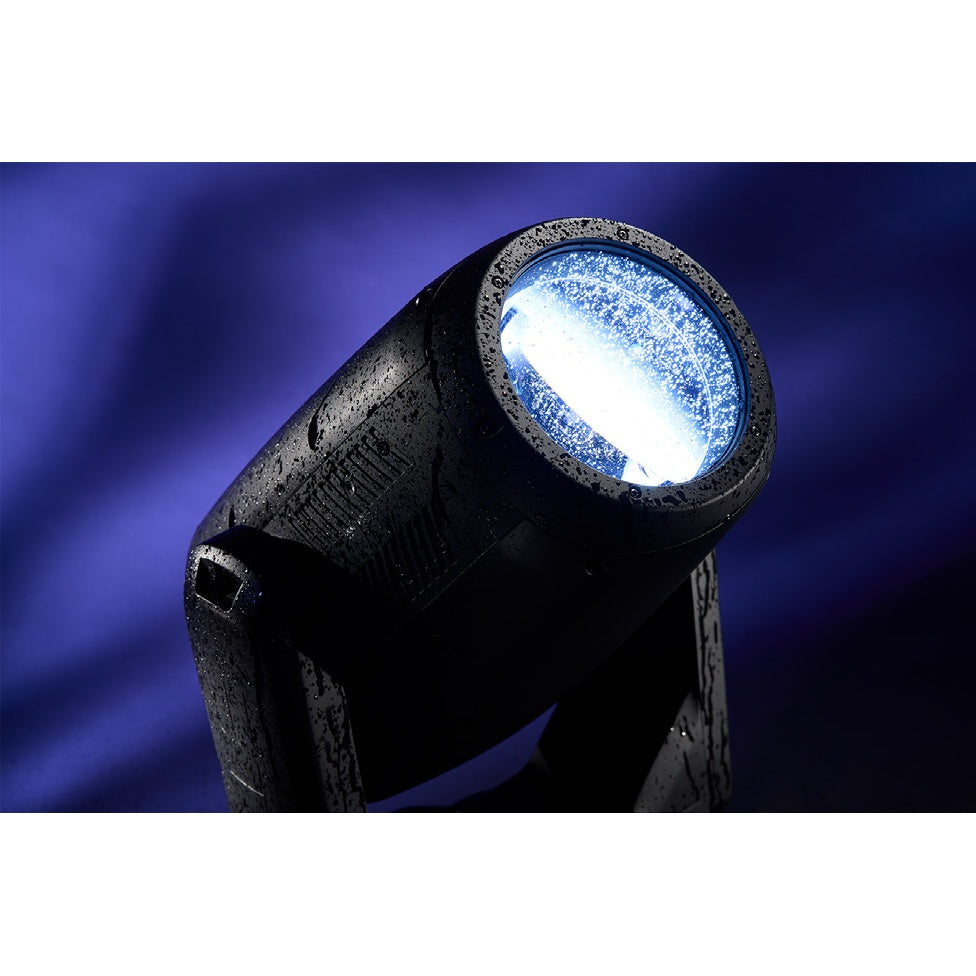

  • IP54 Rating Supports Temporary Outdoor Installation Without Performance Compromise
  • Patented Ethernet To DMX Data Conversion Simplifies System Integration
  • Variable Diffusion With No Zoom Or Focus Interference Maintains Optical Integrity
  • Dual Prism Simultaneous Insertion Creates Complex Beam And Projection Effects
Log in or register for YOUR best price

Designed for rental companies and venues requiring true outdoor capability without sacrificing theatrical performance, this fixture delivers professional framing and color control in an IP54-rated housing. The 350W Extra Bright Color Boost LED engine produces over 17,000 lumens with an extremely wide 3.8° to 55° zoom range, while the dual flag CMY system with dedicated CTO wheel ensures accurate color rendering across temperature ranges down to 2700K. The 13-lens optical system supports simultaneous dual prism insertion, rotating and fixed gobo wheels, and a 16-blade iris for tight beam sculpting.

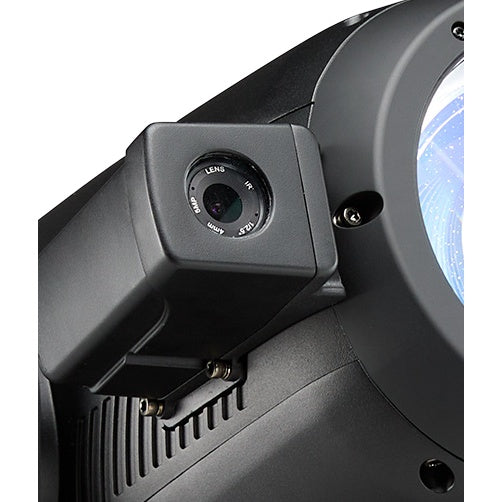

Built for the demands of touring and temporary outdoor installations, the fixture combines a full four-plane curtain framing system with two variable diffusion levels that maintain focus and zoom integrity. Art-Net and sACN Ethernet control with passive power-off pass-through simplifies system integration, while the patented data conversion system enables reliable Ethernet-to-DMX operation. Studio fan mode reduces noise to 35.8 dBA for broadcast and theater applications, and the optional RigPOV camera kit provides NDI livestream feeds from the fixture perspective for remote focus and programming.

Downloads

View full details

Specifications

Certifications
IP Rating
IP54
cETLus Listed
Yes
UL Certified
UL 1573
CSA Certified
CSA C22.2 No. 166
CE Compliant
Yes
UKCA Compliant
Yes
RoHS Compliant
Yes
Optical
Beam Angle Range
3.8°–55°
Field Lumens
See photometrics
Max Integrating Sphere Lumens
17,000
Aperture Size
140 mm
Gate Size
16 mm
Iris
16-blade
Diffusion
Light and Medium with variable insertion
Light Source
Engine
Extra Bright Color Boost white LED
Engine Power
350 W
Lumens Per Watt
48
LED Life
50,000 hours
Native CCT
6500 K
Color
Color Mixing
Cyan, magenta, yellow, and CTO
Color Temperature Range
Variable down to 2700 K
Color Wheel
Ten (10) dichroic colors plus open
Effects
Rotating Gobo Wheel
Nine (9) interchangeable patterns plus open, rotating and indexable
Fixed Gobo Wheel
Ten (10) fixed and stamped patterns plus open
Animation
Bi-directional rotating animation wheel with linear insertion and variable angle
Prism
Five-facet star and four-facet linear rotating with simultaneous insertion
Framing
Four-plane full-curtain framing system with 180° module rotation
Movement
Pan Range
630°
Tilt Range
260°
Pan Speed
360° in 1.62 s
Tilt Speed
180° in 0.88 s
Control
Input Method
DMX (5-pin) or Ethernet
Protocols
DMX via RS-485, Art-Net, sACN via Ethernet
Ethernet Pass-Thru
Passive in and thru with and without power
Data Conversion
Patented Ethernet to DMX
Control Modes
Standard (52 channels), Trifusion Protocol (52 channels)
RDM
Yes
UI Type
Full-color graphical UI with 6-button navigational control
NFC Configuration
Yes
Local Control
Yes
Dimming
16-bit DMX controlled
Wireless
Multiverse via optional MV-Mount Adaptor and Multiverse Connect Module (CT-5914)
Flicker Control
Frequency Range
2.4 kHz, 16 kHz, 25 kHz
Electrical
Voltage Range
100–240 V 50–60 Hz
Input Method
REAN power X Series Connectors
Wattage
550 W
Current at 100 V
5.9 A
Current at 240 V
2.3 A
Inrush at 120 V
37 A (first half cycle)
Inrush at 230 V
51 A (first half cycle)
Fixtures per Circuit
3 (R20 module or similar)
Thermal
Ambient Operating Temp
-10°C to 35°C (14°F to 95°F)
Fan Mode
Standard, Studio, Linear Continuous
Noise Standard Mode
36.6 dBA
Noise Studio Mode
35.8 dBA
Noise Lowest Setting
27.5 dBA
Construction
Materials
Steel and aluminum frame with aluminum and molded plastic covers
Color Options
Black, white by request
Mounting Options
Any orientation
Dimensions
Product Width
13.8"
Product Length
9.1"
Product Height
23"
Weight
Product Weight
51 lbs
Shipping
Package Width
15.8"
Package Length
18.9"
Package Height
28.3"
Package Weight
79.38 lbs
Included Items
Omega Brackets
Two (2) 107 mm single-hole
Power Cord
TRUE1 TOP fixture power cord with bare ends
Safety Cable
Yes
Safety
Minimum Distance to Illuminated Surface
2.0 m (6.6 ft)
Minimum Distance to Combustibles
0.1 m (4.0 in)
