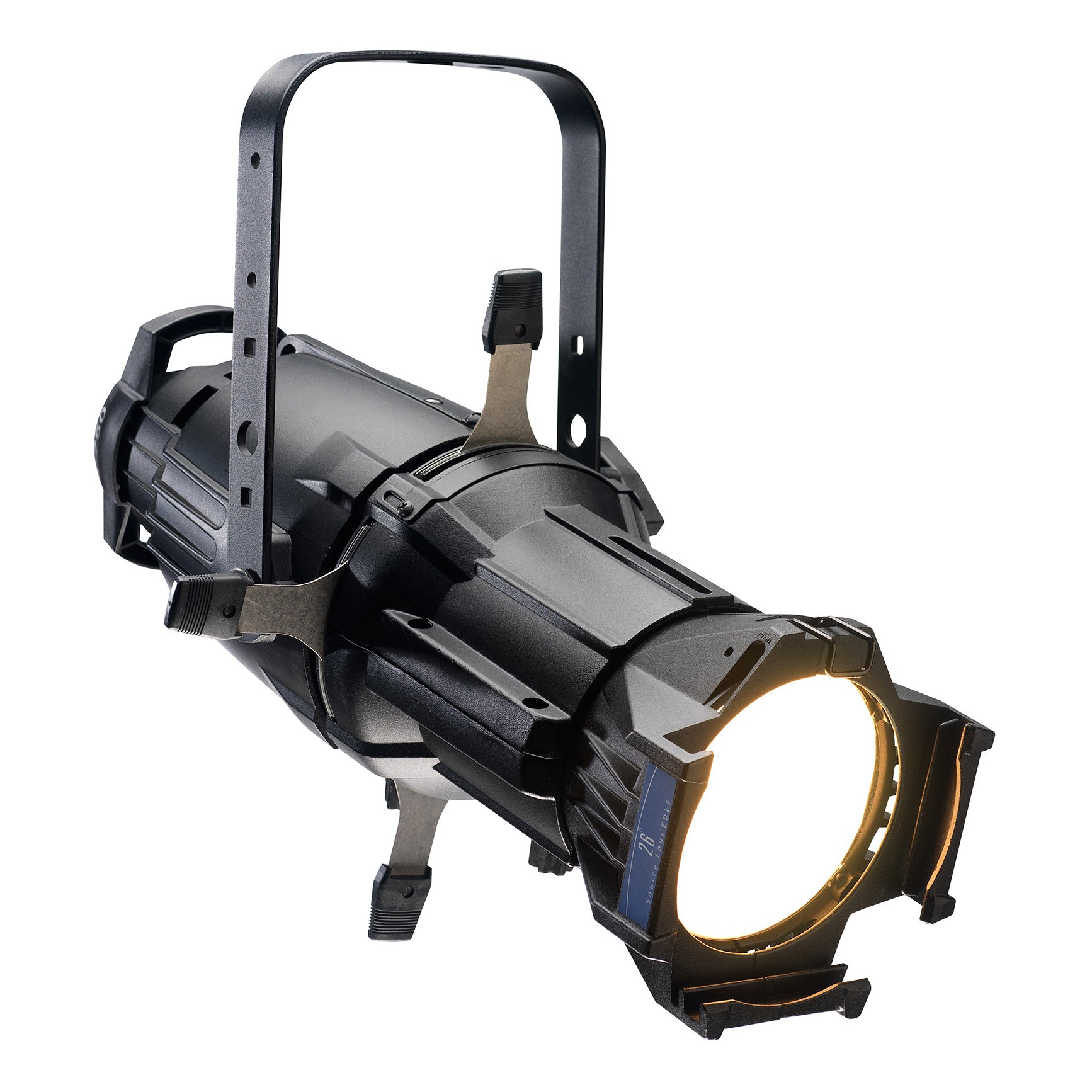

• ETC 410 Source Four 10-Degree Ellipsoidal
1 1

ETC 410 Source Four 10-Degree Ellipsoidal | Color: White, Connector: Twist Lock (Grounded 20 Amp)

ETC 410 Source Four 10-Degree Ellipsoidal | Color: White, Connector: Twist Lock (Grounded 20 Amp)

SoundPro Item: 126870 | Part Number: 410-1C

$1,325.00
$1,325.00 $1,325.00
Your Price Sold out
MSRP: $1,325.00 | MAP: $1,325.00

Usually ships in 5-7 business days

  • Available in black and white finishes (white not pictured)
  • 10-degree ellipsoidal
  • Rated up to 750W
  • Super-efficient HPL lamp
  • Faceted dichroic reflector removes 90% of IR heat from beam
  • Interchangeable lens tubes
  • Rotating barrel ± 25°
  • Three-plane stainless-steel shutter blade assembly
  • Tool-free lamp adjustment
  • Insulated rear handle
  • Rugged die-cast aluminum construction
  • Supports Dimmer Doubling™ (North America only)
Log in or register for YOUR best price

The ETC 410 Source Four 10-Degree Ellipsoidal combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses, for the coolest beam on the market. That means your gels, patterns and shutters last longer and your performance space stays cooler.

No other light offers such optical brilliance. Source Four's revolutionary technology gives you a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field. The EDLT lens tube option for 19°, 26°, 36° and 50° field angles makes the Source Four even better for ultra-crisp, high-contrast gobo projections.

View full details

Specifications

Dimensions
Field Diameter
8.5' (2.6m), 13.2' (4m), 18.9' (5.8m), 23.6 (7.2m)
Dimensions (LxWxH)
30x12.2x21.3" (762x310x541mm)
Weight
Shipping Weight
24 lbs (10.9kg)
Electrical
Electrical
115-240V, 50/60Hz, High temperature 3-conductor 36” leads in a glass fiber outer sleeve, Supports ETC Dimmer Doubling™ technology
Optics
Lamp
750W Maximum, HPL - compact tungsten filament contained in a krypton-filled quartz envelope (see table for suitable lamp types), Patented filament geometry makes for extremely efficient light collection and transmission, Integral die cast aluminum heat sink lamp base
Illuminance (lux)
4164, 1721, 843, 540
Field Lumens
11925
Beam Lumens
8615
Lumens per Watt
15.9
Shipping
Weight
15 lbs (6.8kg)
General
Physical
Rugged die cast aluminum construction, Rotating shutter assembly ±25°, 20 gauge stainless steel shutters in a tri-plane assembly, Interchangeable lens tubes with smooth-running Teflon® guides provide nine user-fit field angle options, Thermally insulated rear handle, High impact, thermally insulated knobs and shutter handles, Two accessory slots and a top mounted, gel frame retainer, Steel yoke with two mounting positions, Positive locking single-clutch fixture body, Slot for glass or stainless steel patterns, Wide accessory slot with sliding cover for motorized pattern devices or optional iris, Uses 7.5” color frame, UL and cUL Listed
Optical
Re-optimized optical system for improved photometric, performance and field uniformity, Projector-quality, high contrast dual aspheric lenses, Superior quality optical glass with advanced AR coatings, Provides crisp edge definition and high gobo contrast, Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light, Reflector secured with anti-vibration shock mounts, Lenses secured with anti-vibration shock mounts, Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping, Beam edge continually adjustable hard-to-soft, Interchangeable lens barrels permit selection of 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles as well as 19°, 26°, 36°, and 50° EDLT lenses
Throw Distance (d)
45' (13.7m), 70' (21.3m), 100' (30.5m), 125' (38.1m)
Illuminance (fc)
387, 160, 78, 50
Degrees
10
Candela
783310
Efficiency
0.545
