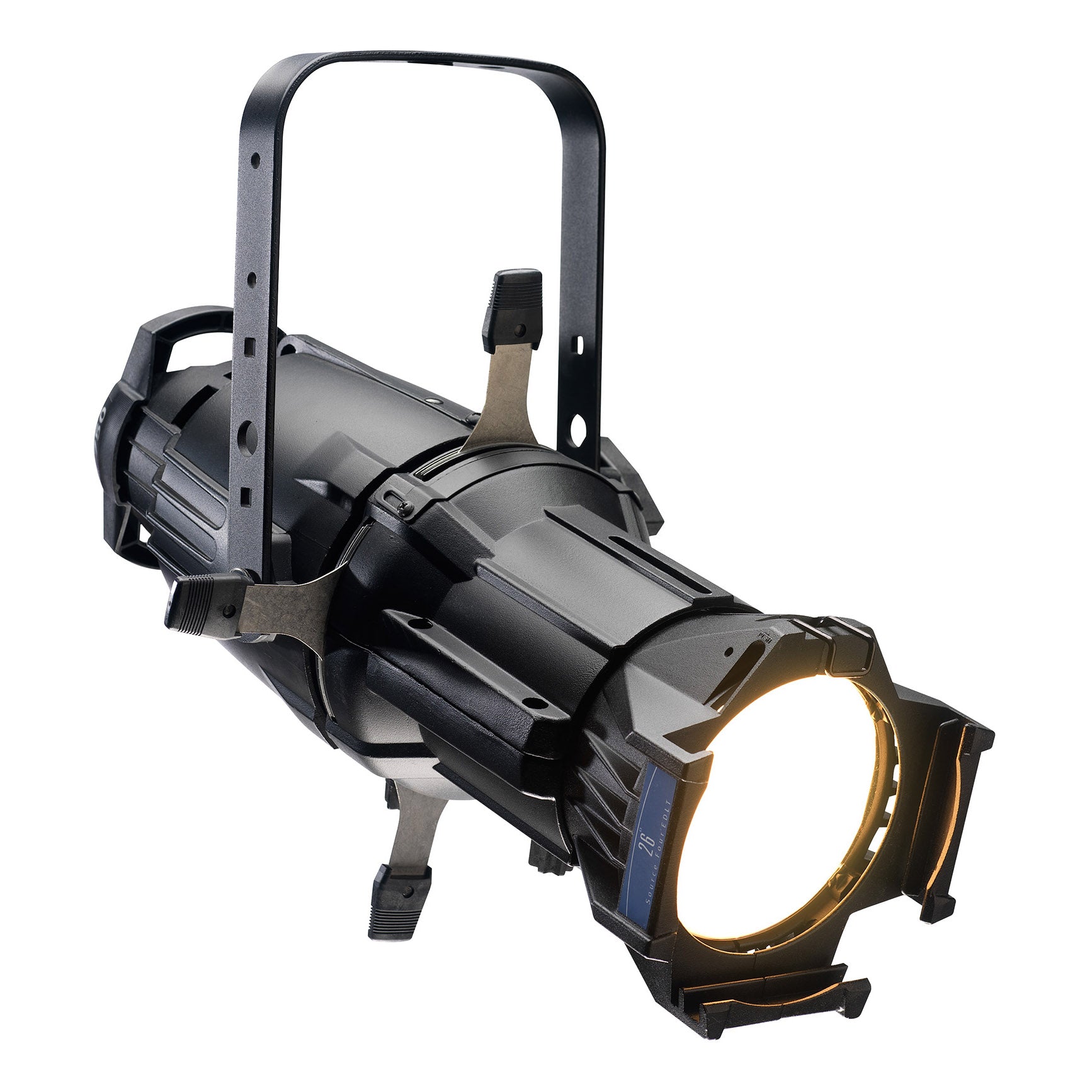

• ETC 419 Source Four 19-Degree Ellipsoidal
1 1

ETC 419 Source Four 19-Degree Ellipsoidal | Color: White, Connector: Dimmer Doubling Connector (NEMA L515P)

ETC 419 Source Four 19-Degree Ellipsoidal | Color: White, Connector: Dimmer Doubling Connector (NEMA L515P)

SoundPro Item: 126891 | Part Number: 419-1M

$945.00
$945.00 $945.00
Your Price Sold out
MSRP: $945.00 | MAP: $945.00

Usually ships in 5-7 business days

  • Available in black and white finishes (white not pictured)
  • 19-degree ellipsoidal
  • Rated up to 750W
  • Super-efficient HPL lamp
  • Faceted dichroic reflector removes 90% of IR heat from beam
  • Interchangeable lens tubes
  • Rotating barrel ± 25°
  • Three-plane stainless-steel shutter blade assembly
  • Tool-free lamp adjustment
  • Insulated rear handle
  • Rugged die-cast aluminum construction
  • Supports Dimmer Doubling™ (North America only)
Log in or register for YOUR best price

ETC's 419 Source Four 19-Degree Ellipsoidal combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses. That means your gels, patterns and shutters last longer and your performance space stays cooler.

No other light offers such optical brilliance. Source Four's revolutionary technology gives you a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field. The EDLT lens tube option for 19°, 26°, 36° and 50° field angles makes the Source Four even better for ultra-crisp, high-contrast gobo projections.

View full details
  • Physical
    • Rugged die cast aluminum construction
    • Rotating shutter assembly ±25°
    • 20 gauge stainless steel shutters in a tri-plane assembly
    • Interchangeable lens tubes with smooth-running Teflon® guides provide nine user-fit field angle options
    • Thermally insulated rear handle
    • High impact, thermally insulated knobs and shutter handles
    • Two accessory slots and a top mounted, gel frame retainer
    • Steel yoke with two mounting positions
    • Positive locking single-clutch fixture body
    • Slot for glass or stainless steel patterns
    • Wide accessory slot with sliding cover for motorized pattern devices or optional iris
    • Uses 7.5” color frame
    • UL and cUL Listed
  • Electrical
    • 115-240V, 50/60Hz
    • High temperature 3-conductor 36” leads in a glass fiber outer sleeve
    • Supports ETC Dimmer Doubling™ technology
  • Lamp
    • 750W Maximum
    • HPL - compact tungsten filament contained in a krypton-filled quartz envelope (see table for suitable lamp types)
    • Patented filament geometry makes for extremely efficient light collection and transmission
    • Integral die cast aluminum heat sink lamp base
  • Optical
    • Re-optimized optical system for improved photometric
    • performance and field uniformity
    • Projector-quality, high contrast dual aspheric lenses
    • Superior quality optical glass with advanced AR coatings
    • Provides crisp edge definition and high gobo contrast
    • Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
    • Reflector secured with anti-vibration shock mounts
    • Lenses secured with anti-vibration shock mounts
    • Tool free, positive locking X, Y and Z lamp centering adjustments, unaffected by relamping
    • Beam edge continually adjustable hard-to-soft
    • Interchangeable lens barrels permit selection of 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles as well as 19°, 26°, 36°, and 50° EDLT lenses
  • Throw Distance (d)
    • 25' (7.6m)
    • 40' (12.2m)
    • 55' (12.2m)
    • 70' (21.3m)
  • Field Diameter
    • 8' (2.4m)
    • 13' (3.9m)
    • 18' (5.4m)
    • 22' (6.8m)
  • Illuminance (fc)
    • 392
    • 153
    • 81
    • 50
  • Illuminance (lux)
    • 4217
    • 1648
    • 872
    • 538
  • Dimensions (LxWxH)22.8x13.3x21.3" (579x338x541mm)
  • Weight14 lbs (6.4kg)
  • Shipping Weight20 lbs (9.1kg)
  • Degrees19
  • Candela243520
  • Field Lumens11180
  • Beam Lumens8785
  • Efficiency0.511
  • Lumens per Watt14.9
