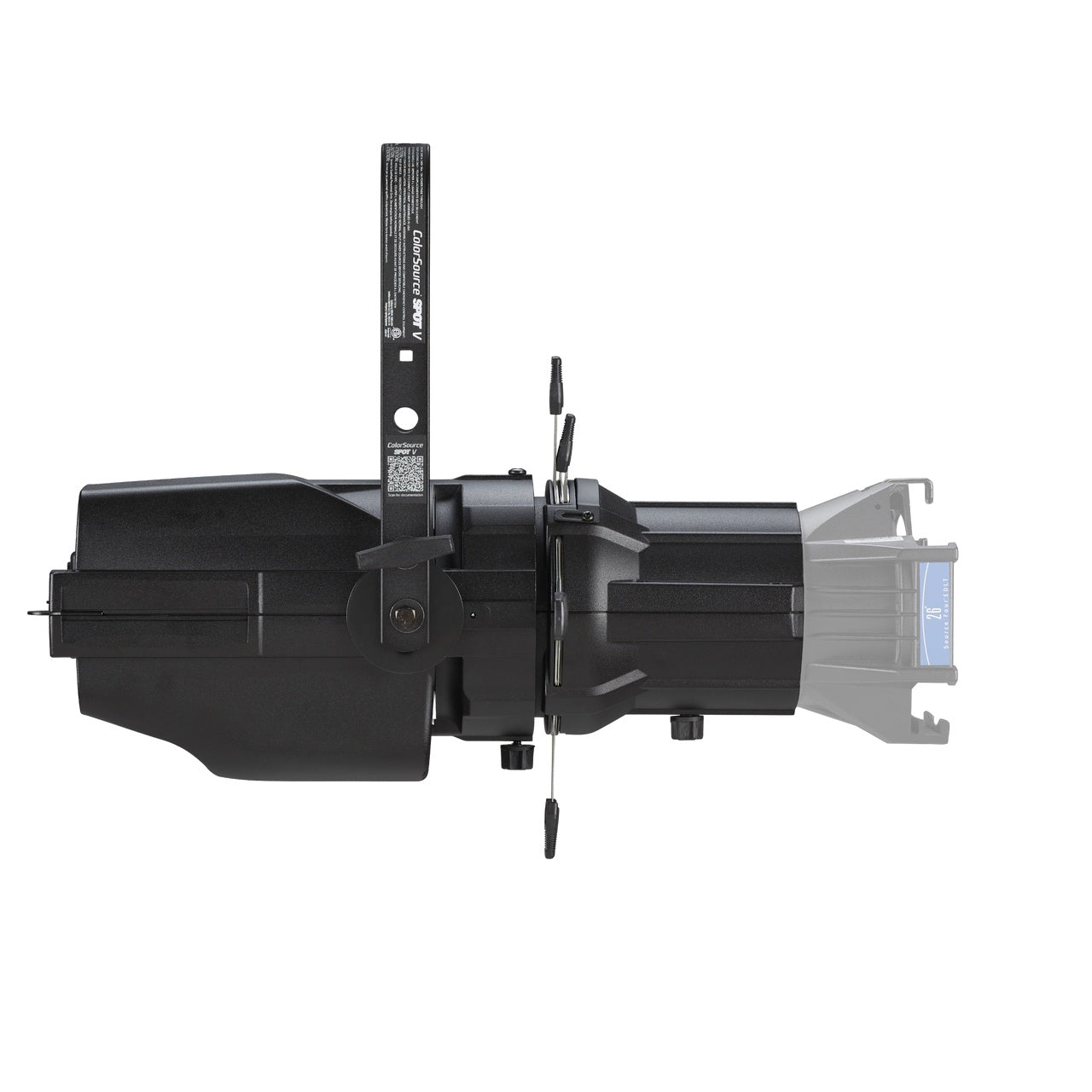

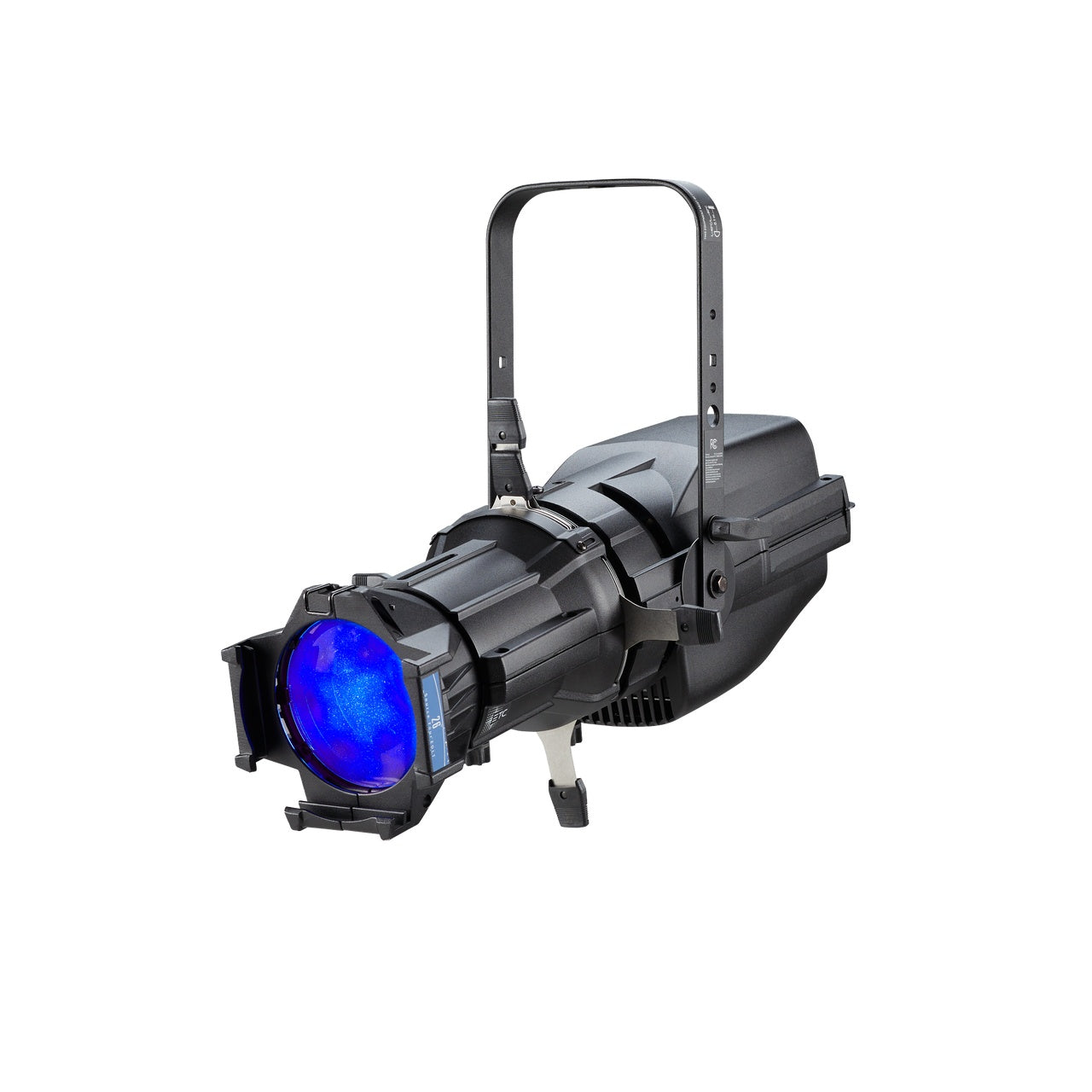

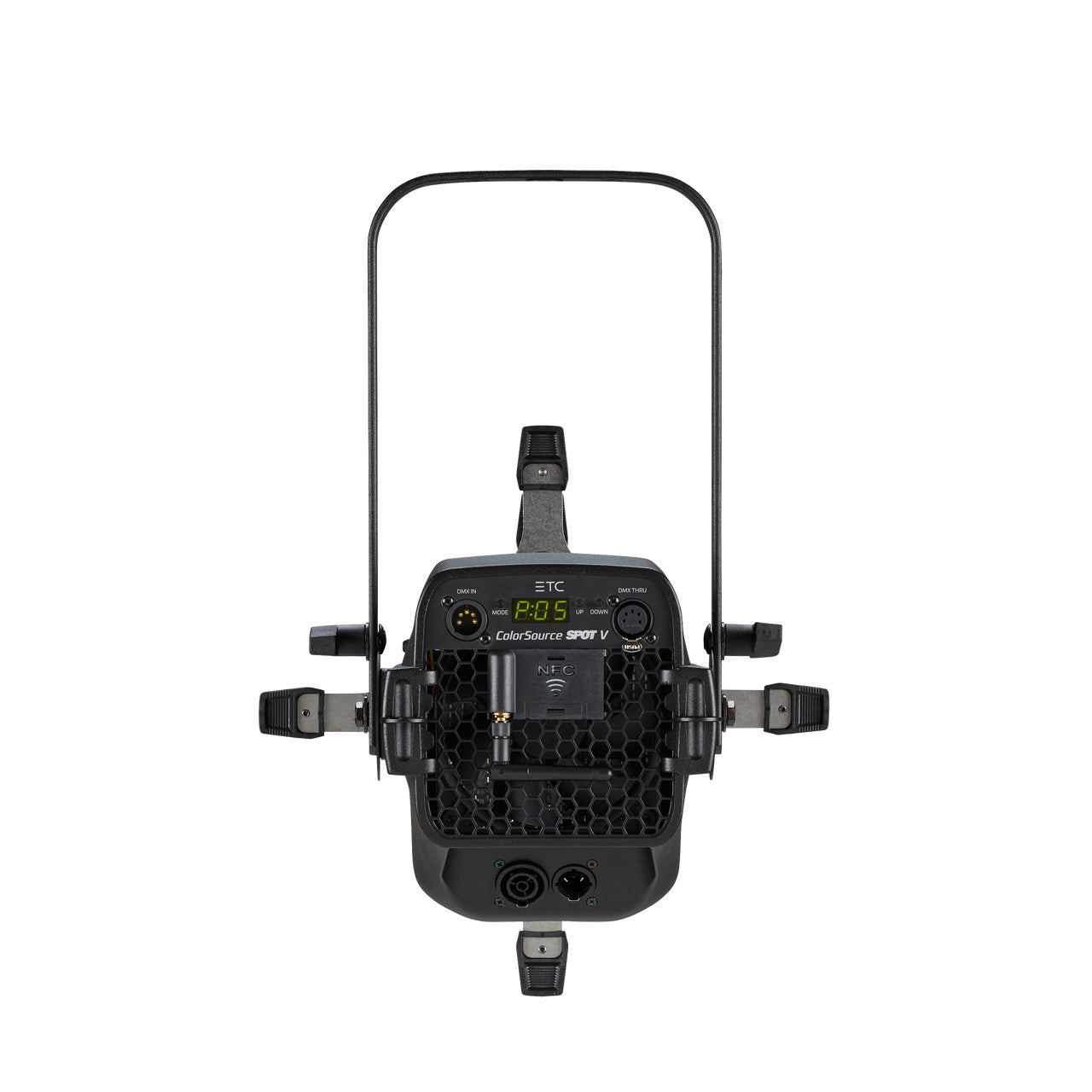

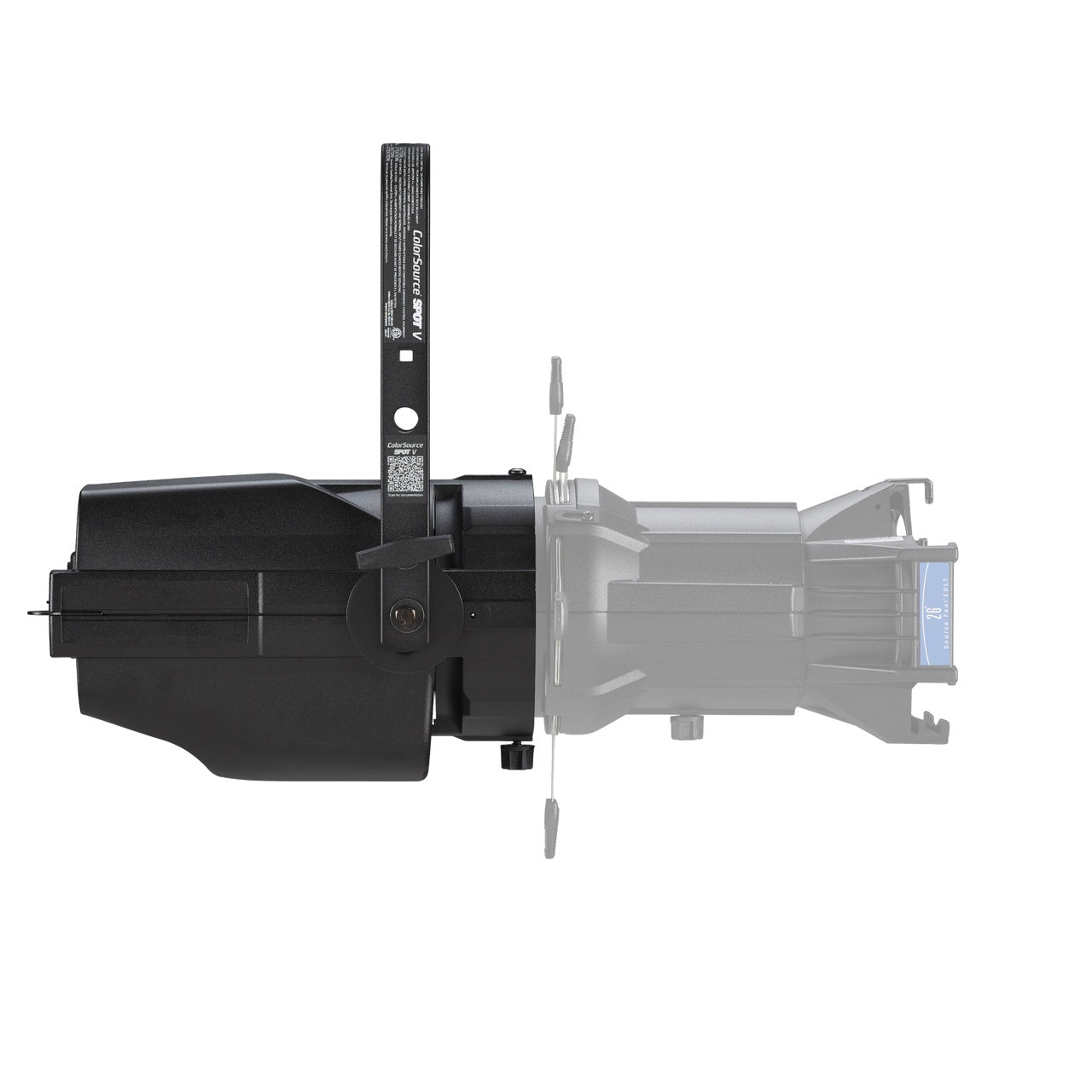

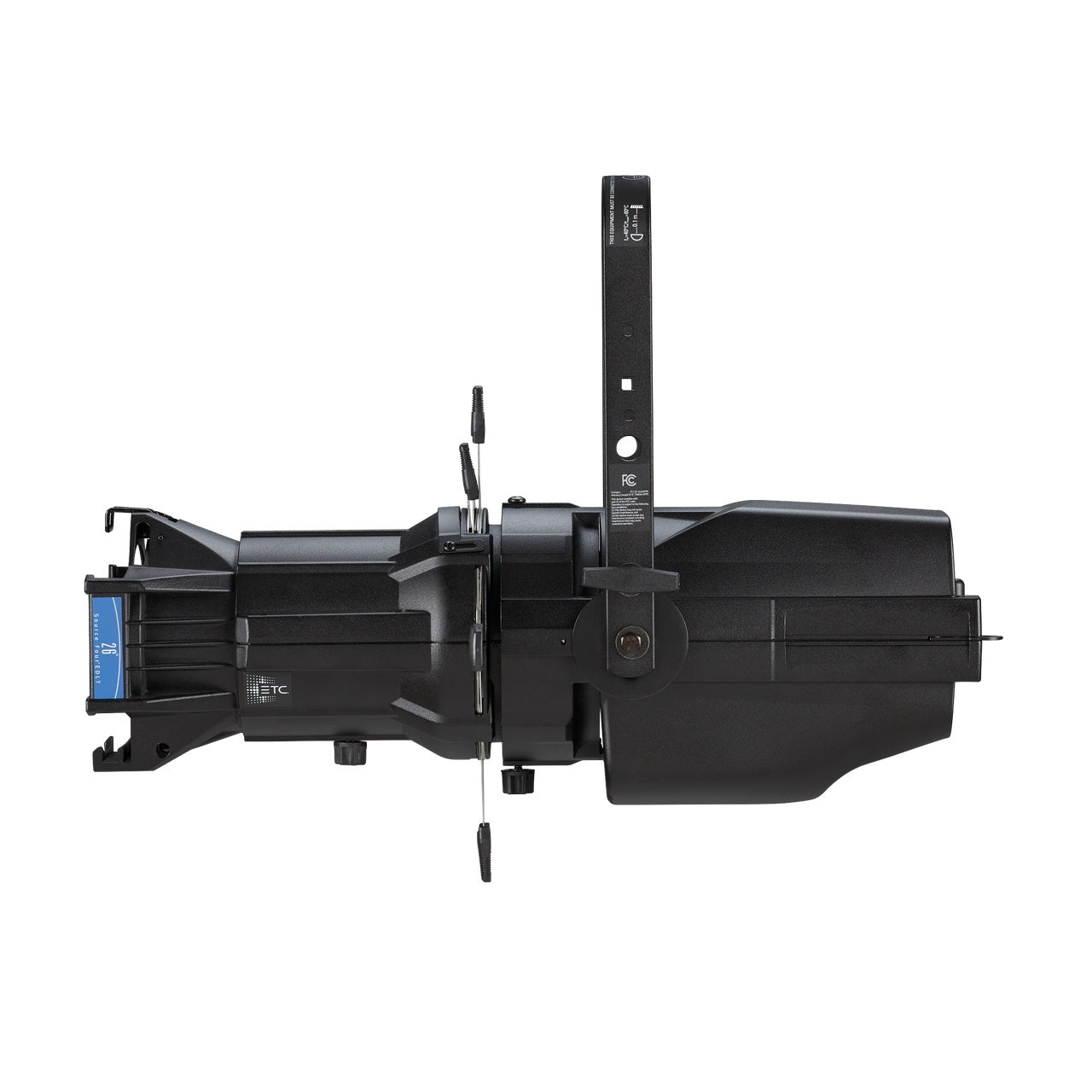

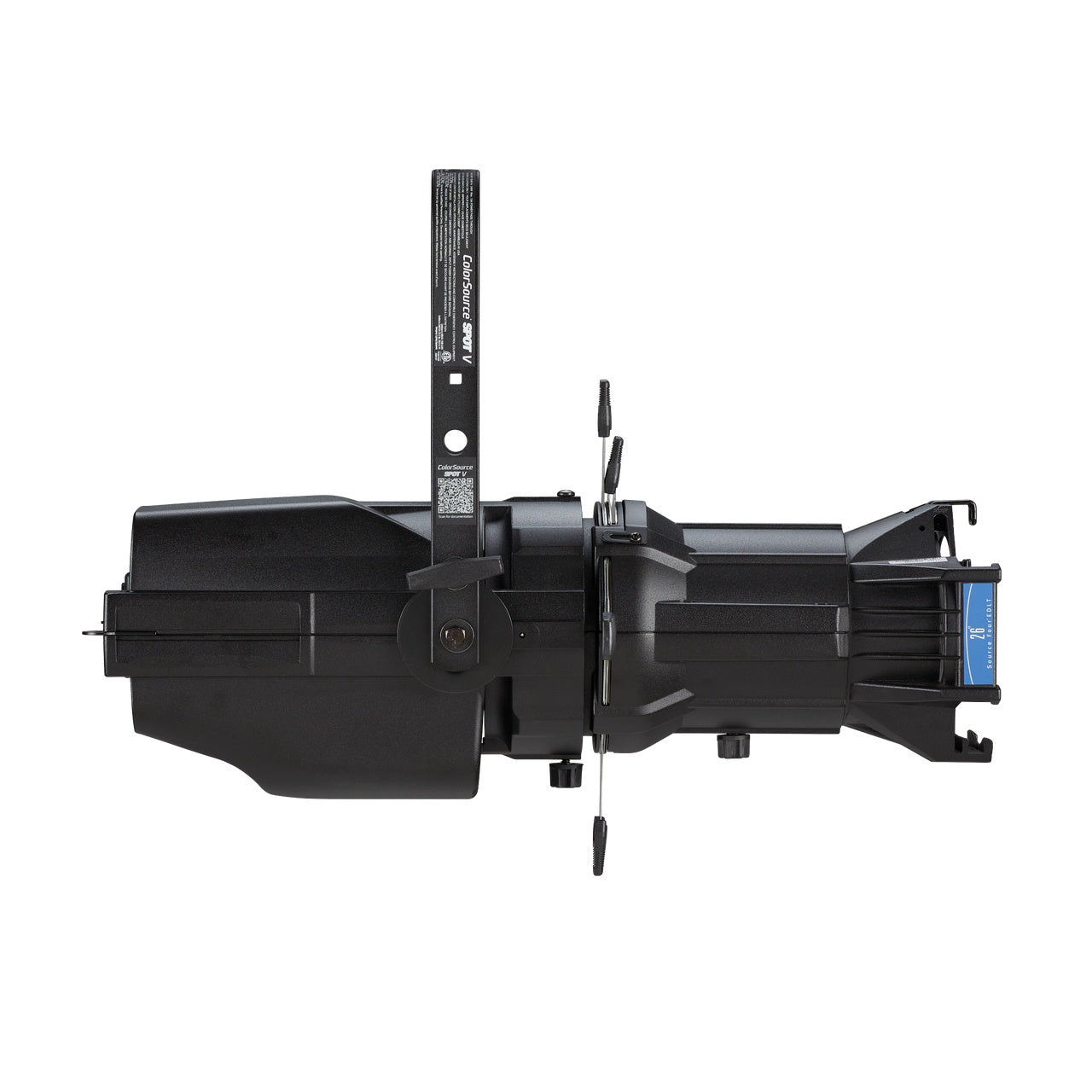

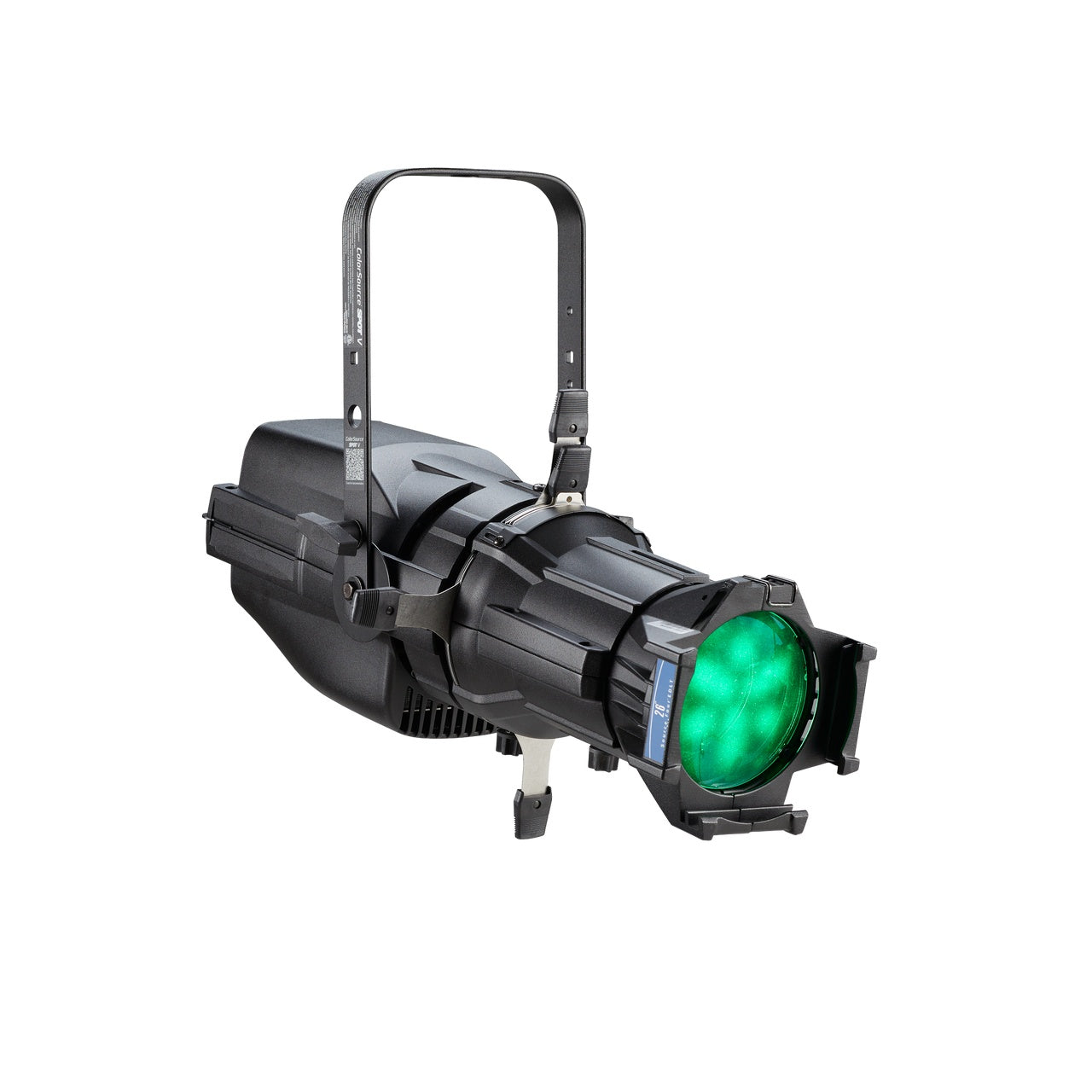

ETC CSSPOTVMVS ColorSource Spot V LED Spot Fixture With Wireless DMX | Black

ETC CSSPOTVMVS ColorSource Spot V LED Spot Fixture With Wireless DMX | Black

SoundPro Item: 135540 | Part Number: CSSPOTVMVS

$2,040.00
$2,040.00 $2,040.00
Your Price Sold out
MSRP: $2,040.00 | MAP: $2,040.00

Usually ships in 5-7 business days

  • Five-Color Array Supports Rich Mixed Looks
  • Wireless DMX/RDM Expands Install Flexibility
  • NFC Setup Streamlines Mobile Configuration
  • Source Four Compatibility Protects Optics Investment
  • Optical Calibration Helps Maintain Visual Consistency
  • TRUE1 TOP Power Thru Simplifies Power Distribution
  • All-Metal Housing Supports Demanding Use
Log in or register for YOUR best price

ETC ColorSource Spot V is a static LED luminaire built for venues that need flexible color, dependable control, and integration with established theatrical optics. Its red, green, blue, indigo, and lime array supports both soft pastel looks and bold saturated output from a single fixture, making it a practical choice for stages, worship spaces, schools, hospitality environments, retail displays, exhibition centers, meeting rooms, clubs, and multipurpose venues.

This model supports wired DMX/RDM over 5-pin XLR as well as Multiverse wireless DMX/RDM, giving installers and production teams more options when cable runs are difficult or infrastructure needs to stay clean. NFC configuration and the onboard interface help simplify setup, while LED droop compensation and optical calibration support consistent operation over time. The fixture is also compatible with the full range of Source Four lens tubes and accessories, which is especially valuable for users standardizing around ETC optical systems.

With up to 9,498 lumens, a die-cast all-metal housing, powerCON TRUE1 TOP power in and thru, and a 5-year fixture warranty, the ColorSource Spot V is designed for professional AV and lighting applications that prioritize reliability, color control, and deployment versatility.

Downloads

View full details

Specifications

Source
LED details
60 Lumileds LUXEON C and LUXEON Rebel LEDs
Max lumens
9,498
Lumens per watt
48
L70 rating (hours to 70% output)
54,000 hours
Color
Colors used
Red, green, blue, indigo, lime
Color temperature range
Color mixing
Calibrated array
Yes
Red shift
No
Optical
Beam angle range
Swappable lens tubes, 5–90 degrees
Gate size
80 mm
Aperture size
6.25–14 in (depending on lens tube)
Pattern projection
Yes
Pattern size
A or B
Camera flicker control/Hz range
5,000 Hz (default) and 25,000 Hz (via RDM)
Notes
Can be used with LED CYC and Fresnel adapters
Control
Input method
DMX512 via 5-pin XLR connector
Protocols
DMX512/RDM
Modes (footprint)
5 modes
RDM configuration
Yes
UI type
Seven-segment, three-button interface
Local control
Yes
Onboard presets
Yes (12)
Onboard sequences
Yes (5)
Onboard effects
No
FixtureLink
Yes
Notes
15-bit virtual dimming engine
Wireless
Band
2.400–2.480 GHz
Range
100 m indoors, 500 m line of sight (subject to conditions)
Max receivers
DMX: No limit / RDM: Varies / Multiverse SHoW Baby: 585 / Multiverse Transmitter: 5,000
Broadcast power
100 mW
Electrical
Voltage range
100–240 VAC 50/60 Hz
Input method
powerCON TRUE1 TOP power in and thru
Inrush
55 A at 120 V (first half-cycle); 59 A at 240 V (first half-cycle)
Fixtures per circuit
8 fixtures (R20 module or similar)
Wattage typical / standby
199 W / 2 W at 100 V; 197 W / 2 W at 120 V; 194 W / 2 W at 240 V
Current draw typical / standby
2 A / 0.07 A at 100 V; 1.65 A / 0.08 A at 120 V; 0.90 A / 0.10 A at 240 V
Thermal
Ambient operating temp
0°C to 40°C (32°F to 104°F)
Fan (controllable)
Yes
Droop compensation
Yes
dB range
24.4 dBA average at 1 m
BTUs/hour
672
Physical
Materials
Die-cast, all metal housing
Color options
Black, white, silver, or custom color
Mounting options
Yoke
IP rating
IP20
Weight
7.7 kg (17 lb) (without lens)
Included accessories
Hanging yoke, 1.5 m power cable, soft-focus diffuser in an A-size gobo holder
Warranty
Fixture
5 years
LED array
10 years
Regulatory And Compliance
Approved regulatory standards
cETLus Listed; Conforms to UL 1598 Listed; Conforms to UL 924 Listed; Certified to CSA C22.2 No. 250 Listed; Certified to CSA C22.2 No. 141 Listed; CE, UKCA, RCM, and CCC Compliant
