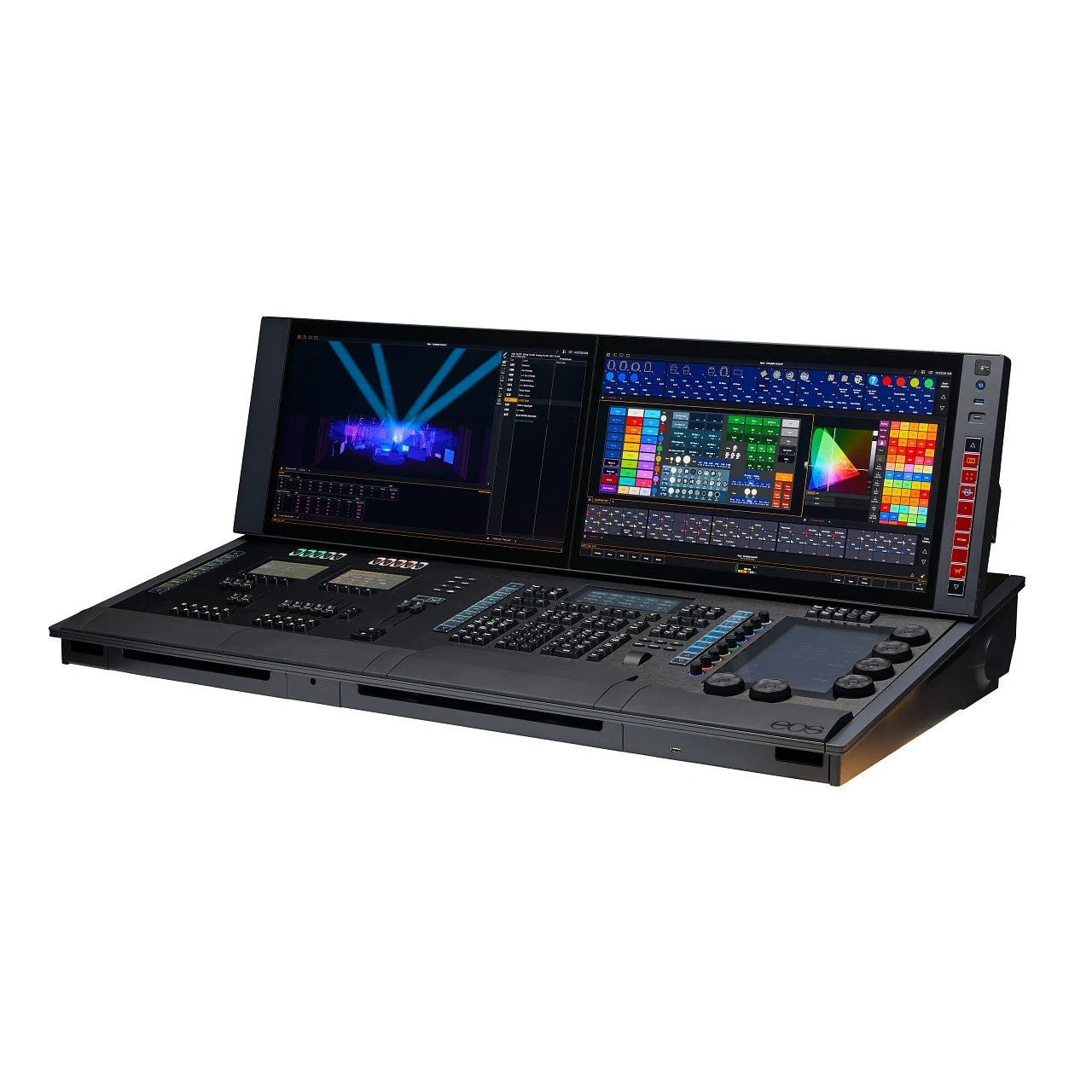

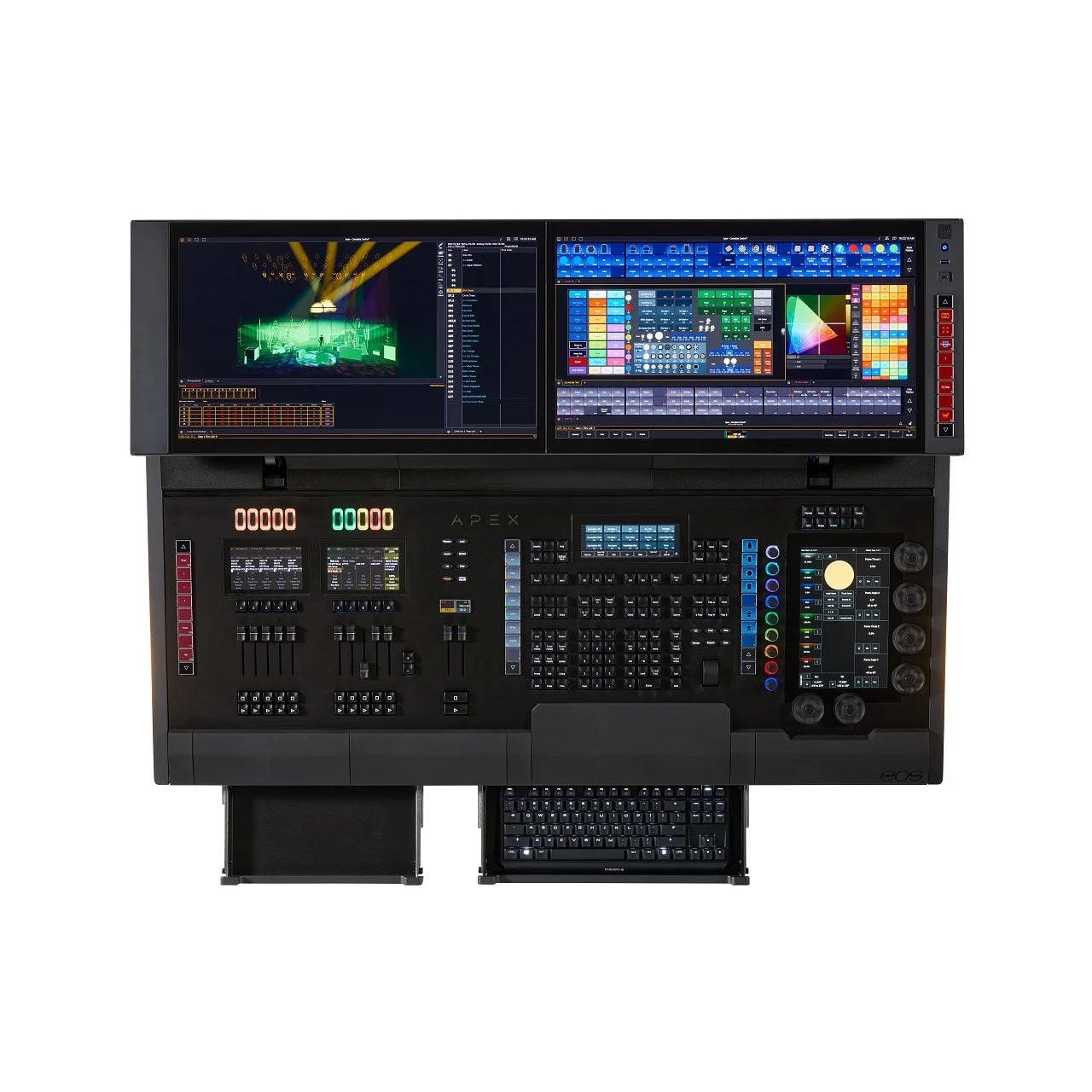

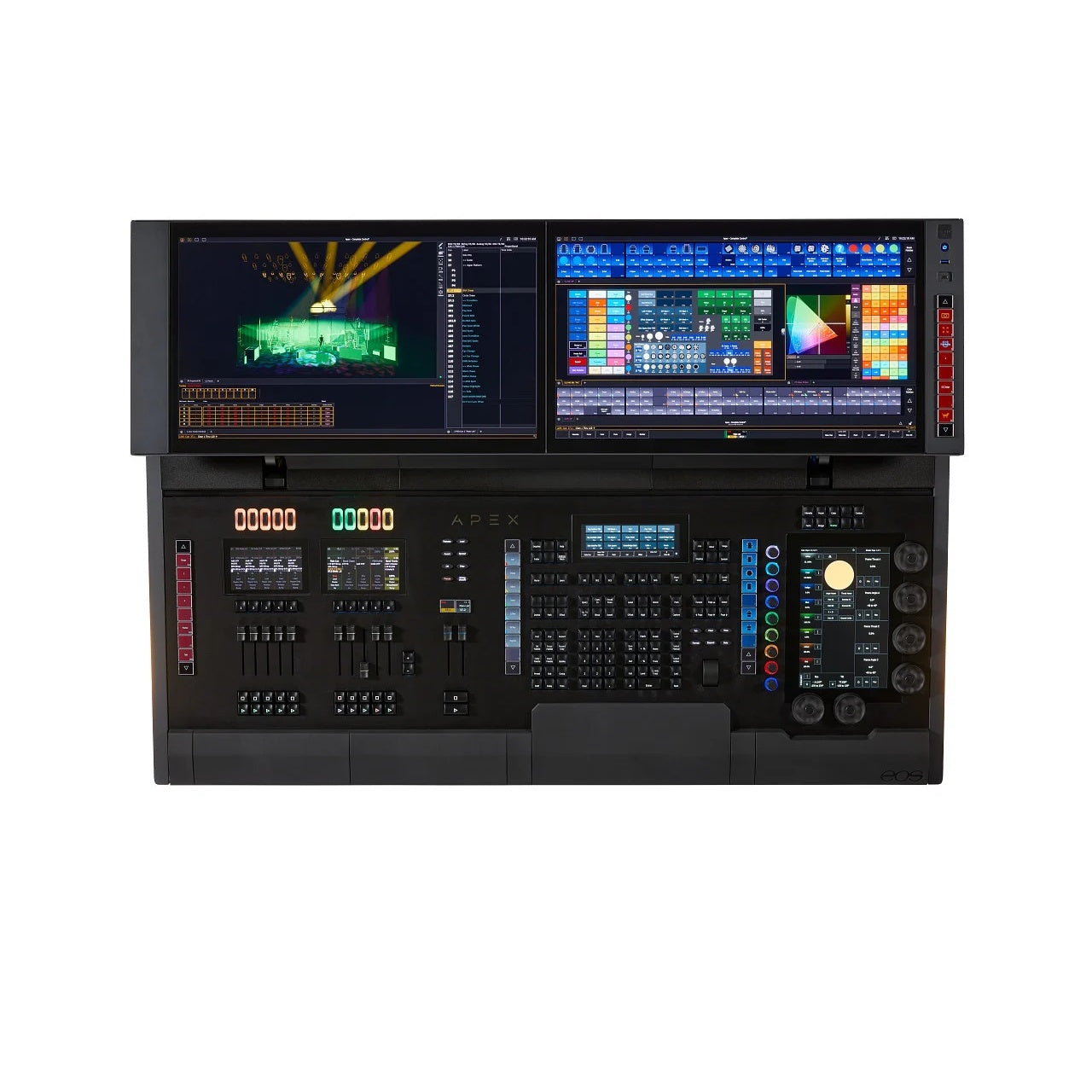

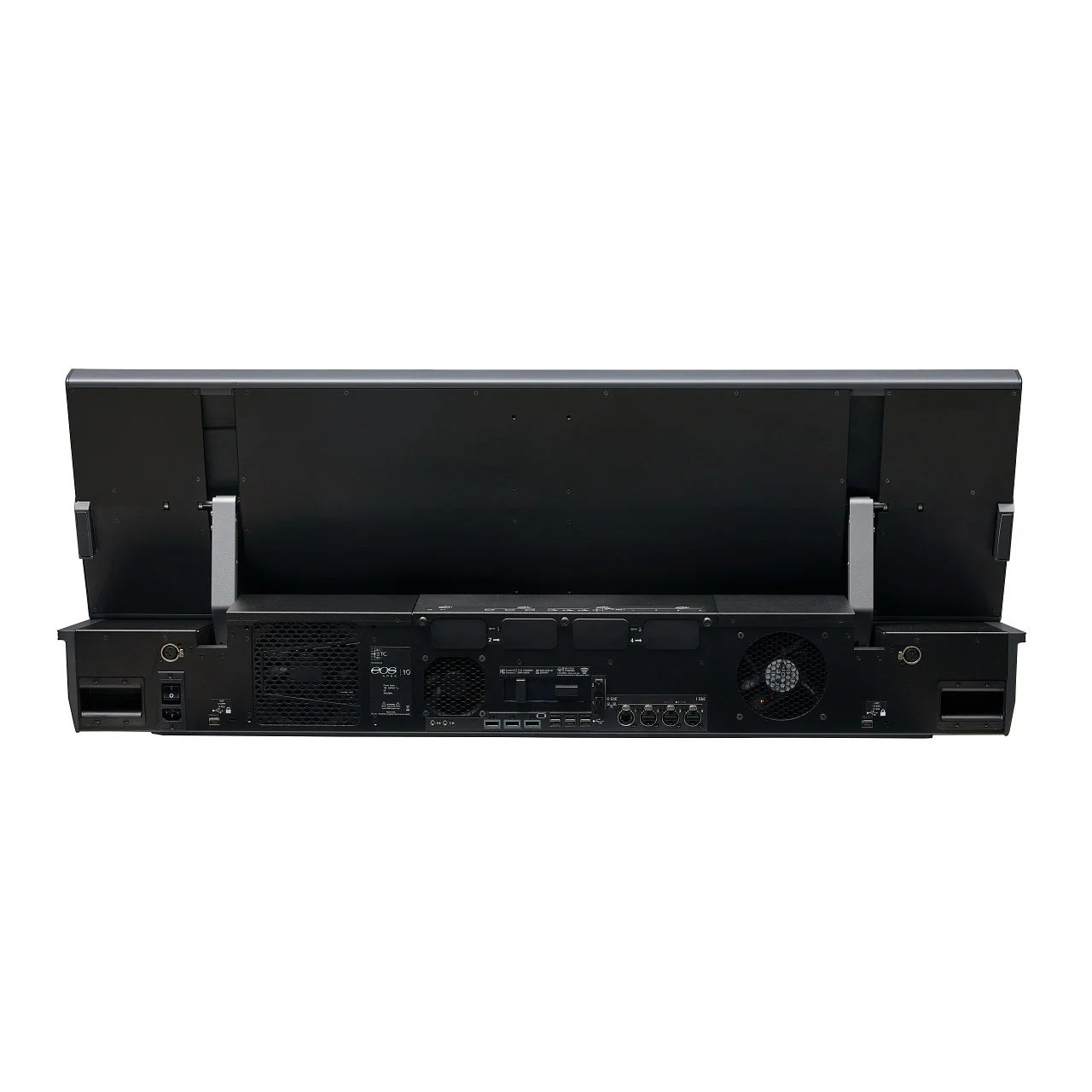

ETC APEX 10 24K Apex 10 24K Lighting Control Desk

ETC APEX 10 24K Apex 10 24K Lighting Control Desk

SoundPro Item: 138633 | Part Number: APEX 10 US

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Dual 23.8" 4K Touchscreens For Detailed Programming
  • 10 Motorized Faders Support Flexible Playback Control
  • Target Keys Speed Access To User-Defined Functions
  • Dual 10G SFP+ Ports Enable High-Speed Network Links
  • Book Lights Improve Visibility At The Programming Position
  • I/O Garage Accepts Response Or Gadget II Modules
Log in or register for YOUR best price

The ETC APEX 10 US is a professional lighting control console built for programmers and venues that need a substantial hands-on surface without moving to the largest desk in the range. As the mid-sized platform in the Eos Apex family, it combines a generous programming layout with the Eos control environment used across live production, theatrical, and installed systems. Dual 23.8-inch 4K multi-touch displays, dedicated parameter tools, and configurable playback sections support fast operation in cue-heavy and media-rich workflows.

For production teams managing complex rigs, the console supports modern networked control with configurable Gigabit Ethernet ports, dual 10-Gigabit SFP+ connectivity, sACN, and Art-Net output protocols. The integrated interface is built for long programming sessions, with a dedicated encoder display, keypad touchscreen, level wheel, book lights, accessory storage, and extensive USB connectivity for peripherals and removable media. Eos Family software adds tools such as Magic Sheets, Augment3d visualization, color control resources, timecode integration, and multi-user collaboration to support demanding lighting environments.

Downloads

View full details

Specifications

Hardware And Interfaces
Integrated Touchscreens
Two 23.8-inch 4K multi-touch LCD touchscreens
External Monitor Support
Three DisplayPort monitors, 1920x1080 minimum, 3840x2160 maximum
Motorized Faders
10 60 mm motorized faders
Configurable Fader Pages
100 10-fader pages
Scroll Wheel Faders
Ten backlit scroll wheel faders with button
Fader Displays
Two 5-inch high-resolution displays with multi-touch and haptic feedback
Main Playback
Two 60 mm motorized faders with display load buttons
Target Keys
Four banks of 10-button user-definable Target Keys
Force-Feedback Encoders
Six
Mini Encoders
Eight backlit mini encoders plus one navigation mini encoder
Encoder Display
Dedicated 10.1-inch high-resolution display
Level Wheel
Dedicated high-resolution intensity level wheel
Keypad
Backlit expanded Eos keypad
Keypad Touchscreen
6.3-inch touchscreen with haptic touch feedback
Keyboard Tray Ports
USB A and C ports
Accessory Tray Ports
USB A and C ports with 5V/2A USB-A charging port
Front USB Charging
One 5V/2A USB-A charging port
Booklights
Two independently dimmable warm-white LED booklights
Storage
Solid-state hard drive
Graphics
Dedicated graphics processing
Power Input
IEC 100–240 VAC at 50/60 Hz

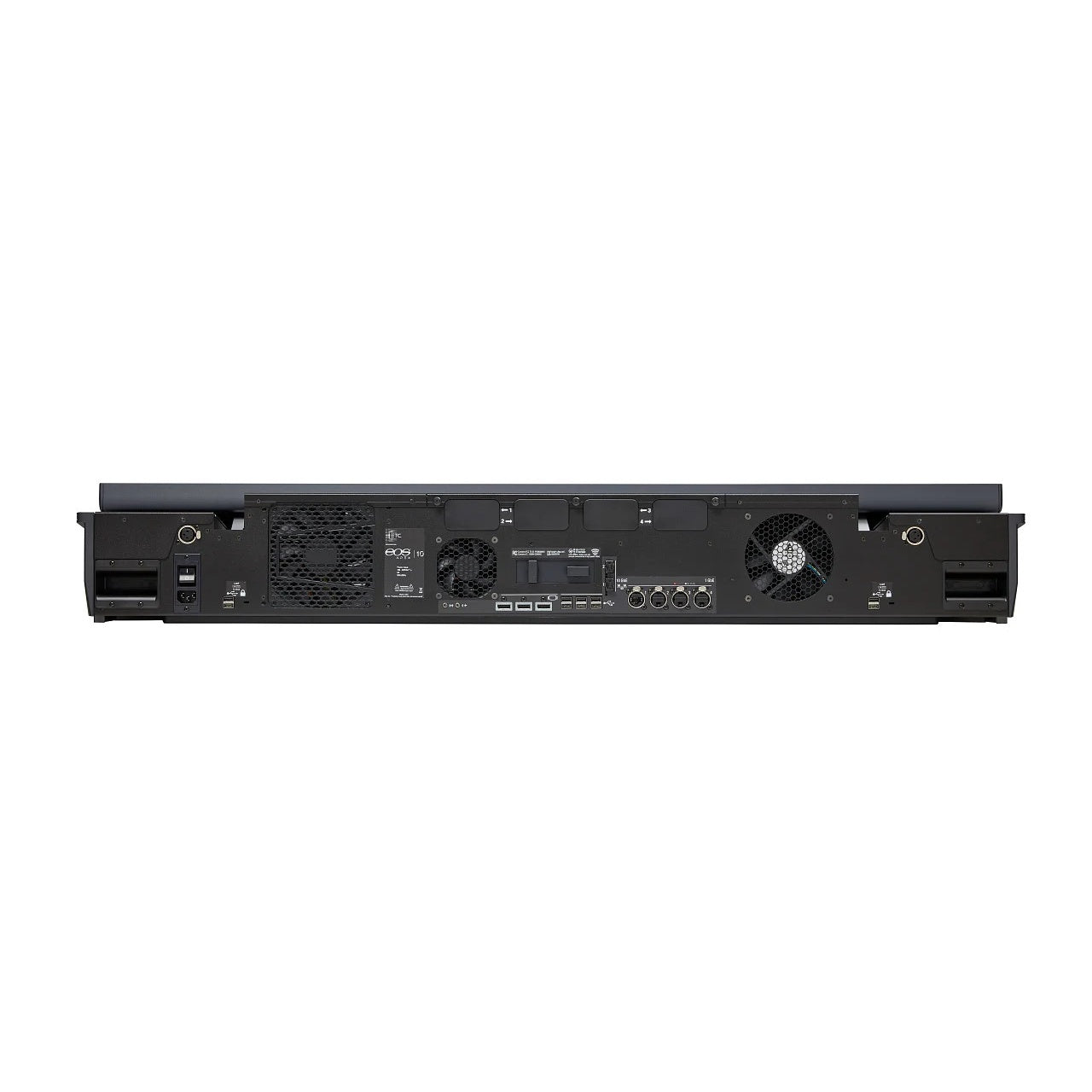

Ethernet Ports
Four individually configurable Gigabit Ethernet ports with etherCON and PoE++
10-Gigabit Ports
Two individually configurable SFP+ ports
WiFi Adapter
One 802.11ac WiFi Ethernet adapter
Bluetooth
Bluetooth 5.1
Network Protocols
sACN and Art-Net
USB Ports
12 USB-A and 8 USB-C USB 3.1 ports
Littlite Ports
Two XLR ports
Lock Ports
Two Kensington lock ports
I/O Garage
Four bays for Response gateways or Gadget II DMX modules
Show Control Interfaces
MIDI In and Out, SMPTE timecode, Analog/Serial Inputs, OSC, UDP
Electrical And Thermal
Power Consumption
Approximately 6 A at 120 V or 230/240 V
Ambient Temperature
0°–35°C (32°–95°F)
Ambient Humidity
Up to 90% non-condensing
Regulatory And Compliance
Compliance
CE compliant
Compliance
cETLus listed
Compliance
UKCA marked
Compliance
FCC compliant
Compliance
RoHS compliant
Compliance
WEEE
Included Items
Mouse
One three-button scroll mouse and mousepad
Keyboard
Cherry tenkeyless backlit alpha-numeric keyboard
Power Cord
Locking regionalized IEC power cord
Gooseneck Lights
Two 24-inch LED gooseneck Littlites
AR Kit
Augment3d AR target kit
Cover
Dust cover
Dimensions And Weight
Height Mm
447
Height In
17.6
Width Mm
1219
Width In
48.0
Depth Mm
648
Depth In
25.5
Weight Kg
61.24
Weight Lb
135
Shipping Container
Height Mm
318
Height In
12.5
Width Mm
1330
Width In
52.4
Depth Mm
794
Depth In
31.3
Weight
TBD
