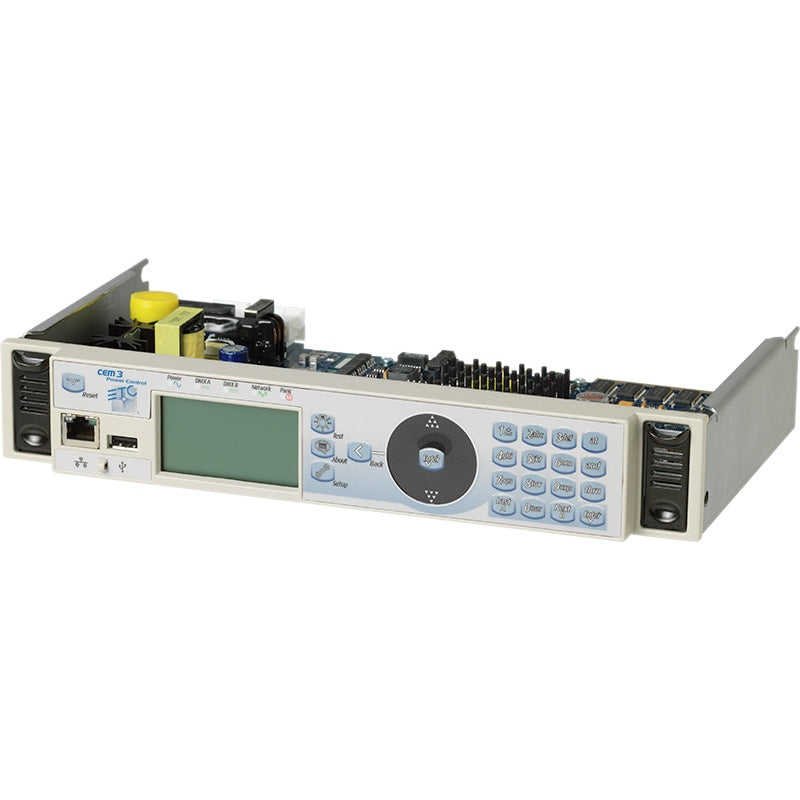

ETC CEM3 Lighting Control Module With Net3 And DMX

ETC CEM3 Lighting Control Module With Net3 And DMX

SoundPro Item: 145808 | Part Number: CEM3

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Direct Net3 Access For Networked Control
  • Tool-Free Slide-In Design For Fast Service
  • Local Override Functions For Onsite Changes
  • USB Backup Support For Easier Recovery
  • 16-Bit Fade Control For Smooth Transitions
  • Rack Feedback Visibility For Faster Diagnosis
  • Emergency Lighting Support For Code Needs
Log in or register for YOUR best price

The ETC CEM3 is the control electronics platform for Sensor3 power control systems, built for venues and installations that need dependable lighting management across Ethernet, DMX, and preset sources. It supports priority-based control, giving production teams and facility operators a practical way to manage dimming and relay response in theaters, studios, houses of worship, retail environments, and other architectural applications. Local access at the facepanel simplifies day-to-day setup, status review, and quick operational changes without requiring a separate workstation.

For networked systems, the CEM3 includes direct Ethernet connectivity through ETC Net3 along with standard rack feedback to live control desks. The front-panel interface combines an eight-line graphical LCD, numeric keypad, shortcut buttons, and status indicators so users can move between setup, monitoring, and live override functions efficiently. Backup options through USB or network help preserve configuration data, while replacement modules can automatically load rack configuration to reduce service time.

The platform also supports flexible dimmer behavior with selectable firing modes, output curves, control modes, and high-resolution 16-bit fades. Diagnostic reporting is available across all Sensor racks using CEM3, with expanded dimmer-specific reporting available in qualifying AF systems. Optional RideThru and Battery Pack accessories can help maintain processor operation during brief or extended power interruptions.

Downloads

View full details

Specifications

General
Certifications
UL, cUL LISTED, CE Marked
Emergency Lighting Listing
UL 924 LISTED
Physical
Body
Formed-steel body
Facepanel Finish
Die-cast facepanel with textured epoxy paint
Installation
Slide-in module installs and removes without tools
Release
Spring-loaded module release
Airflow Monitoring
Airflow sensor
Height (in)
2.06
Height (mm)
52
Width (in)
11.80
Width (mm)
300
Depth (in)
7.00
Depth (mm)
178
Weight (lb)
3.5
Weight (kg)
1.6
Shipping Weight (lb)
6.2
Shipping Weight (kg)
2.8
Electrical
Input Power
Single phase; Three phase WYE
Voltage Range
91–139V and 181–259 VAC
Line Frequency
47–53 Hz and 57–63 Hz
Frequency Compensation
Automatic frequency-variation compensation
DMX Inputs
Two configurable DMX512 inputs (2500 V opto-isolated)
Control Features
Display
Eight-line by 20-character graphical LCD
Keypad
Full number pad
Shortcut Buttons
Setup, About, and live control
Status LEDs
Power, Network activity, DMX-A, DMX-B, and Panic
Presets
64 user-programmable presets
Panic Circuit
Single Panic circuit with flexible programming
Backup Options
Configuration backups saved on USB or network
Output Regulation
Constant power ±1V
Output Scale Voltage
Individual settings for load-wiring compensation
Selectable Firing Modes
Normal, Forward Phase, Reverse Phase, Dimmer Doubled, Sinewave, Fluorescent
Control Modes
Dimmed, Switched, Latch/lock, Always On, Off
Output Curves
Linear, Modified Linear, Square, Modified Square, Sensor 2.0, five custom curves
Fade Resolution
16-bit (> 30,000-Step Resolution per 1/2 cycle)
Data Loss Behavior
Selectable
Feedback
Basic Reporting
DMX input status, rack power status, rack temperature
Advanced Reporting
Dimmer-specific status and load feedback with AF rack and AF dimmer modules
