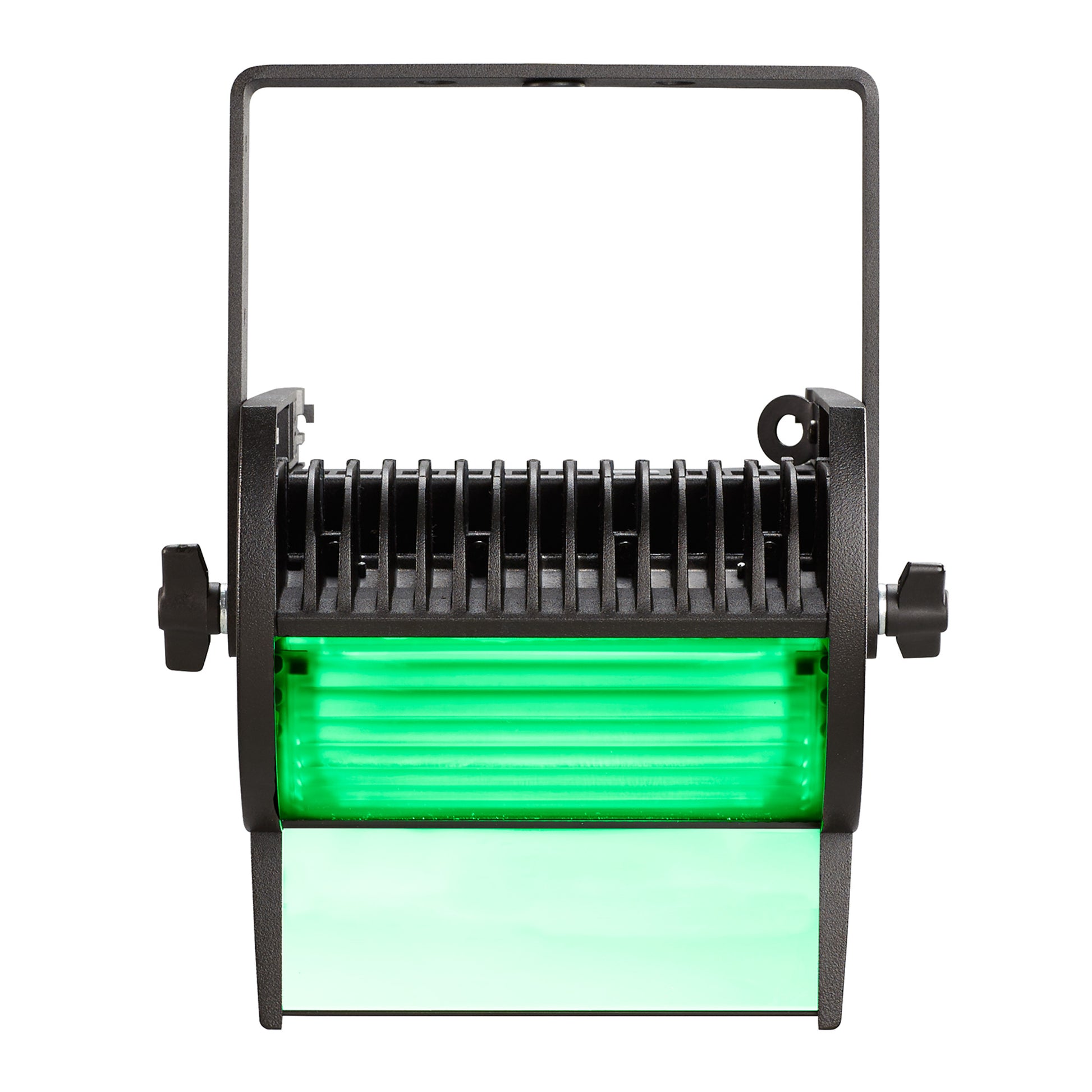

ETC ColorSource CYC LED Wash Light | Color: Black
ETC ColorSource CYC LED Wash Light | Color: Black
SoundPro Item: 126340 | Part Number: CSCYC
Usually ships in 5-7 business days
- All LED (RGBI-L)
- Rich, bright light
- Fanless operation
- Stand-alone presets and sequences
- Simple setup and user interface

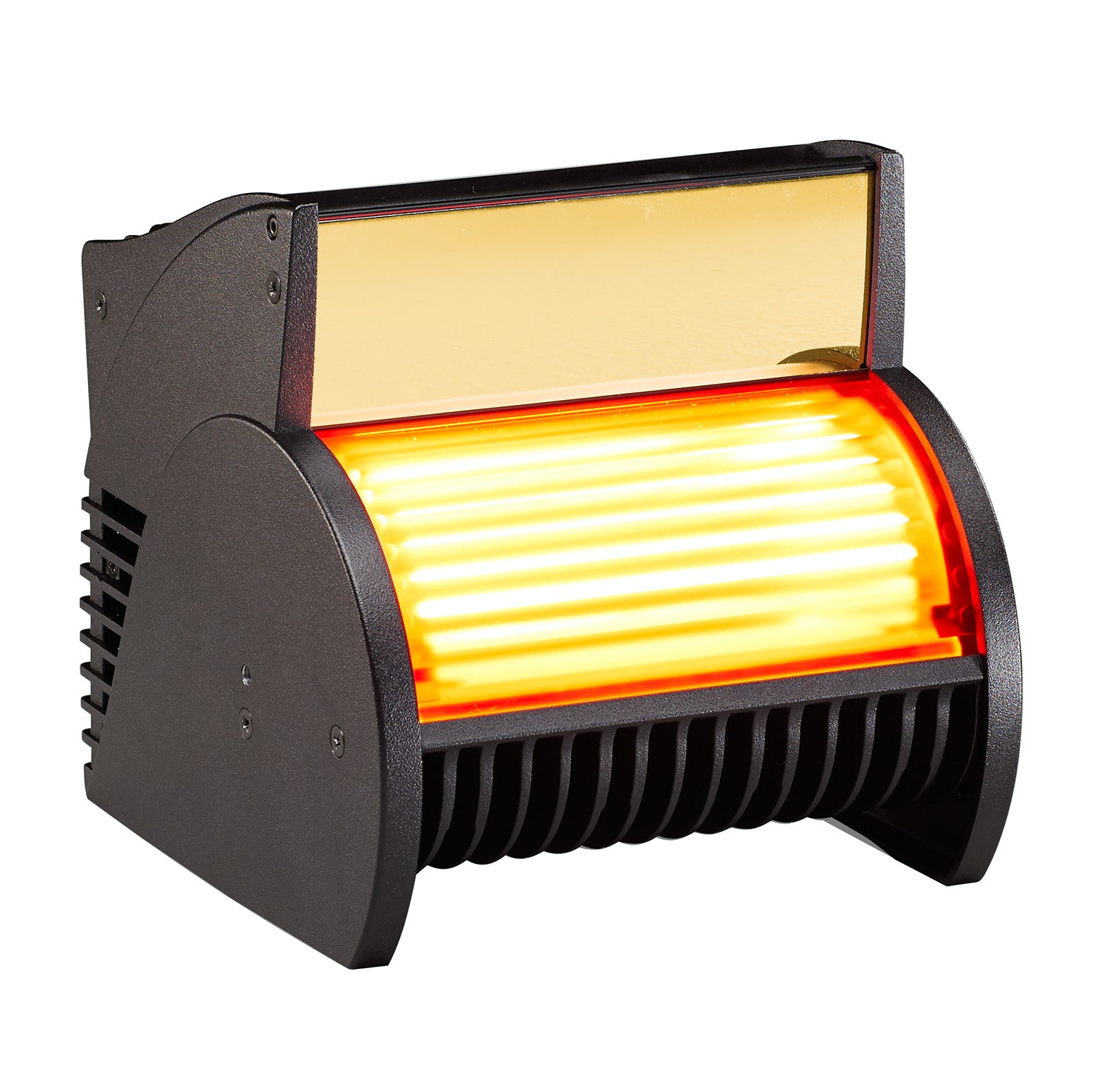

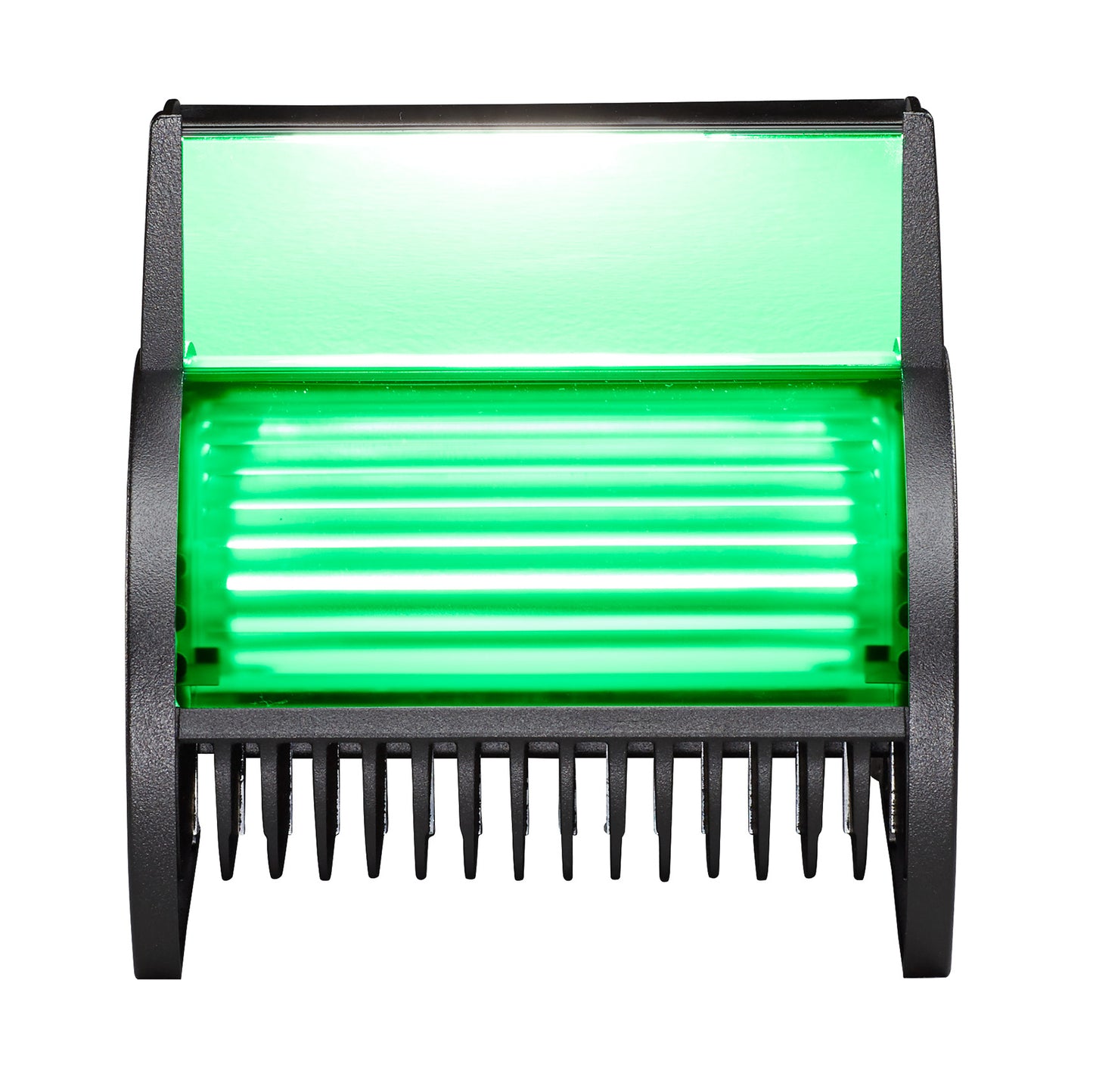

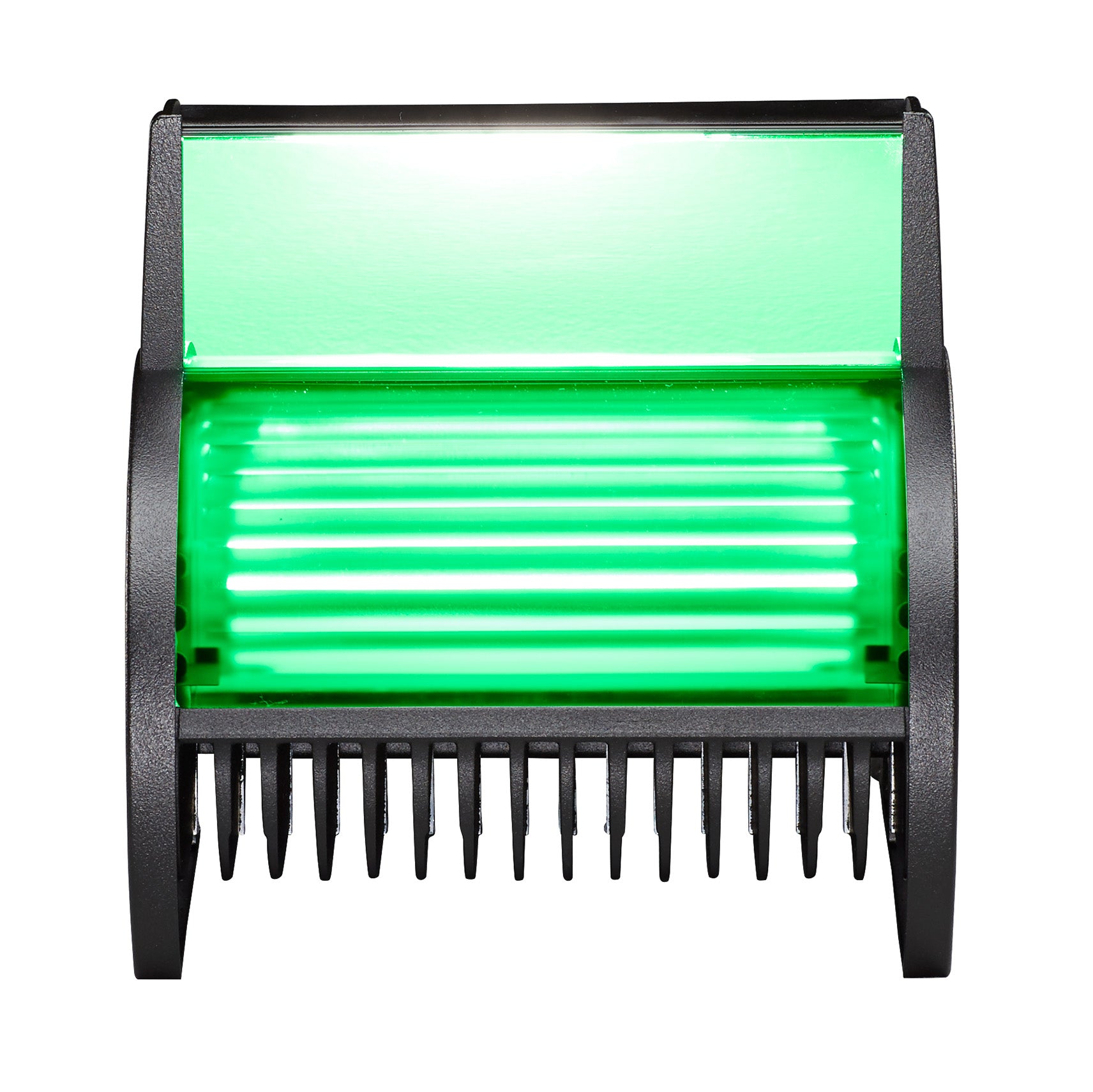

The ColorSource CYC is dedicated to a single purpose: creating beautiful, smooth washes of light on a cyclorama or wall. And it delivers! Its compact, fan-free design features a unique five-color mix of red, green, blue, indigo, and lime, giving an incredible range of colors at an affordable price.
Gone are the days of endless tinkering to get decent lighting on the cyclorama. ColorSource CYC is pre-focused. Simply set the fixture on the deck or hang it level and you’re done!
ColorSource CYC fixtures work as a system to create an even, smooth wash by blending not only with their neighbor but their neighbor’s neighbor.
- Source
- LED details: 42 Lumileds LUXEON® C LEDs
- Max lumens: 4117
- Lumens per watt: 31
- L70 rating (hours to 70% output): >50,000 hours (estimate pending LM84 test data)
- Color
- Colors used: Red, green, blue, indigo and lime
- Color temperature range: Variable
- Calibrated array: Yes
- Red shift: No
- Optical
- Beam angle range: NA
- Gate Size: 80mm
- Aperture size: NA
- Pattern projection: No
- Pattern size: NA
- Pattern size: NA
- Notes: The ColorSource CYC has a built-in accessory for spill control
- Control
- Input method: DMX-512 via 5-pin XLR connector
- Protocols: DMX
- RDM configuration: Yes

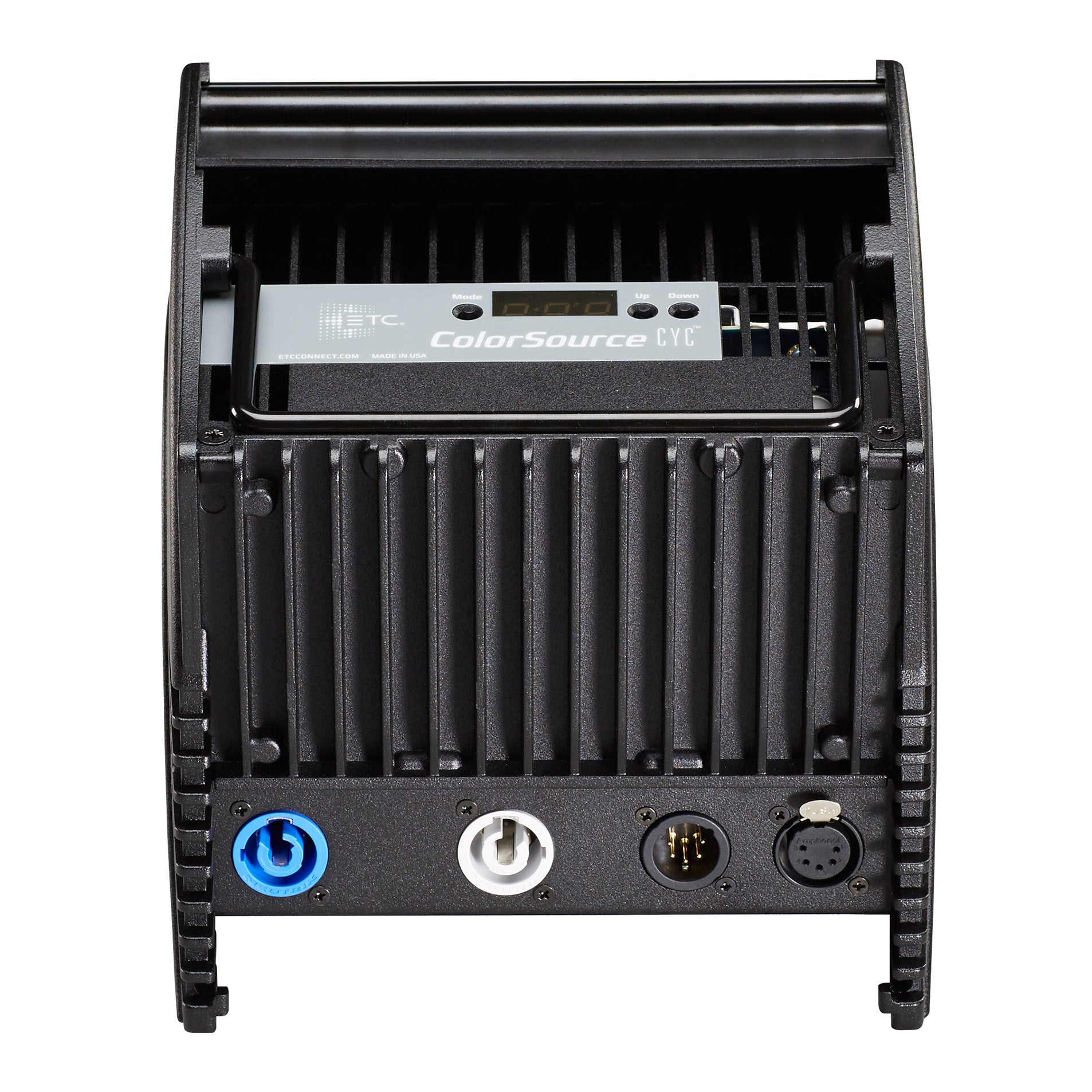

- UI type: 7-segment address display; local level control
- Local control: Yes
- Onboard presets: Yes (12)
- Onboard sequences: Yes (5)
- Onboard effects: No
- Fixture-to-fixture control: Yes
- Electrical
- Voltage range: 100-230 VAC; 50/60Hz

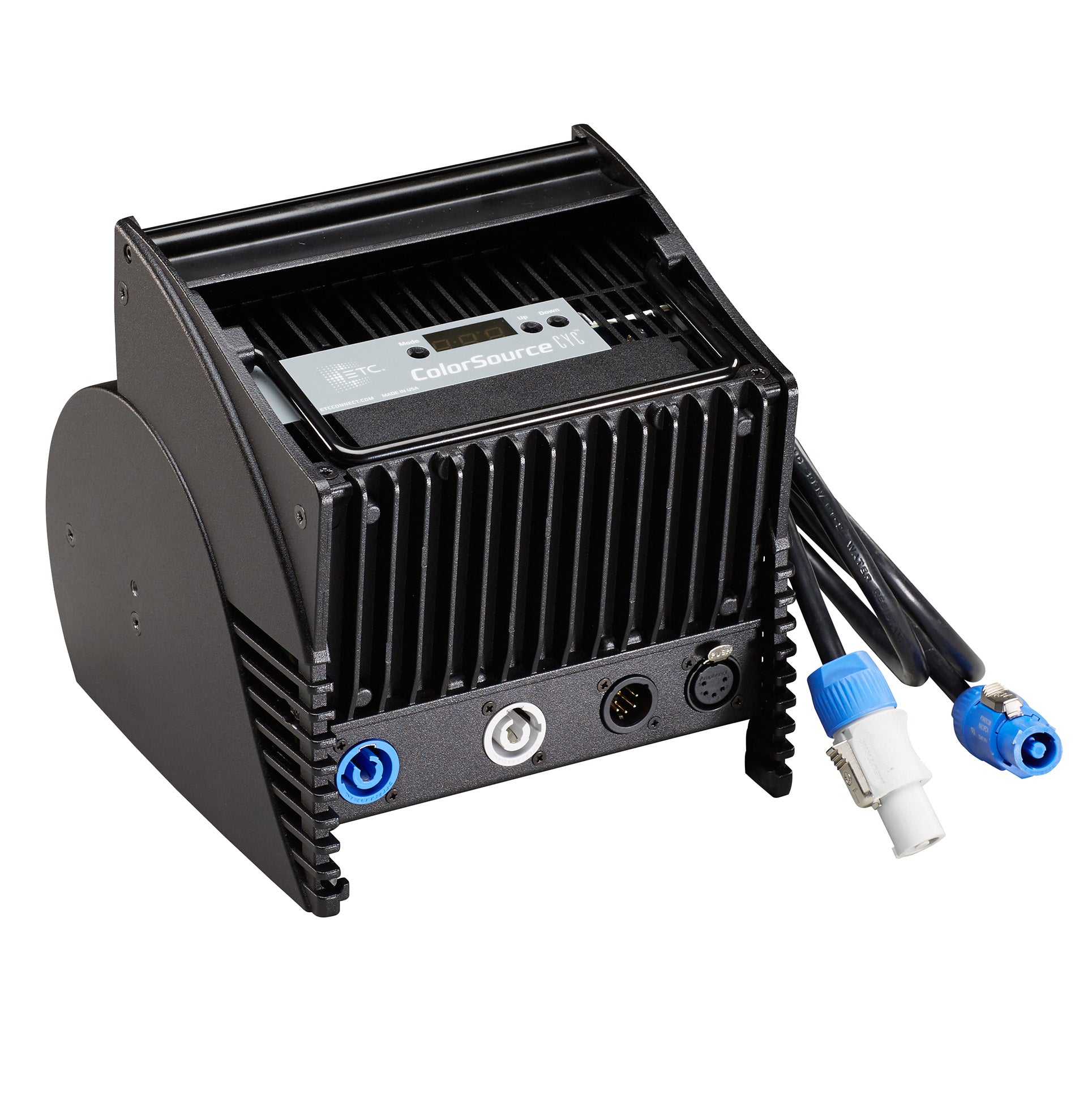

- Input method: powerCON in and thru
- Inrush: 39A (first half-cycle) at 120V; 74A (first half-cycle) at 230V
- Fixtures per circuit: 9 using power thru connector (or 10 per 20 A switched circuit, R20 module or similar)
- Wattage typical: 133W / 1.4W at 120V; 116W / 1.2W at 230V
- Current draw: 1.11A at 120V; 0.59A at 230V
- Thermal
- Ambient operating temp: 0°-40°C (32°-104°F)
- Fan (controllable): No
- Droop compensation: Yes
- dB range: 18.5 dBA average at 1 m
- BTUs/hour: 453
- Physical
- Materials: Die-cast, all metal housing
- Color options: Black, white, silver, or custom color

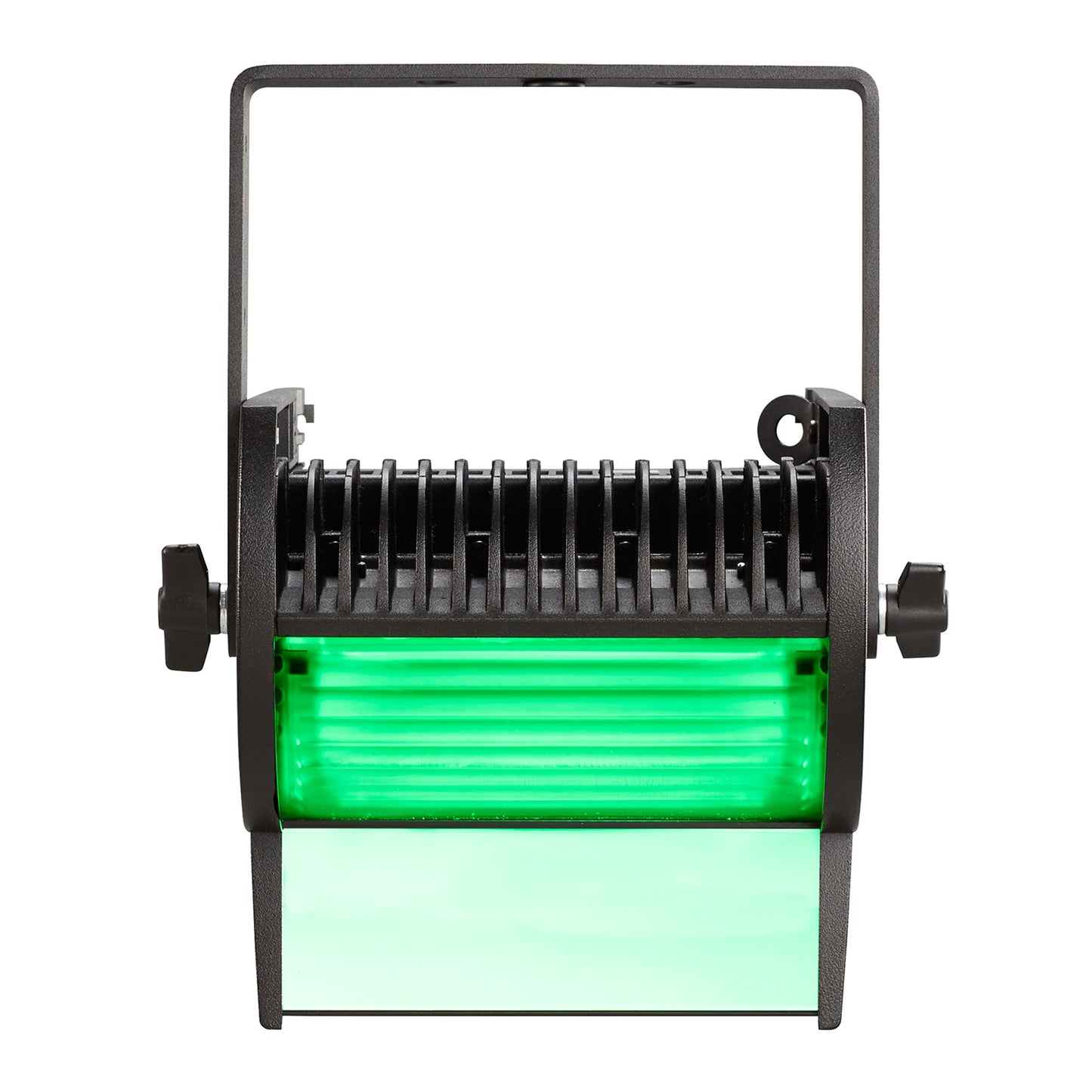

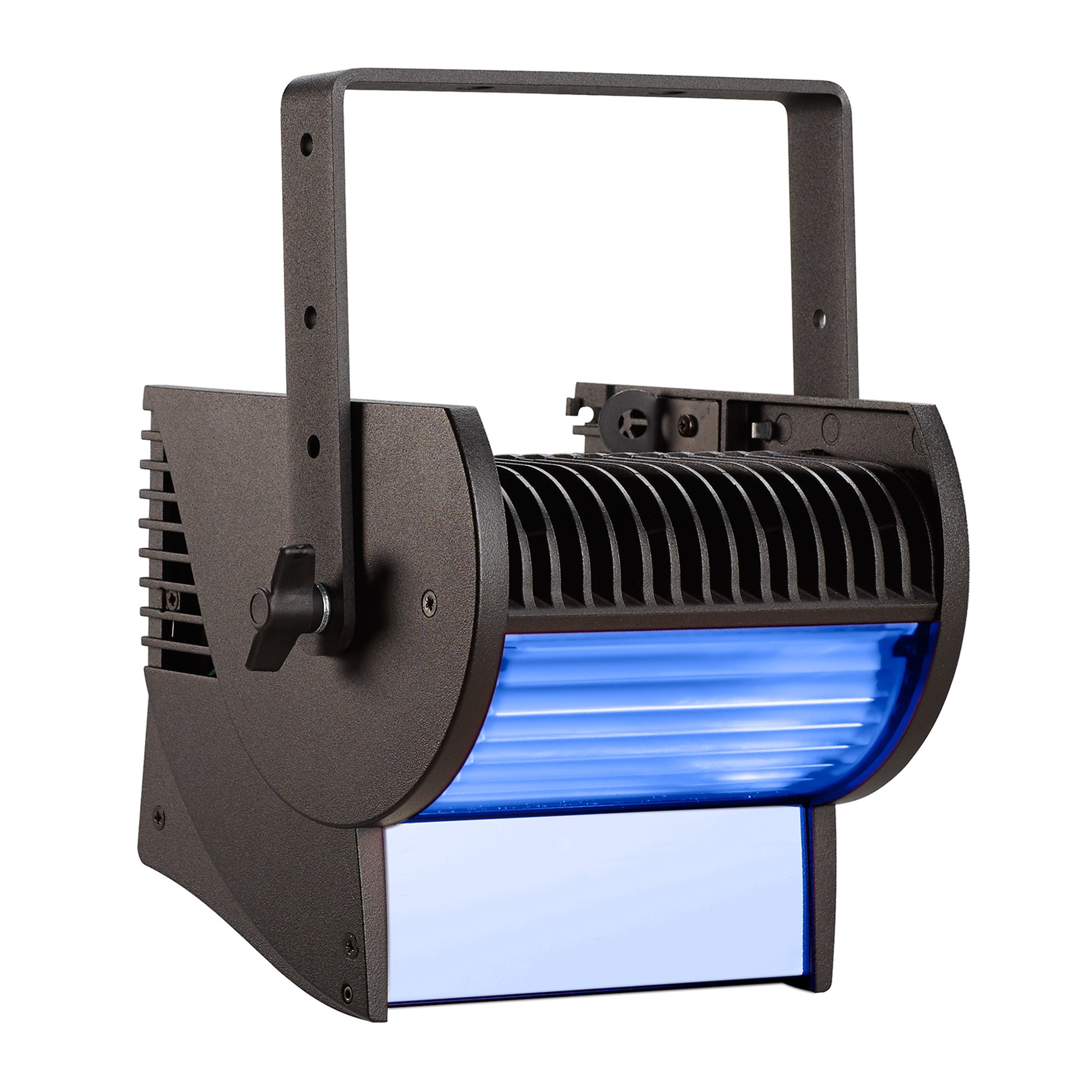

- Mounting options: Yoke and floor
- IP rating: IP20
- Weight: 10.3 lb (4.67 kg); Shipping: 12.9 lbs (5.85kg)
- Warranty
- Fixture: 5 yrs
- LED array: 10 yrs
- Regulatory & Compliance
- Approved regulatory standards: cETLus to UL 1573; CSA C22.2 No. 166; CE Compliant; EAC Compliant
- Dimensions (LxWxH)8.7x10.5x7.83" (221x266x199mm)
