ETC ColorSource PAR jr Deep Blue | Color: Black

ETC ColorSource PAR jr Deep Blue | Color: Black

SoundPro Item: 145324 | Part Number: CSPARJRDB

Regular price $675.00
Regular price $675.00 Sale price $675.00
Your Price Sold out
MSRP: $675.00 | MAP: $675.00

Usually ships in 5-7 business days

  • Homogenized optics
  • Simple user interface with seven-segment display
  • powerCON® in and thru
  • 5-pin XLR
  • LED droop compensation
  • Optically calibrates

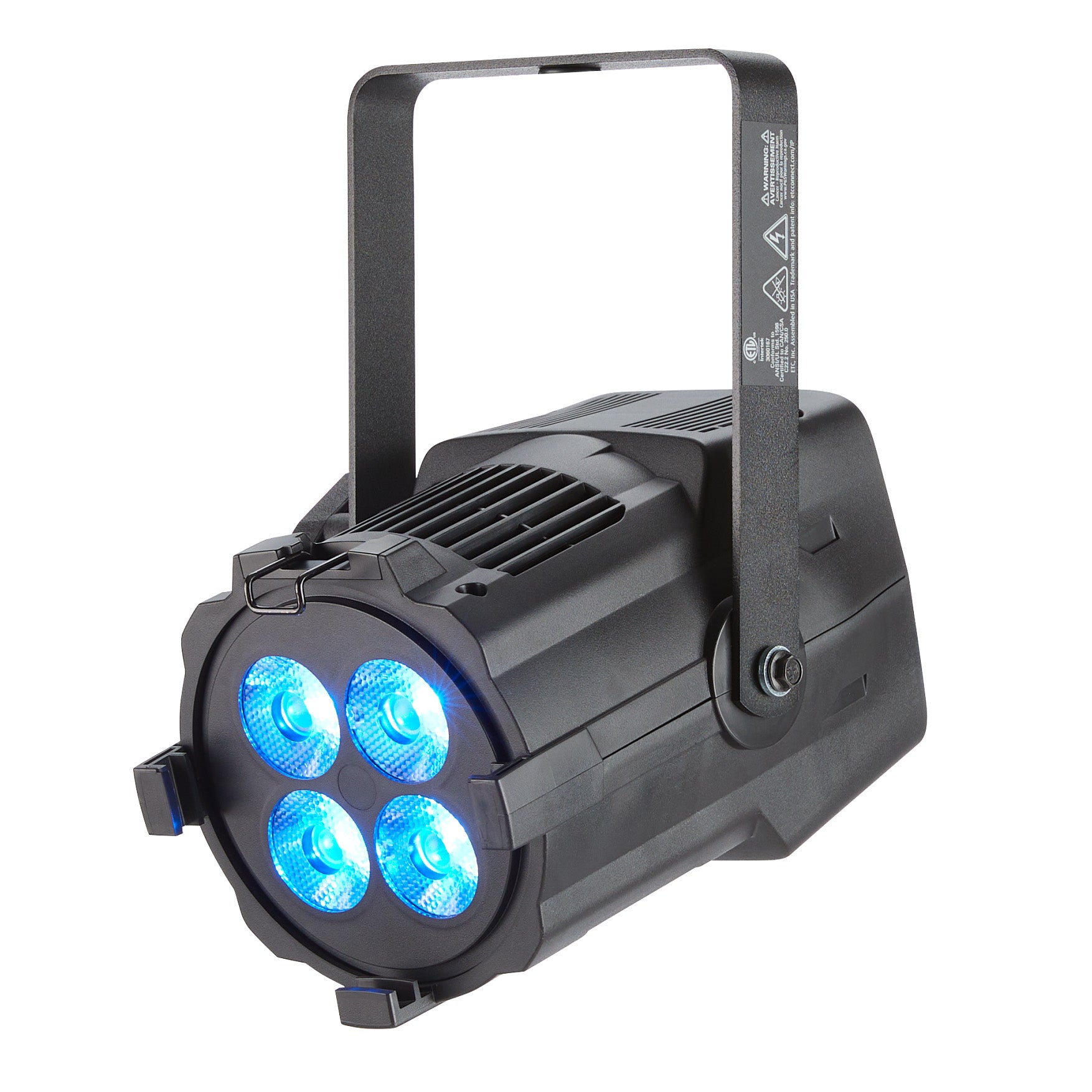

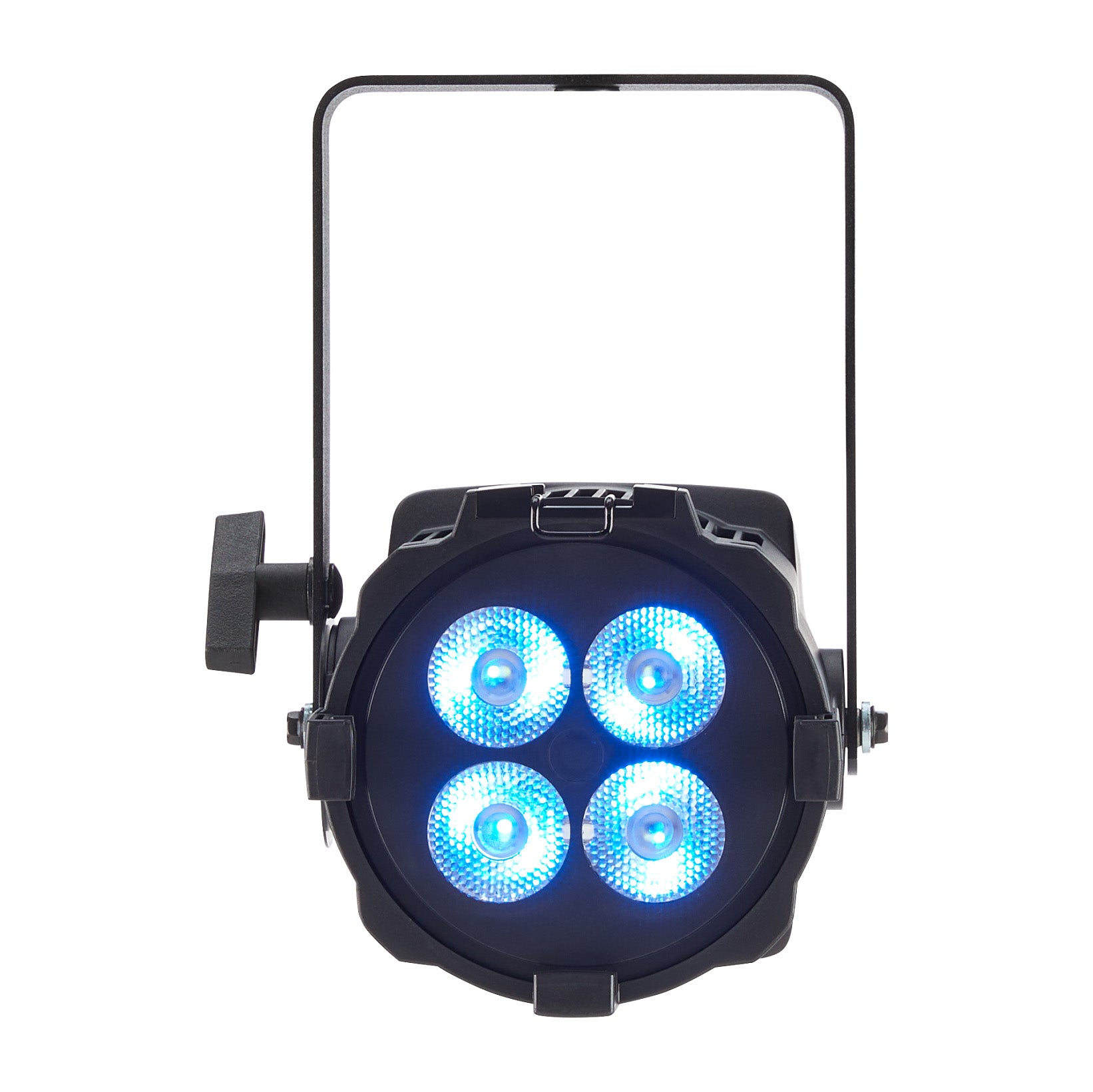

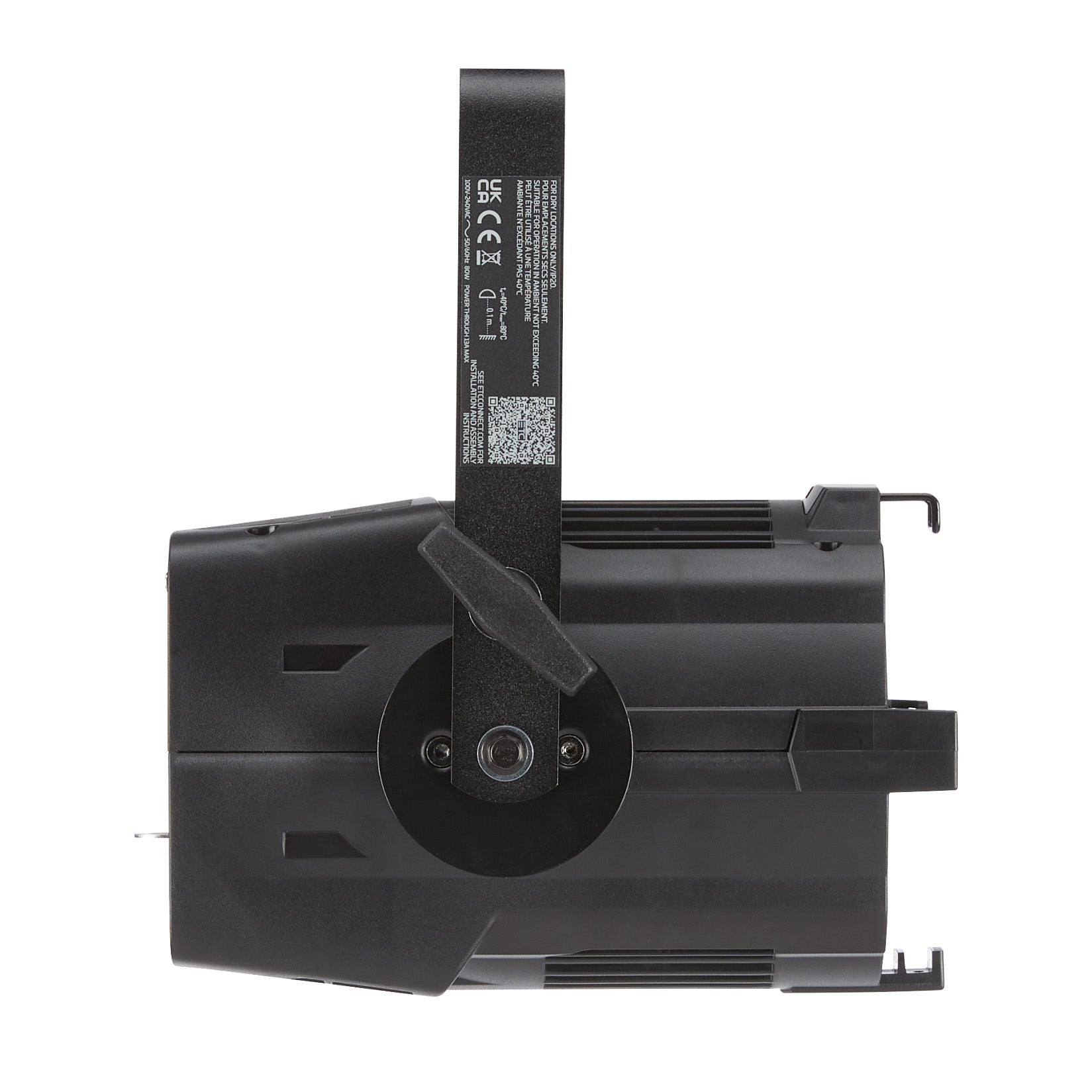

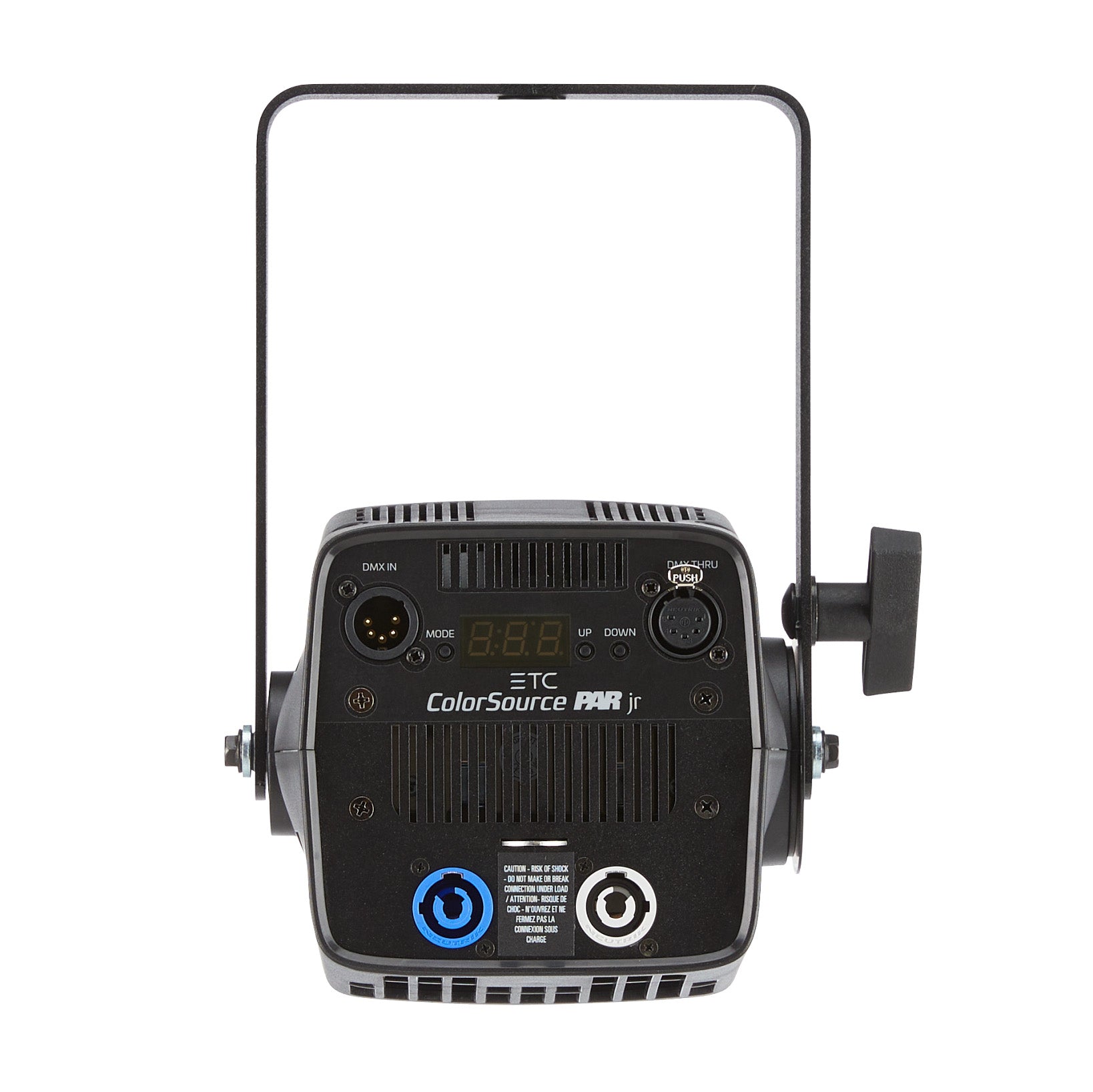

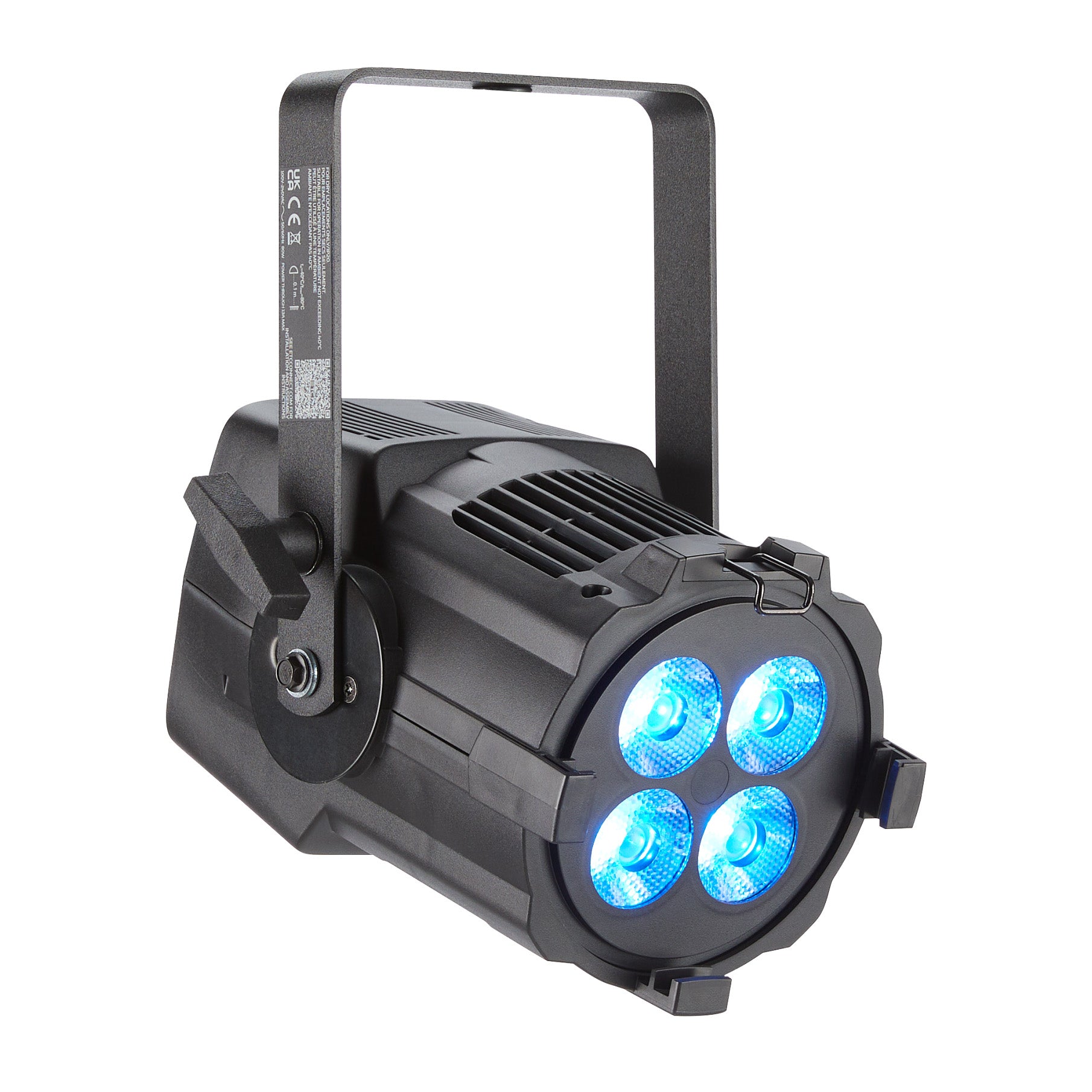

The ColorSource PAR jr Deep Blue light fixture from ETC replaces the standard blue LEDs with a deeper ‘Royal Blue’ (indigo) LED.

Original ColorSource fixtures can reach any color within the dark shaded triangle while the ColorSource Deep Blue fixtures can reach any color within the light shaded triangle. While much of these areas overlap, there is a portion of each range that can only be reached by the respective color arrays.

As its name suggests, ColorSource PAR jr is a compact version of the much-loved ColorSource PAR. Crafted by lighting experts, PAR jr uses a four-color array of red, green, blue and lime to provide bold, bright color and high-quality white light in a surprisingly small formfactor. Don’t let its small size fool you. This fixture shines bright at nearly 2300 lumens! Its light weight and fanless design make it an ideal option for onstage and onset applications that require complete silence.

ColorSource luminaires are factory-calibrated to ensure consistency between the fixtures you buy today, and the fixtures we know you’ll want to buy years from now. LEDs naturally droop and change wavelength as they warm up. ETC fixtures take this into consideration and have built-in thermal management algorithms to ensure that the colors you choose at the beginning of rehearsal are the same colors you see hours later.

View full details
  • Source
    • LED details: 16 Lumileds LUXEON® C
    • Max lumens: 2061
    • Lumens per watt: 28.6
    • L70 rating (hours to 70% output)*: 54,000 hours
  • Color
    • Colors used: Deep Blue: Red, Green, Indigo, Lime
    • Color temperature range: Color mixing
    • Calibrated array: Yes
    • Red shift: No
  • Optical
    • Beam angle range 15.3° (secondary lenses available for multiple beam-spread options)
    • Gate size: N/A
    • Aperture size: 127mm (5")
    • Pattern projection: No
    • Pattern size: N/A
    • Camera flicker control/Hz range: 1.2 kHz (default) and 25 kHz (via RDM)
  • Control
    • Input method: 5-pin XLR
    • Protocols: DMX512/RDM
    • Modes (footprint): 4 modes
    • RDM configuration: Yes
    • UI type: Seven-segment, three-button interface
    • Local control: Yes
    • Onboard presets: Yes (12)
    • Onboard sequences: Yes (5)
    • Onboard effects: No
    • Fixture-to-fixture control: Yes
  • Electrical
    • Voltage range
      • ETL:100-125 VAC 50/60 Hz
      • CE:100-240 VAC 50/60 Hz
    • Input method: AC via Neutrik powerCON®
    • Inrush (first half-cycle)
      • 120V: 14.5A
      • 240V: 28.7A
    • Fixtures per circuit on standard R20 breaker* (All measurements are for 120V, 60 Hz. Results may vary in different regions.)
      • 18 (link up to 17 via Power Thru connector)* (Note: powerCON connector rated for 20 A (120 V / 60 Hz) and 16 A (240 V / 50 Hz)
    • Wattage (typical)
      • 120V: 72W
      • 240V: 72W
    • Current draw
      • 120V: 0.6A
      • 240V: 0.3A
  • Thermal
    • Ambient operating temp: 0°-40°C (32°-104°F)
    • Fan (controllable): No
    • Droop compensation: Yes
    • dB range: Fan-free
    • BTUs/hour (120V): 246
  • Physical
    • Materials: ABS plastic
    • Color options: Black or white
    • Mounting options: Yoke (yoke with floor stand available as an optional accessory
    • IP rating: IP20
    • Weight: 2.54 kg (5.6 lbs)
  • Warranty
    • Fixture: 5 years
    • LED array: 10 years
  • Regulatory and Compliance: Approved regulatory standards
    • cETLus Listed
    • Conforms to UL 1598 Listed
    • Certified to CAN/CSA C22.2 No 250
  • Dimensions (HxWxD)11.08x8.38x9.88" (282x213x251mm)
  • Weight5.6 lbs (2.54kg)
  • Shipping Weight8 lbs (3.63kg)
