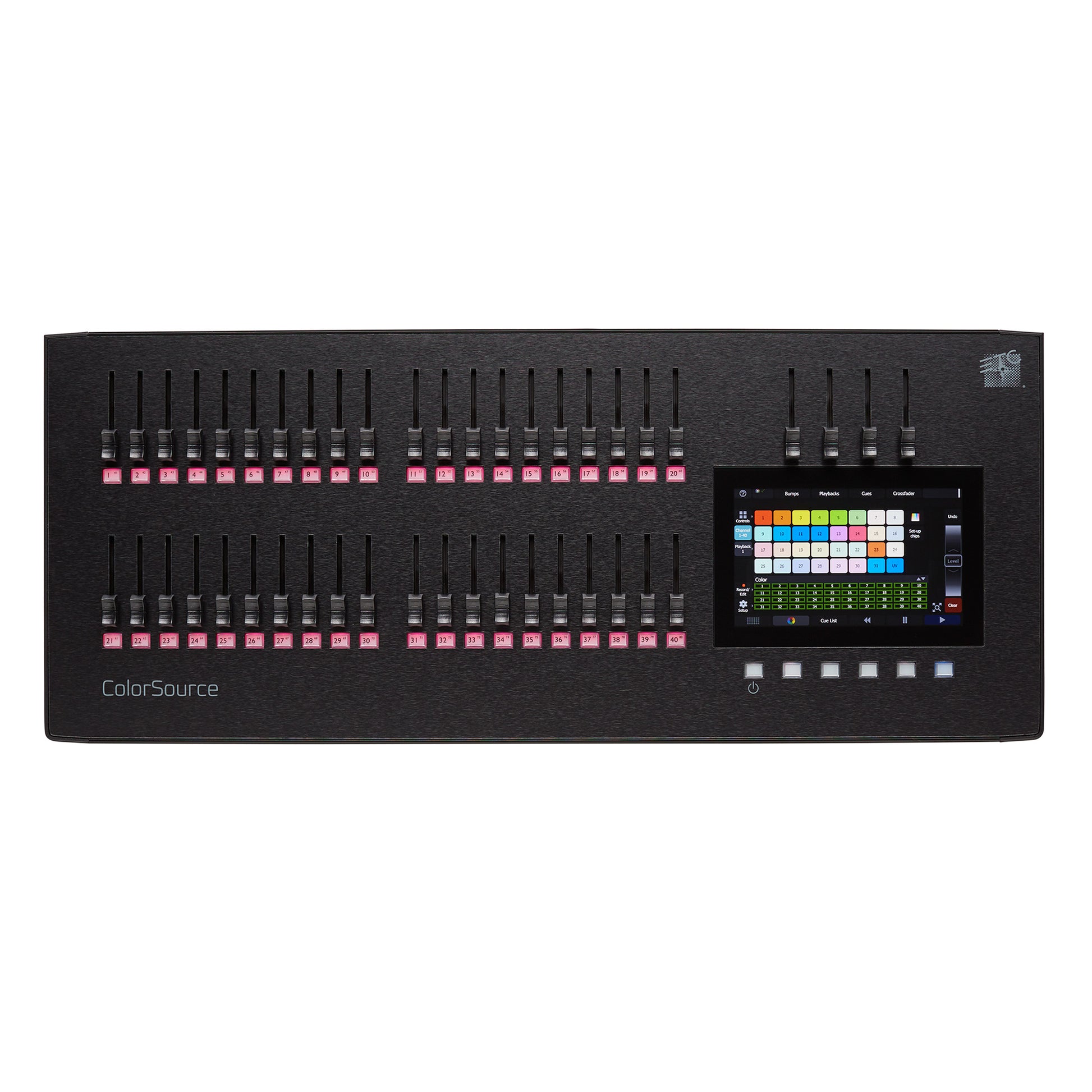

ETC CS40 ColorSource 40 Lighting Console
ETC CS40 ColorSource 40 Lighting Console
SoundPro Item: 127151 | Part Number: CS40
Usually ships in 5-7 business days
- Plug-and-play portable lighting console
- Recognizes intelligent lights in the rig via RDM and auto-populates them in patch
- On-board touchscreen allows fixtures to be dragged into place on a customizable stage map for quick selection and programming
- Faders and touchscreen can be used to control moving lights, mix LED colors, play stored looks and effects
- Play sound and visual media via AV consoles
- 80 channels / multi-parameter devices
- 40 Channel / Playback faders with color indication
- One DMX/RDM port
- One USB port
- 2 GB onboard storage for show files
The affordable, portable ETC CS40 ColorSource 40 Lighting Console specializes in streamlined, plug-and-play setup. The console recognizes intelligent lights in the rig via RDM and auto-populates them in patch, and the on-board touchscreen allows fixtures to be dragged into place on a customizable stage map for quick selection and programming. The faders and touchscreen can be used to control moving lights, mix LED colors, play stored looks and effects and - with the AV consoles -play sound and visual media.
- Mechanical
- One home and five configurable softkey buttons
- Four configurable function faders
- 7” color multi-touch touchscreen
- Playback Controls
- One cue list with 999 cues
- 10 pages of 20 or 40 playbacks (Static memories or sequences)
- Playback Toy for filtered and timed execution of playbacks
- Mulitple bump modes (Flash, Solo, Solo Change, Move/Go)
- Full-history rubberbanding for playbacks
- On-board help system
- Extensive library for controlling moving lights
- Audio Input Type
- 3.5 mm (1/8”) TRS, Stereo, unbalanced
- Line in -10 dBV (316 mV RMS)
- Input Impedance: 29k ohms
- Audio Output Type
- 3.5 mm (1/8”) TRS, Stereo, unbalanced
- Line out -10 dBV (316 mV RMS) at 10k ohms “Line Level”
- Load Impedance : 10k - 200k ohms
- Supported Media File Formats
- Audio: mp3, aac and wav files (44.1 kHz sample rate, 4 GB maximum file size)
- Image: jpg, png, tiff, and bmp files (1280 x 720 maximum resolution)
- Please note: visual output is limited to still images and effects from the VideoToy feature of the ColorSource AV console. Movie files are not supported
- Regulatory and Compliance
- cETLus Listed
- CE Compliant
- Programming Tools
- Color and white pickers
- Reference based Position, Color and Beam palettes
- Innovative touch-based parameter controls
- Auto fixture selection on fader moves
- Virtual Level/Rate wheel
- Customizable Channel display using Stage Map
- Effects (intensity, color, shape, and parameter)
- Fixture Tags for Quick Selects
- 27 Quick Select groupings
- Two independent channels
- Virtual keypad for level entry
- Dimensions (LxWxH)11x26.3x2.36" (279x668x60mm)
- Weight9.55 lbs (4.33kg)
- Shipping Weight13.55 lbs (6.15kg)
